6.5A - Electronic Control Modules

Aston Martin Vanquish (2004) Electronic Control Modules Parts Diagram

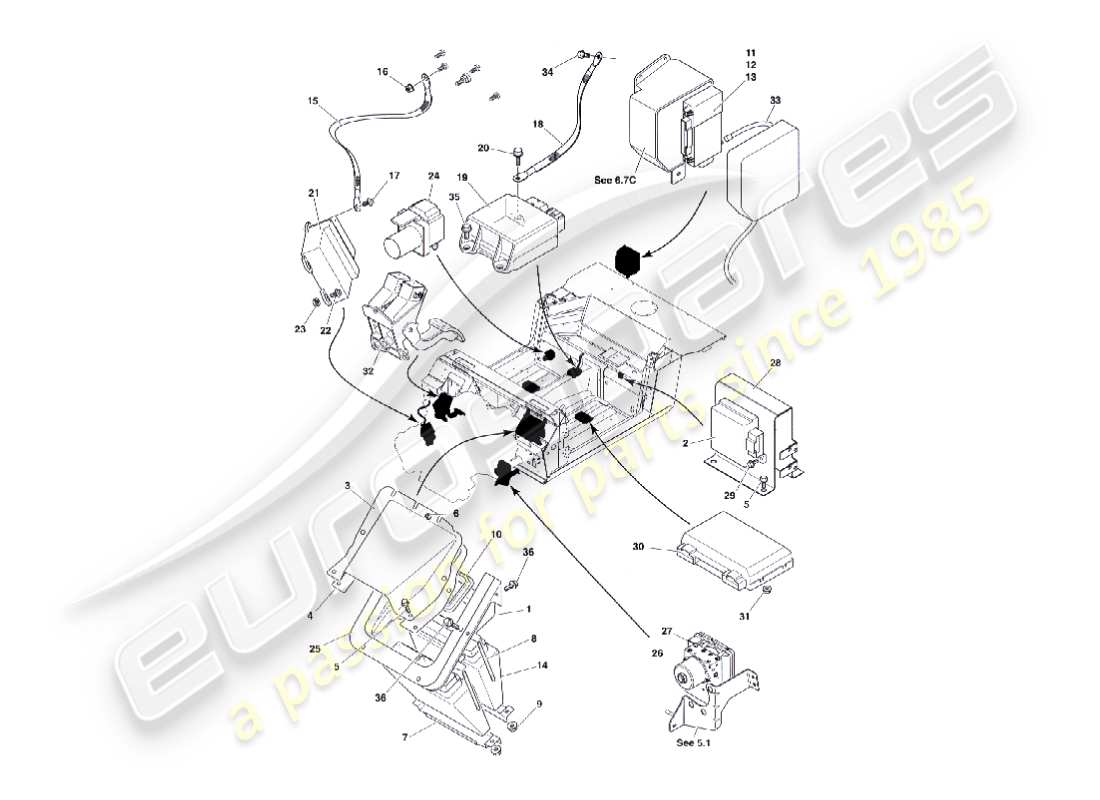

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Key
                                                              Price
                                                              # 1
                                                              MPN: 1R12-391408-AH
                                                              ADAPTOR, PTEC MODULES
                                                              from £239.68
                                                              from £239.68
                                                              ADAPTOR, PTEC MODULES Genuine Aston Martin - New (to order)
                                                              # 2
                                                              MPN: 4S4A-9D372-AA
                                                              MODULE, FUEL PUMP CONTROL
                                                              from £617.81
                                                              from £617.81
                                                              MODULE, FUEL PUMP CONTROL Genuine Aston Martin - New (to order)
                                                              # 3
                                                              MPN: 1R12-383609-AB
                                                              COVER, PTECS
                                                              from £46.90
                                                              from £46.90
                                                              COVER, PTECS Genuine Aston Martin - New (to order)
                                                              # 4
                                                              MPN: 1R12-383585-AB
                                                              GASKET, PTEC COVER
                                                              from £6.20
                                                              from £6.20
                                                              GASKET, PTEC COVER Genuine Aston Martin - New (to order)
                                                              # 6
                                                              MPN: 700114
                                                              NUT, FLG, M5
                                                              RHD
                                                              from £86.01
                                                              from £86.01
                                                              NUT, FLANGED, M5 Genuine Aston Martin - New (to order)
                                                              FRONT HUB SPACER Genuine Ferrari Part - New (to order)
                                                              # 6
                                                              MPN: 700114
                                                              NUT, FLG, M5
                                                              LHD
                                                              from £86.01
                                                              from £86.01
                                                              NUT, FLANGED, M5 Genuine Aston Martin - New (to order)
                                                              FRONT HUB SPACER Genuine Ferrari Part - New (to order)
                                                              # 7
                                                              MPN: 1R12-381429-AB
                                                              SUPPORT CHANNEL, PTEC MODULE
                                                              from £31.00
                                                              from £31.00
                                                              SUPPORT CHANNEL, PTEC MODULE Genuine Aston Martin - New (to order)
                                                              # 8
                                                              MPN: 1R12-381430-AB
                                                              MOUNTING SPINDLE, PTEC MODULE
                                                              from £4.68
                                                              from £4.68
                                                              MOUNTING SPINDLE, PTEC MODULE Genuine Aston Martin - New (to order)
                                                              # 10
                                                              MPN: 1R12-37-10134
                                                              SEAL, OUTER, PTEC
                                                              from £5.42
                                                              from £5.42
                                                              SEAL, OUTER, PTEC Genuine Aston Martin - New (to order)
                                                              # 11
                                                              MPN: 1R12-37-10020
                                                              MODULE, SECURITY AND LOCKING, 315 MHZ
                                                              Up to (V) 501285
                                                              from £514.06
                                                              from £514.06
                                                              MODULE, SECURITY AND LOCKING, 315 MHZ Genuine Aston Martin - New (to order)
                                                              # 11
                                                              MPN: 1R12-37-10436P
                                                              MODULE, SECURITY AND LOCKING, 315 MHZ
                                                              From (V) 501286
                                                              from £421.17
                                                              from £421.17
                                                              MODULE, SECURITY AND LOCKING, 315 MHZ Genuine Aston Martin - New (to order)
                                                              # 12
                                                              MPN: 1R12-37-10021
                                                              Module, security and locking, 315 Mhz low power
                                                              Up to (V) 501285
                                                              from £312.91
                                                              from £312.91
                                                              Module, security and locking, 315 Mhz low power Genuine Aston Martin - New (to order)
                                                              # 12
                                                              MPN: 1R12-37-10437P
                                                              Module, security and locking, 315 Mhz low power
                                                              From (V) 501286
                                                              from £412.91
                                                              from £412.91
                                                              Module, security and locking, 315 Mhz low power Genuine Aston Martin - New (to order)
                                                              # 13
                                                              MPN: 1R12-37-10022
                                                              MODULE, SECURITY AND LOCKING, 433 MHZ
                                                              Up to (V) 501285
                                                              MODULE, SECURITY AND LOCKING, 433 MHZ Genuine Aston Martin - New (to order)
                                                              # 13
                                                              MPN: 1R12-37-10438P
                                                              MODULE, SECURITY AND LOCKING, 433 MHZ
                                                              From (V) 501286
                                                              from £518.46
                                                              from £518.46
                                                              MODULE, SECURITY AND LOCKING, 433 MHZ Genuine Aston Martin - New (to order)
                                                              # 14
                                                              MPN: 091719P
                                                              MODULE, PTEC (PAIR) PROGRAMMED
                                                              from £4,590.01
                                                              from £4,590.01
                                                              MODULE, PTEC (PAIR) PROGRAMMED Genuine Aston Martin - New (to order)
                                                              # 14
                                                              MPN: 091719
                                                              MODULE, PTEC (SINGLE - UNPROGRAMMED)
                                                              from £2,386.54
                                                              from £2,386.54
                                                              MODULE, PTEC (SINGLE - UNPROGRAMMED) Genuine Aston Martin - New (to order)
                                                              # 15
                                                              MPN: 1R12-370529-AD
                                                              BRAID, MDM EARTH
                                                              from £14.65
                                                              from £14.65
                                                              BRAID, MDM EARTH Genuine Aston Martin - New (to order)
                                                              # 16
                                                              MPN: 700983
                                                              NUT, FLG NYLOC, M6
                                                              NUT, FLANGE NYLOC, M6 Genuine Aston Martin - New (to order)
                                                              # 18
                                                              MPN: 1R12-370530-AD
                                                              BRAID
                                                              from £12.68
                                                              from £12.68
                                                              BRAID Genuine Aston Martin - New (to order)
                                                              # 19
                                                              MPN: 1R13-14B321-AC
                                                              SIR MODULE RCM262
                                                              from £197.65
                                                              from £197.65
                                                              SIR MODULE RCM262 Genuine Aston Martin - New (to order)
                                                              # 20
                                                              MPN: 700126
                                                              SCREW, FLG, M6X20
                                                              Sir module attach
                                                              from £1.77
                                                              from £1.77
                                                              SCREW M6X20 HEX FLANGE Genuine Aston Martin - New (to order)
                                                              REAR HUB DX 275LM Genuine Ferrari Part - New (to order)
                                                              # 21
                                                              MPN: 37-85291
                                                              MISFIRE MODULE
                                                              from £255.83
                                                              from £255.83
                                                              MISFIRE MODULE Genuine Aston Martin - New (to order)
                                                              # 22
                                                              MPN: 700159
                                                              SCREW, FLG, M6X20
                                                              SCREW, M6x20 Genuine Aston Martin - New (to order)
                                                              # 23
                                                              MPN: 699697
                                                              NUT, FLG, DURALOCK, M6
                                                              from £1.81
                                                              from £1.81
                                                              M6 DURALOCK FLANGE NUT Genuine Aston Martin - New (to order)
                                                              # 24
                                                              MPN: 1R12-39-10135
                                                              BAROMETRIC PRESSURE SENSOR
                                                              from £51.15
                                                              from £51.15
                                                              BAROMETRIC PRESS SCREW Genuine Aston Martin - New (to order)
                                                              BAROMETRIC PRESS SCREW Genuine Aston Martin - Used In stock
                                                              # 25
                                                              MPN: 1R12-393606-AC
                                                              GASKET, ADAPTOR PTEC MODULES
                                                              from £23.34
                                                              from £23.34
                                                              GASKET, ADAPTOR PTEC MODULES Genuine Aston Martin - New (to order)
                                                              # 26
                                                              MPN: 1R12-90-10106
                                                              MODULATOR, ABS
                                                              from £722.07
                                                              from £722.07
                                                              MODULATOR, ABS Genuine Aston Martin - New (to order)
                                                              # 27
                                                              MPN: 1R12-37-10107
                                                              CONTROL MODULE, ANTI SKID
                                                              CONTROL MODULE, ANTI SKID Genuine Aston Martin - New (to order)
                                                              # 28
                                                              MPN: 1R12-371650-AB
                                                              BRACKET, FUEL PUMP MODULE
                                                              BRACKET, FUEL PUMP MODULE Genuine Aston Martin - New (to order)
                                                              # 29
                                                              MPN: 697636
                                                              SCREW, M5X20
                                                              from £1.46
                                                              from £1.46
                                                              SCREW, M5X20 Genuine Aston Martin - New (to order)
                                                              # 30
                                                              MPN: 1R12-37-10197P
                                                              SEAT MODULE
                                                              from £376.32
                                                              from £376.32
                                                              SEAT MODULE Genuine Aston Martin - New (to order)
                                                              # 30
                                                              MPN: 700132
                                                              SCREW, FLG, M6X10
                                                              BOLT, FLANGE , M6 X 10, MODULE TO BRACKET Genuine Aston Martin - New (to order)
                                                              # 32
                                                              MPN: 1R12-382240-AC
                                                              THROTTLE PEDAL ASSY
                                                              RHD
                                                              from £464.89
                                                              from £464.89
                                                              THROTTLE PEDAL ASSEMBLY Genuine Aston Martin - New (to order)
                                                              # 32
                                                              MPN: 1R12-382239-AD
                                                              THROTTLE PEDAL ASSY
                                                              LHD
                                                              from £439.94
                                                              from £439.94
                                                              THROTTLE PEDAL ASSEMBLY Genuine Aston Martin - New (to order)
                                                              # 33
                                                              MPN: 1R12-37-10037
                                                              LEAD, SECURITY ANTENNA
                                                              from £392.71
                                                              from £392.71
                                                              LEAD, SECURITY ANTENNA Genuine Aston Martin - New (to order)
                                                              # 34
                                                              MPN: 699522
                                                              SCREW, THREAD FORMING, M5X12
                                                              SCREW, THREAD FORMING, M5X12 Genuine Aston Martin - New (to order)
                                                              # 35
                                                              MPN: 700126
                                                              SCREW, FLG, M6X20
                                                              from £1.77
                                                              from £1.77
                                                              SCREW M6X20 HEX FLANGE Genuine Aston Martin - New (to order)
                                                              REAR HUB DX 275LM Genuine Ferrari Part - New (to order)
                                                              # 36
                                                              MPN: 700123
                                                              SCREW, FLG, M8X20
                                                              SCREW, FLANGE , M8X20 Genuine Aston Martin - New (to order)
                                                              Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
