6.7C - Battery & Cables

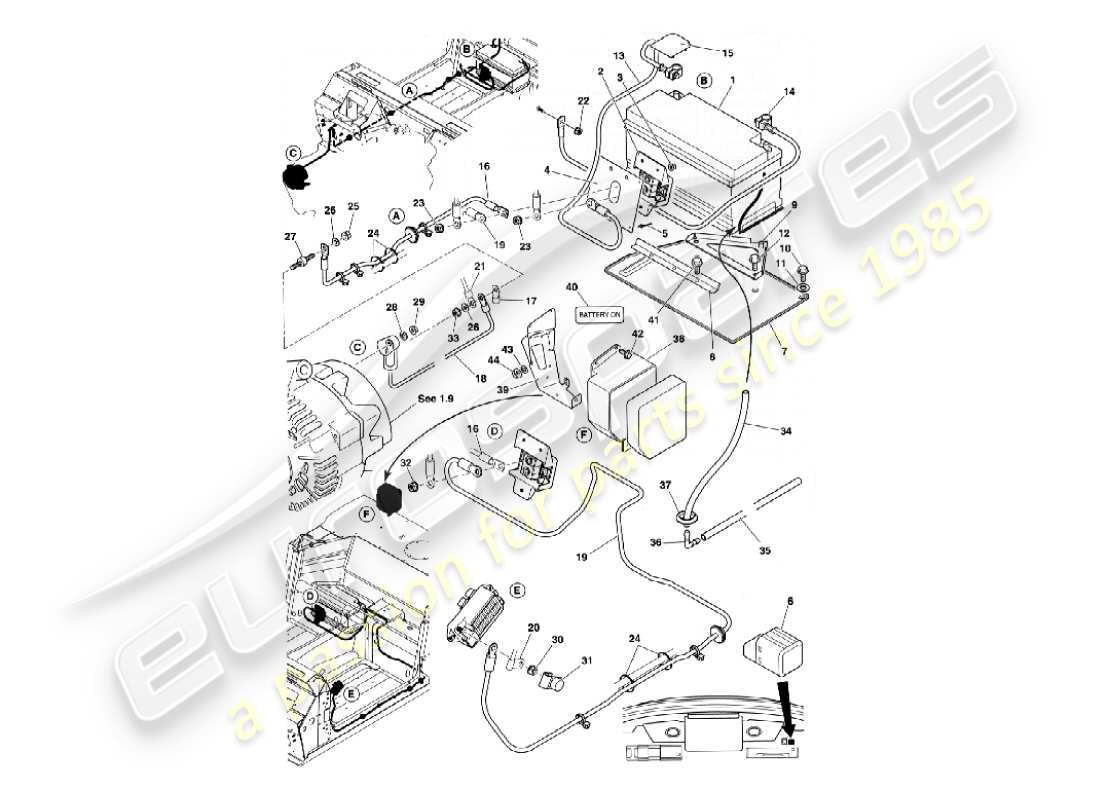

Aston Martin Vanquish (2004) Battery & Cables Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 37-85928
Battery, 90 Ah
from £232.43
from £232.43
# 2
MPN: 1R12-370397-AE
SWITCH, BATTERY DISCONNECT
from £309.67
from £309.67
# 3
MPN: 700114
NUT, FLG, M5
from £86.01
from £86.01
# 4
MPN: 1R12-372690-AB
INSULATOR, BATTERY DISCONNECT SWITCH
from £9.98
from £9.98
# 5
MPN: 692205
POP RIVET, 1/8 X 3/8
from £0.47
from £0.47
# 5
MPN: 696680
TAPE, SELF ADHESIVE
Alternative to item 5
from £79.26
from £79.26
# 6
MPN: 1R12-373789-AA
REMOTE BATTERY DISCONNECT SWITCH
from £187.95
from £187.95
# 7
MPN: 1R12-370408-AA
TRAY ASSY, BATTERY
# 8
MPN: 1R12-371116-AB
BATTERY CLAMP, FRONT
from £69.70
from £69.70
# 9
MPN: 1R12-375077-AB
BATTERY CLAMP, REAR
from £58.66
from £58.66
# 10
MPN: 700126
SCREW, FLG, M6X20
from £1.77
from £1.77
# 11
MPN: 694567
WASHER, M6X18
from £0.47
from £0.47
# 12
MPN: 699849
SCREW, FLG, M8X30
# 13
MPN: 1R12-370401-AD
Cable, battery positive, battery to rear junction block
from £52.96
from £52.96
# 14
MPN: 1R12-370402-AE
CABLE, BATTERY NEGATIVE
from £33.39
from £33.39
# -
-
HEAT PROOF TIE
Negative cable attach
# -
-
CABLE TIE
Negative cable attach
# 15
MPN: 37-81848
COVER, BATTERY TERMINAL
from £1.21
from £1.21
# 16
MPN: 1R12-370403-AD
CABLE POSITIVE, REAR JUNCTION BLOCK TO BULKHEAD STUD
from £53.90
from £53.90
# 17
MPN: 1R12-370193-AD
CABLE ASSY, BULKHEAD STUD TO STARTER
# 18
MPN: 1R12-370404-AD
CABLE ASSY, BULKHEAD STUD TO ALTERNATOR
from £49.21
from £49.21
# 19
MPN: 1R12-370407-AD
Cable, rear junction box to LH facia fuse box
from £40.52
from £40.52
# 20
MPN: 1R12-370408-AE
Cable, LH facia fuse box to RH facia fuse box
RHD
from £55.96
from £55.96
# 20
MPN: 1R12-372740-AD
Cable, LH facia fuse box to RH facia fuse box
LHD
from £31.65
from £31.65
# 21
MPN: 1R12-371719-AA
CABLE, BULKHEAD TO JUMP START TERMINAL
# 22
MPN: 702429
NUT, FLG NYLOC, M6
from £0.47
from £0.47
# 23
MPN: 700117
NUT, M8
# 24
MPN: 699209
TIE WRAP
from £0.56
from £0.56
# 25
-
NUT, M8
# 26
-
WASHER, M8
# 27
MPN: 37-81863
TERMINAL POST ASSY
from £12.19
from £12.19
# 28
MPN: 697164
WASHER, M8
from £0.47
from £0.47
# 29
MPN: 697418
NUT, M8
from £0.47
from £0.47
# 30
MPN: 700117
NUT, M8
# 31
MPN: 37-85236
FLAG PROTECTOR
from £3.42
from £3.42
# 32
MPN: 697418
NUT, M8
from £0.47
from £0.47
# 33
-
NUT, M8
# 33
MPN: 37-81849
TUBE, BATTERY VENT
from £0.47
from £0.47
# 34
MPN: 1R12-372635-AA
BATTERY VENT TUBE, 240MM
from £0.54
from £0.54
# 35
MPN: 1R12-372636-AA
BATTERY VENT TUBE, 390MM
from £2.62
from £2.62
# 36
MPN: 699510
ELBOW, 90
from £9.27
from £9.27
# 37
MPN: 37-81850
GROMMET
from £6.53
from £6.53
# 38
MPN: 1R12-37-10036
CARRIER BOX, ELECTRICAL
from £70.86
from £70.86
# 39
MPN: 1R12-371118-AD
BRACKET, ELECTRICAL CARRIER
from £79.89
from £79.89
# -
-
EDGE PROTECTION STRIP, (169MM)
# 39
MPN: 697398
TIE STRAP, RELEASABLE
Alternator cable to tower support
from £0.84
from £0.84
# 40
MPN: 97-81846
LABEL, BATTERY WARNING
# 41
MPN: 699849
SCREW, FLG, M8X30
# -
-
P CLIP
# -
-
SCREW, FLG, M6X16
2 LHD
# -
-
TIE STRAP
# 42
MPN: 700159
SCREW, FLG, M6X20
# 43
MPN: 694567
WASHER, M6
from £0.47
from £0.47
# 44
MPN: 697820
NUT, FLG, M6
# -
-
EARTH STRAP, EXHAUST TO BELL HOUSING, RH
# -
-
EARTH STRAP, EXHAUST TO BELL HOUSING, LH
