7.2B - Body Fittings

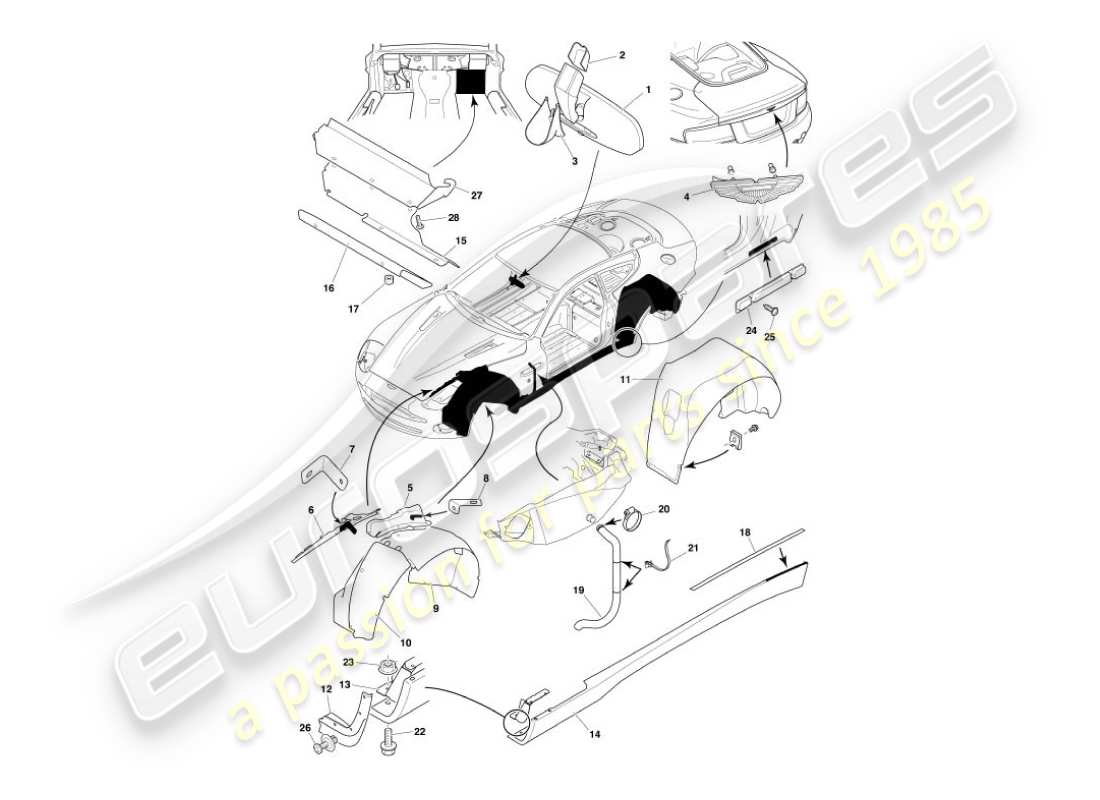

Aston Martin Vanquish (2004) Body Fittings Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 1R12-80-10150
REAR VIEW MIRROR, AHL
from £616.27
from £616.27
# -
-
KEYCARD, INTERIOR REAR VIEW MIRROR
LABEL
# -
-
RAIN SENSOR
# 2
MPN: 1R12-80-10152
BRACKET, COVER
from £15.87
from £15.87
# 3
MPN: 1R12-80-10151
COVER, RAIN SENSOR
from £7.06
from £7.06
# 4
MPN: 78-81469
BADGE ASSY, Aston Martin
Up to (V) 501285
from £179.72
from £179.72
# 4
MPN: 4G43-407A74-AB
BADGE ASSY, Aston Martin
From (V) 501286
# 4
MPN: 5R13-001B40-AA
BADGE ASSY, VANQUISH, DECK LID
Vanquish S From (V) 501506
# 4
MPN: 5R13-001B40-BA
BADGE VANQUISH
Vanquish S From (V) 501506
from £119.96
from £119.96
# 4
MPN: 5R13-001B40-CA
BADGE S
Vanquish S From (V) 501506
from £40.59
from £40.59
# 5
MPN: 1R12-632226-AD
PANEL, WISHBONE COVER FRONT, RH
from £177.28
from £177.28
# 5
MPN: 1R12-632227-AD
PANEL, WISHBONE COVER FRONT, LH
from £186.15
from £186.15
# 5
MPN: 1R12-634004-ADP
PANEL, UNDER HOOD COSMETIC COVER, RH
from £350.54
from £350.54
# 5
MPN: 1R12-634005-ADP
PANEL, UNDER HOOD COSMETIC COVER, LH
from £350.54
from £350.54
# 6
MPN: 699305
SCREW, M6X20 SKT BTN HD
Under hood cosmetic covers attach
from £0.47
from £0.47
# 7
MPN: 1R12-634006-AB
BRACKET, WISHBONE COVER, APRON, RH
from £18.95
from £18.95
# 7
MPN: 1R12-634007-AB
BRACKET, WISHBONE COVER, APRON, LH
from £9.43
from £9.43
# 7
MPN: 1R12-634008-AB
BRACKET, WISHBONE COVER, RAIL, RH
from £9.63
from £9.63
# 7
MPN: 1R12-634009-AB
BRACKET, WISHBONE COVER, RAIL, LH
from £9.43
from £9.43
# 8
MPN: 1R12-780178-AH
Full front wheelarch liner, RH
from £250.30
from £250.30
# 8
MPN: 1R12-780177-AH
Full front wheelarch liner, LH
from £250.30
from £250.30
# 9
MPN: 1R12-781976-AD
FRONT WHEELHOUSE COVER, RH
# 9
MPN: 5R13-166562-BA
FRONT WHEELHOUSE COVER, RH
Vanquish S From (V) 501506
from £250.30
from £250.30
# 10
MPN: 1R12-781977-AD
FRONT WHEELHOUSE COVER, LH
# 10
MPN: 5R13-166563-BA
FRONT WHEELHOUSE COVER, LH
Vanquish S From (V) 501506
from £250.30
from £250.30
# 10
MPN: 1R12-780884-AE
Full rear wheelarch liner, RH
from £361.58
from £361.58
# 10
MPN: 1R12-780885-AE
Full rear wheelarch liner, LH
from £361.58
from £361.58
# 11
MPN: 699294
SCRIVET, M8
# -
-
SCREW, M6X14 PAN
# -
-
WASHER, PLAIN, 6.4X17
# -
-
SCREW, FLG, NO.10X19
# -
-
WASHER, M6, LARGE OD
# -
-
NUT, SPIRE
# -
-
SCREW, FLG, NO 8X13
# 12
MPN: 1R12-830144-AC
MUDGUARD FRONT, RH
from £103.93
from £103.93
# 12
MPN: 1R12-830145-AC
MUDGUARD FRONT, LH
from £103.93
from £103.93
# -
-
SCRIVET, 8MM
# 13
MPN: 1R12-631204-AD
BRACKET, MUDGUARD, RH
# 13
MPN: 1R12-631205-AD
BRACKET, MUDGUARD, LH
# 14
MPN: 1R12-830140-AF
MOULDING ASSY, BODY ROCKER PANEL, RH (SILL)
from £520.74
from £520.74
# 14
MPN: 1R12-830141-AF
MOULDING ASSY, BODY ROCKER PANEL, LH (SILL)
from £578.61
from £578.61
# -
-
FASTENER, EDGE PANEL
# 15
MPN: 1R12-803595-AE
PANEL, FOOTWELL, LH
RHD
from £74.46
from £74.46
# 15
MPN: 1R12-803594-AE
PANEL, FOOTWELL, RH
LHD
from £74.46
from £74.46
# 16
MPN: 1R12-803597-AE
PANEL, HEELREST, LH
LHD
from £27.06
from £27.06
# 16
MPN: 1R12-803596-AE
PANEL, HEELREST, RH
RHD
from £27.06
from £27.06
# 17
MPN: 1R12-803598-AA
SPACER, HEELREST
from £1.29
from £1.29
# 18
MPN: 1R12-723544-AC
SPACER, ROCKER TO REAR QUARTER, RH
from £5.15
from £5.15
# 18
MPN: 1R12-723545-AC
SPACER, ROCKER TO REAR QUARTER, LH
# 19
MPN: 1R12-632220-AE
DRAIN TUBE, PLENUM OUTER
from £41.19
from £41.19
# 20
MPN: 697168
CLIP, HOSE, WORM DRIVE
from £2.04
from £2.04
# 21
MPN: 700178
TIE WRAP
from £0.47
from £0.47
# 22
MPN: 700250
BOLT, FLG, M6X16
# 23
MPN: 697781
NUT, FLG, M6
from £0.47
from £0.47
# 24
MPN: 1R12-633380-AA
BRACKET, SILL TO BODYSIDE, RH
from £73.76
from £73.76
# 24
MPN: 1R12-633381-AA
BRACKET, SILL TO BODYSIDE, LH
from £69.58
from £69.58
# 25
MPN: 700100
SCREW, M4X12 PAN
from £0.47
from £0.47
# 26
MPN: 1R12-642790-AA
SCRIVET
from £0.47
from £0.47
# 27
MPN: 1R12-804151-AA
SUPPORT BEAM FOOTWELL PLATE
RHD
# 27
MPN: 1R12-804150-AA
SUPPORT BEAM FOOTWELL PLATE
LHD
# 28
MPN: 700608
SCREW, FLG, M5X12
# -
-
BOLT, FLG, M6X10
Blanking rivnut holes in tub
# -
-
GASKET MOULDING, HARNESS COVER, RH
A post
# -
-
GASKET MOULDING, HARNESS COVER, LH
A post
