aston martin vanquish (2006) exhaust system parts diagram

2.7 - Exhaust System

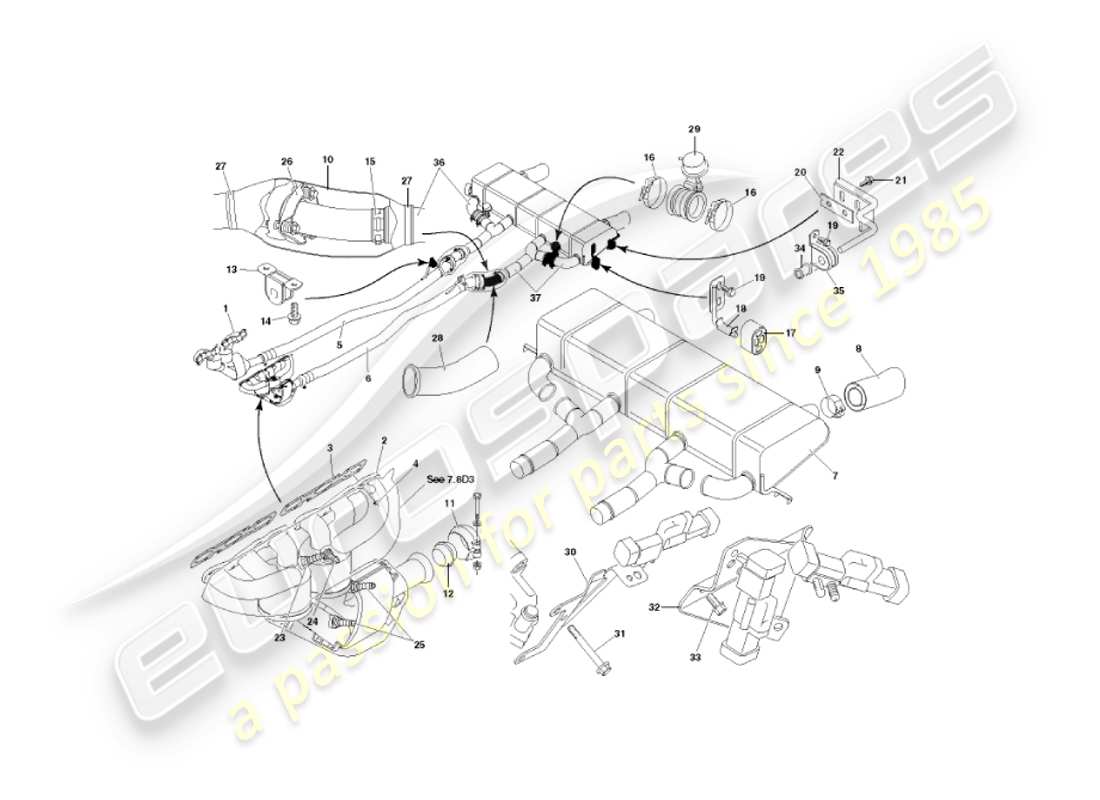

Aston Martin Vanquish (2006) Exhaust System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                          #
                                                          Part number
                                                          Description
                                                          Key
                                                          Price
                                                          # 1
                                                          MPN: 1R12-35-10172
                                                          EXHAUST MANIFOLD ASSY, LH
                                                          EXHAUST MANIFOLD ASSEMBLY, LH Genuine Aston Martin - New (to order)
                                                          # 1
                                                          MPN: 5R13-5G232-AA
                                                          EXHAUST MANIFOLD ASSY, LH
                                                          Vanquish S From (V) 501506
                                                          EXHAUST MANIFOLD ASSEMBLY, LH Genuine Aston Martin - New (to order)
                                                          # 2
                                                          MPN: 1R12-35-10171
                                                          EXHAUST MANIFOLD ASSY, RH
                                                          EXHAUST MANIFOLD ASSEMBLY, RH Genuine Aston Martin - New (to order)
                                                          # 2
                                                          MPN: 5R13-5G236-AA
                                                          EXHAUST MANIFOLD ASSY, RH
                                                          Vanquish S From (V) 501506
                                                          from £3,667.82
                                                          from £3,667.82
                                                          EXHAUST MANIFOLD ASSEMBLY, RH Genuine Aston Martin - New (to order)
                                                          # 3
                                                          MPN: 35-85331
                                                          GASKET, EXHAUST MANIFOLD
                                                          GASKET, EXHAUST MANIFOLD Genuine Aston Martin - New (to order)
                                                          # 3
                                                          MPN: 4G43-35-10003
                                                          GASKET, EXHAUST MANIFOLD
                                                          Vanquish S From (V) 501506
                                                          from £29.49
                                                          from £29.49
                                                          GASKET, EXHAUST MANIFOLD Genuine Aston Martin - New (to order)
                                                          # 4
                                                          MPN: 697775
                                                          NUT, FLG, M8
                                                          Exhaust manifolds to cylinder heads
                                                          Supersession
                                                          Supersession
                                                          Genuine Aston Martin (no longer available to order)
                                                          # -
                                                          -
                                                          EXHAUST SYSTEM ASSY
                                                          # -
                                                          -
                                                          EXHAUST SYSTEM ASSY
                                                          Vanquish S From (V) 501506
                                                          # 5
                                                          MPN: 1R12-352558-AB
                                                          PIPE, EXHAUST, INTERMEDIATE, RH
                                                          from £1,730.18
                                                          from £1,730.18
                                                          PIPE, EXHAUST, INTERMEDIATE, RH Genuine Aston Martin - New (to order)
                                                          # 5
                                                          MPN: 1R12-352559-AB
                                                          PIPE, EXHAUST, INTERMEDIATE, LH
                                                          from £1,730.18
                                                          from £1,730.18
                                                          PIPE, EXHAUST, INTERMEDIATE, LH Genuine Aston Martin - New (to order)
                                                          # 6
                                                          MPN: 1R12-35-10289
                                                          MUFFLER ASSY, EXHAUST, REAR
                                                          Comprises items, 7, 16, and 29
                                                          MUFFLER ASSEMBLY, EXHAUST, REAR Genuine Aston Martin - New (to order)
                                                          # 7
                                                          MPN: 1R12-352560-AB
                                                          MUFFLER, EXHAUST, REAR
                                                          Up to (V) 501285
                                                          MUFFLER, EXHAUST, REAR Genuine Aston Martin - New (to order)
                                                          # 7
                                                          MPN: 4R12-352560-AA
                                                          MUFFLER, EXHAUST, REAR
                                                          From (V) 501286
                                                          MUFFLER, EXHAUST, REAR Genuine Aston Martin - New (to order)
                                                          # 7
                                                          MPN: 5R13-352560-AA
                                                          MUFFLER, EXHAUST, REAR
                                                          Vanquish S From (V) 501506
                                                          from £6,180.73
                                                          from £6,180.73
                                                          MUFFLER, EXHAUST, REAR Genuine Aston Martin - New (to order)
                                                          # 8
                                                          MPN: 1R12-353922-AB
                                                          TAIL PIPE ASSY
                                                          from £385.81
                                                          from £385.81
                                                          TAIL PIPE ASSEMBLY Genuine Aston Martin - New (to order)
                                                          # 9
                                                          MPN: 1R12-353270-AA
                                                          BAND CLAMP, TAIL PIPE
                                                          from £19.28
                                                          from £19.28
                                                          BAND CLAMP, TAIL PIPE Genuine Aston Martin - New (to order)
                                                          # 10
                                                          MPN: 1R12-354312-AA
                                                          INSULATION SOCK, DECOUPLER, RH
                                                          RHD
                                                          from £210.82
                                                          from £210.82
                                                          INSULATION SOCK, DECOUPLER, RH Genuine Aston Martin - New (to order)
                                                          # 10
                                                          MPN: 1R12-354313-AA
                                                          INSULATION SOCK, DECOUPLER, LH
                                                          LHD
                                                          from £210.82
                                                          from £210.82
                                                          INSULATION SOCK, DECOUPLER, LH Genuine Aston Martin - New (to order)
                                                          # 10
                                                          MPN: 1R12-352561-AB
                                                          FITTING KIT, EXHAUST
                                                          from £791.23
                                                          from £791.23
                                                          FITTING KIT, EXHAUST Genuine Aston Martin - New (to order)
                                                          # 11
                                                          MPN: 1R12-352759-AB
                                                          CLAMP ASSY, SPHERICAL
                                                          CLAMP ASSEMBLY, SPHERICAL Genuine Aston Martin - New (to order)
                                                          # 12
                                                          MPN: 1R12-352760-AB
                                                          OLIVE, SPHERICAL
                                                          OLIVE, SPHERICAL Genuine Aston Martin - New (to order)
                                                          # 13
                                                          MPN: 1R12-352761-AC
                                                          MOUNTING RUBBER, ASSY
                                                          from £15.91
                                                          from £15.91
                                                          MOUNTING RUBBER, ASSEMBLY Genuine Aston Martin - New (to order)
                                                          # 15
                                                          MPN: 1R12-352762-AB
                                                          BAND CLAMP, EXHAUST PIPE, 60.3 DIA
                                                          from £22.42
                                                          from £22.42
                                                          BAND CLAMP, EXHAUST PIPE, 60.3 DIAMETER Genuine Aston Martin - New (to order)
                                                          # 16
                                                          MPN: 1R12-352763-AA
                                                          BAND CLAMP, EXHAUST
                                                          from £11.80
                                                          from £11.80
                                                          BAND CLAMP, EXHAUST Genuine Aston Martin - New (to order)
                                                          # 17
                                                          MPN: 1R12-352766-AB
                                                          RUBBER, EXHAUST
                                                          Supersession
                                                          Supersession
                                                          Genuine Aston Martin (no longer available to order)
                                                          # 18
                                                          MPN: 1R12-352096-AB
                                                          Hanger, exhaust, rear, RH
                                                          from £161.42
                                                          from £161.42
                                                          ROCOL ANTI SCUFF PASTE Genuine Aston Martin - New (to order)
                                                          # 18
                                                          MPN: 1R12-352097-AB
                                                          Hanger, exhaust, rear, LH
                                                          from £38.75
                                                          from £38.75
                                                          Hanger, exhaust, rear, LH Genuine Aston Martin - New (to order)
                                                          # 19
                                                          MPN: 700091
                                                          SCREW, FLG, M8X20
                                                          from £765.63
                                                          from £765.63
                                                          SCREW, M8X20 HEX FLANGE HD Genuine Aston Martin - New (to order)
                                                          RH FRONT HUB Genuine Ferrari Part - New (to order)
                                                          # 20
                                                          MPN: 1R12-352767-AA
                                                          SPACER, CERAMIC
                                                          SPACER, CERAMIC Genuine Aston Martin - New (to order)
                                                          # 21
                                                          MPN: 699846
                                                          SCREW, FLG, M8X16
                                                          SCREW, FLANGE , M8X16 Genuine Aston Martin - New (to order)
                                                          # 22
                                                          MPN: 1R12-354932-AA
                                                          Hanger, exhaust, rear, RH
                                                          from £204.40
                                                          from £204.40
                                                          Hanger, exhaust, rear, RH Genuine Aston Martin - New (to order)
                                                          # 22
                                                          MPN: 1R12-354933-AA
                                                          Hanger, exhaust, rear, LH
                                                          from £204.40
                                                          from £204.40
                                                          Hanger, exhaust, rear, LH Genuine Aston Martin - New (to order)
                                                          # 23
                                                          MPN: 1R12-39-10173
                                                          SENSOR, HEGO, FRONT
                                                          from £157.38
                                                          from £157.38
                                                          SENSOR, HEGO, FRONT Genuine Aston Martin - New (to order)
                                                          # 24
                                                          MPN: 1R12-39-10174
                                                          SENSOR, HEGO, REAR
                                                          from £86.56
                                                          from £86.56
                                                          This part replaces part number 39-85391 - and 1 more. Click to view details
                                                          SENSOR, HEGO, REAR Genuine Aston Martin - New (to order)
                                                          SENSOR, HEGO, REAR Genuine Aston Martin - Used In stock
                                                          # 25
                                                          MPN: 1R12-39-10175
                                                          SENSOR, CATALYST MONITOR
                                                          from £85.51
                                                          from £85.51
                                                          This part replaces part number 39-85392 - and 2 more. Click to view details
                                                          CAT.MONITOR SENSOR Genuine Aston Martin - New (to order)
                                                          CAT.MONITOR SENSOR Genuine Aston Martin - Used In stock
                                                          # 26
                                                          MPN: 1R12-353295-AA
                                                          DECOUPLER, EXHAUST PIPE
                                                          DECOUPLER, EXHAUST PIPE Genuine Aston Martin - New (to order)
                                                          # 27
                                                          MPN: 1R12-353224-AA
                                                          BAND CLAMP, INSULATION
                                                          from £8.27
                                                          from £8.27
                                                          BAND CLAMP, INSULATION Genuine Aston Martin - New (to order)
                                                          # 28
                                                          MPN: 1R12-353347-AA
                                                          PIPE
                                                          from £207.29
                                                          from £207.29
                                                          PIPE Genuine Aston Martin - New (to order)
                                                          # 29
                                                          MPN: 1R12-352035-AB
                                                          N/O EXHAUST GAS VALVE, EXHAUST BYPASS
                                                          from £591.94
                                                          from £591.94
                                                          N/O EXHAUST GAS VALVE, EXHAUST BYPASS Genuine Aston Martin - New (to order)
                                                          # 30
                                                          MPN: 4R13-11225-CA
                                                          BRACKET, HEGO/CMS SENSOR CONN
                                                          from £38.86
                                                          from £38.86
                                                          BRACKET, HEGO/CMS SENSOR CONN Genuine Aston Martin - New (to order)
                                                          # 30
                                                          MPN: 4R13-11225-AA
                                                          BRACKET, HEGO/CMS SENSOR CONN, RH
                                                          from £40.14
                                                          from £40.14
                                                          BRACKET, HEGO/CMS SENSOR CONN, RH Genuine Aston Martin - New (to order)
                                                          # 31
                                                          MPN: 699131
                                                          BOLT, FLG PILOT, M8X70
                                                          from £1.72
                                                          from £1.72
                                                          BOLT, FLANGE PILOT, M8X70 Genuine Aston Martin - New (to order)
                                                          # 32
                                                          MPN: 4R13-11225-BA
                                                          BRACKET, REAR HEGO CONN, LH
                                                          from £40.14
                                                          from £40.14
                                                          BRACKET, REAR HEGO CONN, LH Genuine Aston Martin - New (to order)
                                                          # 33
                                                          MPN: 697774
                                                          BOLT, FLG, M8X22
                                                          from £15.43
                                                          from £15.43
                                                          BOLT, FLANGE , M8X22 Genuine Aston Martin - New (to order)
                                                          # 34
                                                          MPN: 1R12-354923-AA
                                                          BUSH, EXHAUST REAR MOUNT
                                                          from £13.97
                                                          from £13.97
                                                          BUSH, EXHAUST REAR MOUNT Genuine Aston Martin - New (to order)
                                                          # 35
                                                          MPN: 1R12-352761-AC
                                                          MOUNTING RUBBER
                                                          from £15.91
                                                          from £15.91
                                                          MOUNTING RUBBER, ASSEMBLY Genuine Aston Martin - New (to order)
                                                          # 36
                                                          MPN: 1R12-353754-AB
                                                          INSULATION, INPUT PIPE, RH
                                                          RHD
                                                          INSULATION, INPUT PIPE, RH Genuine Aston Martin - New (to order)
                                                          # 37
                                                          MPN: 1R12-353755-AB
                                                          INSULATION, INPUT PIPE, LH
                                                          LHD
                                                          INSULATION, INPUT PIPE, LH Genuine Aston Martin - New (to order)
                                                          # -
                                                          -
                                                          ROCOL ANTI SCUFF PASTE
                                                          # -
                                                          -
                                                          INSULATION, MANIFOLD TAIL PIPE
                                                          # -
                                                          -
                                                          BRACKET AND RET ASSY AST STRP (HEGO)
