aston martin vanquish (2007) handbrake parts diagram

5.4 - Handbrake

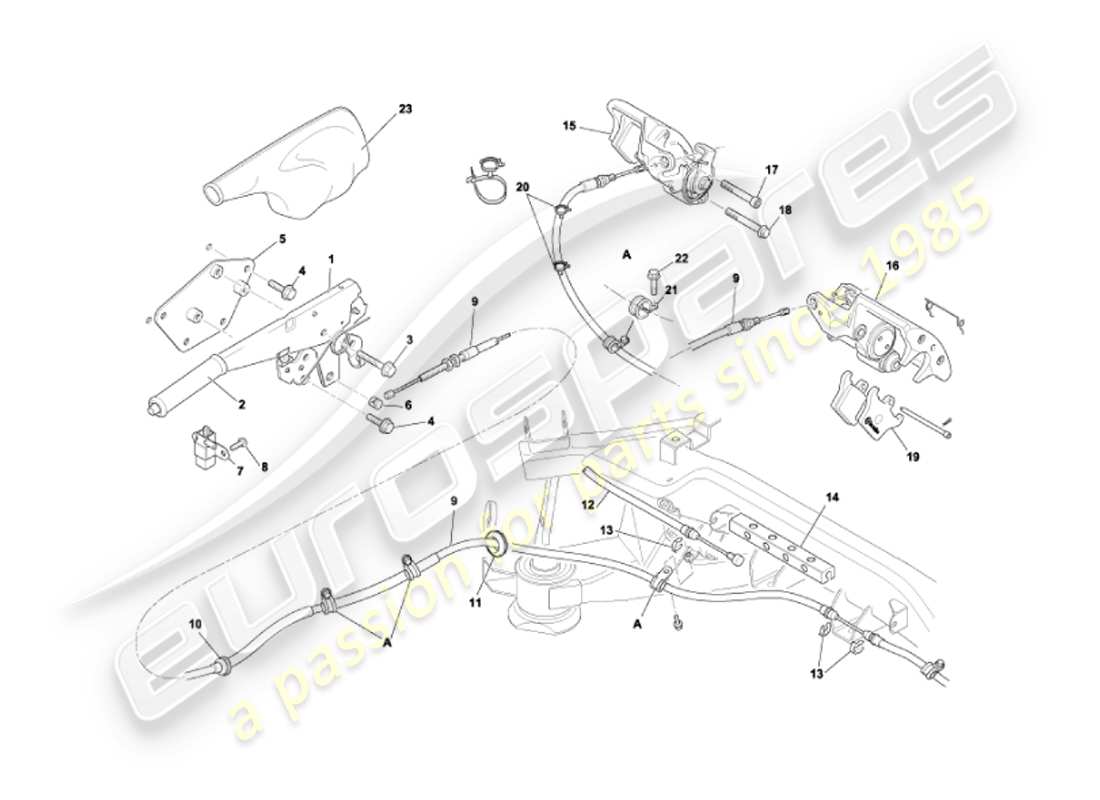

Aston Martin Vanquish (2007) Handbrake Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 1
                        MPN: 1R12-302980-AB
                        HANDBRAKE HANDLEVER ASSEMBLY
                        RHD
                        from £148.35
                        from £148.35
                        HANDBRAKE HANDLEVER ASSEMBLY Genuine Aston Martin - New (to order)
                        # 1
                        MPN: 1R12-302981-AB
                        HANDBRAKE HANDLEVER ASSEMBLY
                        LHD
                        from £148.35
                        from £148.35
                        HANDBRAKE HANDLEVER ASSEMBLY Genuine Aston Martin - New (to order)
                        # 1
                        MPN: 1R12-305235-AA
                        HANDBRAKE HANDLEVER ASSEMBLY
                        Australia
                        from £148.35
                        from £148.35
                        HANDBRAKE HANDLEVER ASSEMBLY Genuine Aston Martin - New (to order)
                        # 2
                        MPN: 1R12-302928-AB
                        HANDLE, HANDBRAKE LEVER
                        HANDLE, HANDBRAKE LEVER Genuine Aston Martin - New (to order)
                        # 2
                        MPN: 5R13-2782-AAW
                        HANDLE, HANDBRAKE LEVER, TRIMMED
                        Vanquish S From (V) 501506
                        from £292.46
                        from £292.46
                        HANDLE, HANDBRAKE LEVER, TRIMMED Genuine Aston Martin - New (to order)
                        # 3
                        MPN: 700151
                        BOLT, FLG, M8X45
                        from £1.38
                        from £1.38
                        SCREW, FLANGE , M8X45 Genuine Aston Martin - New (to order)
                        # 4
                        MPN: 700144
                        SCREW, FLG, M8X20
                        from £5.65
                        from £5.65
                        SCREW, FLANGE , M8X20 Genuine Aston Martin - New (to order)
                        # 5
                        MPN: 1R12-302064-AB
                        BRACKET, HANDBRAKE MOUNTING
                        RHD
                        from £34.99
                        from £34.99
                        BRACKET, HANDBRAKE MOUNTING Genuine Aston Martin - New (to order)
                        # 5
                        MPN: 1R12-302065-AB
                        BRACKET, HANDBRAKE MOUNTING
                        LHD
                        from £34.99
                        from £34.99
                        BRACKET, HANDBRAKE MOUNTING Genuine Aston Martin - New (to order)
                        # 5
                        MPN: 1R12-305236-AA
                        BRACKET, HANDBRAKE MOUNTING
                        Australia
                        from £101.82
                        from £101.82
                        BRACKET, HANDBRAKE MOUNTING Genuine Aston Martin - New (to order)
                        # 6
                        MPN: 30-83441
                        TRUNNION - HANDBRAKE CABLE
                        Up to (V) 501505
                        from £4.71
                        from £4.71
                        TRUNNION - HANDBRAKE CABLE Genuine Aston Martin - New (to order)
                        # 6
                        MPN: 701625
                        TRUNNION - HANDBRAKE CABLE
                        Vanquish S From (V) 501506 up to (V) TBA
                        from £0.47
                        from £0.47
                        TRUNNION - HANDBRAKE CABLE Genuine Aston Martin - New (to order)
                        # 6
                        MPN: 6R13-5152-AA
                        TRUNNION - HANDBRAKE CABLE
                        Vanquish S From (V) TBA
                        from £10.96
                        from £10.96
                        TRUNNION - HANDBRAKE CABLE Genuine Aston Martin - New (to order)
                        # -
                        -
                        PIVOT PIN - HANDBRAKE CABLE
                        Vanquish S From (V) 501506
                        # -
                        -
                        PUSH ON FIX - HANDBRAKE CABLE
                        Vanquish S From (V) 501506
                        # -
                        -
                        GREASE, SHELL RETINAX A
                        Vanquish S From (V) 501506
                        # 7
                        MPN: 37-84687
                        SWITCH, HANDBRAKE
                        RHD
                        from £203.58
                        from £203.58
                        SWITCH, HANDBRAKE Genuine Aston Martin - New (to order)
                        # 7
                        MPN: 37-84688
                        SWITCH, HANDBRAKE
                        LHD
                        from £198.27
                        from £198.27
                        SWITCH, HANDBRAKE Genuine Aston Martin - New (to order)
                        # 8
                        -
                        SCREW
                        # 9
                        MPN: 1R12-30-10430
                        KIT, HANDBRAKE CABLE
                        Up to (V) 501505 (Pre 05MY to 05MY CABLES)
                        from £389.38
                        from £389.38
                        KIT, HANDBRAKE CABLE Genuine Aston Martin - New (to order)
                        # -
                        -
                        CABLE, HANDBRAKE LONG
                        Vanquish S From (V) 501506 up to TBA
                        # -
                        -
                        CABLE, HANDBRAKE
                        Vanquish S From (V) TBA
                        # -
                        -
                        CABLE, HANDBRAKE LONG
                        Australia
                        # 10
                        MPN: 700046
                        GROMMET, 23 PANEL HOLE
                        GROMMET, 23 PANEL HOLE Genuine Aston Martin - New (to order)
                        # 11
                        MPN: 700047
                        GROMMET, 32 PANEL HOLE
                        GROMMET, 32 PANEL HOLE Genuine Aston Martin - New (to order)
                        # 12
                        MPN: 1R12-30-10430
                        CABLE, HANDBRAKE KIT
                        Up to (V) 501505
                        from £389.38
                        from £389.38
                        KIT, HANDBRAKE CABLE Genuine Aston Martin - New (to order)
                        # -
                        -
                        CABLE, HANDBRAKE LONG
                        Vanquish S From (V) 501506 up to (V) TBA
                        # -
                        -
                        CABLE, HANDBRAKE EXTENSION
                        Not required with (AC) level cables
                        # 13
                        MPN: 700262
                        CLIP, SPRING, SPECIAL
                        from £3.07
                        from £3.07
                        CLIP, SPRING, SPECIAL Genuine Aston Martin - New (to order)
                        # 14
                        MPN: 1R12-304768-AC
                        STIRRUP, HANDBRAKE
                        Up to (V) 501505
                        from £48.70
                        from £48.70
                        STIRRUP, HANDBRAKE Genuine Aston Martin - New (to order)
                        # -
                        -
                        EQUALISER, HANDBRAKE
                        Vanquish S From (V) 501506
                        # -
                        -
                        BRACKET, HANDBRAKE CALIPER
                        Australia
                        # -
                        -
                        LOCATOR, HANDBRAKE CALIPER
                        Australia
                        # -
                        -
                        LEVER, HANDBRAKE CALIPER, RH
                        Australia
                        # -
                        -
                        LEVER, HANDBRAKE CALIPER, LH
                        Australia
                        # -
                        -
                        SCREW, FLG, M6X16
                        Australia
                        # -
                        -
                        SCREW, M8X25
                        Australia
                        # -
                        -
                        NUT, M8X25
                        Australia
                        # -
                        -
                        COVER AND HANDBRAKE CABLE
                        Australia
                        # -
                        -
                        CALIPER ASSEMBLY, HANDBRAKE, RH - STRONGER SPRING
                        Up to (V) 501505
                        # -
                        -
                        CALIPER ASSEMBLY, HANDBRAKE, RH - STRONGER SPRING
                        Vanquish S From (V) 501506
                        # -
                        -
                        SPRING, HANDBRAKE, RETURN, RH
                        Up to (V) 501505
                        # -
                        -
                        SPRING, HANDBRAKE, RETURN, RH
                        Vanquish S From (V) 501506
                        # 15
                        MPN: 1R12-280214-AA
                        CALIPER ASSEMBLY, HANDBRAKE, RH
                        from £319.85
                        from £319.85
                        CALIPER ASSEMBLY, HANDBRAKE, RH Genuine Aston Martin - New (to order)
                        # 15
                        MPN: 1R12-305795-AA
                        CALIPER ASSEMBLY, HANDBRAKE, LH - STRONGER SPRING
                        Up to (V) 501505
                        CALIPER ASSEMBLY, HANDBRAKE, LH - STRONGER SPRING Genuine Aston Martin - New (to order)
                        # 15
                        MPN: 1R12-305795-AB
                        CALIPER ASSEMBLY, HANDBRAKE, LH - STRONGER SPRING
                        Vanquish S From (V) 501506
                        from £332.61
                        from £332.61
                        CALIPER ASSEMBLY, HANDBRAKE, LH - STRONGER SPRING Genuine Aston Martin - New (to order)
                        # 15
                        MPN: 1R12-305413-AA
                        SPRING, HANDBRAKE, RETURN, LH
                        Up to (V) 501505
                        from £7.36
                        from £7.36
                        SPRING, HANDBRAKE, RETURN, LH Genuine Aston Martin - New (to order)
                        # 15
                        MPN: 5R13-2N791-BA
                        SPRING, HANDBRAKE, RETURN, LH
                        Vanquish S From (V) 501506
                        from £8.43
                        from £8.43
                        SPRING, HANDBRAKE, RETURN, LH Genuine Aston Martin - New (to order)
                        # 16
                        MPN: 1R12-280213-AA
                        CALIPER ASSEMBLY, HANDBRAKE, LH
                        from £411.69
                        from £411.69
                        CALIPER ASSEMBLY, HANDBRAKE, LH Genuine Aston Martin - New (to order)
                        # 17
                        MPN: 1R12-303579-AA
                        BOLT, M8X65 CAP HD
                        Caliper to knuckle
                        from £7.59
                        from £7.59
                        BOLT, M8X65 CAP HD Genuine Aston Martin - New (to order)
                        # 18
                        MPN: 700982
                        BOLT, M10X1.5 (8.8) 80 LNG HEX HD
                        Caliper to knuckle
                        BOLT, M10X1.5 (8.8) 80 LNG HEX HD Genuine Aston Martin - New (to order)
                        # 19
                        MPN: 1R12-28-10201
                        PAD SET, HANDBRAKE CALIPER, CAR SET
                        Springs and Pins included
                        Supersession
                        Supersession
                        Genuine Aston Martin (no longer available to order)
                        # 20
                        MPN: 699789
                        SPRYCO TIE-WRAP SWIVEL CLIP
                        from £1.83
                        from £1.83
                        SPRYCO TIE-WRAP SWIVEL CLIP Genuine Aston Martin - New (to order)
                        # 21
                        MPN: 1R12-302186-AA
                        P CLIP, 16/15
                        from £2.22
                        from £2.22
                        P CLIP, 16/15 Genuine Aston Martin - New (to order)
                        # 22
                        MPN: 699881
                        SCREW, FLG, M6X16
                        SCREW, M6 x 16 Genuine Aston Martin - New (to order)
                        # 23
                        MPN: 1R12-831236-AAW
                        GAITER, HANDBRAKE LEVER, RH
                        from £445.31
                        from £445.31
                        GAITER, HANDBRAKE LEVER, RH Genuine Aston Martin - New (to order)
                        # 23
                        MPN: 1R12-831237-AAW
                        GAITER, HANDBRAKE LEVER, LH
                        from £445.31
                        from £445.31
                        GAITER, HANDBRAKE LEVER, LH Genuine Aston Martin - New (to order)
                        # -
                        -
                        GAITER, HANDBRAKE LEVER
                        Australia
                        # -
                        -
                        REINFORCEMENT, HANDBRAKE GAITER
                        Australia
                        # -
                        -
                        BADGE, Aston Martin
                        Australia
                        # -
                        -
                        P CLIP
                        RHD
                        # -
                        -
                        P CLIP
                        LHD
                        # -
                        -
                        SCREW, FLG, M6X16
                        RHD
                        # -
                        -
                        SCREW, FLG, M6X16
                        LHD
                        # -
                        -
                        GROMMET, BLANKING
