aston martin vanquish (2013) underbody, volante parts diagram

01-0101-05 - Underbody, Volante

Aston Martin Vanquish (2013) Underbody, Volante Parts Diagram

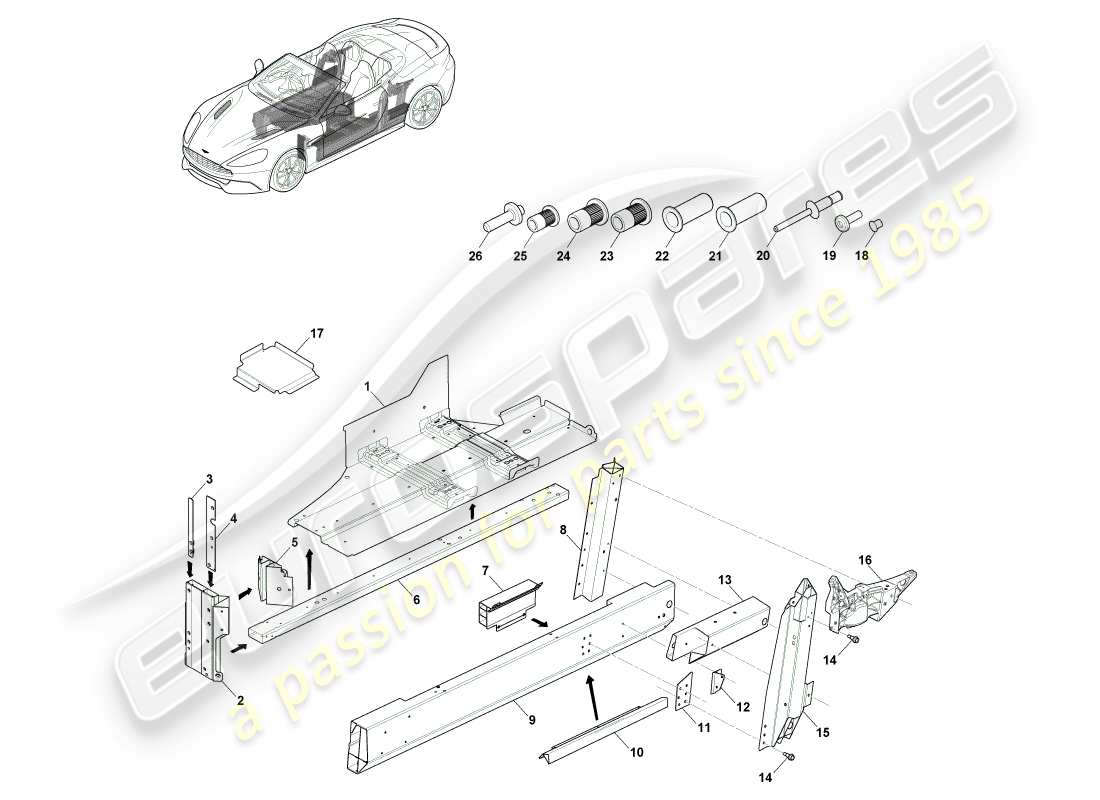

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Key
                      Price
                      # 1
                      MPN: 4G43-16-10880
                      FLOOR SUB ASSY, LH
                      Structural Cat. A only
                      from £779.30
                      from £779.30
                      PANEL ASSEMBLY, FLOOR, LH Genuine Aston Martin - New (to order)
                      # 1
                      MPN: 4G43-16-10879S
                      FLOOR SUB ASSY, RH
                      Vin Stamp Required. Structural Cat. A Only.
                      from £317.33
                      from £317.33
                      PANEL ASSEMBLY, FLOOR, RH Genuine Aston Martin - New (to order)
                      # 2
                      MPN: 4G43-20-10877
                      UPRIGHT ASSY, FRONT SUBFRAME, LH
                      Structural Cat. A only
                      from £295.17
                      from £295.17
                      FT S/FRM UPRT LH-DB9 Genuine Aston Martin - New (to order)
                      # 2
                      MPN: 4G43-20-10876
                      UPRIGHT ASSY, FRONT SUBFRAME, RH
                      Structural Cat. A only
                      from £295.17
                      from £295.17
                      FT S/FRM UPRT RH-DB9 Genuine Aston Martin - New (to order)
                      # 3
                      MPN: 8G43-390725-AA
                      NUTPLATE, FRONT END MOUNTING INNER
                      Structural Cat. A only
                      from £20.50
                      from £20.50
                      NUT PLATE FRONT END MNT Genuine Aston Martin - New (to order)
                      # 4
                      MPN: 8G43-434K11-AA
                      NUTPLATE, FRONT END MOUNTING OUTER, LH
                      Structural Cat. A only
                      from £13.55
                      from £13.55
                      NUTPLATE FRONT END MNT Genuine Aston Martin - New (to order)
                      # 4
                      MPN: 8G43-434K10-AA
                      NUTPLATE, FRONT END MOUNTING OUTER, RH
                      Structural Cat. A only
                      from £55.89
                      from £55.89
                      NUTPLATE FRONT END MNT Genuine Aston Martin - New (to order)
                      # 5
                      MPN: GOAG33-F001K28-AA
                      BRACE, TUNNEL UPPER INNER
                      Structural Cat. A only
                      from £53.06
                      from £53.06
                      BRACE TNL UPPER INNER Genuine Aston Martin - New (to order)
                      # 6
                      MPN: DG43-10120-AA
                      MEMBER, FLOOR, SIDE FRONT
                      Structural Cat. A only
                      from £344.66
                      from £344.66
                      MEMBER, FLOOR, SIDE FRONT Genuine Aston Martin - New (to order)
                      # 7
                      MPN: GOFD33-270A50-AC
                      PUSHER BLOCK, SIDE IMPACT
                      FROM 15MY
                      from £141.61
                      from £141.61
                      PUSHER BLOCK, SIDE IMPACT Genuine Aston Martin - New (to order)
                      # 8
                      MPN: DG43-L24315-AA
                      PILLAR, CENTRE BODY, OUTER REAR, LH
                      Structural Cat. A only
                      PILLAR, CENTRE BODY, OUTER REAR, LH Genuine Aston Martin - New (to order)
                      # 8
                      MPN: DG43-L24314-AA
                      PILLAR, CENTRE BODY, OUTER REAR, RH
                      Structural Cat. A only
                      PILLAR, CENTRE BODY, OUTER REAR, RH Genuine Aston Martin - New (to order)
                      # 9
                      MPN: ED33-L10117-AA
                      MEMBER, FLOOR SIDE, LH
                      Structural Cat. A Only. Up To 15MY
                      MEMBER, FLOOR SIDE, LH Genuine Aston Martin - New (to order)
                      # 9
                      MPN: GD33-L10117-AB
                      MEMBER, FLOOR SIDE, LH
                      Structural Cat. A Only. From 15MY To VIN K02469
                      MEMBER, FLOOR SIDE, LH Genuine Aston Martin - New (to order)
                      # 9
                      MPN: GD33-L10117-AC
                      MEMBER, FLOOR SIDE, LH
                      Structural Cat. A Only. From VIN K02470
                      MEMBER, FLOOR SIDE, LH Genuine Aston Martin - New (to order)
                      # 9
                      MPN: DG43-L10116-AD
                      MEMBER, FLOOR SIDE, RH
                      Structural Cat. A Only. Up To 15MY
                      from £427.61
                      from £427.61
                      MEMBER, FLOOR SIDE, RH Genuine Aston Martin - New (to order)
                      # 9
                      MPN: GD33-L10116-AB
                      MEMBER, FLOOR SIDE, RH
                      Structural Cat. A Only. From 15MY To VIN K02469
                      MEMBER, FLOOR SIDE, RH Genuine Aston Martin - New (to order)
                      # 9
                      MPN: GD33-L10116-AC
                      MEMBER, FLOOR SIDE, RH
                      Structural Cat. A Only. From VIN K02470
                      MEMBER, FLOOR SIDE, RH Genuine Aston Martin - New (to order)
                      # 10
                      MPN: FD33-106A78-AA
                      SILL CATCHER, EXTERNAL
                      FROM 15MY
                      SILL CATCHER, EXTERNAL Genuine Aston Martin - New (to order)
                      # 11
                      MPN: FD33-026B04-AB
                      PLATE, B PILLAR, REINFORCEMENT
                      Structural Cat. A only
                      PLATE, B PILLAR, REINFORCEMENT Genuine Aston Martin - New (to order)
                      # 12
                      MPN: FD33-24437-AB
                      REINFORCEMENT, B PILLAR, LOWER, LH
                      Structural Cat. A only
                      REINFORCEMENT, B PILLAR, LOWER, LH Genuine Aston Martin - New (to order)
                      # 12
                      MPN: FD33-24436-AB
                      REINFORCEMENT, B PILLAR, LOWER, RH
                      Structural Cat. A only
                      REINFORCEMENT, B PILLAR, LOWER, RH Genuine Aston Martin - New (to order)
                      # 13
                      MPN: ED33-101D07-AA
                      EXTRUSION MEMBER, REAR FLOOR SIDE LOWER, LH
                      Structural Cat. A only
                      from £92.83
                      from £92.83
                      EXTRUSION MEMBER, REAR FLOOR SIDE LOWER, LH Genuine Aston Martin - New (to order)
                      # 13
                      MPN: ED33-101D06-AA
                      EXTRUSION MEMBER, REAR FLOOR SIDE LOWER, RH
                      Structural Cat. A only
                      EXTRUSION MEMBER, REAR FLOOR SIDE LOWER, RH Genuine Aston Martin - New (to order)
                      # 14
                      MPN: 6G33-375732-AA
                      SCREW, SS HEX FL HD, 5.5X19 SELF DRILL
                      from £0.47
                      from £0.47
                      SCREW SS HEX FLANGE HD Genuine Aston Martin - New (to order)
                      # 15
                      MPN: DG43-L24313-AC
                      PILLAR, CENTRE BODY, LH
                      Structural Cat. A Only. Up To 15MY
                      PILLAR, CENTRE BODY, LH Genuine Aston Martin - New (to order)
                      # 15
                      MPN: GD33-L24313-AA
                      PILLAR, CENTRE BODY, LH
                      Structural Cat. A Only. From 15MY
                      from £108.40
                      from £108.40
                      PILLAR, CENTRE BODY, LH Genuine Aston Martin - New (to order)
                      # 15
                      MPN: DG43-L24312-AC
                      PILLAR, CENTRE BODY, RH
                      Structural Cat. A Only. Up To 15MY
                      PILLAR, CENTRE BODY, RH Genuine Aston Martin - New (to order)
                      # 15
                      MPN: GD33-L24312-AA
                      PILLAR, CENTRE BODY, RH
                      Structural Cat. A Only. From 15MY
                      PILLAR, CENTRE BODY, RH Genuine Aston Martin - New (to order)
                      # 16
                      MPN: ED33-L243A61-AD
                      REINFORCEMENT, CENTRE BODY UPPER OUTER PILLAR, LH
                      Up to 15MY, Structural Cat. A only
                      REINFORCEMENT, CENTRE BODY UPPER OUTER PILLAR, LH Genuine Aston Martin - New (to order)
                      # 16
                      MPN: ED33-L243A61-AE
                      REINFORCEMENT, CENTRE BODY UPPER OUTER PILLAR, LH
                      From 15MY, Structural Cat. A only
                      REINFORCEMENT, CENTRE BODY UPPER OUTER PILLAR, LH Genuine Aston Martin - New (to order)
                      # 16
                      MPN: ED33-L243A60-AD
                      REINFORCEMENT, CENTRE BODY UPPER OUTER PILLAR, RH
                      Up to 15MY, Structural Cat. A only
                      REINFORCEMENT, CENTRE BODY UPPER OUTER PILLAR, RH Genuine Aston Martin - New (to order)
                      # 16
                      MPN: ED33-L243A60-AE
                      REINFORCEMENT, CENTRE BODY UPPER OUTER PILLAR, RH
                      From 15MY, Structural Cat. A only
                      REINFORCEMENT, CENTRE BODY UPPER OUTER PILLAR, RH Genuine Aston Martin - New (to order)
                      # 17
                      MPN: 8G43-67342-AA
                      FINISHER, REAR SEAT HEEL BOARD LOWER, RH
                      Structural Cat. A only
                      from £35.61
                      from £35.61
                      FINISHER, REAR SEAT HEEL BOARD LOWER, RH Genuine Aston Martin - New (to order)
                      # 18
                      MPN: 6G33-68885-AB
                      RIVET, SELF PIERCING, 5 X 6MM
                      from £0.47
                      from £0.47
                      SPR 5.0X6.0MM Genuine Aston Martin - New (to order)
                      # 19
                      MPN: 703074
                      RIVET, 4.8X13.8, BLND AL, DM, HD
                      RIVET, 4.65X13.8 Genuine Aston Martin - New (to order)
                      # 20
                      MPN: 6G33-68676-AC
                      RIVET STRUCTURAL 6.5 X 14, BLIND
                      from £0.72
                      from £0.72
                      STRUCT RIVET 6.5X14 Genuine Aston Martin - New In stock
                      # 21
                      MPN: 6G33-51025-AA
                      RIVNUT, M5 FLAT HEAD, 0.5-3MM GRIP ZN/N1
                      from £0.47
                      from £0.47
                      RIVNUT M5 Genuine Aston Martin - New (to order)
                      # 22
                      MPN: 6G33-51081-AA
                      RIVNUT, M6 FLAT HEAD, 3-5.5 MM GRIP
                      from £0.61
                      from £0.61
                      RIVNUT M6 Genuine Aston Martin - New (to order)
                      # 23
                      MPN: 6G33-56694-AA
                      RIVNUT, M8 FLAT HEAD CLOSED KNUR
                      from £2.27
                      from £2.27
                      RIVNUT M8 Genuine Aston Martin - New (to order)
                      # 24
                      MPN: 6G33-56316-AA
                      RIVNUT, M8 FLAT HEAD CLOSED KNUR, 2.3MM
                      from £0.47
                      from £0.47
                      RIVNUT M8 Genuine Aston Martin - New (to order)
                      # 25
                      MPN: 6G33-54428-AA
                      RIVNUT, M6 FLAT HEAD, KNURLED HEAD
                      from £0.47
                      from £0.47
                      RIVNUT M6 Genuine Aston Martin - New (to order)
                      # 26
                      MPN: 6G33-68855-AB
                      STUD, SELF PIERCING STUD, M6X19
                      from £0.47
                      from £0.47
                      SPS Genuine Aston Martin - New (to order)
