01-0110-01-2 - Ancillary Parts, Volante, page 2
Aston Martin Vanquish (2013) Ancillary Parts, Volante, page 2 Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: ED33-L04703-AB
Panel, Window Regulator Opening Cover, LH
Structural Cat. A only
from £86.78
from £86.78
# 2
MPN: ED33-L04702-AB
Panel, Window Regulator Opening Cover, RH
Structural Cat. A only
from £84.94
from £84.94
# 3
MPN: 703203
SCREW, M6X20, HEX FLANGE HEAD
from £0.47
from £0.47
# 4
MPN: ED33-303A93-AA
BRACKET, QUARTER WINDOW REGULATOR MOUNTING, LH
Structural Cat. A only
from £150.23
from £150.23
# 5
MPN: ED33-303A92-AA
BRACKET, QUARTER WINDOW REGULATOR MOUNTING, RH
Structural Cat. A only
from £150.23
from £150.23
# 6
MPN: 703121
SCREW, M8X20, HEX FLANGE HEAD
from £0.47
from £0.47
# 7
MPN: 4G43-14A573-AA
Plate Assembly, Window Regulator Rear Switch Cover
from £12.25
from £12.25
# 8
MPN: 9G43-28035-AB
PANEL, REAR QUARTER SHEDDER, LH
Structural Cat. A only
from £57.05
from £57.05
# 9
MPN: 9G43-28034-AB
PANEL, REAR QUARTER SHEDDER, RH
Structural Cat. A only
from £87.74
from £87.74
# 10
MPN: ED33-A410K25-AC
PANEL, REAR BODY PILLAR CLOSING, LH
Structural Cat. A only
from £38.04
from £38.04
# 11
MPN: ED33-A410K24-AC
PANEL, REAR BODY PILLAR CLOSING, RH
Structural Cat. A only
from £38.04
from £38.04
# 12
MPN: 703266
SCREW, M6X10, TORX PAN HEAD
from £0.52
from £0.52
# 13
MPN: 703749
NUT, M6, HEX FLANGE HEAD
from £0.47
from £0.47
This part replaces part number 699877
# 14
MPN: 7G43-10609E-AA-PK
SPRING CLIP, U TYPE
Pack of 10
from £5.08
from £5.08
This part replaces part number 701491
# 15
MPN: 703264
SCREW, M6X14, HEX HEAD
# 16
MPN: ED33-5423-AA
BEARING CASTING, WATER SHEDDER, LH
Structural Cat. A only
from £24.11
from £24.11
# 17
MPN: ED33-5422-AA
BEARING CASTING, WATER SHEDDER, RH
Structural Cat. A only
from £34.47
from £34.47
# 18
MPN: 703120
SCREW, M8X25, HEX FLANGE HEAD
from £3.45
from £3.45
# 19
MPN: AG43-32692-AA
WASHER, M8, LARGE OD
from £0.67
from £0.67
# 20
MPN: 703074
RIVET, 4.65X13.8, BLIND DOME HEAD
# 21
MPN: ED33-L277A61-AC
BRACKET, REINFORCEMENT REAR QUARTER INNER, LH
from £14.25
from £14.25
# 22
MPN: ED33-L277A60-AC
BRACKET, REINFORCEMENT REAR QUARTER INNER, RH
from £14.25
from £14.25
# 23
MPN: 33-81094
STRIP, EDGE PROTECTION, 65MM
from £3.64
from £3.64
# 24
MPN: 702944
NUT, M6
from £0.58
from £0.58
# 25
MPN: ED43-L243A70-AA
ALIGNMENT PIN, MAIN BEARING BRACKET
# 26
MPN: 697810-PK
WASHER, M6X25
Pack of 10
# 27
MPN: ED33-507A62-AA
COVER PLATE, TONNEAU PUMP
from £335.74
from £335.74
# 28
MPN: ED33-EM7243-AA
CLIP, TONNEAU PUMP COVER PLATE
from £1.60
from £1.60
# 29
MPN: 702839-PK
SCREW AND WASHER, M6X20, HEX HEAD
Pack of 10
from £3.22
from £3.22
# 30
MPN: ED33-P8K141-AA
GASKET, TONNEAU PUMP CLOSING PANEL
from £9.49
from £9.49
# 31
MPN: ED33-507A63-AA
PLATE ASSEMBLY, PUMP CLOSING
from £47.59
from £47.59
# 32
MPN: 703149
SCREW, M6X16, PAN HEAD
from £0.47
from £0.47
# 33
MPN: GOCD33-10230-AA
REINFORCEMENT EXTRUSION, REAR FLOOR SIDE
from £36.12
from £36.12
# 34
MPN: AD43-F16346-BB
SPACER
11.5mm
from £10.43
from £10.43
# 34
MPN: AD43-F16347-BB
SPACER
10.5mm
from £10.43
from £10.43
# 34
MPN: AD43-F16348-BB
SPACER
9.5mm
from £10.43
from £10.43
# 34
MPN: AD43-F16349-BB
SPACER
8.5mm
from £10.43
from £10.43
# 34
MPN: AD43-F16350-BB
SPACER
7.5mm
from £10.43
from £10.43
# 34
MPN: AD43-F16351-BB
SPACER
6.5mm
from £9.50
from £9.50
# 34
MPN: DG43-F16352-BB
SPACER
5.5mm
from £13.26
from £13.26
# 34
MPN: DG43-F16353-BB
SPACER
4.5mm
from £13.01
from £13.01
# 35
MPN: DG43-393126-AA
NUTPLATE ASSEMBLY, STRIKER
from £38.48
from £38.48
# 36
MPN: GOED33-20E801-AA
BODY MOUNT CATCHER, LH
# 37
MPN: GOED33-20E800-AA
BODY MOUNT CATCHER, RH
# 38
MPN: CD33-393126-AC
MOUNTING PLATE, CATCHER
# 39
MPN: FD33-38580-AA
PANEL ASSY, FUEL TANK COMPARTMENT, LOWER
# 40
MPN: 6G33-5D022-AD
BRACKET, REAR SUBFRAME STABILISER
from £38.64
from £38.64
# 41
MPN: 4G43-9N070-AB
INSULATION, FUEL TANK SUPPORT
from £1.59
from £1.59
# 42
MPN: 6G33-5N394-AB
NUTPLATE BRACKET, REAR SUBFRAME STABILISER, UPPER
from £10.07
from £10.07
# 43
MPN: 6G33-80997-AA
NUTPLATE, M12, REAR DAMPER MOUNTING, FRONT
from £3.88
from £3.88
# 44
MPN: 6G33-18A001-AD
MEMBER, REAR SHOCK ABSORBER MOUNTING, LH
from £314.64
from £314.64
# 45
MPN: 6G33-18A000-AD
MEMBER, REAR SHOCK ABSORBER MOUNTING, RH
from £314.64
from £314.64
# 46
MPN: 703185
SCREW, M12X25, HEX FLANGE HEAD
from £6.33
from £6.33
# 47
MPN: 4G43-L24556-AB
NUTPLATE, CENTRE BODY PILLAR INNER
from £34.03
from £34.03
# 48
MPN: 7G43-2943707-AA
PLATE, WELD NUT CENTRE
from £3.54
from £3.54
# 49
MPN: ED33-4S019-AB
BRACKET, TONNEAU BUMP STOP, LH
from £19.58
from £19.58
# 50
MPN: ED33-4S018-AB
BRACKET, TONNEAU BUMP STOP, RH
from £19.58
from £19.58
# 51
MPN: 4G43-16K808-AB
BUMP STOP
from £2.44
from £2.44
-part-diagram-01-0110-04.webp "ASTON MARTIN VANQUISH (2013) ANCILLARY PARTS, COUPE, PAGE 1 PARTS DIAGRAM")
-part-diagram-01-0110-04-2.webp "ASTON MARTIN VANQUISH (2013) ANCILLARY PARTS, COUPE, PAGE 2 PARTS DIAGRAM")
-part-diagram-01-0110-04a.webp "ASTON MARTIN VANQUISH (2013) ANCILLARY PARTS, COUPE 14.5MY, PAGE 1 PARTS DIAGRAM")
-part-diagram-01-0111-01.webp "ASTON MARTIN VANQUISH (2013) FRONT BUMPER STRUCTURE, ROW PARTS DIAGRAM")
-part-diagram-01-0111-02.webp "ASTON MARTIN VANQUISH (2013) FRONT BUMPER STRUCTURE, FEDERAL PARTS DIAGRAM")
-part-diagram-01-0112-01.webp "ASTON MARTIN VANQUISH (2013) REAR BUMPER STRUCTURE, ROW PARTS DIAGRAM")
-part-diagram-01-0112-02.webp "ASTON MARTIN VANQUISH (2013) REAR BUMPER STRUCTURE, FED, GCC, CHINA PARTS DIAGRAM")
-part-diagram-01-0201-01.webp "ASTON MARTIN VANQUISH (2013) GRILLE OPENING PANEL PARTS DIAGRAM")
-part-diagram-01-0202-b1.webp "ASTON MARTIN VANQUISH (2013) FRONT WINGS PARTS DIAGRAM")
-part-diagram-01-0203-b1.webp "ASTON MARTIN VANQUISH (2013) BONNET AND HINGES PARTS DIAGRAM")
-part-diagram-01-0301-01.webp "ASTON MARTIN VANQUISH (2013) FRONT DOOR ASSEMBLY PARTS DIAGRAM")
-part-diagram-01-0303-01.webp "ASTON MARTIN VANQUISH (2013) TAILGATE ASSEMBLY, COUPE PARTS DIAGRAM")
-part-diagram-01-0303-b2.webp "ASTON MARTIN VANQUISH (2013) DECKLID ASSEMBLY, VOLANTE PARTS DIAGRAM")
-part-diagram-01-0304-01.webp "ASTON MARTIN VANQUISH (2013) DOOR HINGE ASSEMBLY PARTS DIAGRAM")
-part-diagram-01-0305-01.webp "ASTON MARTIN VANQUISH (2013) DECKLID HINGES, COUPE PARTS DIAGRAM")
-part-diagram-01-0305-b2.webp "ASTON MARTIN VANQUISH (2013) DECKLID HINGES, VOLANTE PARTS DIAGRAM")
-part-diagram-01-0501-02.webp "ASTON MARTIN VANQUISH (2013) MAIN FLOOR TRIM, RHD PARTS DIAGRAM")
-part-diagram-01-0501-03.webp "ASTON MARTIN VANQUISH (2013) MAIN FLOOR TRIM, LHD PARTS DIAGRAM")
-part-diagram-01-0502-06.webp "ASTON MARTIN VANQUISH (2013) NVH PADS, COUPE PARTS DIAGRAM")
-part-diagram-01-0502-b2.webp "ASTON MARTIN VANQUISH (2013) NVH PADS, VOLANTE PARTS DIAGRAM")
-part-diagram-01-0503-01.webp "ASTON MARTIN VANQUISH (2013) HEADLINER ASSEMBLY PARTS DIAGRAM")
-part-diagram-01-0504-b1.webp "ASTON MARTIN VANQUISH (2013) FRONT HEADER TRIM, COUPE PARTS DIAGRAM")
-part-diagram-01-0504-b1a.webp "ASTON MARTIN VANQUISH (2013) FRONT HEADER TRIM, COUPE 14.5MY PARTS DIAGRAM")
-part-diagram-01-0504-b3.webp "ASTON MARTIN VANQUISH (2013) FRONT HEADER TRIM, VOLANTE PARTS DIAGRAM")
-part-diagram-01-0505-01.webp "ASTON MARTIN VANQUISH (2013) FRONT DOOR TRIM PANEL PARTS DIAGRAM")
-part-diagram-01-0505-02.webp "ASTON MARTIN VANQUISH (2013) DOOR TOP ROLL PARTS DIAGRAM")
-part-diagram-01-0506-01.webp "ASTON MARTIN VANQUISH (2013) SUNVISORS PARTS DIAGRAM")
-part-diagram-01-0508-01.webp "ASTON MARTIN VANQUISH (2013) LOAD CAMPARTMENT TRIM, VOLANTE PARTS DIAGRAM")
-part-diagram-01-0508-b5.webp "ASTON MARTIN VANQUISH (2013) ROOF OPENING TRIM, VOLANTE PARTS DIAGRAM")
-part-diagram-01-0510-01.webp "ASTON MARTIN VANQUISH (2013) SILL TRIM & ORNAMENTATION PARTS DIAGRAM")
-part-diagram-01-0511-01.webp "ASTON MARTIN VANQUISH (2013) REAR QUARTER TRIM PANEL, 2+2 COUPE PARTS DIAGRAM")
-part-diagram-01-0511-01a.webp "ASTON MARTIN VANQUISH (2013) REAR QUARTER TRIM PANEL, VOLANTE PARTS DIAGRAM")
-part-diagram-01-0511-02.webp "ASTON MARTIN VANQUISH (2013) REAR QUARTER TRIM PANEL, 2+0 COUPE PARTS DIAGRAM")
-part-diagram-01-0512-01.webp "ASTON MARTIN VANQUISH (2013) PILLAR TRIM, LOWER PARTS DIAGRAM")
-part-diagram-01-0513-04.webp "ASTON MARTIN VANQUISH (2013) PILLAR TRIM, UPPER, COUPE PARTS DIAGRAM")
-part-diagram-01-0514-01.webp "ASTON MARTIN VANQUISH (2013) CABIN REAR TRIM, 2+0 COUPE PARTS DIAGRAM")
-part-diagram-01-0515-b16.webp "ASTON MARTIN VANQUISH (2013) PARCEL SHELF TRIM PANEL, 2+0 COUPE PARTS DIAGRAM")
-part-diagram-01-0515-b4.webp "ASTON MARTIN VANQUISH (2013) PARCEL SHELF TRIM PANEL, 2+2 COUPE PARTS DIAGRAM")
-part-diagram-01-0516-01.webp "ASTON MARTIN VANQUISH (2013) TAILGATE TRIM PANEL, COUPE PARTS DIAGRAM")
-part-diagram-01-0516-02.webp "ASTON MARTIN VANQUISH (2013) TAILGATE TRIM PANEL, VOLANTE PARTS DIAGRAM")
-part-diagram-01-0517-06.webp "ASTON MARTIN VANQUISH (2013) LOAD COMPARTMENT TRIM, COUPE PARTS DIAGRAM")
-part-diagram-01-0517-06a.webp "ASTON MARTIN VANQUISH (2013) LOAD COMPARTMENT TRIM, COUPE 14.5MY PARTS DIAGRAM")
-part-diagram-01-0601-01.webp "ASTON MARTIN VANQUISH (2013) HEAT INSULATION, VEHICLE FIT PARTS DIAGRAM")
-part-diagram-01-0602-10.webp "ASTON MARTIN VANQUISH (2013) NOISE INSULATION, COUPE PARTS DIAGRAM")
-part-diagram-01-0602-20.webp "ASTON MARTIN VANQUISH (2013) NOISE INSULATION, VOLANTE PARTS DIAGRAM")
-part-diagram-01-0603-01.webp "ASTON MARTIN VANQUISH (2013) ENGINE COMPARTMENT TRIM PARTS DIAGRAM")
-part-diagram-01-0604-02.webp "ASTON MARTIN VANQUISH (2013) ANTI-CAN PADS, COUPE PARTS DIAGRAM")
-part-diagram-01-0604-02a.webp "ASTON MARTIN VANQUISH (2013) ANTI-CAN PADS, VOLANTE PARTS DIAGRAM")
-part-diagram-01-0701-01.webp "ASTON MARTIN VANQUISH (2013) DOOR WEATHERSTRIPS, COUPE PARTS DIAGRAM")
-part-diagram-01-0701-01a.webp "ASTON MARTIN VANQUISH (2013) DOOR WEATHERSTRIPS, VOLANTE PARTS DIAGRAM")
-part-diagram-01-0702-06.webp "ASTON MARTIN VANQUISH (2013) STATIC SEALING PARTS DIAGRAM")
-part-diagram-01-0704-01.webp "ASTON MARTIN VANQUISH (2013) REAR CLOSURE WEATHERSTRIP, COUPE PARTS DIAGRAM")
-part-diagram-01-0704-01a.webp "ASTON MARTIN VANQUISH (2013) REAR CLOSURE WEATHERSTRIPS, VOLANTE PARTS DIAGRAM")
-part-diagram-01-0705-01.webp "ASTON MARTIN VANQUISH (2013) BONNET WEATHERSTRIPS PARTS DIAGRAM")
-part-diagram-01-0706-01.webp "ASTON MARTIN VANQUISH (2013) ROOF OPENING WEATHERSTRIP, VOLANTE PARTS DIAGRAM")
-part-diagram-01-0801-01.webp "ASTON MARTIN VANQUISH (2013) RADIATOR GRILLE PARTS DIAGRAM")
-part-diagram-01-0801-10.webp "ASTON MARTIN VANQUISH (2013) RADIATOR GRILLE, S PARTS DIAGRAM")
-part-diagram-01-0802-01.webp "ASTON MARTIN VANQUISH (2013) LOWER EXTERIOR FINISHERS PARTS DIAGRAM")
-part-diagram-01-0803-01.webp "ASTON MARTIN VANQUISH (2013) UPPER EXTERIOR FINISHERS, COUPE PARTS DIAGRAM")
-part-diagram-01-0803-01a.webp "ASTON MARTIN VANQUISH (2013) UPPER EXTERIOR FINISHERS, VOLANTE PARTS DIAGRAM")
-part-diagram-01-0804-01.webp "ASTON MARTIN VANQUISH (2013) FRONT WHEEL ARCH LINERS PARTS DIAGRAM")
-part-diagram-01-0805-01.webp "ASTON MARTIN VANQUISH (2013) REAR WHEEL ARCH LINERS PARTS DIAGRAM")
-part-diagram-01-0809-01.webp "ASTON MARTIN VANQUISH (2013) BADGING PARTS DIAGRAM")
-part-diagram-01-0812-02.webp "ASTON MARTIN VANQUISH (2013) LEAF SCREEN ASSEMBLY PARTS DIAGRAM")
-part-diagram-01-0901-02.webp "ASTON MARTIN VANQUISH (2013) INTERIOR MIRROR PARTS DIAGRAM")
-part-diagram-01-0904-01.webp "ASTON MARTIN VANQUISH (2013) EXTERIOR REAR VIEW MIRRORS PARTS DIAGRAM")
-part-diagram-01-1001-b3.webp "ASTON MARTIN VANQUISH (2013) FRONT LIGHTWEIGHT SEATS PARTS DIAGRAM")
-part-diagram-01-1003-b4.webp "ASTON MARTIN VANQUISH (2013) REAR SEATS, VOLANTE PARTS DIAGRAM")
-part-diagram-01-1009-b1.webp "ASTON MARTIN VANQUISH (2013) FRONT SEATS PARTS DIAGRAM")
-part-diagram-01-1010-01.webp "ASTON MARTIN VANQUISH (2013) REAR SEATS, COUPE PARTS DIAGRAM")
-part-diagram-01-1101-02.webp "ASTON MARTIN VANQUISH (2013) WINDSHIELD, COUPE PARTS DIAGRAM")
-part-diagram-01-1101-02a.webp "ASTON MARTIN VANQUISH (2013) WINDSHIELD, VOLANTE PARTS DIAGRAM")
-part-diagram-01-1103-01.webp "ASTON MARTIN VANQUISH (2013) FRONT DOOR GLASS PARTS DIAGRAM")
-part-diagram-01-1104-01.webp "ASTON MARTIN VANQUISH (2013) REAR QUARTER GLASS, VOLANTE PARTS DIAGRAM")
-part-diagram-01-1105-01.webp "ASTON MARTIN VANQUISH (2013) FRONT WINDOW REGULATOR PARTS DIAGRAM")
-part-diagram-01-1108-01.webp "ASTON MARTIN VANQUISH (2013) REAR QUARTER WINDOW REGULATOR, VOLANTE PARTS DIAGRAM")
-part-diagram-01-1110-01.webp "ASTON MARTIN VANQUISH (2013) REAR QUARTER GLASS, COUPE PARTS DIAGRAM")
-part-diagram-01-1113-01.webp "ASTON MARTIN VANQUISH (2013) REAR WINDSCREEN PARTS DIAGRAM")
-part-diagram-01-1201-02.webp "ASTON MARTIN VANQUISH (2013) IP CROSS BEAM PARTS DIAGRAM")
-part-diagram-01-1202-01.webp "ASTON MARTIN VANQUISH (2013) CENTRE CONSOLE ARMREST, PAGE 1 PARTS DIAGRAM")
-part-diagram-01-1202-01-2.webp "ASTON MARTIN VANQUISH (2013) CENTRE CONSOLE ARMREST, PAGE 2 PARTS DIAGRAM")
-part-diagram-01-1202-02.webp "ASTON MARTIN VANQUISH (2013) IP SUBSTRATE PARTS DIAGRAM")
-part-diagram-01-1203-02.webp "ASTON MARTIN VANQUISH (2013) IP TRIMMED PANELS PARTS DIAGRAM")
-part-diagram-01-1204-10.webp "ASTON MARTIN VANQUISH (2013) PASSENGER LOWER PANEL PARTS DIAGRAM")
-part-diagram-01-1206-02.webp "ASTON MARTIN VANQUISH (2013) APPLIED PARTS PARTS DIAGRAM")
-part-diagram-01-1220-01.webp "ASTON MARTIN VANQUISH (2013) CENTRE STACK MOULDING PARTS DIAGRAM")
-part-diagram-01-1222-b1.webp "ASTON MARTIN VANQUISH (2013) CENTRE STACK TRIM PANEL PARTS DIAGRAM")
-part-diagram-01-1241-01.webp "ASTON MARTIN VANQUISH (2013) REAR CONSOLE, COUPE 2+2 PARTS DIAGRAM")
-part-diagram-01-1241-02.webp "ASTON MARTIN VANQUISH (2013) REAR CONSOLE, COUPE 2+0 PARTS DIAGRAM")
-part-diagram-01-1401-b1.webp "ASTON MARTIN VANQUISH (2013) LOCK SET AND KEYS PARTS DIAGRAM")
-part-diagram-01-1402-01.webp "ASTON MARTIN VANQUISH (2013) RKE TRANSMITTER PARTS DIAGRAM")
-part-diagram-01-1403-01.webp "ASTON MARTIN VANQUISH (2013) INNER HANDLES & ACTUATION PARTS DIAGRAM")
-part-diagram-01-1404.webp "ASTON MARTIN VANQUISH (2013) OUTER HANDLES & ACTUATION PARTS DIAGRAM")
-part-diagram-01-1405-b1.webp "ASTON MARTIN VANQUISH (2013) BONNET LATCH & ACTUATION PARTS DIAGRAM")
-part-diagram-01-1409-01.webp "ASTON MARTIN VANQUISH (2013) REAR CLOSURE LATCHES PARTS DIAGRAM")
-part-diagram-01-1410-b2.webp "ASTON MARTIN VANQUISH (2013) FUEL FILLER MECHANISM, VOLANTE PARTS DIAGRAM")
-part-diagram-011411-01.webp "ASTON MARTIN VANQUISH (2013) TONNEAU LATCHES PARTS DIAGRAM")
-part-diagram-01-1415-01.webp "ASTON MARTIN VANQUISH (2013) FUEL FILLER MECHANISM, COUPE PARTS DIAGRAM")
-part-diagram-01-1601-02.webp "ASTON MARTIN VANQUISH (2013) WIPER BLADE ASSEMBLY PARTS DIAGRAM")
-part-diagram-01-1601-04.webp "ASTON MARTIN VANQUISH (2013) WIPER LINKAGE PARTS DIAGRAM")
-part-diagram-01-1604-10.webp "ASTON MARTIN VANQUISH (2013) WASHER BOTTLE PARTS DIAGRAM")
-part-diagram-01-1604-20.webp "ASTON MARTIN VANQUISH (2013) WINDSCREEN WASH PARTS DIAGRAM")
-part-diagram-01-1604-30.webp "ASTON MARTIN VANQUISH (2013) HEADLAMP WASH PARTS DIAGRAM")
-part-diagram-01-1700-01.webp "ASTON MARTIN VANQUISH (2013) VOLANTE ROOF ASSEMBLY PARTS DIAGRAM")
-part-diagram-01-1702-05.webp "ASTON MARTIN VANQUISH (2013) WIND DEFLECTOR PARTS DIAGRAM")
-part-diagram-01-1703-b1.webp "ASTON MARTIN VANQUISH (2013) ROOF OPENING PANEL PARTS DIAGRAM")
-part-diagram-01-1708-05.webp "ASTON MARTIN VANQUISH (2013) ROOF CONTROL MODULE PARTS DIAGRAM")
-part-diagram-01-1901-01.webp "ASTON MARTIN VANQUISH (2013) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-01-1901-10.webp "ASTON MARTIN VANQUISH (2013) FRONT BUMPER, S PARTS DIAGRAM")
-part-diagram-01-1902-01.webp "ASTON MARTIN VANQUISH (2013) REAR BUMPER PARTS DIAGRAM")
-part-diagram-01-1902-01-2.webp "ASTON MARTIN VANQUISH (2013) REAR BUMPER, S PARTS DIAGRAM")
-part-diagram-01-1903.webp "ASTON MARTIN VANQUISH (2013) NUMBER PLATE PLINTHS PARTS DIAGRAM")
-part-diagram-01-2001.webp "ASTON MARTIN VANQUISH (2013) FRONT SEAT BELTS PARTS DIAGRAM")
-part-diagram-01-2002.webp "ASTON MARTIN VANQUISH (2013) AIRBAG, PASSENGER PARTS DIAGRAM")
-part-diagram-01-2004-01.webp "ASTON MARTIN VANQUISH (2013) RESTRAINT ELECTRONICS PARTS DIAGRAM")
-part-diagram-01-2005-04.webp "ASTON MARTIN VANQUISH (2013) REAR SEAT BELTS PARTS DIAGRAM")
-part-diagram-01-2007-01.webp "ASTON MARTIN VANQUISH (2013) FRONT SEAT AIRBAG PARTS DIAGRAM")
-part-diagram-01-2009-01.webp "ASTON MARTIN VANQUISH (2013) CURTAIN AIRBAG, COUPE PARTS DIAGRAM")
-part-diagram-01-2009-01-2.webp "ASTON MARTIN VANQUISH (2013) CURTAIN AIRBAG, VOLANTE PARTS DIAGRAM")
-part-diagram-01-2010-05.webp "ASTON MARTIN VANQUISH (2013) DEPLOYABLE ROLLBAR, VOLANTE PARTS DIAGRAM")
-part-diagram-01-2012-01.webp "ASTON MARTIN VANQUISH (2013) ISOFIX TETHER BRACKETS PARTS DIAGRAM")
-part-diagram-01-3401-01.webp "ASTON MARTIN VANQUISH (2013) FRONT UNDERTRAY, COUPE PARTS DIAGRAM")
-part-diagram-01-3401-05.webp "ASTON MARTIN VANQUISH (2013) FRONT UNDERTRAY, VOLANTE PARTS DIAGRAM")
-part-diagram-01-3402-04.webp "ASTON MARTIN VANQUISH (2013) REAR UNDERTRAY, COUPE PARTS DIAGRAM")
-part-diagram-02-0103-01.webp "ASTON MARTIN VANQUISH (2013) FRONT SUBFRAME PARTS DIAGRAM")
-part-diagram-02-0104-01.webp "ASTON MARTIN VANQUISH (2013) REAR SUBFRAME PARTS DIAGRAM")
-part-diagram-02-0301.webp "ASTON MARTIN VANQUISH (2013) ENGINE MOUNTINGS PARTS DIAGRAM")
-part-diagram-02-0301-01.webp "ASTON MARTIN VANQUISH (2013) POWERTRAIN MOUNTINGS PARTS DIAGRAM")
-part-diagram-03-0100-e1.webp "ASTON MARTIN VANQUISH (2013) ENGINE STRUCTURE PARTS DIAGRAM")
-part-diagram-03-0100-e2.webp "ASTON MARTIN VANQUISH (2013) EXHAUST MANIFOLDS PARTS DIAGRAM")
-part-diagram-03-0200-e1.webp "ASTON MARTIN VANQUISH (2013) ENGINE LUBRICATION PARTS DIAGRAM")
-part-diagram-03-0300-e1.webp "ASTON MARTIN VANQUISH (2013) ENGINE COOLING PARTS DIAGRAM")
-part-diagram-03-0304-02.webp "ASTON MARTIN VANQUISH (2013) COOLANT RESERVOIR & HOSES PARTS DIAGRAM")
-part-diagram-03-0400-e1.webp "ASTON MARTIN VANQUISH (2013) FUEL CHARGING & CONTROLS PARTS DIAGRAM")
-part-diagram-03-0500-e1.webp "ASTON MARTIN VANQUISH (2013) ACCESSORY DRIVE PARTS DIAGRAM")
-part-diagram-03-0600-02.webp "ASTON MARTIN VANQUISH (2013) ENGINE CRANKING, AUTO PARTS DIAGRAM")
-part-diagram-03-0700-e1.webp "ASTON MARTIN VANQUISH (2013) IGNITION PARTS DIAGRAM")
-part-diagram-03-0800-e1.webp "ASTON MARTIN VANQUISH (2013) EMISSION CONTROL PARTS DIAGRAM")
-part-diagram-03-0900-e1.webp "ASTON MARTIN VANQUISH (2013) VALVE TRAIN PARTS DIAGRAM")
-part-diagram-03-1000-e1.webp "ASTON MARTIN VANQUISH (2013) ENGINE SEALING PARTS DIAGRAM")
-part-diagram-03-1100-e1.webp "ASTON MARTIN VANQUISH (2013) POWER CONVERSION PARTS DIAGRAM")
-part-diagram-03-1200-00.webp "ASTON MARTIN VANQUISH (2013) AIR CHARGING PARTS DIAGRAM")
-part-diagram-03-1300-00.webp "ASTON MARTIN VANQUISH (2013) EVAPORATIVE EMISSIONS PARTS DIAGRAM")
-part-diagram-03-1300-01.webp "ASTON MARTIN VANQUISH (2013) EVAPORATIVE EMISSIONS, 15MY PARTS DIAGRAM")
-part-diagram-03-1400-01.webp "ASTON MARTIN VANQUISH (2013) ELECTRONIC ENGINE CONTROL PARTS DIAGRAM")
-part-diagram-03-1400-02.webp "ASTON MARTIN VANQUISH (2013) ELECTRONIC ENGINE CONTROL, BOSCH PARTS DIAGRAM")
-part-diagram-03-1403-01.webp "ASTON MARTIN VANQUISH (2013) BAROMETRIC SENSOR PARTS DIAGRAM")
-part-diagram-03-1801-01.webp "ASTON MARTIN VANQUISH (2013) THROTTLE CONTROL PARTS DIAGRAM")
-part-diagram-03-2201-01.webp "ASTON MARTIN VANQUISH (2013) ENGINE COOLING, LINE FIT PARTS DIAGRAM")
-part-diagram-04-0102-01.webp "ASTON MARTIN VANQUISH (2013) FRONT SUSPENSION ASSEMBLY PARTS DIAGRAM")
-part-diagram-04-0104-01.webp "ASTON MARTIN VANQUISH (2013) FRONT STABILISER BAR PARTS DIAGRAM")
-part-diagram-04-0202-01.webp "ASTON MARTIN VANQUISH (2013) REAR SUSPENSION ASSEMBLY PARTS DIAGRAM")
-part-diagram-04-0204-01.webp "ASTON MARTIN VANQUISH (2013) REAR STABILISER BAR PARTS DIAGRAM")
-part-diagram-04-0301-01.webp "ASTON MARTIN VANQUISH (2013) FRONT SPRING & DAMPER PARTS DIAGRAM")
-part-diagram-04-0302-01.webp "ASTON MARTIN VANQUISH (2013) REAR SPRING & DAMPER PARTS DIAGRAM")
-part-diagram-04-0303-01.webp "ASTON MARTIN VANQUISH (2013) ACTIVE DAMPING MODULE PARTS DIAGRAM")
-part-diagram-04-0400-00.webp "ASTON MARTIN VANQUISH (2013) WHEEL & TYRES, FRONT PARTS DIAGRAM")
-part-diagram-04-0400-01.webp "ASTON MARTIN VANQUISH (2013) WHEEL & TYRES, REAR PARTS DIAGRAM")
-part-diagram-05-0102-02.webp "ASTON MARTIN VANQUISH (2013) TORQUE TUBE ASSEMBLY, 6 SPD PARTS DIAGRAM")
-part-diagram-05-0102-03.webp "ASTON MARTIN VANQUISH (2013) TORQUE TUBE ASSEMBLY, 8 SPD PARTS DIAGRAM")
-part-diagram-05-0501-01.webp "ASTON MARTIN VANQUISH (2013) REAR HALFSHAFT ASSEMBLY PARTS DIAGRAM")
-part-diagram-06-0300-01.webp "ASTON MARTIN VANQUISH (2013) FRONT BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-06-0400-01.webp "ASTON MARTIN VANQUISH (2013) REAR BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-06-0502-02.webp "ASTON MARTIN VANQUISH (2013) PARKING BRAKE, RHD PARTS DIAGRAM")
-part-diagram-06-0502-03.webp "ASTON MARTIN VANQUISH (2013) PARKING BRAKE, LHD PARTS DIAGRAM")
-part-diagram-06-0601-02.webp "ASTON MARTIN VANQUISH (2013) MASTER CYLINDER & RESERVOIR PARTS DIAGRAM")
-part-diagram-06-0602-02.webp "ASTON MARTIN VANQUISH (2013) BRAKE ACTUATOR ASSEMBLY PARTS DIAGRAM")
-part-diagram-06-0603-02.webp "ASTON MARTIN VANQUISH (2013) BRAKE LINES & HOSES, RHD PARTS DIAGRAM")
-part-diagram-06-0603-03.webp "ASTON MARTIN VANQUISH (2013) BRAKE LINES & HOSES, LHD PARTS DIAGRAM")
-part-diagram-06-0704-02.webp "ASTON MARTIN VANQUISH (2013) VACUUM RESERVOIR HOSE PARTS DIAGRAM")
-part-diagram-06-0901-01.webp "ASTON MARTIN VANQUISH (2013) ELECTRONIC BRAKE MODULE PARTS DIAGRAM")
-part-diagram-06-0902-01.webp "ASTON MARTIN VANQUISH (2013) WHEEL SPEED SENSORS PARTS DIAGRAM")
-part-diagram-07-0101-01.webp "ASTON MARTIN VANQUISH (2013) TRANSMISSION, 6SPD PARTS DIAGRAM")
-part-diagram-07-0101-02.webp "ASTON MARTIN VANQUISH (2013) TRANSMISSION, 8SPD PARTS DIAGRAM")
-part-diagram-07-0101-03.webp "ASTON MARTIN VANQUISH (2013) TRANSMISSION KITS, 8SPD PARTS DIAGRAM")
-part-diagram-07-0110-10.webp "ASTON MARTIN VANQUISH (2013) DIFFERENTIAL PARTS DIAGRAM")
-part-diagram-07-0201-01.webp "ASTON MARTIN VANQUISH (2013) TRANSMISSION OIL COOLER PARTS DIAGRAM")
-part-diagram-07-0202-01.webp "ASTON MARTIN VANQUISH (2013) TRANSMISSION OIL COOLER PIPES PARTS DIAGRAM")
-part-diagram-07-0501-02.webp "ASTON MARTIN VANQUISH (2013) PADDLESHIFT PARTS DIAGRAM")
-part-diagram-09-0101-01.webp "ASTON MARTIN VANQUISH (2013) ACOUSTIC CONTROL PARTS DIAGRAM")
-part-diagram-09-0500-00.webp "ASTON MARTIN VANQUISH (2013) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-09-0500-10.webp "ASTON MARTIN VANQUISH (2013) EXHAUST SYSTEM, S PARTS DIAGRAM")
-part-diagram-10-0101-s1.webp "ASTON MARTIN VANQUISH (2013) FUEL TANK ASSY PARTS DIAGRAM")
-part-diagram-10-0102-01.webp "ASTON MARTIN VANQUISH (2013) FUEL DISTRIBUTION, TO 15MY PARTS DIAGRAM")
-part-diagram-10-0102-02.webp "ASTON MARTIN VANQUISH (2013) FUEL DISTRIBUTION, 15MY ON PARTS DIAGRAM")
-part-diagram-10-0103-02.webp "ASTON MARTIN VANQUISH (2013) FUEL FILLER ASSEMBLY, VOLANTE PARTS DIAGRAM")
-part-diagram-10-0103-04.webp "ASTON MARTIN VANQUISH (2013) FUEL FILLER ASSEMBLY, COUPE PARTS DIAGRAM")
-part-diagram-10-0105-01.webp "ASTON MARTIN VANQUISH (2013) FUEL PUMP MODULE PARTS DIAGRAM")
-part-diagram-11-0101-02.webp "ASTON MARTIN VANQUISH (2013) STEERING RACK, RHD PARTS DIAGRAM")
-part-diagram-11-0101-03.webp "ASTON MARTIN VANQUISH (2013) STEERING RACK, LHD PARTS DIAGRAM")
-part-diagram-11-0201-10.webp "ASTON MARTIN VANQUISH (2013) PAS HOSES, RHD TO 15MY PARTS DIAGRAM")
-part-diagram-11-0201-20.webp "ASTON MARTIN VANQUISH (2013) PAS HOSES, RHD 15MY ON PARTS DIAGRAM")
-part-diagram-11-0201-30.webp "ASTON MARTIN VANQUISH (2013) PAS HOSES, LHD TO 15MY PARTS DIAGRAM")
-part-diagram-11-0201-40.webp "ASTON MARTIN VANQUISH (2013) PAS HOSES, LHD 15MY ON PARTS DIAGRAM")
-part-diagram-11-0202-02.webp "ASTON MARTIN VANQUISH (2013) STEERING MODULE PARTS DIAGRAM")
-part-diagram-11-0401-02.webp "ASTON MARTIN VANQUISH (2013) STEERING COLUMN ASSEMBLY PARTS DIAGRAM")
-part-diagram-11-0404-02.webp "ASTON MARTIN VANQUISH (2013) COLUMN SHROUD PARTS DIAGRAM")
-part-diagram-11-0601-04.webp "ASTON MARTIN VANQUISH (2013) STEERING WHEEL PARTS DIAGRAM")
-part-diagram-11-0601-05.webp "ASTON MARTIN VANQUISH (2013) STEERING WHEEL, OPTIONAL PARTS DIAGRAM")
-part-diagram-11-0601-10.webp "ASTON MARTIN VANQUISH (2013) COLUMN SWITCH ASSEMBLY PARTS DIAGRAM")
-part-diagram-12-0101-02.webp "ASTON MARTIN VANQUISH (2013) AIR INTAKE COMPONENTS PARTS DIAGRAM")
-part-diagram-12-0102-03.webp "ASTON MARTIN VANQUISH (2013) AIR DISTRIBUTION COMPONENTS PARTS DIAGRAM")
-part-diagram-12-0103-04.webp "ASTON MARTIN VANQUISH (2013) AIR EXTRACTION COMPONENTS PARTS DIAGRAM")
-part-diagram-12-0303-10.webp "ASTON MARTIN VANQUISH (2013) AIR CON LINES, R134A GAS PARTS DIAGRAM")
-part-diagram-12-0303-20.webp "ASTON MARTIN VANQUISH (2013) AIR CON LINES, HFO1234YF GAS PARTS DIAGRAM")
-part-diagram-12-0305-02.webp "ASTON MARTIN VANQUISH (2013) HVAC UNIT PARTS DIAGRAM")
-part-diagram-12-0404-02.webp "ASTON MARTIN VANQUISH (2013) SENSORS PARTS DIAGRAM")
-part-diagram-13-0101-02.webp "ASTON MARTIN VANQUISH (2013) INSTRUMENT CLUSTER PARTS DIAGRAM")
-part-diagram-13-0102-01.webp "ASTON MARTIN VANQUISH (2013) SAT NAV ASSEMBLY PARTS DIAGRAM")
-part-diagram-13-0102-02.webp "ASTON MARTIN VANQUISH (2013) SAT NAV DISPLAY PARTS DIAGRAM")
-part-diagram-13-0601-01.webp "ASTON MARTIN VANQUISH (2013) TRAFFIC HORN PARTS DIAGRAM")
-part-diagram-13-1300-00.webp "ASTON MARTIN VANQUISH (2013) PARKING AID PARTS DIAGRAM")
-part-diagram-13-1400-00.webp "ASTON MARTIN VANQUISH (2013) TYRE PRESSURE MODULE PARTS DIAGRAM")
-part-diagram-14-0100-00.webp "ASTON MARTIN VANQUISH (2013) BATTERY PARTS DIAGRAM")
-part-diagram-15-0101-01.webp "ASTON MARTIN VANQUISH (2013) INFOTAINMENT HEAD UNIT PARTS DIAGRAM")
-part-diagram-15-0101-02.webp "ASTON MARTIN VANQUISH (2013) CD MULTI CHANGER, COUPE PARTS DIAGRAM")
-part-diagram-15-0101-02a.webp "ASTON MARTIN VANQUISH (2013) CD MULTI CHANGER, VOLANTE PARTS DIAGRAM")
-part-diagram-15-0102-01.webp "ASTON MARTIN VANQUISH (2013) MEDIA PLAYER PARTS DIAGRAM")
-part-diagram-15-0104-01.webp "ASTON MARTIN VANQUISH (2013) INFOTAINMENT CONTROLS PARTS DIAGRAM")
-part-diagram-15-0201-02.webp "ASTON MARTIN VANQUISH (2013) RADIO ANTENNA PARTS DIAGRAM")
-part-diagram-15-0201-02a.webp "ASTON MARTIN VANQUISH (2013) RADIO ANTENNA, 14.5MY PARTS DIAGRAM")
-part-diagram-15-0202-02.webp "ASTON MARTIN VANQUISH (2013) SDARS TUNER, COUPE PARTS DIAGRAM")
-part-diagram-15-0202-02a.webp "ASTON MARTIN VANQUISH (2013) SDARS TUNER, VOLANTE PARTS DIAGRAM")
-part-diagram-15-0205-03.webp "ASTON MARTIN VANQUISH (2013) WI-FI ANTENNA PARTS DIAGRAM")
-part-diagram-15-0301-01.webp "ASTON MARTIN VANQUISH (2013) SPEAKERS, B&O PARTS DIAGRAM")
-part-diagram-15-0302-02.webp "ASTON MARTIN VANQUISH (2013) AMPLIFIERS, B&O, VOLANTE PARTS DIAGRAM")
-part-diagram-15-0302-04.webp "ASTON MARTIN VANQUISH (2013) AMPLIFIERS, B&O, COUPE PARTS DIAGRAM")
-part-diagram-17-0101-01.webp "ASTON MARTIN VANQUISH (2013) HEADLIGHTS PARTS DIAGRAM")
-part-diagram-17-0104-01.webp "ASTON MARTIN VANQUISH (2013) SIDE REPEATERS PARTS DIAGRAM")
-part-diagram-17-0201.webp "ASTON MARTIN VANQUISH (2013) COURTESY LIGHTING PARTS DIAGRAM")
-part-diagram-17-0301-01.webp "ASTON MARTIN VANQUISH (2013) REAR LAMPS PARTS DIAGRAM")
-part-diagram-17-0304-01.webp "ASTON MARTIN VANQUISH (2013) HIGH MOUNTED STOP LIGHT, COUPE PARTS DIAGRAM")
-part-diagram-17-0304-01a.webp "ASTON MARTIN VANQUISH (2013) HIGH MOUNTED STOP LIGHT, VOLANTE PARTS DIAGRAM")
-part-diagram-17-0308-01.webp "ASTON MARTIN VANQUISH (2013) LICENSE PLATE LAMPS PARTS DIAGRAM")
-part-diagram-17-0400-00.webp "ASTON MARTIN VANQUISH (2013) RAIN & DAYLIGHT SENSOR PARTS DIAGRAM")
-part-diagram-18-0101-02.webp "ASTON MARTIN VANQUISH (2013) FRONT & ENGINE BAY HARNESS PARTS DIAGRAM")
-part-diagram-18-0102-02.webp "ASTON MARTIN VANQUISH (2013) IP HARNESS PARTS DIAGRAM")
-part-diagram-18-0103-02.webp "ASTON MARTIN VANQUISH (2013) BODY HARNESS, COUPE PARTS DIAGRAM")
-part-diagram-18-0103-02a.webp "ASTON MARTIN VANQUISH (2013) BODY HARNESS, VOLANTE PARTS DIAGRAM")
-part-diagram-18-0103-03.webp "ASTON MARTIN VANQUISH (2013) CD/DVD LINK HARNESS PARTS DIAGRAM")
-part-diagram-18-0104-01.webp "ASTON MARTIN VANQUISH (2013) REAR END HARNESS, COUPE PARTS DIAGRAM")
-part-diagram-18-0104-01a.webp "ASTON MARTIN VANQUISH (2013) REAR END HARNESS, VOLANTE PARTS DIAGRAM")
-part-diagram-18-0106-02.webp "ASTON MARTIN VANQUISH (2013) ENGINE BAY FUSEBOX PARTS DIAGRAM")
-part-diagram-18-0108-06.webp "ASTON MARTIN VANQUISH (2013) BATTERY CABLES PARTS DIAGRAM")
-part-diagram-18-0109-02.webp "ASTON MARTIN VANQUISH (2013) PASSENGER COMPARTMENT FUSEBOX PARTS DIAGRAM")
-part-diagram-18-0110-02.webp "ASTON MARTIN VANQUISH (2013) LOAD COMPARTMNET FUSEBOX PARTS DIAGRAM")
-part-diagram-18-0111-01.webp "ASTON MARTIN VANQUISH (2013) ENGINE HARNESS PARTS DIAGRAM")
-part-diagram-18-0112-01.webp "ASTON MARTIN VANQUISH (2013) TRANSMISSION HARNESS PARTS DIAGRAM")
-part-diagram-18-0114-02.webp "ASTON MARTIN VANQUISH (2013) DOOR HARNESS PARTS DIAGRAM")
-part-diagram-18-0301-02.webp "ASTON MARTIN VANQUISH (2013) IP SWITCHES PARTS DIAGRAM")
-part-diagram-18-0302-02.webp "ASTON MARTIN VANQUISH (2013) DOOR MOUNTED SWITCHES PARTS DIAGRAM")
-part-diagram-18-0303-02.webp "ASTON MARTIN VANQUISH (2013) SEAT ADJUSTMENT SWITCHES PARTS DIAGRAM")
-part-diagram-18-0304-02.webp "ASTON MARTIN VANQUISH (2013) CENTRE CONSOLE SWITCHES PARTS DIAGRAM")
-part-diagram-18-0311-01.webp "ASTON MARTIN VANQUISH (2013) EXTERIOR DECKLID SWITCH PARTS DIAGRAM")
-part-diagram-18-0401-01.webp "ASTON MARTIN VANQUISH (2013) POWER SOCKET PARTS DIAGRAM")
-part-diagram-19-0101-01.webp "ASTON MARTIN VANQUISH (2013) ALARM SENSORS PARTS DIAGRAM")
-part-diagram-19-0102-01.webp "ASTON MARTIN VANQUISH (2013) ALARM HORNS & SIRENS PARTS DIAGRAM")
-part-diagram-19-0102-02.webp "ASTON MARTIN VANQUISH (2013) CAT-5 TRACKER, 14.5MY PARTS DIAGRAM")
-part-diagram-19-0103-02.webp "ASTON MARTIN VANQUISH (2013) CAT-5 TRACKER PARTS DIAGRAM")
-part-diagram-19-0201-02.webp "ASTON MARTIN VANQUISH (2013) RKE PARTS DIAGRAM")
-part-diagram-19-0700-01.webp "ASTON MARTIN VANQUISH (2013) NAVIGATION MODULE, VOLANTE PARTS DIAGRAM")
-part-diagram-19-0701-01.webp "ASTON MARTIN VANQUISH (2013) NAVIGATION MODULE, COUPE PARTS DIAGRAM")
-part-diagram-19-0702-02.webp "ASTON MARTIN VANQUISH (2013) GPS ANTENNA, COUPE PARTS DIAGRAM")
-part-diagram-19-0702-02a.webp "ASTON MARTIN VANQUISH (2013) GPS ANTENNA, VOLANTE PARTS DIAGRAM")
-part-diagram-19-0803-01.webp "ASTON MARTIN VANQUISH (2013) MICROPHONE PARTS DIAGRAM")
-part-diagram-19-1001-01.webp "ASTON MARTIN VANQUISH (2013) ELECTRONIC DOOR MODULE PARTS DIAGRAM")
-part-diagram-19-1800-00.webp "ASTON MARTIN VANQUISH (2013) BOOT LATCH CONTROLLER PARTS DIAGRAM")
-part-diagram-00-0101-10.webp "ASTON MARTIN VANQUISH (2013) AIRBAG WARNING LABELS PARTS DIAGRAM")
-part-diagram-00-0101-20.webp "ASTON MARTIN VANQUISH (2013) AIRBAG WARNING LABELS PARTS DIAGRAM")
-part-diagram-00-0101-30.webp "ASTON MARTIN VANQUISH (2013) EXTERIOR LABELS PARTS DIAGRAM")
-part-diagram-00-0101-40.webp "ASTON MARTIN VANQUISH (2013) UNDERBONNET LABELS PARTS DIAGRAM")
-part-diagram-00-0103-01.webp "ASTON MARTIN VANQUISH (2013) OWNERS GUIDE PARTS DIAGRAM")
-part-diagram-00-0201-01.webp "ASTON MARTIN VANQUISH (2013) EMERGENCY EQUIPMENT, 14.5MY PARTS DIAGRAM")
-part-diagram-00-0201-04.webp "ASTON MARTIN VANQUISH (2013) EMERGENCY EQUIPMENT PARTS DIAGRAM")
-part-diagram-01-0100-00.webp "ASTON MARTIN VANQUISH (2013) BODY IN WHITE PARTS DIAGRAM")
-part-diagram-01-0101-04.webp "ASTON MARTIN VANQUISH (2013) UNDERBODY, COUPE PARTS DIAGRAM")
-part-diagram-01-0101-05.webp "ASTON MARTIN VANQUISH (2013) UNDERBODY, VOLANTE PARTS DIAGRAM")
-part-diagram-01-0102-10.webp "ASTON MARTIN VANQUISH (2013) BODY FRAME, FRONT PARTS DIAGRAM")
-part-diagram-01-0102-20.webp "ASTON MARTIN VANQUISH (2013) BODY DASH & COWL, COUPE PARTS DIAGRAM")
-part-diagram-01-0102-30.webp "ASTON MARTIN VANQUISH (2013) BODY DASH & COWL, VOLANTE PARTS DIAGRAM")
-part-diagram-01-0103-01.webp "ASTON MARTIN VANQUISH (2013) FRONT STRUCTURE PARTS DIAGRAM")
-part-diagram-01-0104-01.webp "ASTON MARTIN VANQUISH (2013) ROOF, COUPE PARTS DIAGRAM")

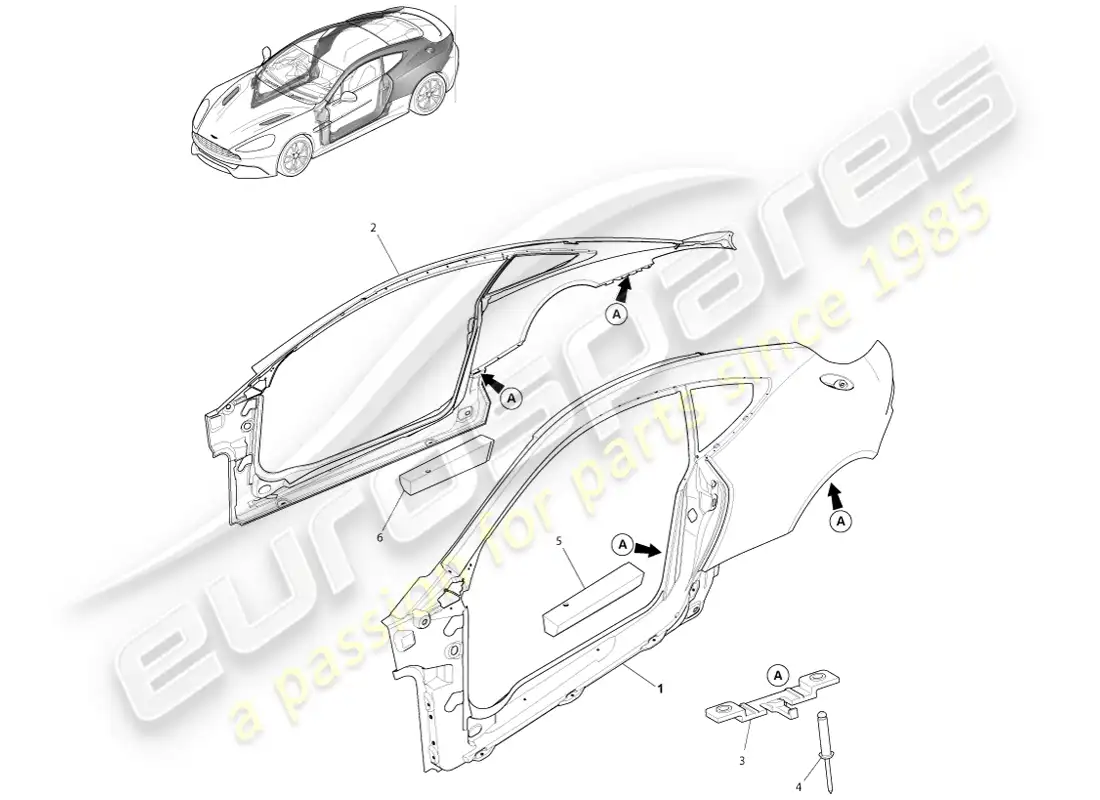

-part-diagram-01-0105-01.webp "ASTON MARTIN VANQUISH (2013) BODY SIDE, COUPE PARTS DIAGRAM")

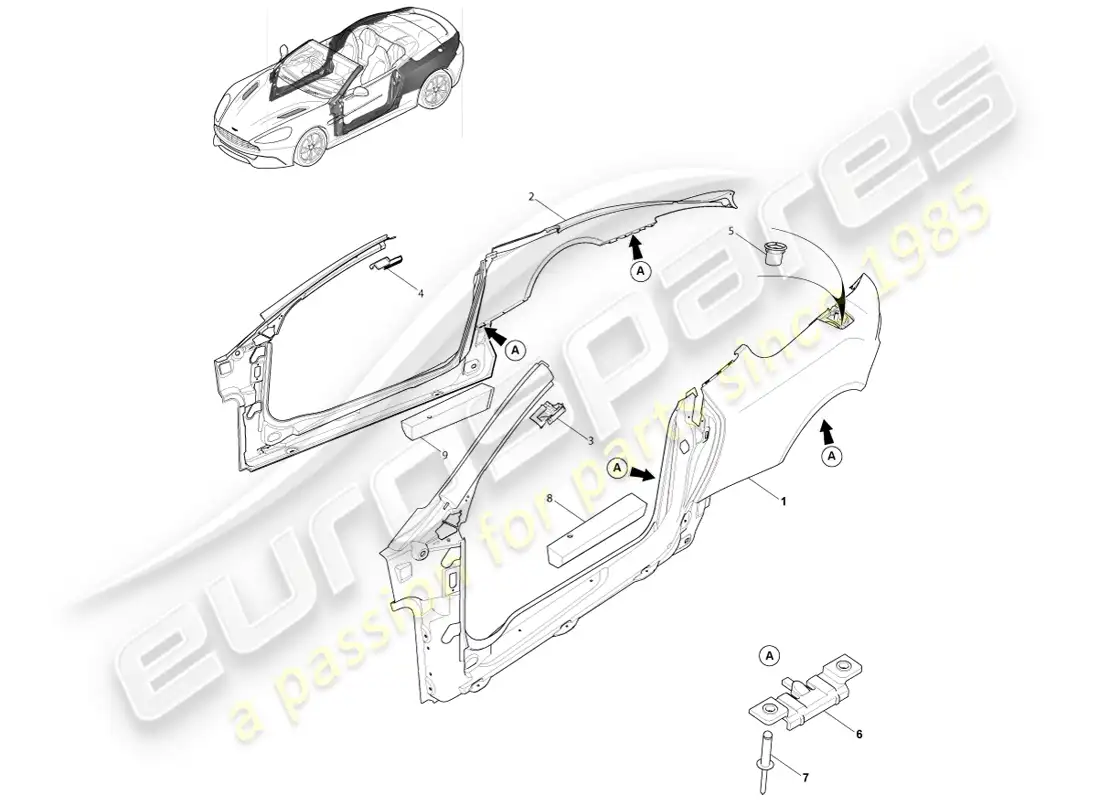

-part-diagram-01-0105-02.webp "ASTON MARTIN VANQUISH (2013) BODY SIDE, VOLANTE PARTS DIAGRAM")

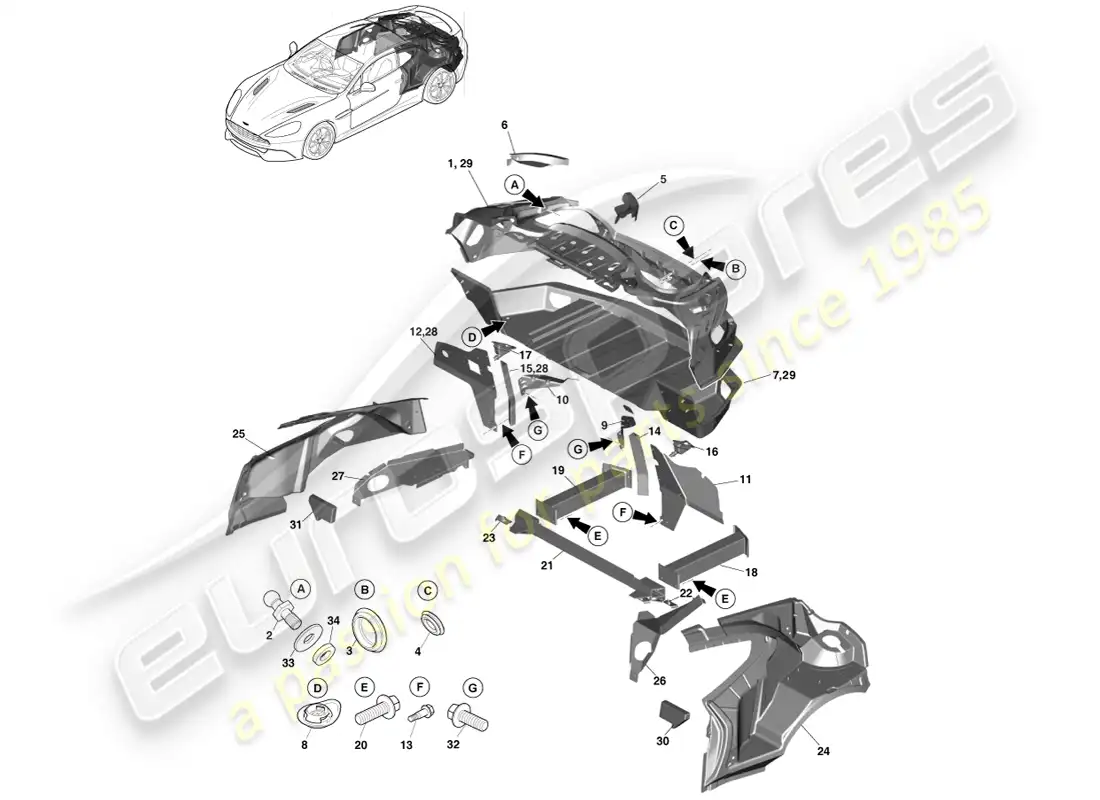

-part-diagram-01-0108-01.webp "ASTON MARTIN VANQUISH (2013) BODY REAR END, COUPE PARTS DIAGRAM")

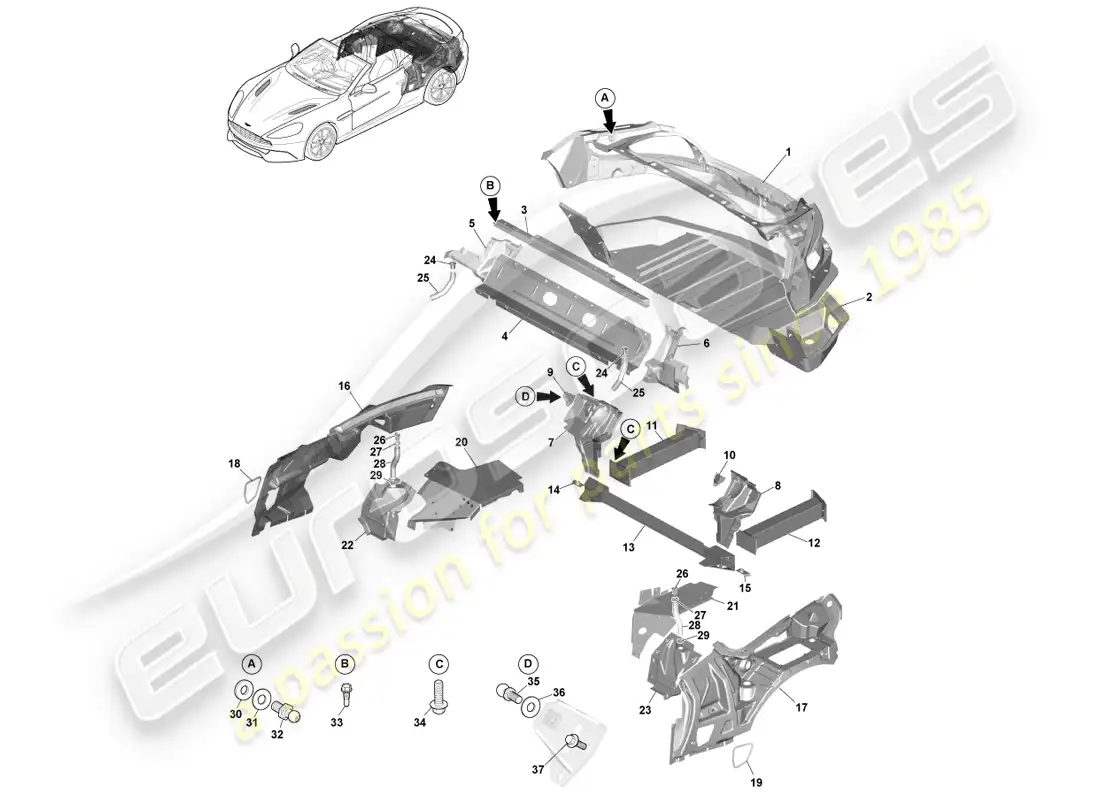

-part-diagram-01-0108-02.webp "ASTON MARTIN VANQUISH (2013) BODY REAR END, VOLANTE PARTS DIAGRAM")
-part-diagram-01-0110-01.webp "ASTON MARTIN VANQUISH (2013) ANCILLARY PARTS, VOLANTE, PAGE 1 PARTS DIAGRAM")
