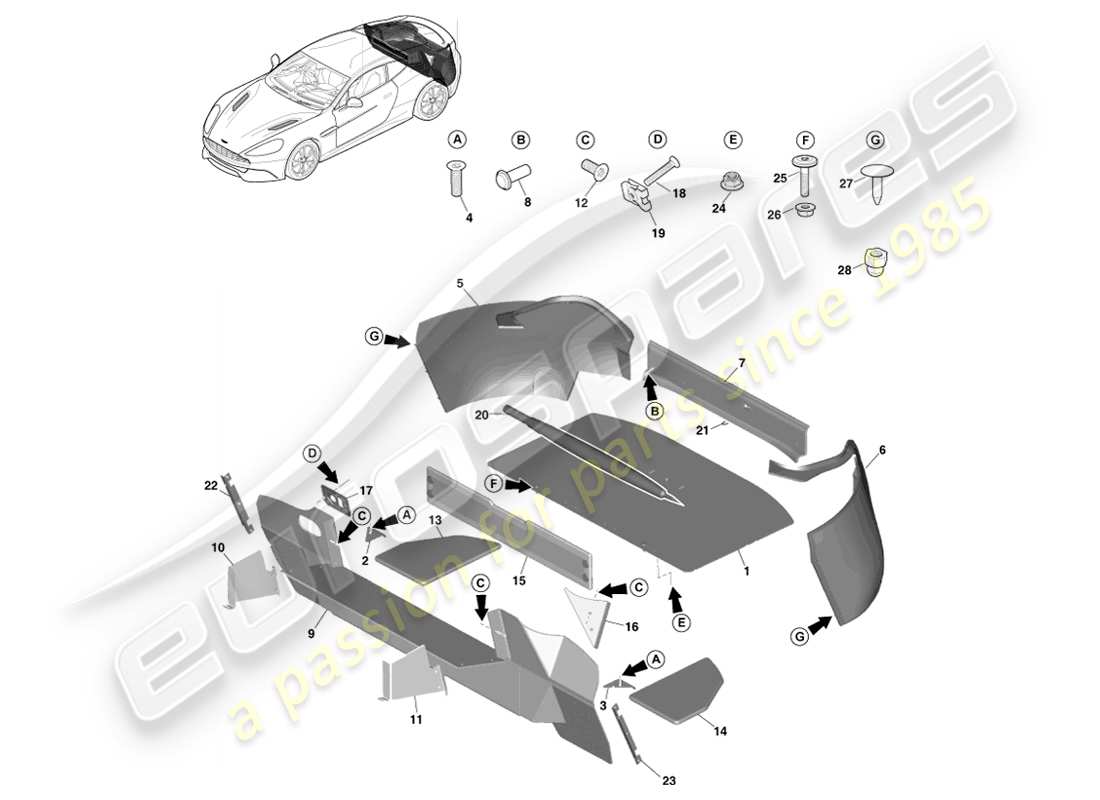

01-0517-06 - Load Compartment Trim, Coupe

Aston Martin Vanquish (2013) Load Compartment Trim, Coupe Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Key
                                              Price
                                              # 1
                                              MPN: CD33-44866-AAW
                                              FLOOR CARPET, LOAD COMPARTMENT, REAR
                                              from £1,897.73
                                              from £1,897.73
                                              FLOOR CARPET, LOAD COMPARTMENT, REAR Genuine Aston Martin - New (to order)
                                              # 2
                                              MPN: CD33-17B048-CA
                                              FLOOR BRACKET, RH
                                              from £13.80
                                              from £13.80
                                              FLOOR BRACKET, RH Genuine Aston Martin - New (to order)
                                              # 3
                                              MPN: CD33-17B049-CA
                                              FLOOR BRACKET, LH
                                              from £13.80
                                              from £13.80
                                              FLOOR BRACKET, LH Genuine Aston Martin - New (to order)
                                              # 4
                                              MPN: 703738
                                              SCREW, M6 X 20, CSK TORX SCREW
                                              from £0.79
                                              from £0.79
                                              SCREW-M6X20 FLAT HD Genuine Aston Martin - New (to order)
                                              # 5
                                              MPN: CD33-130B64-AAW
                                              TRIM ASSY, SIDE PANEL, RH
                                              from £980.39
                                              from £980.39
                                              TRIM ASSEMBLY, SIDE PANEL, RH Genuine Aston Martin - New (to order)
                                              # 6
                                              MPN: CD33-130B65-AAW
                                              TRIM ASSY, SIDE PANEL, LH
                                              from £980.39
                                              from £980.39
                                              TRIM ASSEMBLY, SIDE PANEL, LH Genuine Aston Martin - New (to order)
                                              # 7
                                              MPN: DD33-100A86-AAW
                                              CARPET ASSY, LATCH BRACKET
                                              from £593.05
                                              from £593.05
                                              CARPET ASSEMBLY, LATCH BRACKET Genuine Aston Martin - New (to order)
                                              # 8
                                              MPN: 4G43-2705-AA
                                              RIVET
                                              from £0.47
                                              from £0.47
                                              RIVET, PLASTIC Genuine Aston Martin - New (to order)
                                              # 9
                                              MPN: CD33-454B04-ACW
                                              CARPET, FLOOR LOAD COMPARTMENT FRONT
                                              from £138.08
                                              from £138.08
                                              CARPET, FLOOR LOAD COMPARTMENT FRONT Genuine Aston Martin - New (to order)
                                              # 10
                                              MPN: DD33-F27862-BA
                                              PRESSING, UPPER SIDE, RH
                                              from £72.30
                                              from £72.30
                                              PRESSING, UPPER SIDE, RH Genuine Aston Martin - New (to order)
                                              # 11
                                              MPN: DD33-F27863-BA
                                              PRESSING, UPPER SIDE, LH
                                              from £72.30
                                              from £72.30
                                              PRESSING, UPPER SIDE, LH Genuine Aston Martin - New (to order)
                                              # 12
                                              MPN: 703073
                                              SCREW, M6 X 14, CSK HEAD
                                              from £0.47
                                              from £0.47
                                              M6 X 16 SCREW Genuine Aston Martin - New (to order)
                                              # 13
                                              MPN: CD33-13152-AAW
                                              TRIM ASSY, SIDE FLOOR PANEL, RH
                                              from £826.32
                                              from £826.32
                                              TRIM ASSEMBLY, SIDE FLOOR PANEL, RH Genuine Aston Martin - New (to order)
                                              # 14
                                              MPN: CD33-13153-AAW
                                              TRIM ASSY, SIDE FLOOR PANEL, LH
                                              from £826.32
                                              from £826.32
                                              TRIM ASSEMBLY, SIDE FLOOR PANEL, LH Genuine Aston Martin - New (to order)
                                              # 15
                                              MPN: DD33-130A60-AAW
                                              TRIM ASSY, ACCESS PANEL
                                              from £387.45
                                              from £387.45
                                              TRIM ASSEMBLY, ACCESS PANEL Genuine Aston Martin - New (to order)
                                              # 15
                                              MPN: CD33-130A60-BAW
                                              TRIM ASSY, ACCESS PANEL
                                              For CD Autochanger
                                              TRIM ASSEMBLY, ACCESS PANEL Genuine Aston Martin - New (to order)
                                              # 16
                                              MPN: DD33-425A82-CA
                                              PLATE, FUEL FILLER
                                              from £42.24
                                              from £42.24
                                              PLATE, FUEL FILLER Genuine Aston Martin - New (to order)
                                              # 17
                                              MPN: DD33-045L27-AA
                                              MOULDING, AUXILIARY POWER OUTLET
                                              Up To 16MY, With Single USB
                                              MOULDING, AUXILIARY POWER OUTLET Genuine Aston Martin - New (to order)
                                              # 17
                                              MPN: DD33-045L27-AB
                                              MOULDING, AUXILIARY POWER OUTLET
                                              From 16MY, Less USB
                                              from £58.06
                                              from £58.06
                                              MOULDING, AUXILIARY POWER OUTLET Genuine Aston Martin - New (to order)
                                              # 18
                                              MPN: DD33-0416-AA
                                              SCREW, 3.9 X 19MM
                                              from £1.66
                                              from £1.66
                                              SCREW, 3.9 X 19MM Genuine Aston Martin - New (to order)
                                              # 19
                                              MPN: 701653
                                              NUT, U TYPE, 4.2 X 0.7 - 2
                                              from £0.47
                                              from £0.47
                                              SPRING NUT 4.2X0.7-2 Genuine Aston Martin - New (to order)
                                              # 20
                                              MPN: 7G43-700712-BB
                                              UMBRELLA, BLACK STANDARD
                                              Supersession
                                              Supersession
                                              Genuine Aston Martin (no longer available to order)
                                              # 21
                                              MPN: 4G43-N623361-AA
                                              CLIP, U TYPE
                                              from £0.67
                                              from £0.67
                                              CLIP U TYPE Genuine Aston Martin - New (to order)
                                              # 22
                                              MPN: CD33-423A34-BA
                                              ANGLE BRACKET, RH
                                              from £33.90
                                              from £33.90
                                              ANGLE BRACKET, RH Genuine Aston Martin - New (to order)
                                              # 23
                                              MPN: CD33-423A35-BA
                                              ANGLE BRACKET, LH
                                              from £33.90
                                              from £33.90
                                              ANGLE BRACKET, LH Genuine Aston Martin - New (to order)
                                              # 24
                                              MPN: 703169
                                              NUT, M6 HEX FLANGE
                                              from £0.71
                                              from £0.71
                                              This part replaces part number 703168
                                              NUT M6 HEX FLANGE Genuine Aston Martin - New (to order)
                                              # 25
                                              MPN: 5R13-FA0036-AA
                                              SCREW, M6 X 28
                                              Part of item 1
                                              from £1.68
                                              from £1.68
                                              SCREW - M6 X 28 Genuine Aston Martin - New (to order)
                                              # 26
                                              MPN: 702944
                                              NUT M6 HEX FLNG
                                              Part of item 1
                                              from £0.58
                                              from £0.58
                                              NUT M6 HEX FLNG MTL8 Genuine Aston Martin - New (to order)
                                              LOWER MESH NUTS Genuine Ferrari Part - New (to order)
                                              # 27
                                              MPN: 4G43-STC3710-AA-PK
                                              FIXING, FIR TREE, 8MM
                                              Part of Items 5 & 6. Pack of 20
                                              Supersession
                                              Supersession
                                              Genuine Aston Martin (no longer available to order)
                                              # 28
                                              MPN: 4G43-16C695-AB-PK
                                              DOMED NUT, NYLON M6 BLACK
                                              Pack of 20
                                              from £13.96
                                              from £13.96
                                              NUT-M6 DOMED NYLN(10 Genuine Aston Martin - New (to order)
