01-0803-01A - Upper Exterior Finishers, Volante

Aston Martin Vanquish (2013) Upper Exterior Finishers, Volante Parts Diagram

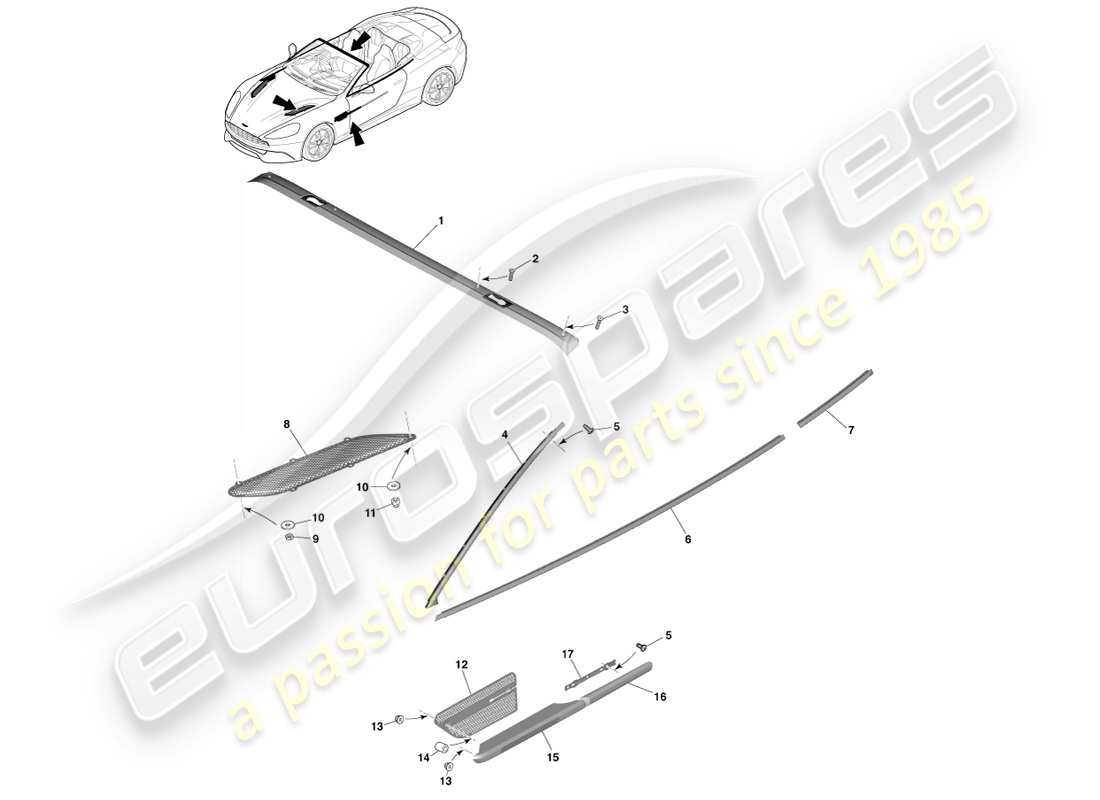

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 1
                MPN: ED33-L03065-AB
                FINISHER, FRONT HEADER WINDSHIELD
                from £183.63
                from £183.63
                FINISHER, FRONT HEADER WINDSHIELD Genuine Aston Martin - New (to order)
                # 2
                MPN: 4G43-103081-BA
                SCREW, M4X16, COUNTERSUNK, STAINLESS BLACK
                from £0.47
                from £0.47
                SCREW COUNTERSUNK M4 X 16 Genuine Aston Martin - New (to order)
                # 3
                MPN: AG43-608073-AA
                SCREW, NO 8X25, COUNTERSUNK, STAINLESS BLACK
                from £11.97
                from £11.97
                SCRW-NO8X25 COUNTERSUNK STB Genuine Aston Martin - New (to order)
                # 4
                MPN: ED33-519A37-AB
                FINISHER, A PILLAR, LH
                bright
                from £180.68
                from £180.68
                FINISHER, A PILLAR, LH Genuine Aston Martin - New (to order)
                # 4
                MPN: FD33-519A37-BA
                FINISHER, A PILLAR, LH
                Black
                from £363.21
                from £363.21
                FINISHER, A PILLAR, LH Genuine Aston Martin - New (to order)
                # 4
                MPN: ED33-519A36-AB
                FINISHER, A PILLAR, RH
                bright
                from £186.22
                from £186.22
                FINISHER, A PILLAR, RH Genuine Aston Martin - New (to order)
                # 4
                MPN: FD33-519A36-BA
                FINISHER, A PILLAR, RH
                Black
                from £363.21
                from £363.21
                FINISHER, A PILLAR, RH Genuine Aston Martin - New (to order)
                # 5
                MPN: 6G33-51756-AA-PK
                SCREW, M5X13, PAN HEAD
                Pack of 10
                from £2.68
                from £2.68
                SCREW-M5X13 PN HD(10 Genuine Aston Martin - New (to order)
                # 6
                MPN: CD33-F20563-AC
                WAIST SEAL, DOOR OUTER, LH
                bright
                from £152.06
                from £152.06
                WAIST SEAL, DOOR OUTER, LH Genuine Aston Martin - New (to order)
                # 6
                MPN: FD33-F20563-BA
                WAIST SEAL, DOOR OUTER, LH
                Black
                from £294.62
                from £294.62
                WAIST SEAL, DOOR OUTER, LH Genuine Aston Martin - New (to order)
                # 6
                MPN: CD33-F20562-AC
                WAIST SEAL, DOOR OUTER, RH
                bright
                from £152.06
                from £152.06
                WAIST SEAL, DOOR OUTER, RH Genuine Aston Martin - New (to order)
                # 6
                MPN: FD33-F20562-BA
                WAIST SEAL, DOOR OUTER, RH
                Black
                from £294.62
                from £294.62
                WAIST SEAL, DOOR OUTER, RH Genuine Aston Martin - New (to order)
                # 7
                MPN: ED33-1228495-AC
                WAIST SEAL, OUTER REAR QUARTER GLASS, LH
                bright
                from £330.03
                from £330.03
                WAIST SEAL, OUTER REAR QUARTER GLASS , LH Genuine Aston Martin - New (to order)
                # 7
                MPN: FD33-1228495-AC
                WAIST SEAL, OUTER REAR QUARTER GLASS, LH
                Black
                from £270.49
                from £270.49
                WAIST SEAL, OUTER REAR QUARTER GLASS , LH Genuine Aston Martin - New (to order)
                # 7
                MPN: ED33-1228494-AC
                WAIST SEAL, OUTER REAR QUARTER GLASS, RH
                bright
                from £330.03
                from £330.03
                WAIST SEAL, OUTER REAR QUARTER GLASS , RH Genuine Aston Martin - New (to order)
                # 7
                MPN: FD33-1228494-AC
                WAIST SEAL, OUTER REAR QUARTER GLASS, RH
                Black
                from £270.49
                from £270.49
                WAIST SEAL, OUTER REAR QUARTER GLASS , RH Genuine Aston Martin - New (to order)
                # 8
                MPN: ED33-16C693-AA
                MESH, HOOD, LH
                Black
                from £115.33
                from £115.33
                MESH, HOOD, LH, BLACK Genuine Aston Martin - New (to order)
                # 8
                MPN: CD33-16C693-BC
                MESH, HOOD, LH
                Magnum Silver
                from £277.49
                from £277.49
                MESH, HOOD, LH, MAGNUM SILVER Genuine Aston Martin - New (to order)
                # 8
                MPN: ED33-16C693-CA
                MESH, HOOD, LH
                TITANIUM
                MESH, HOOD, LH, TITANIUM Genuine Aston Martin - New (to order)
                # 8
                MPN: ED33-16C692-AA
                MESH, HOOD, RH
                Black
                from £115.33
                from £115.33
                MESH, HOOD, RH, BLACK Genuine Aston Martin - New (to order)
                # 8
                MPN: CD33-16C692-BC
                MESH, HOOD, RH
                Magnum Silver
                from £277.49
                from £277.49
                MESH, HOOD, RH, MAGNUM SILVER Genuine Aston Martin - New (to order)
                # 8
                MPN: ED33-16C692-CA
                MESH, HOOD, RH
                TITANIUM
                MESH, HOOD, RH, TITANIUM Genuine Aston Martin - New (to order)
                # 8a
                MPN: HD33-16C693-AA
                MESH, HOOD, LH, BLACK CARBON
                S & Ultimate'
                from £2,820.51
                from £2,820.51
                MESH, HOOD, LH, BLACK CARBON Genuine Aston Martin - New (to order)
                # 8a
                MPN: HD33-16C692-AA
                MESH, HOOD, RH, BLACK CARBON
                S & Ultimate'
                from £2,820.51
                from £2,820.51
                MESH, HOOD, RH, BLACK CARBON Genuine Aston Martin - New (to order)
                # 9
                MPN: 702994
                NUT, M6, HEX THIN
                from £0.47
                from £0.47
                NUT M6 HEX THIN Genuine Aston Martin - New In stock
                # 10
                MPN: 4G43-16C694-AB-PK
                WASHER, NYLON
                Pack of 10
                from £6.33
                from £6.33
                WASHER-NYLON(PACK 10 Genuine Aston Martin - New (to order)
                # 11
                MPN: 4G43-16C695-AB-PK
                NUT, M6, DOMED BLACK NYLON
                Pack of 10
                from £14.31
                from £14.31
                NUT-M6 DOMED NYLN(10 Genuine Aston Martin - New (to order)
                # 12
                MPN: ED33-280B84-AA
                MESH, SIDE STRAKE, LH
                Black
                from £114.07
                from £114.07
                MESH, SIDE STRAKE, LH, BLACK Genuine Aston Martin - New (to order)
                # 12
                MPN: CD33-280B84-BB
                MESH, SIDE STRAKE, LH
                Magnum Silver
                from £114.07
                from £114.07
                MESH, SIDE STRAKE, LH, MAGNUM SILVER Genuine Aston Martin - New (to order)
                # 12
                MPN: ED33-280B84-CA
                MESH, SIDE STRAKE, LH
                TITANIUM
                from £114.07
                from £114.07
                MESH, SIDE STRAKE, LH, TITANIUM Genuine Aston Martin - New (to order)
                # 12
                MPN: ED33-280B83-AA
                MESH, SIDE STRAKE, RH
                Black
                from £114.07
                from £114.07
                MESH, SIDE STRAKE, RH, BLACK Genuine Aston Martin - New (to order)
                # 12
                MPN: CD33-280B83-BB
                MESH, SIDE STRAKE, RH
                Magnum Silver
                from £114.07
                from £114.07
                MESH, SIDE STRAKE, RH, MAGNUM SILVER Genuine Aston Martin - New (to order)
                # 12
                MPN: ED33-280B83-CA
                MESH, SIDE STRAKE, RH
                TITANIUM
                from £114.07
                from £114.07
                MESH, SIDE STRAKE, RH, TITANIUM Genuine Aston Martin - New (to order)
                # 13
                MPN: 703165
                NUT, M5, HEX FLANGE HEAD
                from £0.47
                from £0.47
                NUT M5 HEX FLANGE PLAS Genuine Aston Martin - New (to order)
                # 14
                MPN: CD33-280B85-AA
                SPACER, FENDER STRAKE
                from £0.47
                from £0.47
                SPACER, FENDER STRAKE Genuine Aston Martin - New (to order)
                # 15
                MPN: CD33-280B63-AD
                SIDE STRAKE, FENDER, LH
                bright
                from £269.28
                from £269.28
                SIDE STRAKE, FENDER, LH Genuine Aston Martin - New (to order)
                # 15
                MPN: CD33-280B62-AD
                SIDE STRAKE, FENDER, RH
                bright
                from £233.89
                from £233.89
                SIDE STRAKE, FENDER, RH Genuine Aston Martin - New (to order)
                # 15
                MPN: CD33-280B63-CC
                SIDE STRAKE, FENDER, LH
                CARBON
                SIDE STRAKE, FENDER, LH Genuine Aston Martin - New (to order)
                # 15
                MPN: CD33-280B62-CC
                SIDE STRAKE, FENDER, RH
                CARBON
                SIDE STRAKE, FENDER, RH Genuine Aston Martin - New (to order)
                # 15
                MPN: JD33-280B63-DA
                SIDE STRAKE, FENDER, LH (WITH DECAL)
                Ultimate' Carbon, 18.5MY on
                from £3,117.60
                from £3,117.60
                SIDE STRAKE, FENDER, LH (WITH DECAL) Genuine Aston Martin - New (to order)
                # 15
                MPN: JD33-280B62-DA
                SIDE STRAKE, FENDER, RH (WITH DECAL)
                Ultimate' Carbon, 18.5MY on
                from £3,117.60
                from £3,117.60
                SIDE STRAKE, FENDER, RH (WITH DECAL) Genuine Aston Martin - New (to order)
                # 16
                MPN: CD33-018K29-AC
                SIDE STRAKE, DOOR, LH
                bright
                from £142.57
                from £142.57
                SIDE STRAKE, DOOR, LH Genuine Aston Martin - New (to order)
                # 16
                MPN: CD33-018K28-AC
                SIDE STRAKE, DOOR, RH
                bright
                from £196.35
                from £196.35
                SIDE STRAKE, DOOR, RH Genuine Aston Martin - New (to order)
                # 16
                MPN: CD33-018K29-CD
                SIDE STRAKE, DOOR, LH
                CARBON
                SIDE STRAKE, DOOR, LH Genuine Aston Martin - New (to order)
                # 16
                MPN: CD33-018K28-CD
                SIDE STRAKE, DOOR, RH
                CARBON
                SIDE STRAKE, DOOR, RH Genuine Aston Martin - New (to order)
                # 17
                MPN: CD33-0937-AB
                RETAINER, DOOR STRAKE
                from £1.77
                from £1.77
                RETAINER, DOOR STRAKE Genuine Aston Martin - New (to order)
