aston martin vanquish (2013) leaf screen assembly parts diagram

01-0812-02 - Leaf Screen Assembly

Aston Martin Vanquish (2013) Leaf Screen Assembly Parts Diagram

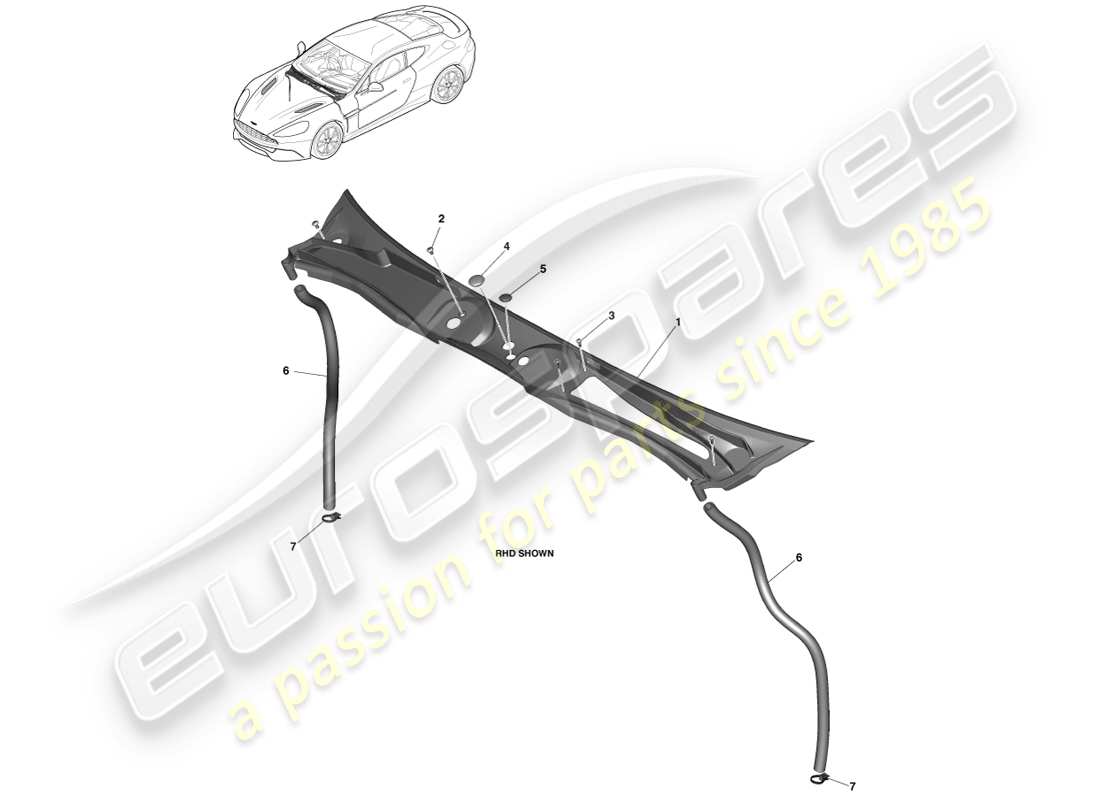

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Key
              Price
              # 1
              MPN: CD33-292670-BC
              LEAF SCREEN ASSY, RHD
              Up to 15MY
              LEAF SCREEN ASSEMBLY, RHD Genuine Aston Martin - New (to order)
              # 1
              MPN: CD33-292670-BD
              LEAF SCREEN ASSY, RHD
              15MY on
              from £217.75
              from £217.75
              LEAF SCREEN ASSEMBLY, RHD Genuine Aston Martin - New (to order)
              # 1
              MPN: CD33-292670-AC
              LEAF SCREEN ASSY, LHD
              Up to 15MY
              LEAF SCREEN ASSEMBLY, LHD Genuine Aston Martin - New (to order)
              # 1
              MPN: CD33-292670-AD
              LEAF SCREEN ASSY, LHD
              15MY on
              from £210.56
              from £210.56
              LEAF SCREEN ASSEMBLY, LHD Genuine Aston Martin - New (to order)
              # 2
              MPN: 703085
              BOLT, M6X12
              from £0.47
              from £0.47
              BOLT M6X12 PC TI8 Genuine Aston Martin - New (to order)
              # 3
              MPN: DG43-219005-AA
              SCREW, 4.2X16
              from £0.87
              from £0.87
              SCREW 4.2 X 16 Genuine Aston Martin - New (to order)
              # 4
              MPN: CD33-11027-AA
              BLANKING PLUG
              from £1.01
              from £1.01
              BLANKING PLUG Genuine Aston Martin - New (to order)
              # 5
              MPN: DG43-11028-AA
              BLANKING PLUG
              from £0.66
              from £0.66
              BLANKING PLUG Genuine Aston Martin - New (to order)
              # 6
              MPN: DG43-3810-AA
              DRAIN TUBE, LEAF SCREEN
              from £30.91
              from £30.91
              DRAIN TUBE, LEAF SCREEN, DRIVER Genuine Aston Martin - New (to order)
              # 7
              MPN: 6G33-14A169-AB
              CABLE TIE
              from £3.00
              from £3.00
              CLIP Genuine Aston Martin - New (to order)
