aston martin vanquish (2013) centre console armrest, page 1 parts diagram

01-1202-01 - Centre Console Armrest, Page 1

Aston Martin Vanquish (2013) Centre Console Armrest, page 1 Parts Diagram

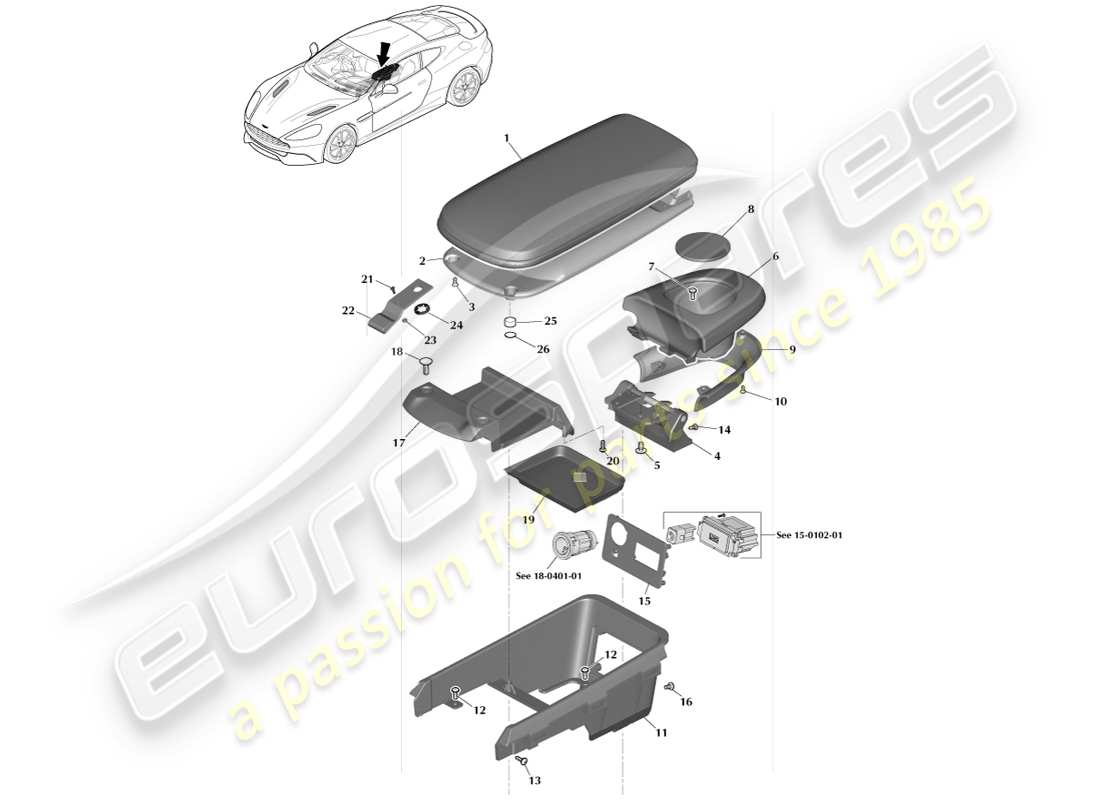

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Key
                                          Price
                                          # 1
                                          MPN: CD33-045K07-ADW
                                          ARMREST STOWAGE ASSEMBLY
                                          RoW
                                          from £771.92
                                          from £771.92
                                          ARMREST STOWAGE ASSEMBLY Genuine Aston Martin - New (to order)
                                          # 1
                                          MPN: JD33-045K07-AAW
                                          ARMREST STOWAGE ASSEMBLY
                                          RoW, 18.5MY on
                                          ARMREST STOWAGE ASSEMBLY Genuine Aston Martin - New (to order)
                                          # 1
                                          MPN: DD33-045K07-BBW
                                          ARMREST STOWAGE ASSEMBLY
                                          Federal
                                          ARMREST STOWAGE ASSEMBLY Genuine Aston Martin - New (to order)
                                          # 1
                                          MPN: JD33-045K07-BAW
                                          ARMREST STOWAGE ASSEMBLY
                                          Federal, 18.5MY on
                                          ARMREST STOWAGE ASSEMBLY Genuine Aston Martin - New (to order)
                                          # 2
                                          MPN: CD33-045M19-AB
                                          MOULDING, LID LINER
                                          RoW
                                          from £29.46
                                          from £29.46
                                          MOULDING, LID LINER Genuine Aston Martin - New (to order)
                                          # 2
                                          MPN: DD33-045M19-BA
                                          MOULDING, LID LINER
                                          Federal
                                          MOULDING, LID LINER Genuine Aston Martin - New (to order)
                                          # 3
                                          MPN: 703725
                                          SCREW, M4X10, FLAT CSK HD
                                          from £0.87
                                          from £0.87
                                          SCREW-M4X10 COUNTERSUNK SOCKET Genuine Aston Martin - New (to order)
                                          # 4
                                          MPN: DD33-47321-AB
                                          HINGE ASSEMBLY, ARMREST
                                          from £184.59
                                          from £184.59
                                          HINGE ASSEMBLY, ARMREST Genuine Aston Martin - New (to order)
                                          # 5
                                          MPN: 703143
                                          SCREW, BUTTON TORX HEAD
                                          from £1.07
                                          from £1.07
                                          SCRW & WSHR-M6 X 12 Genuine Aston Martin - New (to order)
                                          # 6
                                          MPN: CD33-67846-ACW
                                          CUP HOLDER ASSEMBLY, REAR
                                          from £230.73
                                          from £230.73
                                          CUP HOLDER ASSEMBLY, REAR Genuine Aston Martin - New (to order)
                                          # 7
                                          MPN: 707145
                                          SCREW, M5X24, PAN HEAD
                                          from £0.47
                                          from £0.47
                                          SCREW, M5X24, PAN HEAD Genuine Aston Martin - New (to order)
                                          # 8
                                          MPN: DD33-29765-AAW
                                          MAT ASSEMBLY, REAR CUP HOLDER
                                          from £183.17
                                          from £183.17
                                          MAT ASSEMBLY, REAR CUP HOLDER Genuine Aston Martin - New (to order)
                                          # 9
                                          MPN: DD33-046B95-ABW
                                          CUP HOLDER, REAR LOWER ASSEMBLY
                                          CUP HOLDER, REAR LOWER ASSEMBLY Genuine Aston Martin - New (to order)
                                          # 10
                                          MPN: 697687
                                          SCREW, NO.6X9.5, CSK HD
                                          from £0.47
                                          from £0.47
                                          SCREW NO6 X 9.5 CS B Genuine Aston Martin - New (to order)
                                          # 11
                                          MPN: DD33-044H60-AEW
                                          STOWAGE TRAY ASSEMBLY, REAR
                                          Up to 17MY
                                          from £439.97
                                          from £439.97
                                          STOWAGE TRAY ASSEMBLY, REAR Genuine Aston Martin - New (to order)
                                          # 11
                                          MPN: HD33-044H60-AAW
                                          STOWAGE TRAY ASSEMBLY, REAR
                                          17MY on
                                          STOWAGE TRAY ASSEMBLY, REAR Genuine Aston Martin - New (to order)
                                          # 12
                                          MPN: 703170
                                          SCREW, 4X8. PAN HD
                                          from £1.27
                                          from £1.27
                                          SCREW 4X8 PAN T/H Genuine Aston Martin - New (to order)
                                          # 13
                                          MPN: 705464
                                          SCREW, 4.2X16, LARGE WASHER HEAD
                                          from £0.47
                                          from £0.47
                                          SCREW 4.2 X 16 ST Genuine Aston Martin - New (to order)
                                          # 14
                                          MPN: 703027
                                          SCREW, M4X10, PAN HD
                                          from £0.47
                                          from £0.47
                                          SCREW M4X10 PAN HD Genuine Aston Martin - New (to order)
                                          # 15
                                          MPN: DD33-296G02-AB
                                          AVX PLATE, CENTRE CONSOLE, REAR
                                          Part of item 11
                                          from £141.14
                                          from £141.14
                                          AVX PLATE, CENTRE CONSOLE, REAR Genuine Aston Martin - New (to order)
                                          # 16
                                          MPN: 703068
                                          SCREW, 4.2X9, FLANGE TORX HEAD
                                          from £0.47
                                          from £0.47
                                          SCREW 4.2X9 Genuine Aston Martin - New (to order)
                                          # 17
                                          MPN: DD33-045H74-ABW
                                          STOWAGE CONSOLE ASSEMBLY, REAR
                                          RoW
                                          from £346.16
                                          from £346.16
                                          STOWAGE CONSOLE ASSEMBLY, REAR Genuine Aston Martin - New (to order)
                                          # 17
                                          MPN: DD33-045H74-BAW
                                          STOWAGE CONSOLE ASSEMBLY, REAR
                                          Federal
                                          STOWAGE CONSOLE ASSEMBLY, REAR Genuine Aston Martin - New (to order)
                                          # 18
                                          MPN: DD33-487013-AA
                                          COVER FINISHER
                                          COVER FINISHER Genuine Aston Martin - New (to order)
                                          # 19
                                          MPN: CD33-045M880-AB
                                          MAT, ARMREST STOWAGE
                                          from £30.65
                                          from £30.65
                                          MAT, ARMREST STOWAGE Genuine Aston Martin - New (to order)
                                          # 20
                                          MPN: 702289
                                          SCREW, M4X16
                                          from £0.47
                                          from £0.47
                                          SCREW, M4X16 Genuine Aston Martin - New (to order)
                                          # 21
                                          MPN: 704779
                                          SCREW, CSK, M4X12
                                          from £0.47
                                          from £0.47
                                          SCREW M4 X 12 SOCKET Genuine Aston Martin - New (to order)
                                          # 22
                                          MPN: DD33-044M10-AA
                                          LAT CONSOLE ARMREST
                                          Federal
                                          LAT CONSOLE ARMREST Genuine Aston Martin - New (to order)
                                          # 23
                                          MPN: W520400-S
                                          NUT, M4
                                          NUT, M4 Genuine Aston Martin - New (to order)
                                          # 24
                                          MPN: DD33-244487-AA
                                          LOCK WASHER
                                          LOCK WASHER Genuine Aston Martin - New (to order)
                                          # 25
                                          MPN: 8G43-23697-AA
                                          MAGNET
                                          from £8.47
                                          from £8.47
                                          MAGNET AND BUMPSTOP Genuine Aston Martin - New (to order)
                                          # -
                                          -
                                          BUMPSTOP
