01-1222-B1 - Centre Stack Trim Panel

Aston Martin Vanquish (2013) Centre Stack Trim Panel Parts Diagram

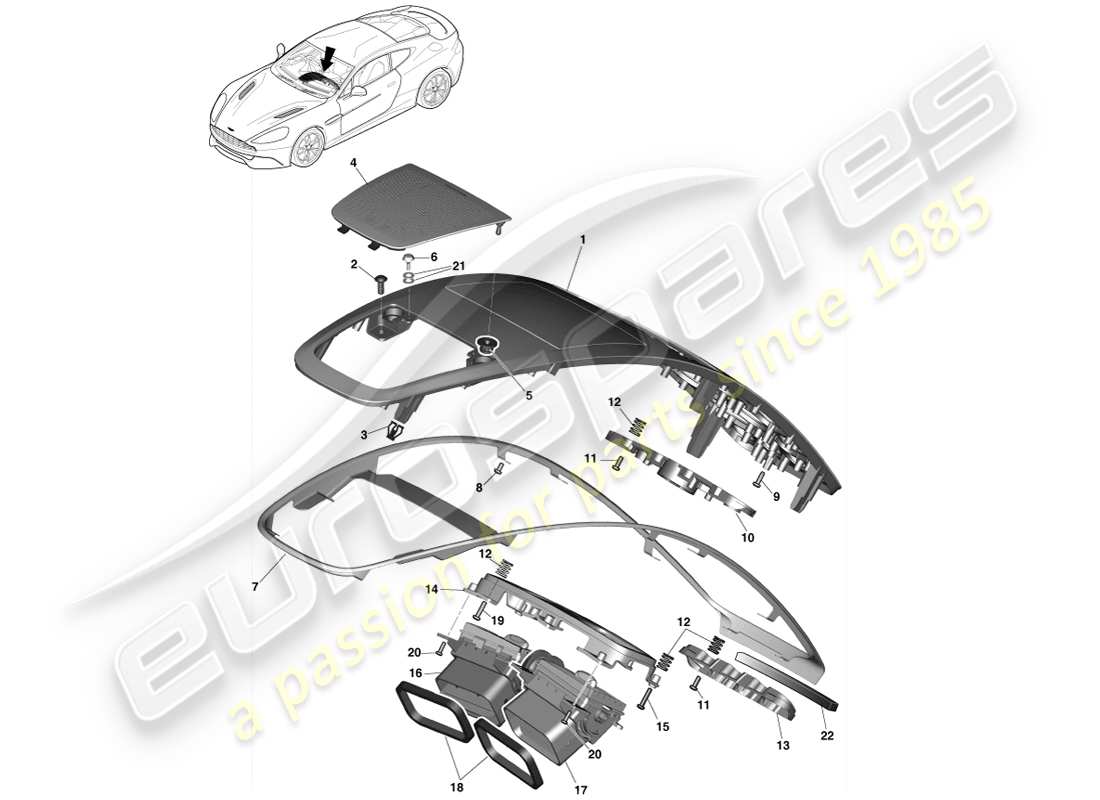

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Key
                                  Price
                                  # 1
                                  MPN: CD33-045J10-AB
                                  VENEER ASSEMBLY, SAT NAV, AUTO
                                  Piano black
                                  This part replaces part number CD33-045J10-AC
                                  VENEER ASSEMBLY, SAT NAV, AUTO Genuine Aston Martin - New (to order)
                                  # 1
                                  MPN: CD33-045J10-BB
                                  VENEER ASSEMBLY, SAT NAV, AUTO
                                  Piano Red
                                  VENEER ASSEMBLY, SAT NAV, AUTO Genuine Aston Martin - New (to order)
                                  # 1
                                  MPN: CD33-045J10-CB
                                  VENEER ASSEMBLY, SAT NAV, AUTO
                                  Piano Ice Mocha
                                  VENEER ASSEMBLY, SAT NAV, AUTO Genuine Aston Martin - New (to order)
                                  # 1
                                  MPN: CD33-045J10-DB
                                  VENEER ASSEMBLY, SAT NAV, AUTO
                                  Iridium
                                  VENEER ASSEMBLY, SAT NAV, AUTO Genuine Aston Martin - New (to order)
                                  # 1
                                  MPN: CD33-045J10-EC
                                  VENEER ASSEMBLY, SAT NAV, AUTO
                                  Twill Carbon Fibre
                                  This part replaces part number CD33-045J10-ED
                                  VENEER ASSEMBLY, SAT NAV, AUTO Genuine Aston Martin - New (to order)
                                  # 1
                                  MPN: CD33-045J10-FB
                                  VENEER ASSEMBLY, SAT NAV, AUTO
                                  Herringbone Carbon Fibre
                                  This part replaces part number CD33-045J10-FC
                                  VENEER ASSEMBLY, SAT NAV, AUTO Genuine Aston Martin - New (to order)
                                  # 1
                                  MPN: GD33-045J10-GA
                                  VENEER ASSEMBLY, SAT NAV, AUTO
                                  Cuprum Carbon
                                  VENEER ASSEMBLY, SAT NAV, AUTO Genuine Aston Martin - New (to order)
                                  # 1
                                  MPN: HD33-045J10-AA
                                  VENEER ASSEMBLY, SAT NAV, AUTO
                                  Chopped Carbon
                                  VENEER ASSEMBLY, SAT NAV, AUTO Genuine Aston Martin - New (to order)
                                  # 2
                                  MPN: 703746
                                  SCREW, M6 X 16, TORX PAN HD
                                  from £0.47
                                  from £0.47
                                  SCREW-M6X16 PAN TORX Genuine Aston Martin - New (to order)
                                  # 3
                                  MPN: 702520-PK
                                  CLIP, 8.5 X 16 X 1.7, TRIM PUSH-IN
                                  Pack of 20
                                  from £2.42
                                  from £2.42
                                  CLIP 8.5X16X1.7 (20) Genuine Aston Martin - New (to order)
                                  FRONT BUMPER CLIP (SMALL) Genuine Ferrari Part - New (to order)
                                  # 4
                                  MPN: CD33-C046A26-AA
                                  SPEAKER GRILLE, CENTRE
                                  Black
                                  from £330.27
                                  from £330.27
                                  SPEAKER GRILLE, CENTRE Genuine Aston Martin - New (to order)
                                  # 4
                                  MPN: CD33-C046A26-BA
                                  SPEAKER GRILLE, CENTRE
                                  Iridium
                                  from £315.36
                                  from £315.36
                                  SPEAKER GRILLE, CENTRE Genuine Aston Martin - New (to order)
                                  # -
                                  -
                                  VELOUR ANTI-SQUEAK TAPE, SELF ADHESIVE
                                  # 5
                                  MPN: DD33-88420-AA
                                  STRIKER CATCH, CENTRE SPEAKER
                                  from £0.79
                                  from £0.79
                                  STRIKER CATCH, CENTRE SPEAKER Genuine Aston Martin - New (to order)
                                  # 6
                                  MPN: DD33-8C813-AA
                                  BUMPER, RUBBER
                                  from £11.72
                                  from £11.72
                                  BUMPER, RUBBER Genuine Aston Martin - New (to order)
                                  # 7
                                  MPN: CD33-14853-AD
                                  VENEER FINISHER, CENTRE STACK
                                  Black
                                  VENEER FINISHER, CENTRE STACK Genuine Aston Martin - New (to order)
                                  # 7
                                  MPN: CD33-14853-AE
                                  VENEER FINISHER, CENTRE STACK
                                  Black, 15MY on
                                  from £519.49
                                  from £519.49
                                  VENEER FINISHER, CENTRE STACK Genuine Aston Martin - New (to order)
                                  # 7
                                  MPN: CD33-14853-CC
                                  VENEER FINISHER, CENTRE STACK
                                  Iridium
                                  from £556.59
                                  from £556.59
                                  VENEER FINISHER, CENTRE STACK Genuine Aston Martin - New (to order)
                                  # 7
                                  MPN: CD33-14853-CD
                                  VENEER FINISHER, CENTRE STACK
                                  Iridium, 15MY on
                                  from £779.74
                                  from £779.74
                                  VENEER FINISHER, CENTRE STACK Genuine Aston Martin - New (to order)
                                  # 8
                                  MPN: 703178
                                  SCREW, M4 X 8, THREAD FORMING
                                  from £0.47
                                  from £0.47
                                  M4 X 8MM SCREW THRD Genuine Aston Martin - New (to order)
                                  # 9
                                  MPN: W504684-S424
                                  SCREW, M4 X 12, TORX PAN HD
                                  M4X12 PAD HD FLNG LO Genuine Aston Martin - New (to order)
                                  # 10
                                  MPN: DD33-14A462-AA
                                  SWITCH CARRIER, PRND & STARTER BUTTON
                                  SWITCH CARRIER, PRND & STARTER BUTTON Genuine Aston Martin - New (to order)
                                  # 11
                                  MPN: DD33-0863-AA
                                  SCREW, M4 X12, PAN HD, PATCH LOCK
                                  from £0.47
                                  from £0.47
                                  SCREW-M4X12 PATCH LK Genuine Aston Martin - New (to order)
                                  # 12
                                  MPN: DD33-11A090-AB
                                  COMPRESSION SPRING, CENTRE STACK VENEER
                                  from £0.47
                                  from £0.47
                                  CTR STACK COMP SPRIN Genuine Aston Martin - New (to order)
                                  # 13
                                  MPN: DD33-14A462-BA
                                  SWITCH CARRIER, LOWER
                                  SWITCH CARRIER, LOWER Genuine Aston Martin - New (to order)
                                  # 14
                                  MPN: CD33-19F648-AD
                                  BEZEL, AIR REGISTER, CENTRE STACK
                                  Satin Chrome
                                  from £255.97
                                  from £255.97
                                  BEZEL, AIR REGISTER, CENTRE STACK Genuine Aston Martin - New (to order)
                                  # 14
                                  MPN: CD33-19F648-BD
                                  BEZEL, AIR REGISTER, CENTRE STACK
                                  Shadow Bronze
                                  from £265.03
                                  from £265.03
                                  BEZEL, AIR REGISTER, CENTRE STACK Genuine Aston Martin - New (to order)
                                  # 15
                                  MPN: DD33-0816-AA
                                  SCREW, M4 X 20, PAN HD, PATCH LOCK
                                  from £0.74
                                  from £0.74
                                  SCREW, M4X20, PAN HEAD, PATCH LOCK Genuine Aston Martin - New (to order)
                                  # 16
                                  MPN: CD33-046B30-AB
                                  REGISTER ASSEMBLY, A/C, RH
                                  from £46.34
                                  from £46.34
                                  RGSTR ASSEMBLY IPNL A/C Genuine Aston Martin - New (to order)
                                  # 17
                                  MPN: CD33-046B31-AB
                                  REGISTER ASSEMBLY, A/C, LH
                                  from £64.49
                                  from £64.49
                                  RGSTR ASSEMBLY IPNL A/C Genuine Aston Martin - New (to order)
                                  # 18
                                  MPN: 4G43-18D404-CA
                                  FOAM SEAL, AIR DISTRIBUTION DUCTS
                                  from £1.44
                                  from £1.44
                                  FOAM SEAL - AIR DIST Genuine Aston Martin - New (to order)
                                  # 19
                                  MPN: DD33-0838-AA
                                  SCREW, M4 X 16, PAN HD, PATCH LOCK
                                  from £0.47
                                  from £0.47
                                  SCREW-M4X16 PATCH LK Genuine Aston Martin - New (to order)
                                  # 20
                                  MPN: 701447
                                  SCREW, 4 X 12, PAN HD
                                  from £0.47
                                  from £0.47
                                  SCREW 4X12 PAN Genuine Aston Martin - New (to order)
                                  # 21
                                  MPN: DD33-MRC1980-AA
                                  WASHER, NYLON, 4.3X8.0X0.5
                                  2 per Buffer
                                  from £0.47
                                  from £0.47
                                  WASHER, NYLON, 4.3X8.0X0.5 Genuine Aston Martin - New (to order)
