aston martin vanquish (2013) wiper blade assembly parts diagram

01-1601-02 - WIPER BLADE ASSEMBLY

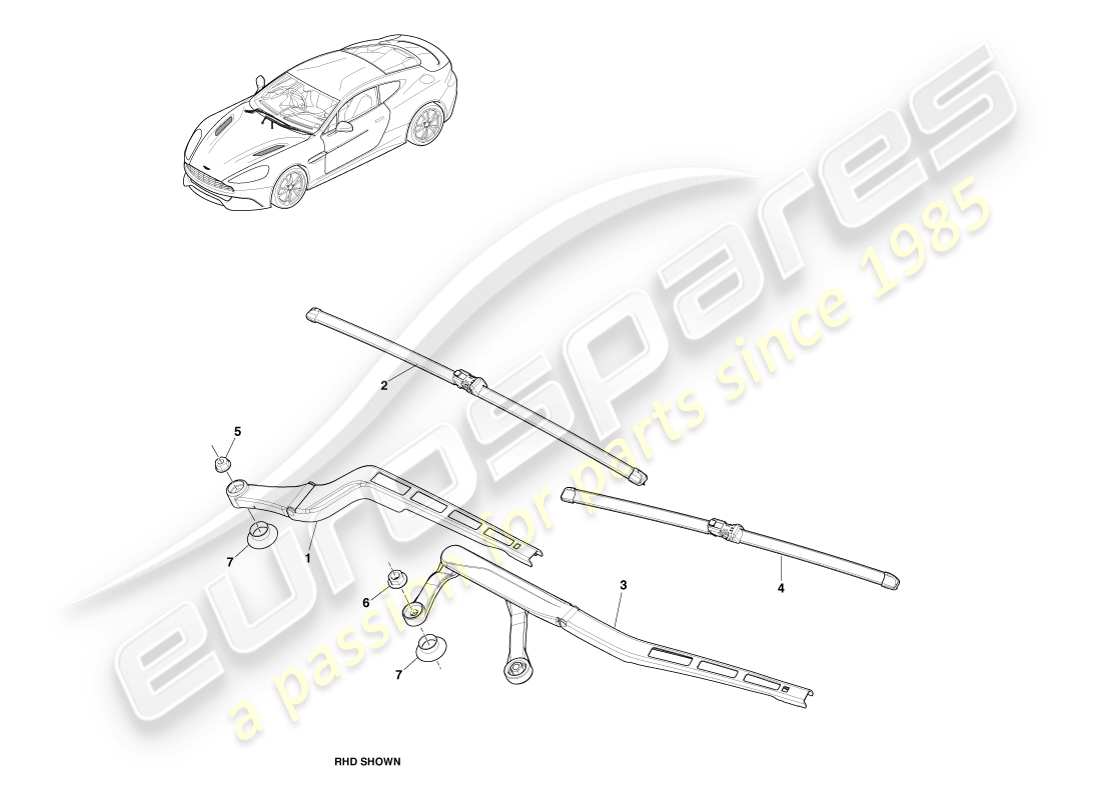

Aston Martin Vanquish (2013) Wiper Blade Assembly Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Key
              Price
              # 1
              MPN: CG43-17526-DA
              ARM ASSY, WIPER, RHS, RHD
              from £235.50
              from £235.50
              ARM ASSEMBLY, WIPER, RHS, RHD Genuine Aston Martin - New (to order)
              # 1
              MPN: CG43-17527-CA
              ARM ASSY, WIPER, LHS, LHD
              from £394.07
              from £394.07
              ARM ASSEMBLY, WIPER, LHS, LHD Genuine Aston Martin - New (to order)
              # 2
              MPN: CG43-17528-BA
              BLADE ASSY, RHS, RHD
              from £47.96
              from £47.96
              BLADE ASSEMBLY, RHS, RHD Genuine Aston Martin - New (to order)
              # 2
              MPN: CG43-17B437-AA
              BLADE ASSY, LHS, LHD
              Supersession
              Supersession
              Genuine Aston Martin (no longer available to order)
              # 3
              MPN: DG43-17527-DA
              ARM ASSY WIPER, LHS, RHD
              from £361.58
              from £361.58
              ARM ASSEMBLY WIPER, LHS, RHD Genuine Aston Martin - New (to order)
              # 3
              MPN: DG43-17526-CA
              ARM ASSY WIPER, RHS, LHD
              from £361.58
              from £361.58
              ARM ASSEMBLY WIPER, RHS, LHD Genuine Aston Martin - New (to order)
              # 4
              MPN: CG43-17B437-BA
              BLADE ASSY, LHS, RHD
              from £44.55
              from £44.55
              BLADE ASSEMBLY, LHS, RHD Genuine Aston Martin - New (to order)
              # 4
              MPN: CG43-17528-AA
              BLADE ASSY, RHS, LHD
              Supersession
              Supersession
              Genuine Aston Martin (no longer available to order)
              # 5
              MPN: 703161
              NUT, M8, HEX FLANGE HEAD
              from £0.54
              from £0.54
              NUT HEX M8 FLANGE Genuine Aston Martin - New (to order)
              # 6
              MPN: 703160-PK
              NUT, M10, HEX FLANGE HEAD
              Pack of 10
              from £10.77
              from £10.77
              NUT-M10 HEX FLNG(10) Genuine Aston Martin - New (to order)
              # 7
              MPN: 4G43-17D559-BA
              SEAL, WINDSHIELD WIPER SPINDLE
              from £3.51
              from £3.51
              SE W/SHLD WPR SPDL Genuine Aston Martin - New (to order)
