aston martin vanquish (2013) volante roof assembly parts diagram

01-1700-01 - Volante Roof Assembly

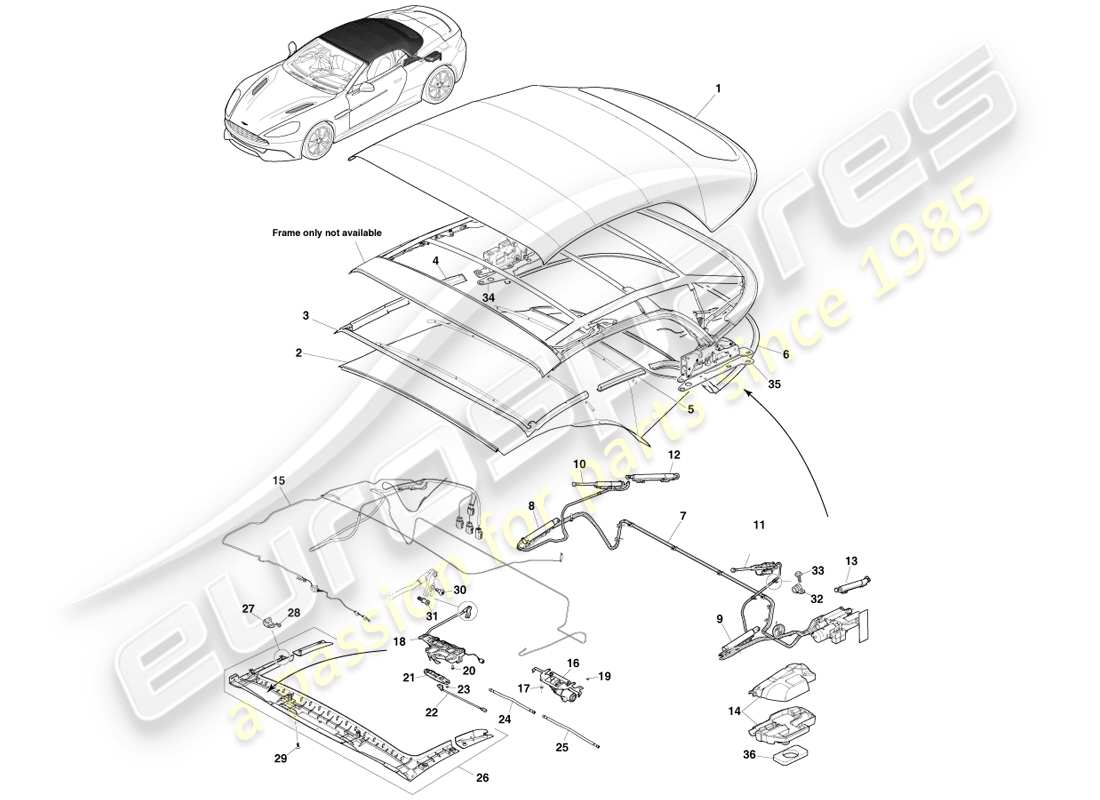

Aston Martin Vanquish (2013) Volante Roof Assembly Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                #
                                                                Part number
                                                                Description
                                                                Key
                                                                Price
                                                                # -
                                                                MPN: ED33-76501B00-CA
                                                                TOP ASSEMBLY FOLDING, COMPLETE, STANDARD
                                                                from £13,906.65
                                                                from £13,906.65
                                                                TOP ASSEMBLY FOLDING, COMPLETE, STANDARD Genuine Aston Martin - New (to order)
                                                                # -
                                                                MPN: ED33-76501B10-CA
                                                                TOP ASSEMBLY FOLDING, COMPLETE, SPECIAL
                                                                from £13,906.65
                                                                from £13,906.65
                                                                TOP ASSEMBLY FOLDING, COMPLETE, SPECIAL Genuine Aston Martin - New (to order)
                                                                # 1
                                                                MPN: 9G43-70351-AA
                                                                KIT, CANOPY COVER, BLACK
                                                                from £4,946.19
                                                                from £4,946.19
                                                                CPY COVER CG BLK KIT Genuine Aston Martin - New (to order)
                                                                # 1
                                                                MPN: 9G43-70351-BA
                                                                KIT, CANOPY COVER, BLUE
                                                                from £4,946.19
                                                                from £4,946.19
                                                                CPY COVER CG ATL BLUE Genuine Aston Martin - New (to order)
                                                                # 1
                                                                MPN: 9G43-70351-CA
                                                                KIT, CANOPY COVER, JAVA
                                                                from £4,946.20
                                                                from £4,946.20
                                                                This part replaces part number 4G43-70351-CA
                                                                CPY COVER CG JAVA KIT Genuine Aston Martin - New (to order)
                                                                # 1
                                                                MPN: 9G43-70351-DA
                                                                KIT, CANOPY COVER, WESTMINSTER GREEN
                                                                from £4,946.20
                                                                from £4,946.20
                                                                CPY COVER CG W GRN KIT Genuine Aston Martin - New (to order)
                                                                # 1
                                                                MPN: 9G43-70351-EA
                                                                KIT, CANOPY COVER, TITAN GREY
                                                                from £4,946.21
                                                                from £4,946.21
                                                                CPY COVER CG T/GRY KIT Genuine Aston Martin - New (to order)
                                                                # 1
                                                                MPN: 9G43-70351-FA
                                                                KIT, CANOPY COVER, BURGUNDY
                                                                from £8,343.98
                                                                from £8,343.98
                                                                CPY COVER CG BURG KIT Genuine Aston Martin - New (to order)
                                                                # 1
                                                                MPN: 9G43-70351-GA
                                                                KIT, CANOPY COVER, BITTER CHOCOLATE
                                                                from £8,343.98
                                                                from £8,343.98
                                                                CPY COVER CG SG BROWN Genuine Aston Martin - New (to order)
                                                                # 1
                                                                MPN: 9G43-70351-HA
                                                                CANOPY COVER KIT, GRENADINE RED
                                                                from £7,790.88
                                                                from £7,790.88
                                                                KIT, CANOPY COVER Genuine Aston Martin - New (to order)
                                                                # -
                                                                -
                                                                SPRING CLIP
                                                                Part of item 1
                                                                # 2
                                                                MPN: 9G43-70352-AB
                                                                INNER LINING, OBSIDIAN BLACK
                                                                from £1,547.83
                                                                from £1,547.83
                                                                INNER LINING, OBSIDIAN BLACK Genuine Aston Martin - New (to order)
                                                                # 2
                                                                MPN: 9G43-70352-BB
                                                                INNER LINING, IVORY
                                                                from £1,547.83
                                                                from £1,547.83
                                                                INNER LINING, IVORY Genuine Aston Martin - New (to order)
                                                                # 2
                                                                MPN: 9G43-70352-CB
                                                                INNER LINING, MOON SHADOW
                                                                from £1,547.83
                                                                from £1,547.83
                                                                INN LINING CG MOONSH Genuine Aston Martin - New (to order)
                                                                # 2
                                                                MPN: 9G43-70352-DB
                                                                INNER LINING, TAILORS GREY
                                                                from £1,547.83
                                                                from £1,547.83
                                                                INNER LINING, TAILORS GREY Genuine Aston Martin - New (to order)
                                                                # 2
                                                                MPN: 9G43-70352-EB
                                                                INNER LINING, TAN
                                                                from £1,547.83
                                                                from £1,547.83
                                                                INN LINING CG TAN Genuine Aston Martin - New (to order)
                                                                # 2
                                                                MPN: 707855
                                                                INNER LINING-SPECIAL ORDER
                                                                Confirm Colour When Ordering
                                                                from £2,004.86
                                                                from £2,004.86
                                                                INNER LINING-SPECIAL ORDER Genuine Aston Martin - New (to order)
                                                                # 3
                                                                MPN: 4G43-L51210-AB
                                                                SEAL KIT ASSEMBLY, FRONT
                                                                from £677.21
                                                                from £677.21
                                                                SEAL KIT ASSEMBLY, FRONT Genuine Aston Martin - New (to order)
                                                                # 4
                                                                MPN: 4G43-L51221-AA
                                                                SEAL KIT ASSEMBLY, MIDDLE, RH
                                                                from £361.56
                                                                from £361.56
                                                                MID SL SPR PRT RH AS Genuine Aston Martin - New (to order)
                                                                # 5
                                                                MPN: 4G43-L51220-AA
                                                                SEAL KIT ASSEMBLY, MIDDLE, LH
                                                                from £361.56
                                                                from £361.56
                                                                MID SL SPR PRT LH AS Genuine Aston Martin - New (to order)
                                                                # 6
                                                                MPN: 4G43-L51230-AB
                                                                SEAL KIT ASSEMBLY, REAR
                                                                from £593.71
                                                                from £593.71
                                                                SEAL KIT ASSEMBLY, REAR Genuine Aston Martin - New (to order)
                                                                # -
                                                                -
                                                                RIVET, BLIND
                                                                Part of item 6
                                                                # -
                                                                -
                                                                SHIM WASHER
                                                                Seal Kit Attach
                                                                # 7
                                                                MPN: 9G43-9G803-AA
                                                                HYDRAULIC PUMP SYSTEM
                                                                Includes Cylinders and Hoses
                                                                from £2,553.77
                                                                from £2,553.77
                                                                HYDRAULIC PUMP SYST Genuine Aston Martin - New (to order)
                                                                # 8
                                                                MPN: 4G43-50638-AB
                                                                HYDRAULIC CYLINDER, MAIN, RH
                                                                from £688.97
                                                                from £688.97
                                                                MAIN HYD CYLINDER RH Genuine Aston Martin - New (to order)
                                                                # 9
                                                                MPN: 4G43-50639-AC
                                                                HYDRAULIC CYLINDER, MAIN, LH
                                                                from £351.90
                                                                from £351.90
                                                                MAIN HYD CYLINDER LH Genuine Aston Martin - New (to order)
                                                                # 10
                                                                MPN: 4G43-539A78-AA
                                                                CYLINDER, TENSION BOW, RH
                                                                from £864.66
                                                                from £864.66
                                                                TENSBOW CYLINDER RH Genuine Aston Martin - New (to order)
                                                                # 11
                                                                MPN: 4G43-539A79-AA
                                                                CYLINDER, TENSION BOW, LH
                                                                from £864.66
                                                                from £864.66
                                                                TENSBOW CYLINDER LH Genuine Aston Martin - New (to order)
                                                                # 12
                                                                -
                                                                CYLINDER, TONNEAU, RH
                                                                Use item 7
                                                                # 13
                                                                -
                                                                CYLINDER, TONNEAU, LH
                                                                Use item 7
                                                                # -
                                                                -
                                                                HYDRAULIC HOSE, MAIN CYLINDER, RH
                                                                NSS. Part of 4G43-9G803-AD
                                                                # -
                                                                -
                                                                HYDRAULIC HOSE, MAIN CYLINDER, LH
                                                                NSS. Part of 4G43-9G803-AD
                                                                # 14
                                                                MPN: 9G43-93-11486
                                                                ENCLOSURE, PUMP ASSEMBLY
                                                                from £75.19
                                                                from £75.19
                                                                HYDRAULIC PUMP COVER Genuine Aston Martin - New (to order)
                                                                # 15
                                                                MPN: 4G43-37-10686
                                                                HARNESS, ROOF HYDRAULICS, RH
                                                                from £115.56
                                                                from £115.56
                                                                HARNESS, ROOF HYDRAULICS, RH Genuine Aston Martin - New (to order)
                                                                # 15
                                                                MPN: 4G43-37-10685
                                                                HARNESS, ROOF HYDRAULICS, LH
                                                                from £99.17
                                                                from £99.17
                                                                HARNESS, ROOF HYDRAULICS, LH Genuine Aston Martin - New (to order)
                                                                # 16
                                                                MPN: 4G43-L51240-AA
                                                                KIT ASSEMBLY, LATCH MOTOR
                                                                from £209.44
                                                                from £209.44
                                                                LTH MTR CG SPR PT AS Genuine Aston Martin - New (to order)
                                                                # 17
                                                                MPN: 4G43-1001991-AA
                                                                NUT & WASHER, M5
                                                                from £0.82
                                                                from £0.82
                                                                WASHER NUT M5 Genuine Aston Martin - New (to order)
                                                                # 18
                                                                MPN: 4G43-L51270-AA
                                                                AUTOMATIC LATCHING KIT, RH
                                                                from £475.98
                                                                from £475.98
                                                                FULL AUTO LTCH RH KT Genuine Aston Martin - New (to order)
                                                                # 18
                                                                MPN: 4G43-L51260-AA
                                                                AUTOMATIC LATCHING KIT, LH
                                                                from £470.58
                                                                from £470.58
                                                                FULL AUTO LTCH LH KT Genuine Aston Martin - New (to order)
                                                                # 19
                                                                MPN: 4G43-69832-AA
                                                                NUT, M6
                                                                from £0.81
                                                                from £0.81
                                                                HEX NUT M6 Genuine Aston Martin - New (to order)
                                                                # 20
                                                                MPN: 4G43-1004048-AA
                                                                SCREW, M6, PAN HEAD
                                                                from £0.87
                                                                from £0.87
                                                                SCREW, M6, PAN HEAD Genuine Aston Martin - New (to order)
                                                                # 21
                                                                MPN: 4G43-765010-AF
                                                                STRIKER, HEADER, RH
                                                                from £63.04
                                                                from £63.04
                                                                STRIKER, HEADER, RH Genuine Aston Martin - New (to order)
                                                                # 21
                                                                MPN: 4G43-765011-AE
                                                                STRIKER, HEADER, LH
                                                                STRIKER, HEADER, LH Genuine Aston Martin - New (to order)
                                                                # 22
                                                                MPN: 4G43-765013-AE
                                                                HARNESS KIT, LATCH BRACKET
                                                                HARNESS KIT, LATCH BRACKET Genuine Aston Martin - New (to order)
                                                                # 23
                                                                MPN: 702944
                                                                NUT, M6, HEX FLANGE HEAD
                                                                from £0.58
                                                                from £0.58
                                                                NUT M6 HEX FLNG MTL8 Genuine Aston Martin - New (to order)
                                                                LOWER MESH NUTS Genuine Ferrari Part - New (to order)
                                                                # 24
                                                                MPN: 4G43-1012524-AA
                                                                FLEX SHAFT, RH
                                                                from £54.45
                                                                from £54.45
                                                                FLEX SHAFT RH Genuine Aston Martin - New (to order)
                                                                # 25
                                                                MPN: 4G43-1012525-AA
                                                                FLEX SHAFT, LH
                                                                from £54.45
                                                                from £54.45
                                                                FLEX SHAFT LH Genuine Aston Martin - New (to order)
                                                                # 26
                                                                MPN: 4G43-93-10617
                                                                HEADER TRIM KIT, OBSIDIAN BLACK
                                                                from £899.10
                                                                from £899.10
                                                                HDR TRIM KIT-BLACK Genuine Aston Martin - New (to order)
                                                                # 26
                                                                MPN: 4G43-93-10614
                                                                HEADER TRIM KIT, IVORY
                                                                from £899.10
                                                                from £899.10
                                                                HDR TRIM KIT-IVORY Genuine Aston Martin - New (to order)
                                                                # 26
                                                                MPN: 4G43-93-10615
                                                                HEADER TRIM KIT, MOON SHADOW
                                                                from £899.10
                                                                from £899.10
                                                                HRD TRIM KIT-M/SHDOW Genuine Aston Martin - New (to order)
                                                                # 26
                                                                MPN: 4G43-93-10616
                                                                HEADER TRIM KIT, TAILORS GREY
                                                                from £899.10
                                                                from £899.10
                                                                HDR TRIM KIT-T/GREY Genuine Aston Martin - New (to order)
                                                                # 27
                                                                MPN: 4G43-515A50-AA
                                                                BRACKET, TRIM COVER
                                                                from £1.12
                                                                from £1.12
                                                                COVER, BRACKET TRIM Genuine Aston Martin - New (to order)
                                                                # 28
                                                                MPN: 4G43-1003889-AA
                                                                SCREW, TRIM COVER BRACKET
                                                                from £0.81
                                                                from £0.81
                                                                SCREW, TRIM COVER BRACKET Genuine Aston Martin - New (to order)
                                                                # 29
                                                                MPN: 4G43-1004355-AA
                                                                SCREW, SELF CUTTING
                                                                from £0.81
                                                                from £0.81
                                                                SCREW, SELF CUTTING FH Genuine Aston Martin - New (to order)
                                                                # 30
                                                                MPN: 4G43-1013271-AA
                                                                SCREW PIVOT HOOK
                                                                CLIPS, WHITE Genuine Aston Martin - New (to order)
                                                                # 31
                                                                MPN: 4G43-50641-AA
                                                                OVER CENTRE PIN
                                                                from £4.51
                                                                from £4.51
                                                                PIN, OVER CENTRE Genuine Aston Martin - New (to order)
                                                                # 32
                                                                MPN: 694891
                                                                P-CLIP
                                                                from £2.31
                                                                from £2.31
                                                                P-CLIP Genuine Aston Martin - New (to order)
                                                                # 33
                                                                MPN: 702839-PK
                                                                SCREW AND WASHER, M6X20, HEX HEAD
                                                                Pack of 10
                                                                from £3.14
                                                                from £3.14
                                                                SCREW&WSHR M6X20(10) Genuine Aston Martin - New (to order)
                                                                # -
                                                                -
                                                                BELT, TENSION, RH
                                                                # -
                                                                -
                                                                BELT, TENSION, LH
                                                                # -
                                                                -
                                                                CABLE, TENSION
                                                                # -
                                                                -
                                                                STRAP, CONTROL
                                                                Hydraulic Pipe Protection
                                                                # 34
                                                                MPN: ED33-76501B20-AB
                                                                SPACER, FRAME, RH
                                                                SPACER, FRAME, RH Genuine Aston Martin - New (to order)
                                                                # 35
                                                                MPN: ED33-76501B21-AB
                                                                SPACER, FRAME, LH
                                                                SPACER, FRAME, LH Genuine Aston Martin - New (to order)
                                                                # 36
                                                                MPN: ED33-16C954-AA
                                                                ANTI-RATTLE PAD
                                                                from £7.04
                                                                from £7.04
                                                                ANTI-RATTLE PAD Genuine Aston Martin - New (to order)
                                                                # -
                                                                -
                                                                COVER, PLUG HOLE
                                                                Obsidian Black
                                                                # -
                                                                -
                                                                COVER, PLUG HOLE
                                                                Ivory
                                                                # -
                                                                -
                                                                COVER, PLUG HOLE
                                                                Moon shadow
                                                                # -
                                                                -
                                                                COVER, PLUG HOLE
                                                                Tailors Grey
