011411-01 - Tonneau Latches

Aston Martin Vanquish (2013) Tonneau Latches Parts Diagram

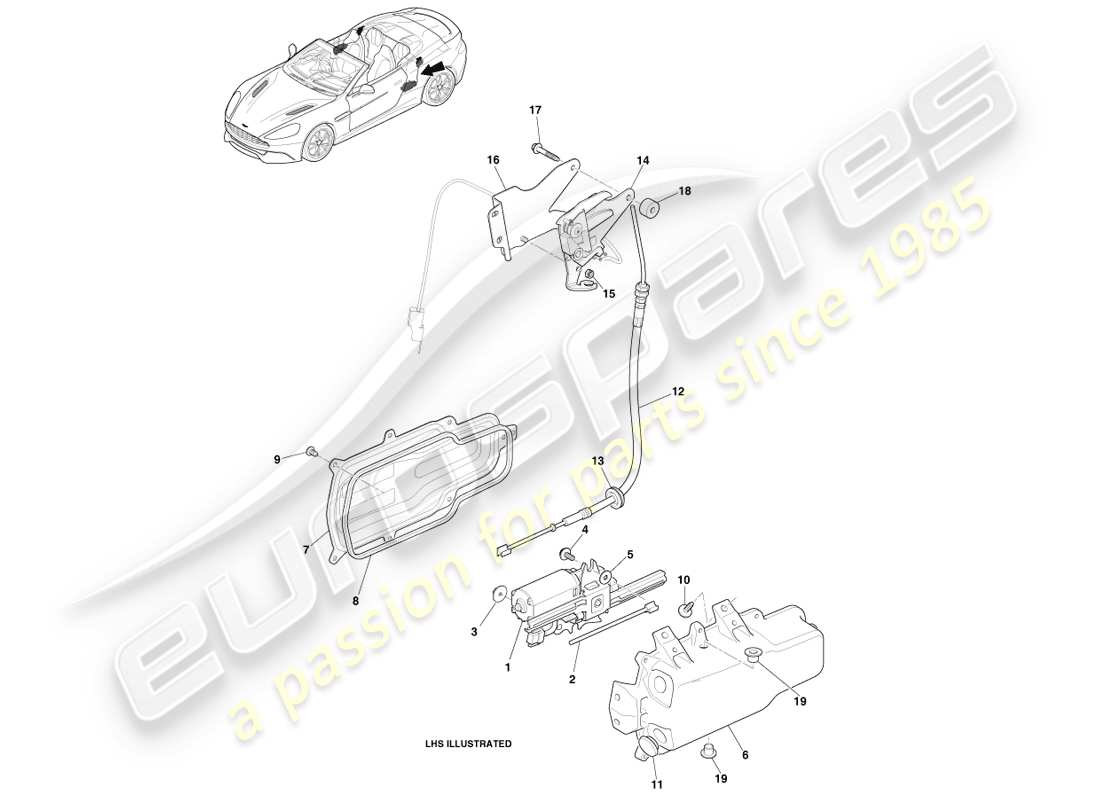

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Key
                            Price
                            # 1
                            MPN: 4G43-37-10477
                            MOTOR ASSY, TONNEAU LATCH
                            from £720.17
                            from £720.17
                            MOTOR, TONNEAU LATCH Genuine Aston Martin - New (to order)
                            # 2
                            MPN: 4G43-53923-AA
                            WORM DRIVE
                            from £13.63
                            from £13.63
                            WORM DRIVE Genuine Aston Martin - New (to order)
                            # 3
                            MPN: 702944
                            NUT & WASHER, M6
                            from £0.58
                            from £0.58
                            NUT M6 HEX FLNG MTL8 Genuine Aston Martin - New (to order)
                            LOWER MESH NUTS Genuine Ferrari Part - New (to order)
                            # 4
                            MPN: 703151
                            SCREW AND WASHER, M6X16, HEX HEAD
                            from £0.47
                            from £0.47
                            SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                            LOWER MESH BOLTS Genuine Ferrari Part - New (to order)
                            # 5
                            MPN: 697517-PK
                            WASHER, M6, BLACK
                            Pack of 20
                            from £13.07
                            from £13.07
                            WSHR-M6 L/OD BLK(20) Genuine Aston Martin - New (to order)
                            # 6
                            MPN: 4G43-96-11272
                            ENCLOSURE, TONNEAU LATCH MOTOR ASSEMBLY, LH
                            Includes Item 7
                            from £44.55
                            from £44.55
                            ENCLOSURE, TONNEAU LATCH MOTOR, LH Genuine Aston Martin - New (to order)
                            # 6
                            MPN: 4G43-96-11273
                            ENCLOSURE, TONNEAU LATCH MOTOR ASSEMBLY, RH
                            Includes Item 7
                            from £44.55
                            from £44.55
                            ENCLOSURE, TONNEAU LATCH MOTOR, RH Genuine Aston Martin - New (to order)
                            # 7
                            MPN: 4G43-3956-AB
                            SEAL, TONNEAU LATCH MOTOR
                            SEAL, TONNEAU LATCH MOTOR Genuine Aston Martin - New (to order)
                            # 8
                            MPN: 4G43-53548-AC
                            LID, TONNEAU LATCH MOTOR ASSY
                            from £15.10
                            from £15.10
                            LID, TONNEAU LATCH MOTOR ASSEMBLY Genuine Aston Martin - New (to order)
                            # 9
                            MPN: 701574
                            SCREW, M6X12, PAN HEAD
                            Up to 15MY
                            from £0.47
                            from £0.47
                            SCREW, M6X12, PAN HEAD Genuine Aston Martin - New (to order)
                            # 9
                            MPN: 702290
                            SCREW, M6X20
                            FROM 15MY
                            from £0.47
                            from £0.47
                            SCREW M6X20 TH/FORMG Genuine Aston Martin - New (to order)
                            # 10
                            MPN: 702839-PK
                            SCREW AND WASHER, M6X20, HEX HEAD
                            Pack of 10
                            from £3.14
                            from £3.14
                            SCREW&WSHR M6X20(10) Genuine Aston Martin - New (to order)
                            # 11
                            MPN: 4G43-301347-AA
                            PLUG, 20MM, BLACK TAPER
                            from £0.79
                            from £0.79
                            20MM BODY PLUG Genuine Aston Martin - New (to order)
                            # 12
                            MPN: 4G43-53922-AB
                            DRIVE CABLE, TONNEAU LATCH
                            from £83.00
                            from £83.00
                            DRIVE CABLE, TONNEAU LATCH Genuine Aston Martin - New (to order)
                            # 13
                            MPN: 4G43-6C691-AD
                            GROMMET SLEEVE, CABLE
                            from £2.66
                            from £2.66
                            GROMMET SLEEVE, CABLE Genuine Aston Martin - New (to order)
                            # 14
                            MPN: GD33-54797-AA
                            LATCH, TONNEAU, LH
                            Stamped R
                            from £194.81
                            from £194.81
                            LATCH, TONNEAU, LH Genuine Aston Martin - New (to order)
                            # 14
                            MPN: GD33-54796-AA
                            LATCH, TONNEAU, RH
                            Stamped L
                            from £237.49
                            from £237.49
                            LATCH, TONNEAU, RH Genuine Aston Martin - New (to order)
                            # -
                            -
                            TIE-WRAP
                            Wire to Harness fixing
                            # 15
                            MPN: 702994
                            THIN NUT, M6
                            from £0.47
                            from £0.47
                            NUT M6 HEX THIN Genuine Aston Martin - New In stock
                            # 16
                            MPN: 4G43-L43161-AC
                            MOUNTING PLATE, TONNEAU LATCH, LH
                            from £9.99
                            from £9.99
                            MOUNTING PLATE, TONNEAU LATCH, LH Genuine Aston Martin - New (to order)
                            # 16
                            MPN: 4G43-L43160-AC
                            MOUNTING PLATE, TONNEAU LATCH, RH
                            from £9.99
                            from £9.99
                            MOUNTING PLATE, TONNEAU LATCH, RH Genuine Aston Martin - New (to order)
                            # 17
                            MPN: 704075
                            BOLT, M6X16, HEX HEAD
                            Plate to Body
                            from £0.47
                            from £0.47
                            SCREW M6X25 HEX FLNG Genuine Aston Martin - New (to order)
                            # 18
                            MPN: ED33-L43165-AA
                            SPACER
                            from £5.82
                            from £5.82
                            SPACER Genuine Aston Martin - New (to order)
                            # 19
                            MPN: 6G33-25919-AA
                            RUBBER PLUG 12MM
                            from £0.60
                            from £0.60
                            12MM BUNG Genuine Aston Martin - New (to order)
