aston martin vanquish (2013) electronic engine control, bosch parts diagram

03-1400-02 - Electronic Engine Control, Bosch

Aston Martin Vanquish (2013) Electronic Engine Control, Bosch Parts Diagram

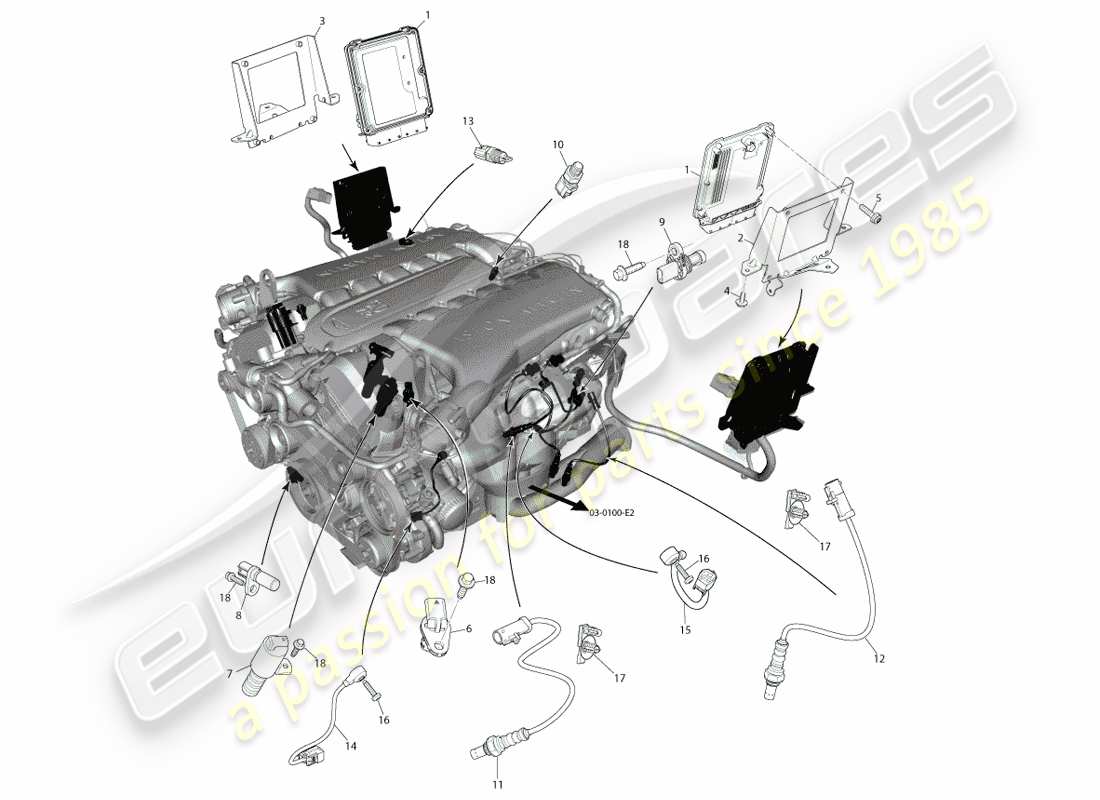

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 1
                        MPN: ED23-12A650-AA
                        MODULE, ENGINE MANAGEMENT, AM29
                        Bosch, from 15MY
                        from £1,052.58
                        from £1,052.58
                        MODULE, ENGINE MANAGEMENT, AM29 Genuine Aston Martin - New (to order)
                        # 2
                        MPN: FD33-12B695-AB
                        BRACKET, MODULE, LH
                        BRACKET, MODULE, LH Genuine Aston Martin - New (to order)
                        # 3
                        MPN: FD33-12B696-AC
                        BRACKET, MODULE, RH
                        BRACKET, MODULE, RH Genuine Aston Martin - New (to order)
                        # 4
                        MPN: 703151
                        SCREW, M6X16 HEX FLANGE HEAD
                        Bracket to Body
                        from £0.47
                        from £0.47
                        SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                        LOWER MESH BOLTS Genuine Ferrari Part - New (to order)
                        # 5
                        MPN: CYG500010
                        SCREW, M5X20 PAN HEAD TORX
                        Bracket to Module
                        SCREW, M5X20 PAN HEAD TORX Genuine Aston Martin - New (to order)
                        # 6
                        MPN: ED23-12K073-AA
                        SENSOR, CAMSHAFT TIMING
                        SENSOR, CAMSHAFT TIMING Genuine Aston Martin - New (to order)
                        # 7
                        MPN: CM5E-6B297-CC
                        SOLENOID, VCT
                        AM29, From 15MY
                        from £88.95
                        from £88.95
                        SOLENOID, VCT Genuine Aston Martin - New (to order)
                        # 8
                        MPN: 1R12-39-10475
                        SENSOR, CRANKSHAFT TIMING
                        from £25.56
                        from £25.56
                        SENSOR-CRANK TIMING Genuine Aston Martin - New (to order)
                        # 9
                        MPN: ED23-6C315-AA
                        SENSOR, CRANKSHAFT TIMING
                        from £62.13
                        from £62.13
                        SENSOR, CRANKSHAFT TIMING Genuine Aston Martin - New (to order)
                        # 10
                        MPN: 1R12-39-10532
                        SWITCH, OIL PRESSURE
                        Rear of RH Cylinder Head
                        from £5.06
                        from £5.06
                        SWITCH-OIL PRESSURE Genuine Aston Martin - New (to order)
                        # 11
                        MPN: ED23-9F472-AA
                        SENSOR, HEGO, UPSTREAM
                        from £159.32
                        from £159.32
                        SENSOR, HEGO, UPSTREAM Genuine Aston Martin - New (to order)
                        # 12
                        MPN: 6C11-9G444-AA
                        SENSOR, CATALYST MONITOR, DOWNSTREAM
                        from £141.07
                        from £141.07
                        SENSOR, CATALYST MONITOR, DOWNSTREAM Genuine Aston Martin - New (to order)
                        # 13
                        MPN: 6G43-08-10064
                        SENSOR, MANIFOLD AIR TEMPERATURE
                        SENSOR, AIR CHARGING TEMPERATURE Genuine Aston Martin - New (to order)
                        # 14
                        MPN: CD33-12A699-AA
                        SENSOR ASSY, ENGINE KNOCK
                        FRONT
                        from £39.86
                        from £39.86
                        SENSOR ASSEMBLY, ENGINE KNOCK Genuine Aston Martin - New (to order)
                        # 15
                        MPN: CD33-12A699-BA
                        SENSOR ASSY, ENGINE KNOCK
                        rear
                        from £44.37
                        from £44.37
                        SENSOR ASSEMBLY, ENGINE KNOCK Genuine Aston Martin - New (to order)
                        # 16
                        MPN: W505595-S437
                        SCREW, M8 X 30, PAN HEAD
                        SCREW, M8 X 30, PAN HEAD Genuine Aston Martin - New (to order)
                        # 17
                        MPN: ED23-110005-AA
                        HARNESS RETENTION CLIP
                        from £1.22
                        from £1.22
                        HARNESS RETENTION CLIP Genuine Aston Martin - New (to order)
                        # 18
                        MPN: 702542
                        BOLT, M6 X 20
                        from £0.74
                        from £0.74
                        BOLT M6 X 20 Genuine Aston Martin - New (to order)
