aston martin vanquish (2013) wheel & tyres, rear parts diagram

04-0400-01 - Wheel & Tyres, Rear

Aston Martin Vanquish (2013) Wheel & Tyres, Rear Parts Diagram

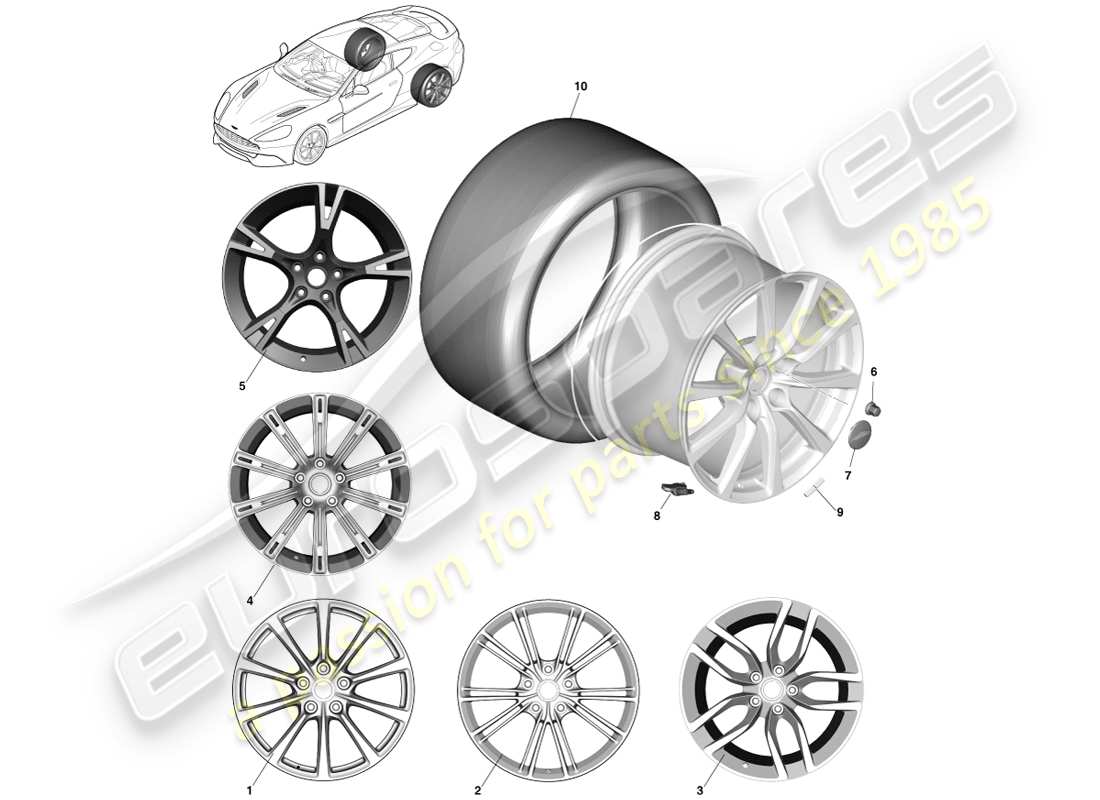

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 1
    MPN: CD33-9965G-AA
    WHEEL, REAR 20 INCH, 10 SPOKE
    Silver
    from £2,004.61
    from £2,004.61
    WHEEL, REAR 20 INCH, 10 SPOKE Genuine Aston Martin - New (to order)
    # 1
    MPN: CD33-9965G-BA
    WHEEL, REAR 20 INCH, 10 SPOKE
    Up To 16MY, Graphite
    from £2,294.19
    from £2,294.19
    WHEEL, REAR 20 INCH, 10 SPOKE Genuine Aston Martin - New (to order)
    # 1
    MPN: HD33-9965G-FA
    WHEEL, REAR 20 INCH, 10 SPOKE
    17.5MY 'S', Gloss Black
    from £881.47
    from £881.47
    WHEEL, REAR 20 INCH, 10 SPOKE Genuine Aston Martin - New (to order)
    # 2
    MPN: CD33-9965G-CA
    WHEEL, REAR 20 INCH, 20 SPOKE
    Up To 16MY, Liquid Silver
    from £2,191.53
    from £2,191.53
    WHEEL, REAR 20 INCH, 20 SPOKE Genuine Aston Martin - New (to order)
    # 2
    MPN: CD33-9965G-EA
    WHEEL, REAR 20 INCH, 20 SPOKE
    Up To 15MY, Gloss Black, Diamond Turned
    from £2,022.47
    from £2,022.47
    WHEEL, REAR 20 INCH, 20 SPOKE Genuine Aston Martin - New (to order)
    # 2
    MPN: ED33-9965G-BA
    WHEEL, REAR 20 INCH, 20 SPOKE
    From 15MY, Gloss Black, Diamond Turned
    from £2,920.91
    from £2,920.91
    WHEEL, REAR 20 INCH, 20 SPOKE Genuine Aston Martin - New (to order)
    # 2
    MPN: CD33-9965G-FA
    WHEEL, REAR 20 INCH, 20 SPOKE
    Silver, DT
    from £2,319.67
    from £2,319.67
    WHEEL, REAR 20 INCH, 20 SPOKE Genuine Aston Martin - New (to order)
    # 2
    MPN: CD33-9965G-GA
    WHEEL, REAR 20 INCH, 20 SPOKE
    Up to 15MY, Graphite, DT
    from £2,340.78
    from £2,340.78
    WHEEL, REAR 20 INCH, 20 SPOKE Genuine Aston Martin - New (to order)
    # 2
    MPN: ED33-9965G-AA
    WHEEL, REAR 20 INCH, 20 SPOKE
    From 15MY, Graphite, DT
    from £2,941.98
    from £2,941.98
    WHEEL, REAR 20 INCH, 20 SPOKE Genuine Aston Martin - New (to order)
    # 2
    MPN: CD33-9965G-HA
    WHEEL, REAR 20 INCH, 20 SPOKE
    Satin Black, DT
    from £2,471.28
    from £2,471.28
    WHEEL, REAR 20 INCH, 20 SPOKE Genuine Aston Martin - New (to order)
    # 3
    MPN: FD33-9965G-AA
    WHEEL, REAR, 11.5JX20 INCH
    From 15MY, Silver, DT
    from £2,232.97
    from £2,232.97
    WHEEL, REAR, 11.5JX20 INCH Genuine Aston Martin - New (to order)
    # 3
    MPN: FD33-9965G-BA
    WHEEL, REAR, 11.5JX20 INCH
    From 15MY, Gloss Black, DT
    from £1,998.02
    from £1,998.02
    WHEEL, REAR, 11.5JX20 INCH Genuine Aston Martin - New (to order)
    # 3
    MPN: FD33-9965G-CA
    WHEEL, REAR, 11.5JX20 INCH
    From 15MY, Satin Black, DT
    from £2,081.95
    from £2,081.95
    WHEEL, REAR, 11.5JX20 INCH Genuine Aston Martin - New (to order)
    # 3
    MPN: FD33-9965G-DA
    WHEEL, REAR, 11.5JX20 INCH
    From 15MY, Gloss Black
    from £2,450.30
    from £2,450.30
    WHEEL, REAR, 11.5JX20 INCH Genuine Aston Martin - New (to order)
    # 4
    MPN: AD43-9965G-BA
    WHEEL, REAR 20 INCH, 10 SPOKE
    Graphite, Winter Wheel
    from £1,954.33
    from £1,954.33
    WHEEL, REAR 20 INCH, 10 SPOKE Genuine Aston Martin - New (to order)
    # 5
    MPN: HD33-1007-BA
    WHEEL, REAR, 20X11.5J ET 50.0
    S', Gloss Black, DT
    from £2,609.93
    from £2,609.93
    WHEEL, REAR, 20X11.5J ET 50.0 Genuine Aston Martin - New (to order)
    # 5
    MPN: HD33-1007-DA
    WHEEL, REAR, 20X11.5J ET 50.0
    S', Silver, DT
    from £2,840.33
    from £2,840.33
    WHEEL, REAR, 20X11.5J ET 50.0 Genuine Aston Martin - New (to order)
    # 5
    MPN: HD33-9965G-GA
    WHEEL, REAR, 20X11.5J ET 50.0
    From 18.5MY, 'Ultimate', Gloss Black
    from £2,789.19
    from £2,789.19
    WHEEL, REAR, 20X11.5J ET 50.0 Genuine Aston Martin - New (to order)
    # 5
    MPN: HD33-9965G-JA
    WHEEL, REAR, 20X11.5J ET 50.0
    From 18.5MY, 'Ultimate', Satin Black - Non DT
    from £2,577.53
    from £2,577.53
    WHEEL, REAR, 20X11.5J ET 50.0 Genuine Aston Martin - New (to order)
    # 5
    MPN: HD33-9965G-HA
    WHEEL, REAR, 20X11.5J ET 50.0
    From 18.5MY, 'Ultimate', Satin Black - DT
    from £2,349.09
    from £2,349.09
    WHEEL, REAR, 20X11.5J ET 50.0 Genuine Aston Martin - New (to order)
    # 6
    MPN: 4G43-1K024-BD
    WHEEL NUT, M14 X 2.0
    from £17.82
    from £17.82
    This part replaces part number 4G43-1K024-AD which we have in stock
    NUT-WHL BOLT-M14 Genuine Aston Martin - New (to order)
    WHEN REPLACING THE OLDER 4G43-1K024-AD NUMBER, this new number is a slightly small nut. you must replace all of them on the vehicle with the new nuts, so the wheels retain their natural balance.
    # 7
    MPN: 8D33-1A096-AB-PK
    CAP, WHEEL CENTRE
    Silver Cap/Black Wings. Up to 17MY. Pack of 4
    CAP, WHEEL CENTRE Genuine Aston Martin - New (to order)
    # 7
    MPN: HY53-1A096-FA-PK
    CAP, WHEEL CENTRE
    Brushed Silver Cap/Black Wings. From 17MY. Pack of 4
    from £62.45
    from £62.45
    CAP, WHEEL CENTRE Genuine Aston Martin - New (to order)
    # 7
    MPN: 8D33-1A096-BB-PK
    CAP, WHEEL CENTRE
    Graphite Cap/Black Wings. Pack of 4
    from £53.24
    from £53.24
    CAP, WHEEL CENTRE Genuine Aston Martin - New (to order)
    # 7
    MPN: CD33-1A096-AB-PK
    CAP, WHEEL CENTRE
    Black Cap/Black Wings. Up to 17MY. Pack of 4
    CAP, WHEEL CENTRE Genuine Aston Martin - New (to order)
    # 7
    MPN: HY53-1A096-EA-PK
    CAP, WHEEL CENTRE
    Black Cap/Black Wings. From 17MY. Pack of 4
    from £59.45
    from £59.45
    CAP, WHEEL CENTRE Genuine Aston Martin - New (to order)
    # 7
    MPN: ED23-1A096-AA-PK
    CAP, WHEEL CENTRE
    Satin Black Cap/Black Wings. Pack of 4
    CAP, WHEEL CENTRE Genuine Aston Martin - New (to order)
    # 7
    MPN: HY53-1A096-HA-PK
    CAP, WHEEL CENTRE
    Anthracite Cap/Black Wings. From 17MY. Pack of 4
    from £61.23
    from £61.23
    CAP, WHEEL CENTRE Genuine Aston Martin - New (to order)
    # 8
    MPN: CD23-360671-CA
    TPMS VALVE AND TRANSMITTER ASSY
    433 MHZ
    from £128.37
    from £128.37
    TPMS 433 MHZ Genuine Aston Martin - New (to order)
    # 8
    MPN: CD23-360671-DA
    TPMS VALVE AND TRANSMITTER ASSY
    315 MHZ
    from £118.07
    from £118.07
    TPMS 315 MHZ Genuine Aston Martin - New (to order)
    TPMS TYRE VALVE/TRANSMITTER ASSEMBLY Genuine Ferrari Part - New (to order)
    # -
    -
    VALVE
    # 9
    MPN: AY2Y-1040-AA
    WEIGHT, WHEEL BALANCE, 5 GRAMS
    Silver
    from £1.29
    from £1.29
    WT-WHL BAL 5G Genuine Aston Martin - New (to order)
    # 9
    MPN: ED23-1040-AA
    WEIGHT, WHEEL BALANCE, 5 GRAMS
    Black
    from £1.54
    from £1.54
    BLK WHEEL BAL 5G Genuine Aston Martin - New (to order)
    # 10
    MPN: FD33-1508-BB
    ROAD TYRE, REAR, 305/30 ZR20
    P Zero, ECE117
    from £582.06
    from £582.06
    TYRE, P ZERO, 295/30 ZR19 11J Genuine Aston Martin - New (to order)
    # 10
    MPN: 8D33-1508-DA
    ROAD TYRE, WINTER REAR, 295/30 R20
    Only use with Item 4
    from £468.82
    from £468.82
    TYRE REAR 295-30R20-WT Genuine Aston Martin - New (to order)
    # -
    -
    LABEL, WINTER TYRE
    Use with Item 4
    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
