aston martin vanquish (2013) front brake system parts diagram

06-0300-01 - Front Brake System

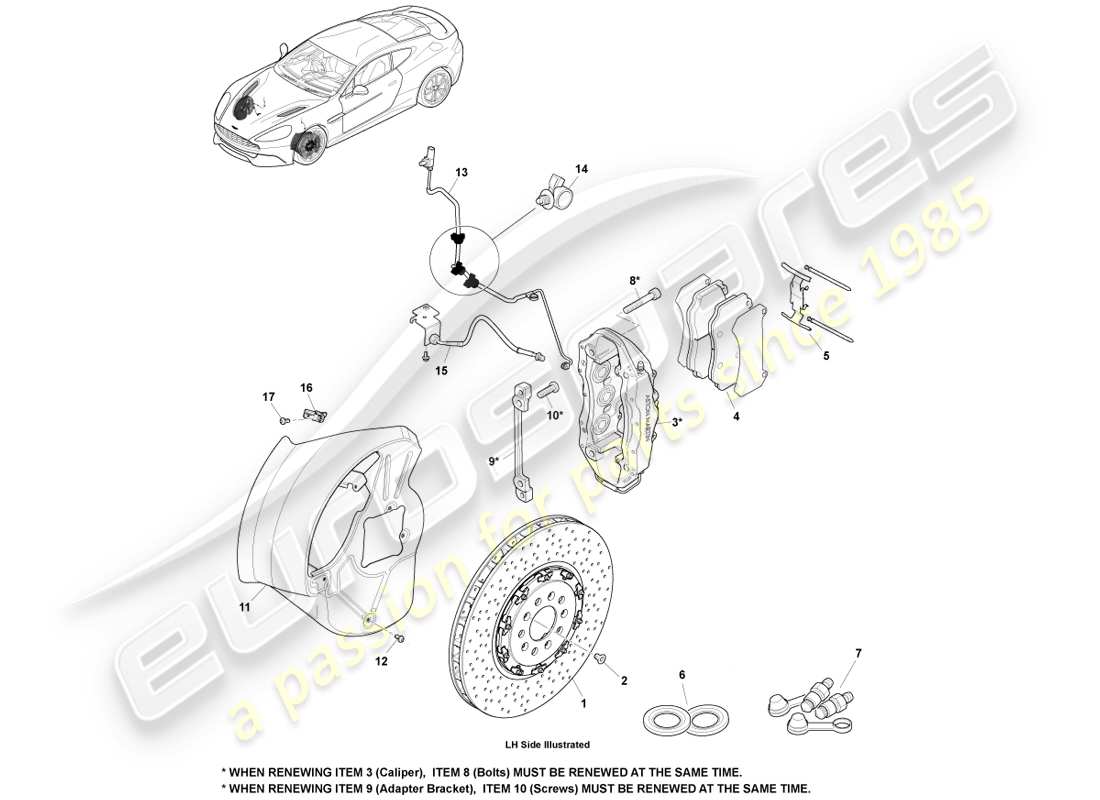

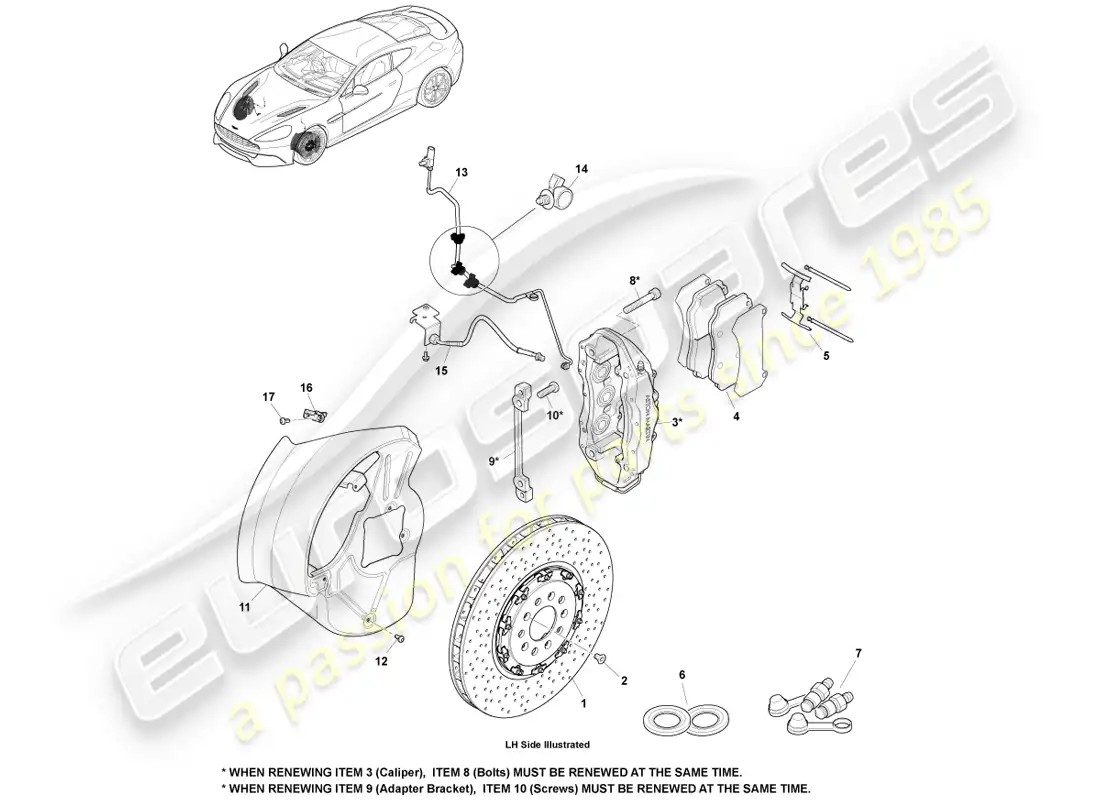

Aston Martin Vanquish (2013) Front Brake System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 1
                  MPN: CD33-2B548-CA
                  BRAKE DISC AND PADS, AXLE SET-BEDDED
                  Supersession
                  Supersession
                  Genuine Aston Martin (no longer available to order)
                  # 2
                  MPN: 4G43-2N389-AA
                  SCREW, M8 X 14, FLAT CSK HD
                  from £0.47
                  from £0.47
                  SCREW M8X14 FLAT COUNTERSUNK Genuine Aston Martin - New In stock
                  # 3
                  MPN: AD23-2C463-JA
                  CALIPER ASSY, FRONT LH, BLACK ANODISED
                  Excludes Pads, Includes Bolts, WHEN RENEWING ITEM 3 (caliper), ITEM 8 (bolts) MUST BE RENEWED AT THE SAME TIME.
                  from £554.87
                  from £554.87
                  CALIPER ASSEMBLY, FRONT, NO PADS, INCLUDING BOLTS - LH Genuine Aston Martin - New (to order)
                  # 3
                  MPN: AD23-2C463-AA
                  CALIPER ASSY, FRONT LH, GREY
                  Excludes Pads, Includes Bolts, WHEN RENEWING ITEM 3 (caliper), ITEM 8 (bolts) MUST BE RENEWED AT THE SAME TIME.
                  from £783.25
                  from £783.25
                  CAL ASSEMBLY FRONT LH GREY Genuine Aston Martin - New (to order)
                  # 3
                  MPN: AD23-2C463-CB
                  CALIPER ASSY, FRONT LH, BLACK
                  Excludes Pads, Includes Bolts, WHEN RENEWING ITEM 3 (caliper), ITEM 8 (bolts) MUST BE RENEWED AT THE SAME TIME.
                  from £765.27
                  from £765.27
                  CALIPER, FRONT, NO PADS, BLACK, LH Genuine Aston Martin - New (to order)
                  # 3
                  MPN: AD23-2C463-DA
                  CALIPER ASSY, FRONT LH, RED
                  Excludes Pads, Includes Bolts, WHEN RENEWING ITEM 3 (caliper), ITEM 8 (bolts) MUST BE RENEWED AT THE SAME TIME.
                  from £783.25
                  from £783.25
                  CAL ASSEMBLY FRONT LH RED Genuine Aston Martin - New (to order)
                  # 3
                  MPN: AD23-2C463-FA
                  CALIPER ASSY, FRONT LH, YELLOW
                  Excludes Pads, Includes Bolts, WHEN RENEWING ITEM 3 (caliper), ITEM 8 (bolts) MUST BE RENEWED AT THE SAME TIME.
                  from £783.25
                  from £783.25
                  CAL ASSEMBLY FRONT LH YEL Genuine Aston Martin - New (to order)
                  # 3
                  MPN: AD23-2C463-GA
                  CALIPER ASSY, FRONT LH, BLUE
                  Excludes Pads, Includes Bolts, WHEN RENEWING ITEM 3 (caliper), ITEM 8 (bolts) MUST BE RENEWED AT THE SAME TIME.
                  from £783.25
                  from £783.25
                  CALIPER ASSEMBLY, FRONT LH, BLUE Genuine Aston Martin - New (to order)
                  # 3
                  MPN: AD23-2C462-JA
                  CALIPER ASSY, FRONT RH, BLACK ANODISED
                  Excludes Pads, Includes Bolts, WHEN RENEWING ITEM 3 (caliper), ITEM 8 (bolts) MUST BE RENEWED AT THE SAME TIME.
                  from £554.87
                  from £554.87
                  CALIPER ASSEMBLY, FRONT, NO PADS, INCLUDING BOLTS - LH Genuine Aston Martin - New (to order)
                  # 3
                  MPN: AD23-2C462-AA
                  CALIPER ASSY, FRONT RH, GREY
                  Excludes Pads, Includes Bolts, WHEN RENEWING ITEM 3 (caliper), ITEM 8 (bolts) MUST BE RENEWED AT THE SAME TIME.
                  from £783.25
                  from £783.25
                  CAL ASSEMBLY FRONT RH GREY Genuine Aston Martin - New (to order)
                  # 3
                  MPN: AD23-2C462-CB
                  CALIPER ASSY, FRONT RH, BLACK
                  Excludes Pads, Includes Bolts, WHEN RENEWING ITEM 3 (caliper), ITEM 8 (bolts) MUST BE RENEWED AT THE SAME TIME.
                  from £750.62
                  from £750.62
                  CALIPER, FRONT, NO PADS, BLACK, RH Genuine Aston Martin - New (to order)
                  # 3
                  MPN: AD23-2C462-DA
                  CALIPER ASSY, FRONT RH, RED
                  Excludes Pads, Includes Bolts, WHEN RENEWING ITEM 3 (caliper), ITEM 8 (bolts) MUST BE RENEWED AT THE SAME TIME.
                  from £783.25
                  from £783.25
                  CAL ASSEMBLY FRONT RED Genuine Aston Martin - New (to order)
                  # 3
                  MPN: AD23-2C462-FA
                  CALIPER ASSY, FRONT RH, YELLOW
                  Excludes Pads, Includes Bolts, WHEN RENEWING ITEM 3 (caliper), ITEM 8 (bolts) MUST BE RENEWED AT THE SAME TIME.
                  from £783.25
                  from £783.25
                  CAL ASSEMBLY FRONT RH YEL Genuine Aston Martin - New (to order)
                  # 3
                  MPN: AD23-2C462-GA
                  CALIPER ASSY, FRONT RH, BLUE
                  Excludes Pads, Includes Bolts, WHEN RENEWING ITEM 3 (caliper), ITEM 8 (bolts) MUST BE RENEWED AT THE SAME TIME.
                  from £783.25
                  from £783.25
                  CALIPER ASSEMBLY, FRONT RH, BLUE Genuine Aston Martin - New (to order)
                  # 4
                  MPN: CD33-2D007-AA
                  BRAKE PAD KIT, FRONT
                  Unbedded
                  Supersession
                  Supersession
                  Genuine Aston Martin (no longer available to order)
                  # 5
                  MPN: 8D33-2C588-AA
                  KIT, PAD SPRING & PIN, FRONT
                  per caliper
                  from £49.82
                  from £49.82
                  KIT, PAD SPRING AND PIN Genuine Aston Martin - New (to order)
                  # 6
                  MPN: 8D33-32180-AA
                  KIT, DUST BOOT, FRONT
                  per caliper
                  from £37.48
                  from £37.48
                  KIT, DUST BOOT, FRONT Genuine Aston Martin - New (to order)
                  # 7
                  MPN: 4G43-2C563-AA
                  KIT, BLEED SCREW
                  per caliper
                  from £10.30
                  from £10.30
                  KIT, BLEED SCREW Genuine Aston Martin - New (to order)
                  # 7
                  MPN: 4G43-33693-AA
                  CAP, BLEED SCREW
                  per caliper
                  from £16.93
                  from £16.93
                  CAP, BLEED SCREW Genuine Aston Martin - New (to order)
                  # 8
                  MPN: 8D33-CD60-AA
                  BOLT, CALIPER TO ADAPTOR BRACKET
                  Always Replace never re-use
                  from £5.70
                  from £5.70
                  SCW FRONT ADPT BRACKET CLP Genuine Aston Martin - New (to order)
                  # 9
                  MPN: ED23-2D204-AB
                  ADAPTER BRACKET, FRONT CALIPER
                  WHEN RENEWING ITEM 9 (Adapter Bracket), ITEM 10 (Screws) MUST BE RENEWED AT THE SAME TIME.
                  from £559.68
                  from £559.68
                  ADAPTOR BRACKET Genuine Aston Martin - New (to order)
                  # 10
                  MPN: 8D33-YA64-AA
                  SCREW, ADAPTOR BRACKET TO KNUCKLE
                  Always Replace, never re-use
                  from £5.55
                  from £5.55
                  SCW FRONT ADPT BRK KNUC Genuine Aston Martin - New (to order)
                  # 11
                  MPN: CD33-2K005-AA
                  SHIELD, FRONT BRAKE DISC, LH
                  from £133.10
                  from £133.10
                  SHIELD, FRONT BRAKE DISC, LH Genuine Aston Martin - New (to order)
                  # 11
                  MPN: CD33-2K004-AA
                  SHIELD, FRONT BRAKE DISC, RH
                  from £133.10
                  from £133.10
                  SHIELD, FRONT BRAKE DISC, RH Genuine Aston Martin - New (to order)
                  # 12
                  MPN: 4G43-13D026-AA
                  SCREW, M6 X 1.0 X 14
                  from £0.47
                  from £0.47
                  SCREW M6 X 1.0 X 14 Genuine Aston Martin - New (to order)
                  # 13
                  MPN: 8D33-2L507-AA
                  PAD WEAR LEAD, FRONT
                  from £40.69
                  from £40.69
                  PAD WEAR LEAD FRONT Genuine Aston Martin - New (to order)
                  # 14
                  MPN: 4G43-65-10059-PK
                  CLIP, FIRTREE, 5 X 6.5 X 2
                  Pack of 100
                  from £39.48
                  from £39.48
                  CLIP-FIRTREE PK 100 Genuine Aston Martin - New (to order)
                  # 15
                  MPN: 4G43-2078-AD
                  HOSE ASSY, FRONT WHEEL BRAKE, LH
                  from £139.96
                  from £139.96
                  HOSE ASSEMBLY FRONT WHEEL BRK Genuine Aston Martin - New (to order)
                  HOSE ASSEMBLY FRONT WHEEL BRK Genuine Aston Martin - Used In stock
                  # 15
                  MPN: 4G43-2078-BD
                  HOSE ASSY, FRONT WHEEL BRAKE, RH
                  from £254.47
                  from £254.47
                  HOSE ASSEMBLY FRONT WHEEL BRK Genuine Aston Martin - New (to order)
                  # 16
                  MPN: 4G43-90-10039
                  SENSOR, ABS
                  from £54.53
                  from £54.53
                  SENSOR-ABS Genuine Aston Martin - New (to order)
                  SENSOR-ABS Genuine Aston Martin - Used In stock
                  # 17
                  MPN: 4G43-13D026-BA
                  SCREW, M5 X 0.8 X 12
                  from £0.73
                  from £0.73
                  SCREW M5 Genuine Aston Martin - New (to order)
