aston martin vanquish (2013) rear brake system parts diagram

06-0400-01 - Rear Brake System

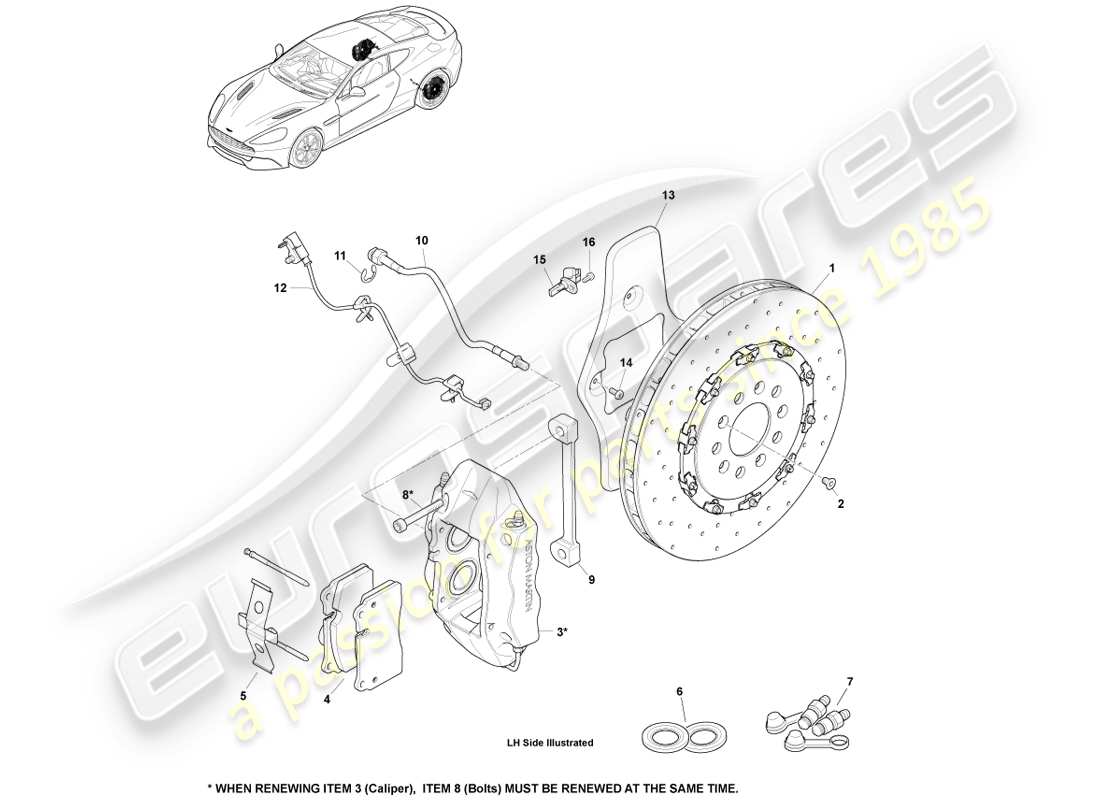

Aston Martin Vanquish (2013) Rear Brake System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Key
                      Price
                      # 1
                      MPN: CD33-2D258-CA
                      BRAKE DISC AND PADS, AXLE SET-BEDDED
                      Supersession
                      Supersession
                      Genuine Aston Martin (no longer available to order)
                      # 2
                      MPN: 4G43-2N389-AA
                      SCREW, M8 X 14, FLAT HD CSK
                      from £0.47
                      from £0.47
                      SCREW M8X14 FLAT COUNTERSUNK Genuine Aston Martin - New In stock
                      # 3
                      MPN: AD23-2C465-JA
                      CALIPER ASSY, REAR LH, BLACK ANODISED
                      Excludes Pads, Includes Bolts, WHEN RENEWING ITEM 3 (caliper), ITEM 8 (bolts) MUST BE RENEWED AT THE SAME TIME.
                      from £664.97
                      from £664.97
                      CAL ASSEMBLY REAR LH ANOD Genuine Aston Martin - New (to order)
                      # 3
                      MPN: AD23-2C465-AB
                      CALIPER ASSY, REAR LH, GREY
                      Excludes Pads, Includes Bolts, WHEN RENEWING ITEM 3 (caliper), ITEM 8 (bolts) MUST BE RENEWED AT THE SAME TIME.
                      from £655.98
                      from £655.98
                      CAL ASSEMBLY REAR LH GREY Genuine Aston Martin - New (to order)
                      # 3
                      MPN: AD23-2C465-CB
                      CALIPER ASSY, REAR LH, BLACK
                      Excludes Pads, Includes Bolts, WHEN RENEWING ITEM 3 (caliper), ITEM 8 (bolts) MUST BE RENEWED AT THE SAME TIME.
                      from £636.40
                      from £636.40
                      CAL ASSEMBLY REAR LH BLK Genuine Aston Martin - New (to order)
                      # 3
                      MPN: AD23-2C465-DA
                      CALIPER ASSY, REAR LH, RED
                      Excludes Pads, Includes Bolts, WHEN RENEWING ITEM 3 (caliper), ITEM 8 (bolts) MUST BE RENEWED AT THE SAME TIME.
                      from £655.98
                      from £655.98
                      CAL ASSEMBLY REAR LH RED Genuine Aston Martin - New (to order)
                      # 3
                      MPN: AD23-2C465-FA
                      CALIPER ASSY, REAR LH, YELLOW
                      Excludes Pads, Includes Bolts, WHEN RENEWING ITEM 3 (caliper), ITEM 8 (bolts) MUST BE RENEWED AT THE SAME TIME.
                      from £655.98
                      from £655.98
                      CAL ASSEMBLY REAR LH YEL Genuine Aston Martin - New (to order)
                      # 3
                      MPN: AD23-2C465-GA
                      CALIPER ASSY, REAR LH, BLUE
                      Excludes Pads, Includes Bolts, WHEN RENEWING ITEM 3 (caliper), ITEM 8 (bolts) MUST BE RENEWED AT THE SAME TIME.
                      from £655.98
                      from £655.98
                      CALIPER ASSEMBLY, REAR LH, BLUE Genuine Aston Martin - New (to order)
                      # 3
                      MPN: AD23-2C464-JA
                      CALIPER ASSY, REAR RH, BLACK ANODISED
                      Excludes Pads, Includes Bolts, WHEN RENEWING ITEM 3 (caliper), ITEM 8 (bolts) MUST BE RENEWED AT THE SAME TIME.
                      from £664.97
                      from £664.97
                      CAL ASSEMBLY REAR RH ANOD Genuine Aston Martin - New (to order)
                      # 3
                      MPN: AD23-2C464-AB
                      CALIPER ASSY, REAR RH, GREY
                      Excludes Pads, Includes Bolts, WHEN RENEWING ITEM 3 (caliper), ITEM 8 (bolts) MUST BE RENEWED AT THE SAME TIME.
                      from £655.98
                      from £655.98
                      CAL ASSEMBLY REAR RH GREY Genuine Aston Martin - New (to order)
                      # 3
                      MPN: AD23-2C464-CB
                      CALIPER ASSY, REAR RH, BLACK
                      Excludes Pads, Includes Bolts, WHEN RENEWING ITEM 3 (caliper), ITEM 8 (bolts) MUST BE RENEWED AT THE SAME TIME.
                      from £636.40
                      from £636.40
                      CAL ASSEMBLY REAR RH BLK Genuine Aston Martin - New (to order)
                      # 3
                      MPN: AD23-2C464-DA
                      CALIPER ASSY, REAR RH, RED
                      Excludes Pads, Includes Bolts, WHEN RENEWING ITEM 3 (caliper), ITEM 8 (bolts) MUST BE RENEWED AT THE SAME TIME.
                      from £655.98
                      from £655.98
                      CAL ASSEMBLY REAR RH RED Genuine Aston Martin - New (to order)
                      # 3
                      MPN: AD23-2C464-FA
                      CALIPER ASSY, REAR RH, YELLOW
                      Excludes Pads, Includes Bolts, WHEN RENEWING ITEM 3 (caliper), ITEM 8 (bolts) MUST BE RENEWED AT THE SAME TIME.
                      from £655.98
                      from £655.98
                      CAL ASSEMBLY REAR RH YEL Genuine Aston Martin - New (to order)
                      # 3
                      MPN: AD23-2C464-GA
                      CALIPER ASSY, REAR RH, BLUE
                      Excludes Pads, Includes Bolts, WHEN RENEWING ITEM 3 (caliper), ITEM 8 (bolts) MUST BE RENEWED AT THE SAME TIME.
                      from £655.98
                      from £655.98
                      CALIPER ASSEMBLY, REAR RH, BLUE Genuine Aston Martin - New (to order)
                      # 4
                      MPN: 8D33-2C562-BA
                      BRAKE PAD KIT, REAR
                      Unbedded
                      from £597.09
                      from £597.09
                      KIT, BRAKE PADS, AXLE SET Genuine Aston Martin - New (to order)
                      # 5
                      MPN: 8D33-2C588-BA
                      KIT, PAD SPRING & PIN, REAR
                      per caliper
                      from £49.75
                      from £49.75
                      KIT PAD SPR & PIN REAR Genuine Aston Martin - New (to order)
                      # 6
                      MPN: 4G43-32610-AA
                      KIT, DUST BOOT, REAR CALIPER
                      per caliper
                      from £30.10
                      from £30.10
                      KIT, DUST BOOT, REAR CALIPER Genuine Aston Martin - New (to order)
                      # 7
                      MPN: 4G43-2C563-AA
                      KIT, BLEED SCREW
                      per caliper
                      from £10.30
                      from £10.30
                      KIT, BLEED SCREW Genuine Aston Martin - New (to order)
                      # 7
                      MPN: 4G43-33693-AA
                      CAP, BLEED SCREW
                      per caliper
                      from £16.93
                      from £16.93
                      CAP, BLEED SCREW Genuine Aston Martin - New (to order)
                      # 8
                      MPN: 8D33-2C564-AA
                      BOLT, M12 X 1.5 X 95
                      Always Replace, never re-use
                      from £6.43
                      from £6.43
                      BOLT-M12 X 1.5 X 95 Genuine Aston Martin - New In stock
                      # 9
                      MPN: 8D33-2B128-AB
                      SPACER, CALIPER
                      from £154.38
                      from £154.38
                      SPACER, CALIPER TO KNUCKLE Genuine Aston Martin - New (to order)
                      # 10
                      MPN: 6G33-2282-AC
                      HOSE ASSY, REAR WHEEL BRAKE
                      from £154.73
                      from £154.73
                      This part replaces part number 6G33-2282-AB
                      HOSE ASSEMBLY, REAR WHEEL BRAKE Genuine Aston Martin - New (to order)
                      # 11
                      MPN: 6G33-JYC10088-AB
                      E CLIP BOWED, NOM 16MM
                      from £0.47
                      from £0.47
                      E-CLIP BOWED NOM16MM Genuine Aston Martin - New (to order)
                      # 12
                      MPN: 6G33-2D009-AB
                      PAD WEAR LEAD, REAR
                      from £36.38
                      from £36.38
                      PAD WEAR LEAD REAR Genuine Aston Martin - New In stock
                      # 14
                      MPN: 4G43-13D026-AA
                      SCREW, M6 X 1.0 X 14
                      from £0.47
                      from £0.47
                      SCREW M6 X 1.0 X 14 Genuine Aston Martin - New (to order)
                      # 15
                      MPN: 4G43-90-10039
                      SENSOR, ABS
                      from £54.53
                      from £54.53
                      SENSOR-ABS Genuine Aston Martin - New (to order)
                      SENSOR-ABS Genuine Aston Martin - Used In stock
                      # 16
                      MPN: 4G43-13D026-BA
                      SCREW, M5 X 0.8 X 12
                      from £0.73
                      from £0.73
                      SCREW M5 Genuine Aston Martin - New (to order)
