aston martin vanquish (2013) parking brake, lhd parts diagram

06-0502-03 - Parking Brake, LHD

Aston Martin Vanquish (2013) Parking Brake, LHD Parts Diagram

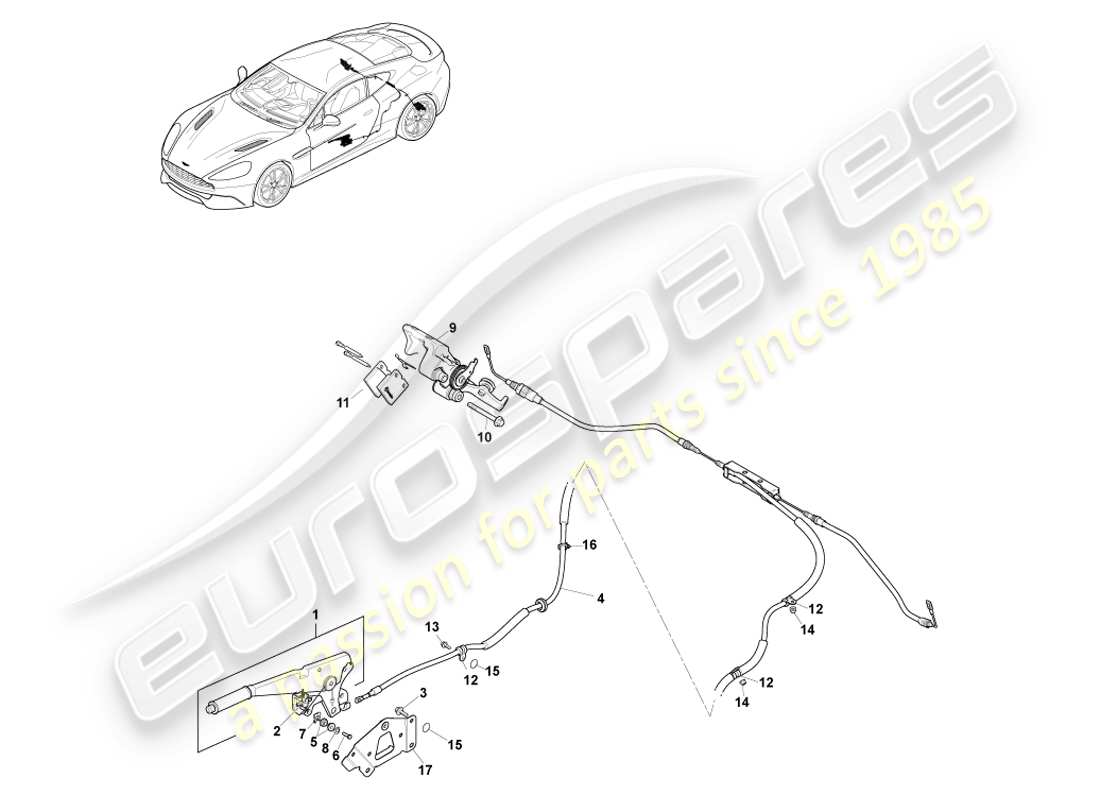

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Key
                              Price
                              # 1
                              MPN: 4G43-8492-AC
                              HANDBRAKE LEVER ASSEMBLY, LHD
                              Satin Chrome Jewellery Pack
                              HANDBRAKE LEVER ASSEMBLY LHD Genuine Aston Martin - New (to order)
                              # 1
                              MPN: CD33-8492-AC
                              HANDBRAKE LEVER ASSEMBLY, LHD
                              Dark Chrome Jewellery Pack
                              HANDBRAKE LEVER ASSEMBLY, LHD Genuine Aston Martin - New (to order)
                              # 2
                              MPN: 37-84688
                              SWITCH, HANDBRAKE
                              from £198.27
                              from £198.27
                              SWITCH, HANDBRAKE Genuine Aston Martin - New (to order)
                              # 3
                              MPN: 703121
                              SCREW, M8 X 20, HEX FLANGE HEAD
                              from £0.47
                              from £0.47
                              SCREW M8X20 HEX FLANGE Genuine Aston Martin - New (to order)
                              # 4
                              MPN: 8D33-2853-AB
                              CABLE & CONDUIT ASSY
                              from £210.51
                              from £210.51
                              CBL & CONDU ASSEMBLY Genuine Aston Martin - New (to order)
                              # 5
                              MPN: 6G33-439136-AA
                              TRUNNION, HANDBRAKE CABLE
                              from £1.32
                              from £1.32
                              TRUNNION, HANDBRAKE CABLE Genuine Aston Martin - New (to order)
                              # 6
                              MPN: 7G43-2K605-AA
                              PIN, PIVOT CABLE, HANDBRAKE
                              from £1.17
                              from £1.17
                              PIVOT PIN, H/BRAKE CABLE TO LEVER Genuine Aston Martin - New (to order)
                              # 7
                              MPN: 8G43-2442-AA
                              SPRING CLIP, HANDBRAKE
                              from £1.38
                              from £1.38
                              SPRING CLIP, HANDBRAKE Genuine Aston Martin - New (to order)
                              # 8
                              MPN: 8G43-10400-AA
                              WASHER, WAVE SPRING, HANDBRAKE
                              from £0.47
                              from £0.47
                              WASHER, WAVE SPRING, HANDBRAKE Genuine Aston Martin - New (to order)
                              # 9
                              MPN: AD23-2C464-BB
                              CALIPER, HANDBRAKE, RH
                              Excludes Pads
                              from £393.63
                              from £393.63
                              PARKBRAKE CALIPER ASSEMBLY REAR RH Genuine Aston Martin - New (to order)
                              # 9
                              MPN: AD23-2C465-BB
                              CALIPER, HANDBRAKE, LH
                              Excludes Pads
                              from £393.63
                              from £393.63
                              KIT HANDBRAKE Genuine Aston Martin - New (to order)
                              # 10
                              MPN: 4G43-2C564-CA
                              BOLT, M10 X 87, HEX FLANGE HD
                              from £1.79
                              from £1.79
                              BOLT-M10X87 HEX FLNG Genuine Aston Martin - New (to order)
                              # 11
                              MPN: 4G43-2C562-BA
                              PAD KIT, HANDBRAKE
                              Excludes Pins and Anti Rattle Springs
                              Supersession
                              Supersession
                              Genuine Aston Martin (no longer available to order)
                              # -
                              -
                              PINS, PAD RETAINING
                              # -
                              -
                              BOOT, SLIDING PIN
                              # -
                              -
                              SPRING, ANTI RATTLE
                              # 12
                              MPN: 694891
                              P-CLIP
                              from £2.31
                              from £2.31
                              P-CLIP Genuine Aston Martin - New (to order)
                              # 13
                              MPN: 703203
                              SCREW, M6 X 20, HEX FLG HD
                              from £0.47
                              from £0.47
                              SCREW M6X20 HEX FLNG Genuine Aston Martin - New (to order)
                              LOWER RADIATOR SUPPORT BOLT Genuine Ferrari Part - New (to order)
                              # 14
                              MPN: 703163
                              NUT, M6, FLANGE HD
                              from £0.47
                              from £0.47
                              NUT M6 FLANGE LOCKING Genuine Aston Martin - New (to order)
                              # 15
                              MPN: 4G43-L20222-AA
                              SEAL PATCH, SMALL
                              from £0.47
                              from £0.47
                              SEAL PATCH SMALL Genuine Aston Martin - New (to order)
                              # 16
                              MPN: 4G43-65-10059-PK
                              CLIP, FIRTREE, 5 X 6.5 X 2
                              Pack of 100
                              from £38.52
                              from £38.52
                              CLIP-FIRTREE PK 100 Genuine Aston Martin - New (to order)
                              # 17
                              MPN: 4G43-2A686-AB
                              BRACKET ASSEMBLY, HANDBRAKE LEVER, LHD
                              from £507.12
                              from £507.12
                              BRACKET ASSEMBLY P/BRK LVR Genuine Aston Martin - New (to order)
