aston martin vanquish (2013) exhaust system parts diagram

09-0500-00 - Exhaust System

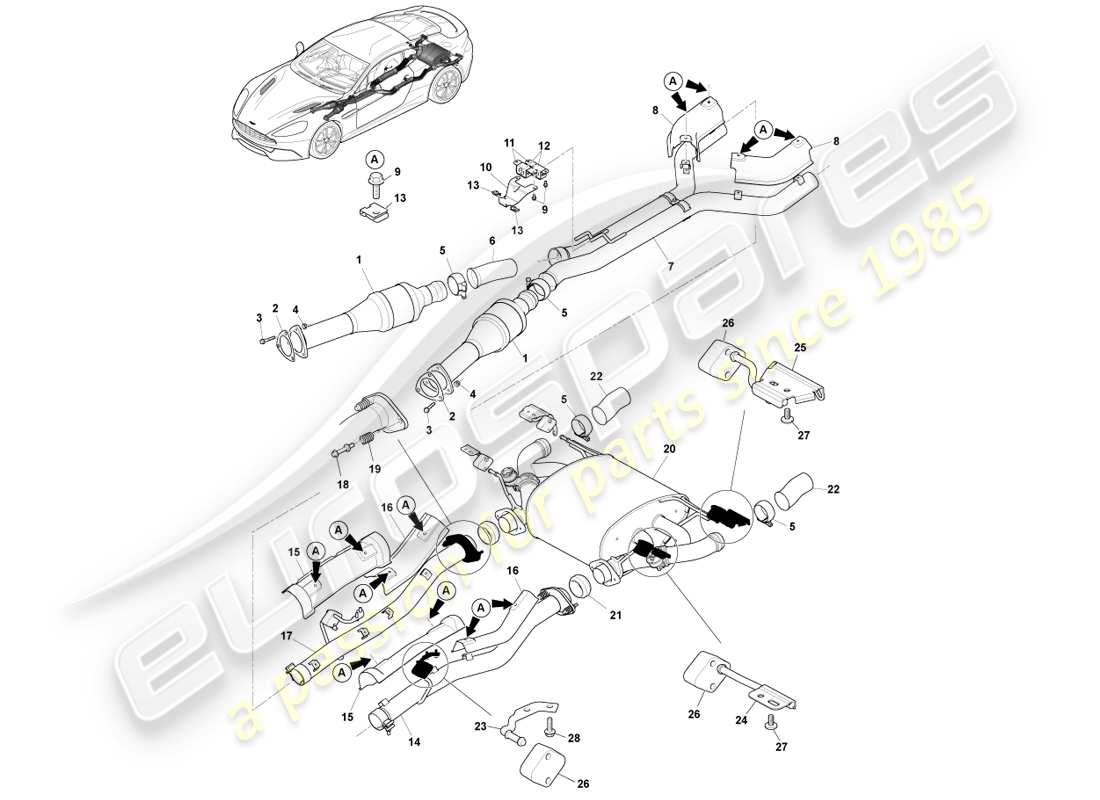

Aston Martin Vanquish (2013) Exhaust System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Key
                                            Price
                                            # 1
                                            MPN: 8G43-5E211-AD
                                            CATALYST AND PIPE ASSEMBLY
                                            from £648.86
                                            from £648.86
                                            CAT & PIPE ASSEMBLY Genuine Aston Martin - New (to order)
                                            # 2
                                            MPN: 4G43-5E281-AA-PK
                                            GASKET, EXHAUST
                                            Pack of 2
                                            Supersession
                                            Supersession
                                            Genuine Aston Martin (no longer available to order)
                                            # 3
                                            MPN: 702698
                                            BOLT, M8X45, FLANGE HEAD
                                            from £9.22
                                            from £9.22
                                            BOLT-M8X45 FLANGE HEAD Genuine Aston Martin - New (to order)
                                            # 4
                                            MPN: 4G43-02738-AA-PK
                                            NUT, M8 HEX FLANGE HEAD, STAINLESS
                                            Pack of 10
                                            from £37.21
                                            from £37.21
                                            This part replaces part number 4G43-02738-AA
                                            NUT-M8 FLANGE SS(PK 10) Genuine Aston Martin - New (to order)
                                            # 5
                                            MPN: 9G43-5221-AA
                                            CLAMP, EXHAUST PIPE
                                            from £25.41
                                            from £25.41
                                            PIPE ASSEMBLY, EXHAUST REAR LH Genuine Aston Martin - New (to order)
                                            # 6
                                            MPN: CG43-5220-FA
                                            PIPE, INTERMEDIATE
                                            from £24.51
                                            from £24.51
                                            PIPE, INTERMEDIATE Genuine Aston Martin - New (to order)
                                            # 7
                                            MPN: CD33-5220-DC
                                            PIPE, EXHAUST CENTRE
                                            Includes items 8, 9 and 13
                                            from £506.14
                                            from £506.14
                                            PIPE, EXHAUST CENTRE Genuine Aston Martin - New (to order)
                                            # 8
                                            MPN: AD43-5G221-AA
                                            SHIELD ASSY, EXHAUST SYSTEM, REAR FRONT
                                            from £114.27
                                            from £114.27
                                            SHIELD ASSEMBLY, EXHAUST SYSTEM, REAR FRONT Genuine Aston Martin - New (to order)
                                            # 9
                                            MPN: 703264
                                            SCREW, M6X14, HEX HEAD
                                            SCREW, M6X12 HEX HD Genuine Aston Martin - New (to order)
                                            # 10
                                            MPN: 4G43-3962-ED
                                            BRACKET, SUPPORT
                                            from £7.93
                                            from £7.93
                                            BRACKET, SUPPORT EXHAUST PIPE Genuine Aston Martin - New (to order)
                                            BRACKET, SUPPORT EXHAUST PIPE Genuine Aston Martin - Used In stock
                                            # 11
                                            MPN: 4G43-3962-FA
                                            BRACKET, EXHAUST ISOLATOR
                                            from £27.00
                                            from £27.00
                                            BRKT-EXH ISLTR Genuine Aston Martin - New (to order)
                                            BRKT-EXH ISLTR Genuine Aston Martin - Used In stock
                                            With Rubber
                                            # 12
                                            MPN: 4G43-35-10025
                                            RUBBER, EXHAUST MOUNT
                                            from £4.77
                                            from £4.77
                                            EXH RUBBER MOUNT Genuine Aston Martin - New (to order)
                                            # 13
                                            MPN: 699736
                                            CLIP, PANEL EDGE
                                            from £1.70
                                            from £1.70
                                            CLIP - PANEL EDGE Genuine Aston Martin - New (to order)
                                            # 14
                                            MPN: CG43-5220-BA
                                            PIPE, EXHAUST INTERMEDIATE, LH
                                            Includes Items 9, 13, 15 and 16
                                            PIPE, EXHAUST INTERMEDIATE, LH Genuine Aston Martin - New (to order)
                                            # 14
                                            MPN: FD33-5220-BA
                                            PIPE, EXHAUST INTERMEDIATE, LH
                                            FROM 15MY
                                            from £259.58
                                            from £259.58
                                            PIPE, EXHAUST INTERMEDIATE, LH Genuine Aston Martin - New (to order)
                                            # 15
                                            MPN: 4G43-5G221-BC
                                            HEATSHIELD ASSY, EXHAUST, INTERMEDIATE PIPE, FRONT
                                            HEATSHIELD ASSEMBLY, EXHAUST, INTERMEDIATE PIPE, FRONT Genuine Aston Martin - New (to order)
                                            # 15
                                            MPN: FD33-5G221-BA
                                            HEATSHIELD ASSY, EXHAUST, INTERMEDIATE PIPE, FRONT
                                            FROM 15MY
                                            from £116.64
                                            from £116.64
                                            SHIELD ASSEMBLY, EXHAUST SYSTEM REAR Genuine Aston Martin - New (to order)
                                            # 16
                                            MPN: AD43-5G221-CA
                                            HEATSHIELD ASSY, EXHAUST, INTERMEDIATE PIPE, REAR
                                            from £119.23
                                            from £119.23
                                            SHL ASSY-EXH SYS REAR Genuine Aston Martin - New (to order)
                                            # 17
                                            MPN: CG43-5220-AA
                                            PIPE, EXHAUST INTERMEDIATE, RH
                                            Includes Items 9, 13, 15 and 16
                                            PIPE, EXHAUST INTERMEDIATE, RH Genuine Aston Martin - New (to order)
                                            # 17
                                            MPN: FD33-5220-AA
                                            PIPE, EXHAUST INTERMEDIATE, RH
                                            FROM 15MY
                                            from £259.58
                                            from £259.58
                                            PIPE, EXHAUST INTERMEDIATE, RH Genuine Aston Martin - New (to order)
                                            # 18
                                            MPN: 4G43-70816-AA
                                            BOLT, M8, FLANGE HEAD
                                            from £2.62
                                            from £2.62
                                            BOLT Genuine Aston Martin - New (to order)
                                            # 19
                                            MPN: 4G43-5F264-AA
                                            SPRING, EXHAUST PIPE FLANGE
                                            from £9.19
                                            from £9.19
                                            SPRING-EXH PIP FLANGE H Genuine Aston Martin - New (to order)
                                            # 20
                                            MPN: CD33-5230-BF
                                            MUFFLER, EXHAUST
                                            from £2,181.43
                                            from £2,181.43
                                            MUFFLER, EXHAUST Genuine Aston Martin - New (to order)
                                            # 21
                                            MPN: 4G43-17213-BA
                                            SEALING RING, EXHAUST
                                            from £33.11
                                            from £33.11
                                            SEALING RING, EXHAUST Genuine Aston Martin - New (to order)
                                            # 22
                                            MPN: 4G43-5220-CA
                                            PIPE, EXHAUST OUTLET STUB
                                            from £13.14
                                            from £13.14
                                            PIPE, EXHAUST OUTLET STUB Genuine Aston Martin - New (to order)
                                            PIPE, EXHAUST OUTLET STUB Genuine Aston Martin - Used In stock
                                            # 23
                                            MPN: 4G43-5N201-DC
                                            BRACKET, EXHAUST PIPE MOUNTING, INTERMEDIATE LH
                                            Up to 15MY
                                            from £4.32
                                            from £4.32
                                            BRACKET EXH MTNG CTR LH Genuine Aston Martin - New (to order)
                                            BRACKET EXH MTNG CTR LH Genuine Aston Martin - Used In stock
                                            # 23
                                            MPN: FD33-5N201-DA
                                            BRACKET, EXHAUST PIPE MOUNTING, INTERMEDIATE LH
                                            FROM 15MY
                                            from £16.70
                                            from £16.70
                                            BRACKET, EXHAUST PIPE MOUNTING, INTERMEDIATE LH Genuine Aston Martin - New (to order)
                                            # 23
                                            MPN: 4G43-5N201-EC
                                            BRACKET, EXHAUST PIPE MOUNTING, INTERMEDIATE RH
                                            Up to 15MY
                                            from £4.32
                                            from £4.32
                                            BRACKET EXH MTNG CTR RH Genuine Aston Martin - New (to order)
                                            BRACKET EXH MTNG CTR RH Genuine Aston Martin - Used In stock
                                            # 23
                                            MPN: FD33-5N201-EA
                                            BRACKET, EXHAUST PIPE MOUNTING, INTERMEDIATE RH
                                            FROM 15MY
                                            from £16.70
                                            from £16.70
                                            BRACKET, EXHAUST PIPE MOUNTING, INTERMEDIATE RH Genuine Aston Martin - New (to order)
                                            # 24
                                            MPN: CD33-5N201-CB
                                            BRACKET, MUFFLER MOUNTING HANGER ASSY, REAR, LH
                                            from £13.74
                                            from £13.74
                                            BRACKET, MUFFLER MOUNTING HANGER ASSEMBLY, REAR, LH Genuine Aston Martin - New (to order)
                                            # 24
                                            MPN: CD33-5N201-DB
                                            BRACKET, MUFFLER MOUNTING HANGER ASSY, REAR, RH
                                            from £13.74
                                            from £13.74
                                            BRACKET, MUFFLER MOUNTING HANGER ASSEMBLY, REAR, RH Genuine Aston Martin - New (to order)
                                            # 25
                                            MPN: CD33-5N203-AA
                                            BRACKET, UPPER TAILPIPE MOUNTING, LH
                                            from £20.86
                                            from £20.86
                                            BRACKET, UPPER TAILPIPE MOUNTING, LH Genuine Aston Martin - New (to order)
                                            # 25
                                            MPN: CD33-5N202-AA
                                            BRACKET, UPPER TAILPIPE MOUNTING, RH
                                            from £20.86
                                            from £20.86
                                            BRACKET, UPPER TAILPIPE MOUNTING, RH Genuine Aston Martin - New (to order)
                                            # 26
                                            MPN: 4G43-35-10026
                                            RUBBER, EXHAUST MOUNT
                                            from £21.44
                                            from £21.44
                                            EXH RUBBER MOUNT Genuine Aston Martin - New (to order)
                                            EXH RUBBER MOUNT Genuine Aston Martin - Used In stock
                                            # 27
                                            MPN: 6G33-100134-AB
                                            SCREW AND WASHER, M8X18, TORX HEAD
                                            SCREW/WASHER, M6 X 18 Genuine Aston Martin - New (to order)
                                            # 28
                                            MPN: 703121
                                            SCREW, M8X20, HEX FLANGE HEAD
                                            from £0.47
                                            from £0.47
                                            SCREW M8X20 HEX FLANGE Genuine Aston Martin - New (to order)
