aston martin vanquish (2013) air con lines, r134a gas parts diagram

12-0303-10 - Air Con Lines, R134a Gas

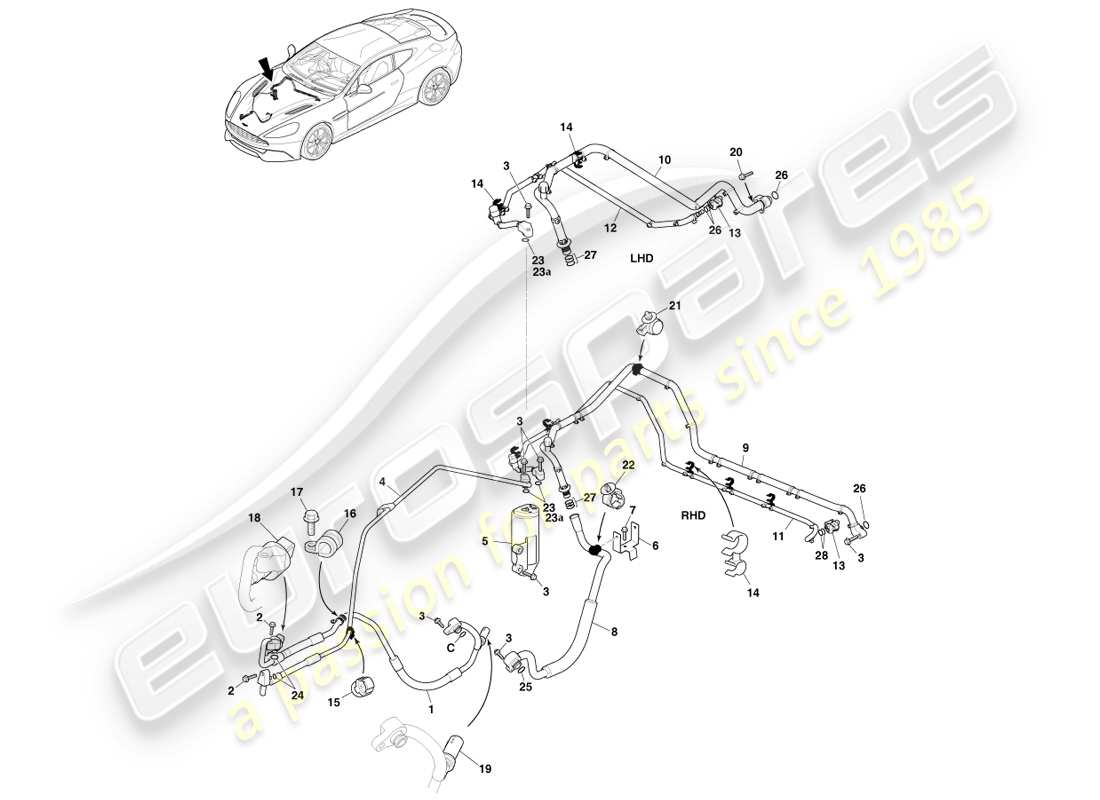

Aston Martin Vanquish (2013) Air Con Lines, R134a Gas Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 1
                    MPN: CD33-19972-AC
                    TUBE ASSY, COMPRESSOR TO CONDENSER
                    Up to 17MY
                    from £391.19
                    from £391.19
                    TUBE ASSEMBLY, COMPRESSOR TO CONDENSER Genuine Aston Martin - New (to order)
                    # 1
                    MPN: HD33-19972-AA
                    TUBE ASSY, COMPRESSOR TO CONDENSER
                    From 17MY, With R134 Gas
                    from £377.25
                    from £377.25
                    TUBE ASSEMBLY, COMPRESSOR TO CONDENSER Genuine Aston Martin - New (to order)
                    # 2
                    MPN: 703201
                    SCREW, M8X30, HEX FLANGE HEAD
                    from £0.47
                    from £0.47
                    SCREW M8X30 HEX FLNG Genuine Aston Martin - New (to order)
                    # 3
                    MPN: 703199
                    BOLT, M6X30, HEX FLANGE HEAD
                    from £0.47
                    from £0.47
                    BOLT M6X30 HEX FLANGE Genuine Aston Martin - New (to order)
                    # 4
                    MPN: CD33-19D719-AC
                    TUBE ASSY, CONDENSER TO RECEIVER/DRIER
                    Up to 17MY
                    from £83.69
                    from £83.69
                    TUBE ASSEMBLY, CONDENSER TO RECEIVER/DRIER Genuine Aston Martin - New (to order)
                    # 4
                    MPN: HD33-19D719-AA
                    TUBE ASSY, CONDENSER TO RECEIVER/DRIER
                    From 17MY, With R134 Gas
                    from £157.18
                    from £157.18
                    TUBE ASSEMBLY, CONDENSER TO RECEIVER/DRIER Genuine Aston Martin - New (to order)
                    # 5
                    MPN: 4G43-19E891-AD
                    RECEIVER/DRIER
                    from £260.34
                    from £260.34
                    This part replaces part number 4G43-19E891-AC which we have in stock
                    RECEIVER DRIER ASSEMBLY Genuine Aston Martin - New (to order)
                    # 6
                    MPN: 4G43-6147X-AD
                    BRACKET
                    RHD
                    from £24.29
                    from £24.29
                    BRKT-A/C /ELEC Genuine Aston Martin - New (to order)
                    # 7
                    MPN: 703151
                    SCREW, M6 X 16, WASHER HEX HEAD
                    RHD
                    from £0.47
                    from £0.47
                    SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                    LOWER MESH BOLTS Genuine Ferrari Part - New (to order)
                    # 8
                    MPN: CD33-19A705-AA
                    TUBE ASSY, EVAPORATOR OUTLET, LOWER
                    Up to 17MY
                    from £106.51
                    from £106.51
                    TUBE ASSEMBLY, EVAPORATOR OUTLET, LOWER Genuine Aston Martin - New (to order)
                    # 8
                    MPN: HD33-19A705-AA
                    TUBE ASSY, EVAPORATOR OUTLET, LOWER
                    From 17MY, With R134 Gas
                    from £245.72
                    from £245.72
                    TUBE ASSEMBLY, EVAPORATOR OUTLET, LOWER Genuine Aston Martin - New (to order)
                    # 9
                    MPN: AG43-19A705-CA
                    TUBE ASSY, EVAPORATOR OUTLET, UPPER
                    Up To 17MY, RHD
                    from £210.13
                    from £210.13
                    TUBE ASSEMBLY, EVAPORATOR OUTLET, UPPER Genuine Aston Martin - New (to order)
                    # 9
                    MPN: HG43-19A705-CA
                    TUBE ASSY, EVAPORATOR OUTLET, UPPER
                    From 17MY, RHD, With R134 Gas
                    from £213.56
                    from £213.56
                    TUBE ASSEMBLY, EVAPORATOR OUTLET, UPPER Genuine Aston Martin - New (to order)
                    # 10
                    MPN: AG43-19A705-BA
                    TUBE ASSY, EVAPORATOR OUTLET, UPPER
                    Up To 17MY, LHD
                    from £116.73
                    from £116.73
                    TUBE ASSEMBLY, EVAPORATOR TO PUMP, UPPER Genuine Aston Martin - New (to order)
                    # 10
                    MPN: HG43-19A705-BA
                    TUBE ASSY, EVAPORATOR OUTLET, UPPER
                    From 17MY, LHD, With R134 Gas
                    from £130.83
                    from £130.83
                    TUBE ASSEMBLY, EVAPORATOR OUTLET, UPPER Genuine Aston Martin - New (to order)
                    # 11
                    MPN: AG43-19835-CA
                    TUBE, RECEIVER/DRIER TO EVAPORATOR
                    Up To 17MY, RHD
                    from £171.17
                    from £171.17
                    This part replaces part number 4G43-19835-CF which we have in stock
                    TUBE, RECEIVER/DRIER TO EVAPORATOR Genuine Aston Martin - New (to order)
                    # 11
                    MPN: HG43-19835-CA
                    TUBE, RECEIVER/DRIER TO EVAPORATOR
                    From 17MY, RHD, With R134 Gas
                    from £177.56
                    from £177.56
                    TUBE, RECEIVER/DRIER TO EVAPORATOR Genuine Aston Martin - New (to order)
                    # 12
                    MPN: AG43-19835-BA
                    TUBE, RECEIVER/DRIER TO EVAPORATOR
                    Up To 17MY, LHD
                    from £454.94
                    from £454.94
                    TUBE, RECEIVER/DRIER TO EVAPORATOR Genuine Aston Martin - New (to order)
                    # 12
                    MPN: HG43-19835-BA
                    TUBE, RECEIVER/DRIER TO EVAPORATOR
                    From 17MY, LHD, With R134 Gas
                    from £184.45
                    from £184.45
                    TUBE, RECEIVER/DRIER TO EVAPORATOR Genuine Aston Martin - New (to order)
                    # 13
                    MPN: 4G43-4073A-AA
                    CLAMP
                    from £3.07
                    from £3.07
                    CLAMP Genuine Aston Martin - New (to order)
                    # 14
                    MPN: 701182
                    CLIP, PIPE, SWIVEL
                    RHD Qty 5, LHD Qty 2
                    from £1.20
                    from £1.20
                    CLIP-SWIVEL Genuine Aston Martin - New (to order)
                    # 15
                    MPN: 701180
                    CLIP, 14MM, PUSH IN
                    from £0.82
                    from £0.82
                    CLIP 14.0X4.0 PUSHIN Genuine Aston Martin - New (to order)
                    # 16
                    MPN: 699634
                    P-CLIP, 13MM
                    from £1.29
                    from £1.29
                    P-CLIP 13X15XM6 Genuine Aston Martin - New (to order)
                    # 17
                    MPN: 703203
                    SCREW, M6X20, HEX FLANGED
                    from £0.47
                    from £0.47
                    SCREW M6X20 HEX FLNG Genuine Aston Martin - New (to order)
                    LOWER RADIATOR SUPPORT BOLT Genuine Ferrari Part - New (to order)
                    # 18
                    MPN: 1R12-89-10192
                    SWITCH, HIGH PRESSURE
                    from £182.11
                    from £182.11
                    A/C SWITCH-HIGH PRES Genuine Aston Martin - New (to order)
                    A/C SWITCH-HIGH PRES Genuine Aston Martin - Used In stock
                    # 20
                    MPN: 703025
                    SCREW, M6X25, HEX FLANGED
                    LHD
                    from £0.47
                    from £0.47
                    SCREW M6X1.0X25 HEX Genuine Aston Martin - New (to order)
                    # 21
                    MPN: 4G43-65-10059-PK
                    CLIP - FIR TREE, 5X6.5X2
                    Pack of 100
                    from £39.48
                    from £39.48
                    CLIP-FIRTREE PK 100 Genuine Aston Martin - New (to order)
                    # 22
                    MPN: 702291
                    CLIP, 11-18X6.5X7
                    RHD
                    from £0.94
                    from £0.94
                    CLIP 11-18X6.5X7 Genuine Aston Martin - New (to order)
                    # 23
                    MPN: 4G43-89-10908-PK
                    O RINGS, RECEIVER / DRIER
                    Up To 17MY, Kit of 2
                    from £3.44
                    from £3.44
                    O RINGS-RECEIVER(2) Genuine Aston Martin - New (to order)
                    # 23
                    MPN: HD23-87056-AA
                    O RINGS, RECEIVER / DRIER
                    FROM 17MY
                    from £4.15
                    from £4.15
                    O RINGS, RECEIVER / DRIER Genuine Aston Martin - New (to order)
                    # 23a
                    MPN: HD23-87071-AA
                    O RING, RECEIVER / DRIER
                    FROM 17MY
                    from £4.15
                    from £4.15
                    EPDM O-RING Genuine Aston Martin - New (to order)
                    # 24
                    MPN: 4G43-89-10910-PK
                    O RINGS, CONDENSER
                    Up To 17MY, Kit of 2
                    from £3.51
                    from £3.51
                    O RINGS-CONDENSER (pack of 2) Genuine Aston Martin - New In stock
                    # 24
                    MPN: HD23-87024-AA
                    O RINGS, CONDENSER
                    FROM 17MY
                    from £4.15
                    from £4.15
                    EPDM O-RING Genuine Aston Martin - New (to order)
                    # 25
                    MPN: 4G43-89-10909-PK
                    O RINGS, COMPRESSOR
                    Up To 17MY, Kit of 2
                    from £3.51
                    from £3.51
                    O RINGS-COMPRESSOR-2 Genuine Aston Martin - New (to order)
                    # 25
                    MPN: HD23-19394-AA
                    O RING, COMPRESSOR
                    FROM 17MY
                    from £5.14
                    from £5.14
                    EPDM O-RING Genuine Aston Martin - New (to order)
                    # 26
                    MPN: 4G43-89-10911-PK
                    O RINGS, EVAPORATOR
                    Up to 17MY
                    from £8.66
                    from £8.66
                    O RINGS-EVAPORATOR-3 Genuine Aston Martin - New (to order)
                    # 26
                    MPN: HD23-32117-AA
                    EPDM O RING, 13.40X2.40
                    FROM 17MY
                    from £3.49
                    from £3.49
                    EPDM O RING, 13.40X2.40 Genuine Aston Martin - New (to order)
                    # 27
                    MPN: 4G43-89-10912-PK
                    O RING KIT
                    Up To 17MY, Kit of 3
                    from £4.83
                    from £4.83
                    O RING KIT Genuine Aston Martin - New (to order)
                    # 27
                    MPN: HD23-49745-AA
                    EPDM O RING, 12.93X1.86
                    FROM 17MY
                    from £5.03
                    from £5.03
                    O RING, 12.93X1.86 Genuine Aston Martin - New (to order)
                    # 28
                    MPN: HD23-874024-AA
                    O RING
                    FROM 17MY
                    O RING Genuine Aston Martin - New (to order)
