18-0109-02 - Passenger Compartment Fusebox

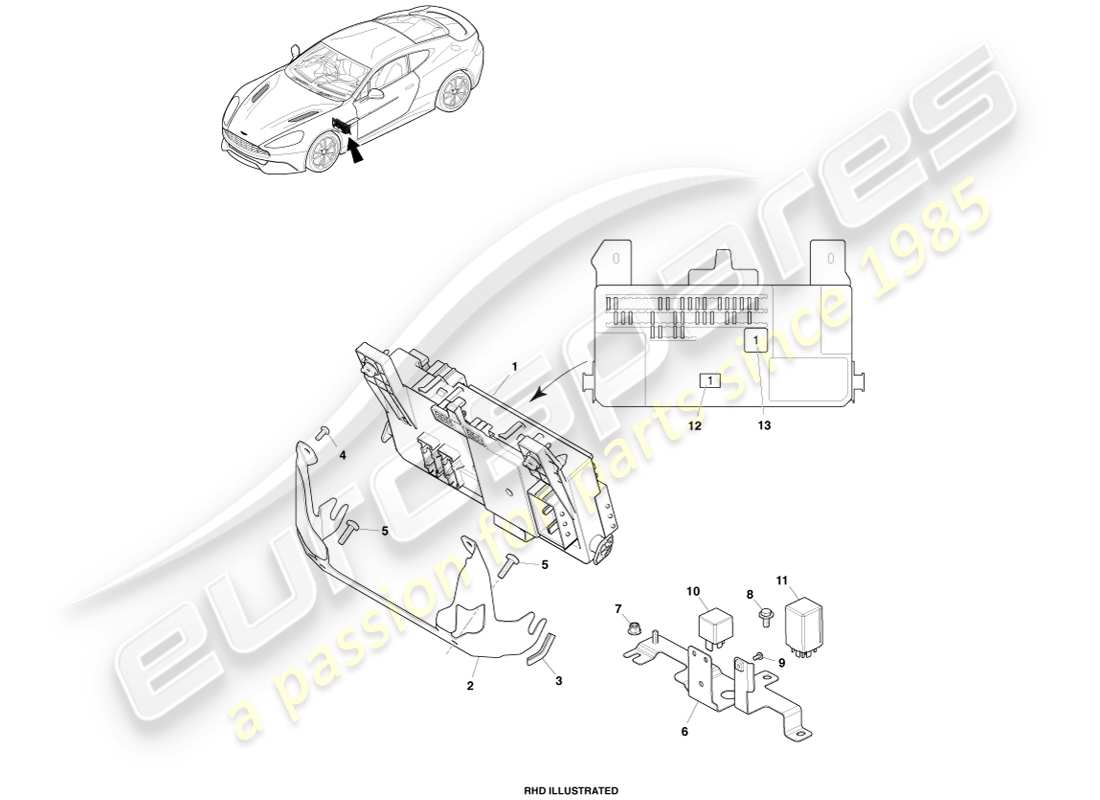

Aston Martin Vanquish (2013) Passenger Compartment Fusebox Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # 1
                          MPN: 8G43-14C245-AA
                          Central Electronic Module
                          Order 702802 Car Config when ordering CEM
                          from £556.26
                          from £556.26
                          Central Electronic Module Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 4G43-13B525-BG
                          BRACKET, CABIN FUSE BOX CEM
                          from £14.58
                          from £14.58
                          BRACKET CABIN F/BOX CEM Genuine Aston Martin - New (to order)
                          BRACKET CABIN F/BOX CEM Genuine Aston Martin - Used In stock
                          # 3
                          MPN: 4G43-MWC6176-EA
                          VELCRO EYE, 12 X 50MM
                          VELCRO EYE, 12 X 50MM Genuine Aston Martin - New (to order)
                          # 4
                          MPN: 702084
                          SCREW, M5 X 12
                          Supersession
                          Supersession
                          Genuine Aston Martin (no longer available to order)
                          # 5
                          MPN: 702637
                          SCREW, M6 X 20, SKT HEAD
                          from £0.47
                          from £0.47
                          SCREW M6X20 SOCKET HD Genuine Aston Martin - New (to order)
                          # 6
                          MPN: 8D33-14N072-BD
                          BRACKET, FUSE BOX, RHD
                          from £29.67
                          from £29.67
                          BRACKET, FUSEBOX RHD Genuine Aston Martin - New (to order)
                          # 6
                          MPN: 8D33-14N072-AE
                          BRACKET, FUSE BOX, LHD
                          from £25.47
                          from £25.47
                          BRACKET FUSEBOX LHD Genuine Aston Martin - New (to order)
                          # 7
                          MPN: 703164
                          LOCK NUT, M6
                          from £0.47
                          from £0.47
                          M6 LOCKNUT FLANGE NYL Genuine Aston Martin - New (to order)
                          # 8
                          MPN: 703151
                          SCREW & WASHER, M6 X 16, HEX HD
                          from £0.47
                          from £0.47
                          SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                          LOWER MESH BOLTS Genuine Ferrari Part - New (to order)
                          # 9
                          MPN: 700963
                          SCREW, M4 X 8MM, PAN HD
                          from £0.47
                          from £0.47
                          SCREW M4X8 PAN HEAD Genuine Aston Martin - New (to order)
                          # 10
                          -
                          RELAY
                          # 11
                          MPN: AD43-3F826-AA
                          MODULE ASSY, POWER STEERING
                          Module, power steering control Genuine Aston Martin - New (to order)
                          # 12
                          -
                          RELAY, MICRO
                          # 13
                          -
                          RELAY, ISO
                          # -
                          -
                          FUSE, MINI 5A
                          Pack of 10
                          # -
                          -
                          FUSE, MINI 10A
                          Pack of 10
                          # -
                          -
                          FUSE, MINI 15A
                          Pack of 10
                          # -
                          -
                          FUSE, MINI 20A
                          Pack of 10
                          # -
                          -
                          FUSE, MINI 25A
                          Pack of 10
