aston martin vanquish (2013) load compartmnet fusebox parts diagram

18-0110-02 - Load Compartmnet Fusebox

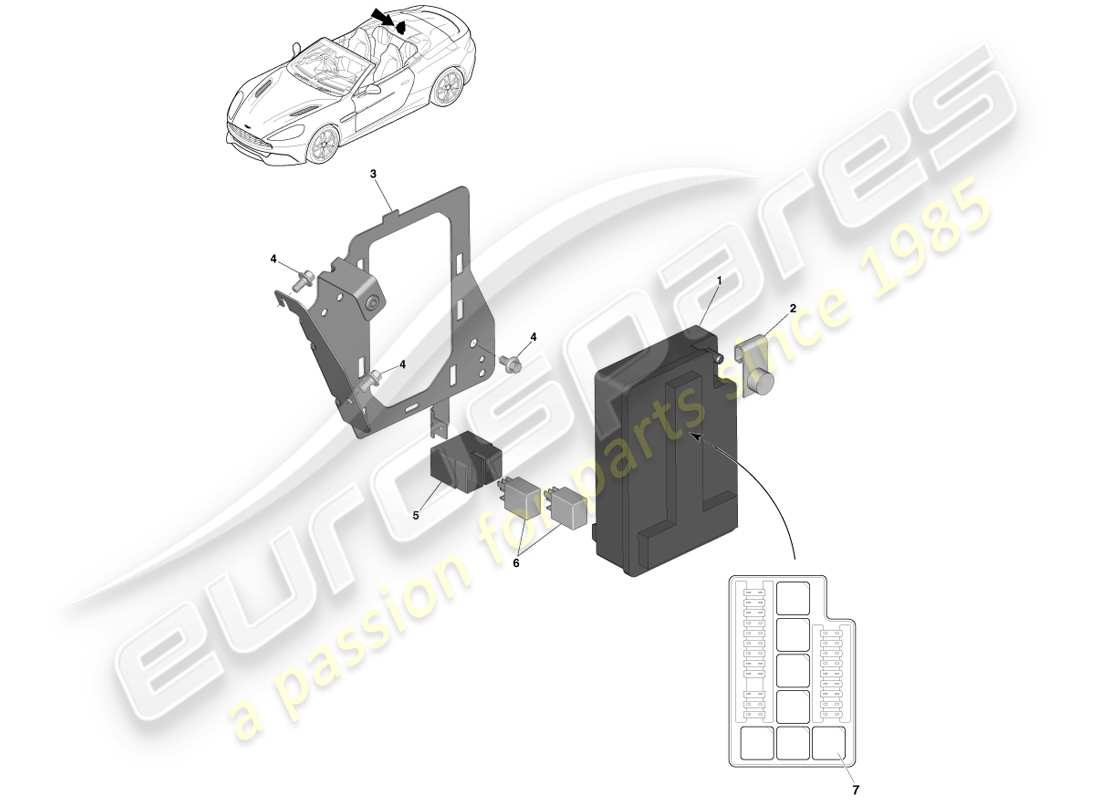

Aston Martin Vanquish (2013) Load Compartmnet Fusebox Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 1
                MPN: 4G43-14A073-AJ
                FUSEBOX, REAR
                from £259.58
                from £259.58
                FUSEBOX, REAR 22W RPDB Genuine Aston Martin - New (to order)
                # 2
                MPN: 37-856236
                PROTECTOR, POWER STUD
                PROTECTOR, POWER STUD Genuine Aston Martin - New (to order)
                # 3
                MPN: ED33-14A301-AC
                BRACKET, FUSEBOX
                from £58.18
                from £58.18
                BRACKET, FUSEBOX Genuine Aston Martin - New (to order)
                # 4
                MPN: 703265
                SCREW, M6 X 16, HEX HD HDPP
                from £0.47
                from £0.47
                SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                # 5
                -
                BASE, DUAL RELAY
                # 6
                MPN: 4G43-37-10659
                RELAY, 20A, TONNEAU LID LOCK
                from £2.61
                from £2.61
                RELAY 20A MICRO Genuine Aston Martin - New (to order)
                # 7
                MPN: 1R12-37-10526
                RELAY, FULL
                from £3.49
                from £3.49
                RELAY-CHANGE OVER Genuine Aston Martin - New (to order)
