01-0201-01 - Grille Opening Panel

Aston Martin Vanquish (2014) Grille Opening Panel Parts Diagram

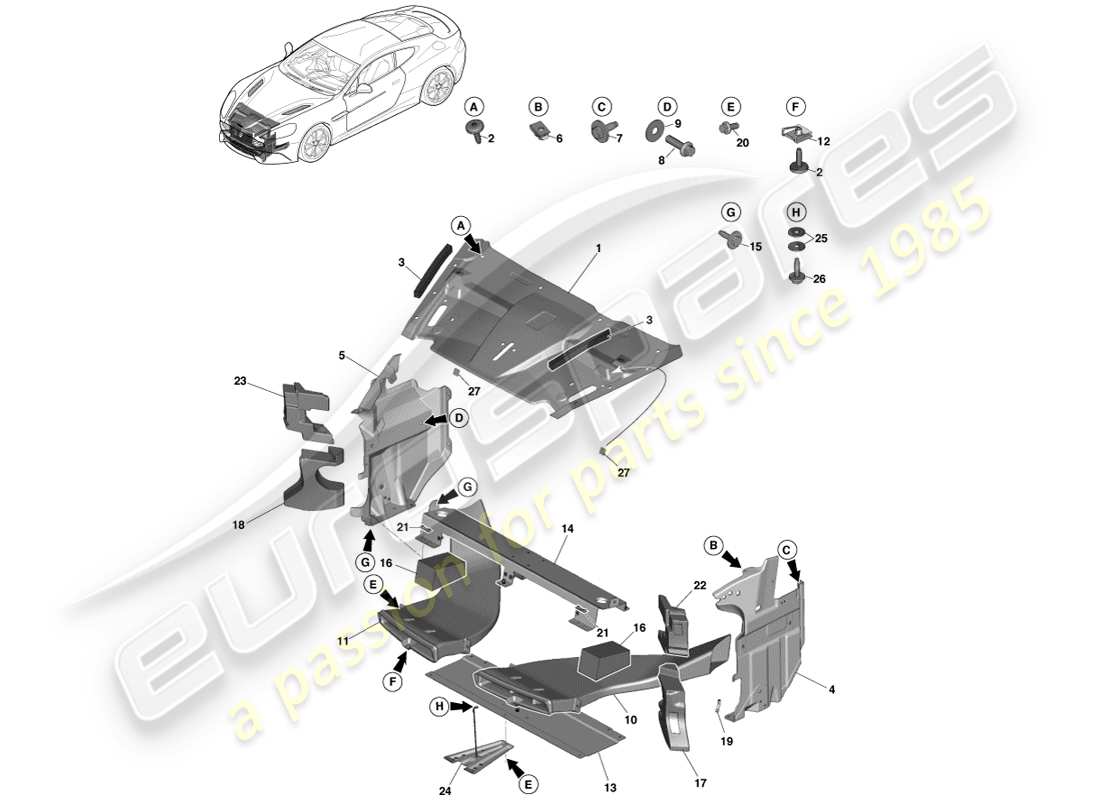

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Key
                                      Price
                                      # 1
                                      MPN: CD33-8136-BA
                                      GRILLE ASSEMBLY, RAD CENTRE
                                      Up to and incl VIN J02445
                                      GRILLE ASSEMBLY, RADIATOR CENTRE Genuine Aston Martin - New (to order)
                                      # 1
                                      MPN: CD33-8136-BB
                                      GRILLE ASSEMBLY, RAD CENTRE
                                      FROM VIN J02446
                                      Supersession
                                      Supersession
                                      Genuine Aston Martin (no longer available to order)
                                      # 2
                                      MPN: 6G33-FA0115-AB-PK
                                      SCREW, M6X20, SKT HD
                                      Pack of 20
                                      from £12.00
                                      from £12.00
                                      This part replaces part number 6G33-FA0115-AB
                                      SCREW-M6X20 PACK 20 Genuine Aston Martin - New (to order)
                                      # 3
                                      MPN: CG43-403D62-AA
                                      SEAL, UPPER PANEL, AIR VENT
                                      from £2.75
                                      from £2.75
                                      SE UPPER PANEL VEN AIR Genuine Aston Martin - New (to order)
                                      # 4
                                      MPN: DG43-F01991-AC
                                      PANEL, AIR VENT, LH
                                      Up to 15MY
                                      PANEL, VENT AIR, LH Genuine Aston Martin - New (to order)
                                      # 4
                                      MPN: FD33-F01991-AA
                                      PANEL, AIR VENT, LH
                                      FROM 15MY
                                      from £129.69
                                      from £129.69
                                      Genuine Aston Martin (no longer available to order)
                                      PANEL, AIR VENT, LH Genuine Porsche Part - New (to order)
                                      # 5
                                      MPN: DG43-F01990-AC
                                      PANEL, AIR VENT, RH
                                      from £140.69
                                      from £140.69
                                      PANEL, VENT AIR, RH Genuine Aston Martin - New (to order)
                                      # 6
                                      MPN: 703740
                                      NUT, M6, U TYPE SHORT SPRING
                                      from £2.17
                                      from £2.17
                                      NUT-M6X1.0 0.8-0.4 Genuine Aston Martin - New (to order)
                                      # 7
                                      MPN: 703139
                                      SCREW AND WASHER, M8X20
                                      from £1.90
                                      from £1.90
                                      SCREW/WASHER M8X20 Genuine Aston Martin - New (to order)
                                      # 8
                                      MPN: 703201
                                      SCREW, M8X30, HEX FLANGE HD
                                      from £0.47
                                      from £0.47
                                      SCREW M8X30 HEX FLNG Genuine Aston Martin - New (to order)
                                      # 8
                                      MPN: 707269
                                      SCREW, M8X30, HEX FLANGE BLK
                                      17MY on
                                      from £0.51
                                      from £0.51
                                      SCREW, M8X30, HEX FLANGE BLK Genuine Aston Martin - New (to order)
                                      # 9
                                      MPN: 697452
                                      WASHER, M8X24X1.8, BLACK
                                      from £4.39
                                      from £4.39
                                      WASHER M8 LARGE OD Genuine Aston Martin - New (to order)
                                      # 10
                                      MPN: 8D33-2D207-AB
                                      DUCT, LH
                                      from £103.27
                                      from £103.27
                                      DCT BRK CNTR COOL LH Genuine Aston Martin - New (to order)
                                      # 11
                                      MPN: 8D33-2D206-AB
                                      DUCT, RH
                                      from £103.27
                                      from £103.27
                                      DCT BRK CNTR COOL RH Genuine Aston Martin - New (to order)
                                      # 12
                                      MPN: 7G43-10609E-AA-PK
                                      SPRING CLIP, M6, U TYPE
                                      Pack of 10
                                      from £5.08
                                      from £5.08
                                      CLIP SPG M6 PK OF 10 Genuine Aston Martin - New In stock
                                      FRONT UNDERTRAY CLIP Genuine Ferrari Part - New (to order)
                                      # 13
                                      MPN: 8G43-2943751-AB
                                      BEAM, RADIATOR SUPPORT LOWER
                                      from £41.30
                                      from £41.30
                                      RADIATOR SUPPORT BEAM LOWER Genuine Aston Martin - New (to order)
                                      # 14
                                      MPN: DG43-8052-AA
                                      COVER ASSY, RADIATOR SUPPORT LOWER
                                      from £179.23
                                      from £179.23
                                      COVER ASSEMBLY RADIATOR SUPPORT LOWER Genuine Aston Martin - New (to order)
                                      # 15
                                      MPN: 703152-PK
                                      SCREW AND WASHER, M6X20
                                      Pack of 10
                                      from £3.17
                                      from £3.17
                                      SCREW/WSHR M6X20(10) Genuine Aston Martin - New (to order)
                                      # 16
                                      MPN: 8D33-42761-AA
                                      FOAM, COVER ASSY, RADIATOR SUPPORT
                                      from £44.30
                                      from £44.30
                                      COVER ASY-RAD SUPPORT FOA Genuine Aston Martin - New (to order)
                                      # 17
                                      MPN: CD33-334611-AA
                                      FOAM, BUMPER, LH
                                      from £38.88
                                      from £38.88
                                      FOAM, BUMPER, LH Genuine Aston Martin - New (to order)
                                      # 18
                                      MPN: CD33-334610-AA
                                      FOAM, BUMPER, RH
                                      from £38.88
                                      from £38.88
                                      FOAM, BUMPER, RH Genuine Aston Martin - New (to order)
                                      # 19
                                      MPN: 4G43-L41041-AA
                                      EDGING STRIP, BLACK
                                      from £6.27
                                      from £6.27
                                      EDGE STRIP Genuine Aston Martin - New (to order)
                                      # 20
                                      MPN: 703729
                                      SCREW, M6X16, HEX FLANGE HD
                                      bright
                                      from £0.47
                                      from £0.47
                                      SCREW-M6X16 HEX FLANGE Genuine Aston Martin - New (to order)
                                      # 20
                                      MPN: 703069
                                      SCREW, M6X16, HEX FLANGE HD
                                      Black
                                      from £0.47
                                      from £0.47
                                      SCREW M6X16 Genuine Aston Martin - New (to order)
                                      # 21
                                      MPN: CD33-8K070-AA
                                      NUT PLATE, RADIATOR SUPPORT LOWER
                                      from £34.33
                                      from £34.33
                                      NUT PLATE, RADIATOR SUPPORT LOWER Genuine Aston Martin - New (to order)
                                      # 22
                                      MPN: CD33-17E671-AA
                                      FOAM, BUMPER, UPPER, LH
                                      from £100.72
                                      from £100.72
                                      FOAM, BUMPER, UPPER, LH Genuine Aston Martin - New (to order)
                                      # 23
                                      MPN: CD33-17E670-AA
                                      FOAM, BUMPER, UPPER, RH
                                      from £100.72
                                      from £100.72
                                      FOAM, BUMPER, UPPER, RH Genuine Aston Martin - New (to order)
                                      # 24
                                      MPN: DG43-38B30-AB
                                      STIFFENER, CENTRAL CHIN
                                      STIFFENER, CENTRAL CHIN Genuine Aston Martin - New (to order)
                                      # 25
                                      MPN: 697517-PK
                                      WASHER, M6, LARGE OD, BLACK
                                      Pack of 20
                                      from £13.07
                                      from £13.07
                                      WSHR-M6 L/OD BLK(20) Genuine Aston Martin - New (to order)
                                      # 26
                                      MPN: 702839-PK
                                      SCREW & WASHER, M6X20, HEX HD
                                      Pack of 10
                                      from £3.14
                                      from £3.14
                                      SCREW&WSHR M6X20(10) Genuine Aston Martin - New (to order)
                                      # 27
                                      MPN: DG43-18B944-AA
                                      PAD, ANTI RATTLE, 20X20
                                      from £6.04
                                      from £6.04
                                      PAD, ANTI RATTLE, 20X20 Genuine Aston Martin - New (to order)
