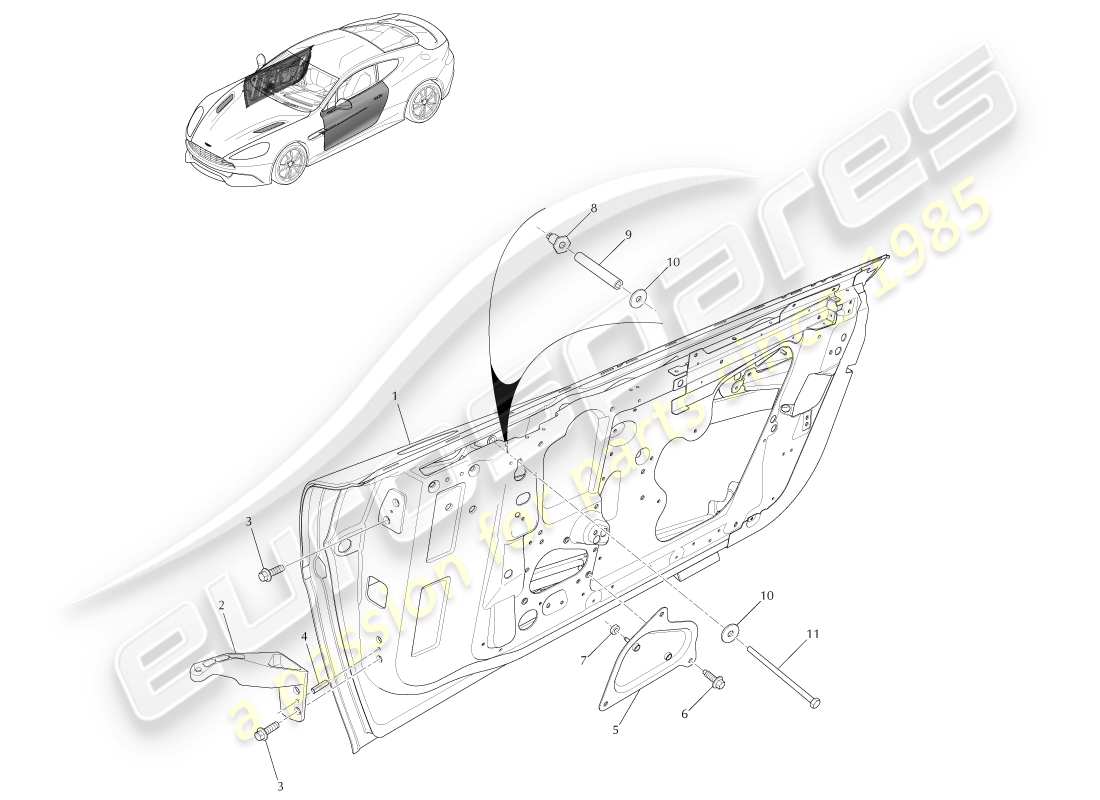

01-0301-01 - Front Door Assembly

Aston Martin Vanquish (2014) Front Door Assembly Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 1
                  MPN: ED33-C20122-AD
                  DOOR ASSEMBLY COMPLETE, RH
                  Up To VIN J02109, Coupe, Includes Items 2 to 4. See SB-01-1001v2
                  DOOR ASSEMBLY COMPLETE, RH Genuine Aston Martin - New (to order)
                  # 1
                  MPN: ED33-C20122-AE
                  DOOR ASSEMBLY COMPLETE, RH
                  From VIN J02110, Coupe, Includes Items 2 to 4. 3Fixing 1/4Light
                  DOOR ASSEMBLY COMPLETE, RH Genuine Aston Martin - New (to order)
                  # 1
                  MPN: ED33-20122-AD
                  DOOR ASSEMBLY COMPLETE, RH
                  Up To VIN K02114, Volante, Includes Items 2 to 4. See SB-01-1001v2
                  DOOR ASSEMBLY COMPLETE, RH Genuine Aston Martin - New (to order)
                  # 1
                  MPN: ED33-20122-AE
                  DOOR ASSEMBLY COMPLETE, RH
                  From VIN K02116, Volante, Includes Items 2 to 4. 3Fixing 1/4Light
                  DOOR ASSEMBLY COMPLETE, RH Genuine Aston Martin - New (to order)
                  # 1
                  MPN: ED33-C20123-AD
                  DOOR ASSEMBLY COMPLETE, LH
                  Up To VIN J02109, Coupe, Includes Items 2 to 4. See SB-01-1001v2
                  DOOR ASSEMBLY COMPLETE, LH Genuine Aston Martin - New (to order)
                  # 1
                  MPN: ED33-C20123-AE
                  DOOR ASSEMBLY COMPLETE, LH
                  From VIN J02110, Coupe, Includes Items 2 to 4. 3Fixing 1/4Light
                  DOOR ASSEMBLY COMPLETE, LH Genuine Aston Martin - New (to order)
                  # 1
                  MPN: ED33-20123-AD
                  DOOR ASSEMBLY COMPLETE, LH
                  Up To VIN K02114, Volante, Includes Items 2 to 4. See SB-01-1001v2
                  DOOR ASSEMBLY COMPLETE, LH Genuine Aston Martin - New (to order)
                  # 1
                  MPN: ED33-20123-AE
                  DOOR ASSEMBLY COMPLETE, LH
                  From VIN K02116, Volante, Includes Items 2 to 4. 3Fixing 1/4Light
                  DOOR ASSEMBLY COMPLETE, LH Genuine Aston Martin - New (to order)
                  # -
                  -
                  BLANKING PLUG 12.7MM
                  Up To VIN J02109/K02114. 3Fixing (Later) Door with 2Fixing 1/4Light.
                  # 2
                  -
                  REINFORCEMENT, FRONT DOOR CHECK ARM, RH
                  See item 1
                  # 2
                  -
                  REINFORCEMENT, FRONT DOOR CHECK ARM, LH
                  See item 1
                  # 3
                  MPN: 702210-PK
                  SCREW, M10X30, HEX FLANGE HEAD
                  Pack of 10
                  from £7.26
                  from £7.26
                  This part replaces part number 702210
                  BOLT-M10X30 PACK 10 Genuine Aston Martin - New (to order)
                  VENT PANEL BOLTS Genuine Ferrari Part - New (to order)
                  # 4
                  MPN: 4G43-40176-AB
                  PIN, LOCATING
                  PIN, LOCATING Genuine Aston Martin - New (to order)
                  # 5
                  MPN: 4G43-13282-BA
                  COVER, DOOR ACCESS OPENING, RH
                  from £22.24
                  from £22.24
                  COVER DR ACC OPG - RH Genuine Aston Martin - New (to order)
                  # 5
                  MPN: 4G43-13283-BA
                  COVER, DOOR ACCESS OPENING, LH
                  from £22.24
                  from £22.24
                  COVER DR ACC OPG - LH Genuine Aston Martin - New (to order)
                  # 6
                  MPN: 703265
                  SCREW, M6X6, HEX FLANGE HEAD
                  from £0.47
                  from £0.47
                  SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                  # 7
                  MPN: 4G43-702961-AA
                  SPACER, DOOR ACCESS OPENING COVER
                  from £0.67
                  from £0.67
                  SPACER, DOOR ACCESS OPENING COVER Genuine Aston Martin - New (to order)
                  # 8
                  MPN: 4G43-E826280-AD
                  NUT, M6, FLEXAX TOLERANCE
                  NUT, M6, FLEXAX TOLERANCE Genuine Aston Martin - New (to order)
                  # 9
                  MPN: ED33-102K94-AB
                  SPACER TUBE
                  from £3.25
                  from £3.25
                  SPACER TUBE Genuine Aston Martin - New (to order)
                  # 11
                  MPN: CD33-100129-AA
                  SCREW, M6X110, HEX HEAD
                  from £0.47
                  from £0.47
                  SCREW, M6X110, HEX HEAD Genuine Aston Martin - New (to order)
