aston martin vanquish (2014) main floor trim, rhd parts diagram

01-0501-02 - Main Floor Trim, RHD

Aston Martin Vanquish (2014) Main Floor Trim, RHD Parts Diagram

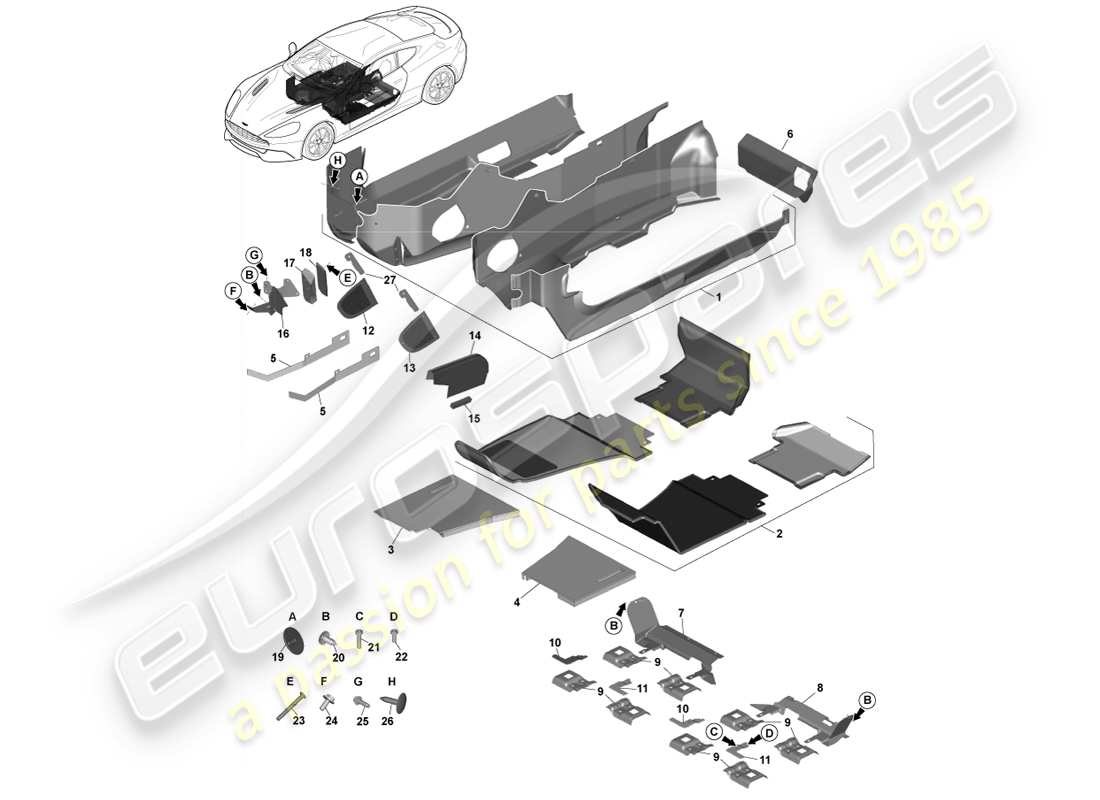

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Key
                                        Price
                                        # 1
                                        MPN: CD33-281B10-ADW
                                        KIT ASSY, SIDE CARPET
                                        Heavyweight, Up To 15MY
                                        KIT ASSEMBLY, SIDE CARPET Genuine Aston Martin - New (to order)
                                        # 1
                                        MPN: CD33-281B10-AEW
                                        KIT ASSY, SIDE CARPET
                                        Heavyweight, From 15MY
                                        from £2,041.82
                                        from £2,041.82
                                        KIT ASSEMBLY, SIDE CARPET Genuine Aston Martin - New (to order)
                                        # 1
                                        MPN: CD33-281B10-BCW
                                        KIT ASSY, SIDE CARPET
                                        Lightweight Up To 15MY
                                        KIT ASSEMBLY, SIDE CARPET Genuine Aston Martin - New (to order)
                                        # 1
                                        MPN: FD33-281B10-ABW
                                        KIT ASSY, SIDE CARPET
                                        Lightweight From 15MY
                                        from £1,348.39
                                        from £1,348.39
                                        KIT ASSEMBLY, SIDE CARPET Genuine Aston Martin - New (to order)
                                        # 2
                                        MPN: CD33-83-10014
                                        KIT, FLOOR CARPETS, RHD
                                        Heavyweight
                                        from £1,259.06
                                        from £1,259.06
                                        KIT, FLOOR CARPETS, RHD Genuine Aston Martin - New (to order)
                                        # 2
                                        MPN: CD33-83-10015
                                        KIT, FLOOR CARPETS, RHD
                                        Lightweight
                                        from £1,814.75
                                        from £1,814.75
                                        KIT, FLOOR CARPETS, RHD Genuine Aston Martin - New (to order)
                                        # 3
                                        MPN: DD33-130B52-AB
                                        SUPPORT, FLOOR CARPET, RH
                                        from £55.66
                                        from £55.66
                                        SUPPORT, FLOOR CARPET, RH Genuine Aston Martin - New (to order)
                                        # 4
                                        MPN: DD33-130B53-AB
                                        SUPPORT, FLOOR CARPET, LH
                                        from £55.66
                                        from £55.66
                                        SUPPORT, FLOOR CARPET, LH Genuine Aston Martin - New (to order)
                                        # 5
                                        MPN: DD33-130W48-AB
                                        BACKING PLATE, ABS
                                        from £30.35
                                        from £30.35
                                        BACKING PLATE, ABS Genuine Aston Martin - New (to order)
                                        # 6
                                        MPN: CD33-10K973-ACW
                                        HEEL BOARD, REAR, LH
                                        Coupe
                                        HEEL BOARD, REAR, LH Genuine Aston Martin - New (to order)
                                        # 6
                                        MPN: CD33-10K973-ADW
                                        HEEL BOARD, REAR, LH
                                        Volante
                                        HEEL BOARD, REAR, LH Genuine Aston Martin - New (to order)
                                        # 7
                                        MPN: 4G43-100A90-AA
                                        SUPPORT PANEL, REAR FLOOR, RH
                                        Up to 15MY
                                        from £18.65
                                        from £18.65
                                        RH REAR FLR SPRT PANEL Genuine Aston Martin - New (to order)
                                        RH REAR FLR SPRT PANEL Genuine Aston Martin - Used In stock
                                        # 7
                                        MPN: FD33-100A90-AA
                                        SUPPORT PANEL, REAR FLOOR, RH
                                        FROM 15MY
                                        from £51.68
                                        from £51.68
                                        SUPPORT PANEL, REAR FLOOR, RH Genuine Aston Martin - New (to order)
                                        # 8
                                        MPN: 8G43-100A91-AC
                                        SUPPORT PANEL, REAR FLOOR, LH
                                        Up to 15MY
                                        SUPPORT PANEL, REAR FLOOR, LH Genuine Aston Martin - New (to order)
                                        # 8
                                        MPN: FD33-100A91-AA
                                        SUPPORT PANEL, REAR FLOOR, LH
                                        FROM 15MY
                                        from £51.68
                                        from £51.68
                                        SUPPORT PANEL, REAR FLOOR, LH Genuine Aston Martin - New (to order)
                                        # 9
                                        MPN: 6G33-M1H403-AA
                                        FLOOR PAN COVER
                                        from £1.76
                                        from £1.76
                                        FLOOR PAN COVER Genuine Aston Martin - New (to order)
                                        # 10
                                        MPN: 6G33-666A40-AB
                                        FINISHER, CARPET, RH
                                        from £32.69
                                        from £32.69
                                        CRPT FINISH RHS COMM Genuine Aston Martin - New (to order)
                                        CRPT FINISH RHS COMM Genuine Aston Martin - Used In stock
                                        # 11
                                        MPN: 6G33-666A41-AB
                                        FINISHER, CARPET, LH
                                        from £18.24
                                        from £18.24
                                        CRPT FINISH LHS COMM Genuine Aston Martin - New (to order)
                                        CRPT FINISH LHS COMM Genuine Aston Martin - Used In stock
                                        # 12
                                        MPN: DD33-311A76-AA
                                        SPEAKER GRILLE, FOOTWELL, RH, BLACK
                                        Includes Fixings
                                        from £445.28
                                        from £445.28
                                        SPEAKER GRILLE, FOOTWELL, RH, BLACK Genuine Aston Martin - New (to order)
                                        # 12
                                        MPN: DD33-311A76-BA
                                        SPEAKER GRILLE, FOOTWELL, RH, IRIDIUM
                                        Includes Fixings
                                        from £426.73
                                        from £426.73
                                        SPEAKER GRILLE, FOOTWELL, RH, IRIDIUM Genuine Aston Martin - New (to order)
                                        # 13
                                        MPN: DD33-311A77-AA
                                        SPEAKER GRILLE, FOOTWELL, LH, BLACK
                                        Includes Fixings
                                        from £445.28
                                        from £445.28
                                        SPEAKER GRILLE, FOOTWELL, LH, BLACK Genuine Aston Martin - New (to order)
                                        # 13
                                        MPN: DD33-311A77-BA
                                        SPEAKER GRILLE, FOOTWELL, LH, IRIDIUM
                                        Includes Fixings
                                        from £426.73
                                        from £426.73
                                        SPEAKER GRILLE, FOOTWELL, LH, IRIDIUM Genuine Aston Martin - New (to order)
                                        # 14
                                        MPN: 4G43-831236-ABW
                                        HANDBRAKE GAITER ASSY
                                        from £452.05
                                        from £452.05
                                        HANDBRAKE GAITER ASSEMBLY Genuine Aston Martin - New (to order)
                                        # 15
                                        MPN: 4G43-M4D4515-AA
                                        FOAM STRIP, HANDBRAKE GAITER
                                        from £0.48
                                        from £0.48
                                        FOAM Genuine Aston Martin - New (to order)
                                        # 16
                                        MPN: CD33-3N234-AA
                                        BRACKET, FOOT REST
                                        from £38.04
                                        from £38.04
                                        BRACKET, FOOT REST Genuine Aston Martin - New (to order)
                                        # 17
                                        MPN: CD33-044J08-AA
                                        ENERGY ABSORBER, FOOT REST
                                        from £34.34
                                        from £34.34
                                        ENERGY ABSORBER, FOOT REST Genuine Aston Martin - New (to order)
                                        # 18
                                        MPN: 9G33-12021-AA
                                        COVER PLATE, FOOT REST, RH
                                        Silver Pedals
                                        from £32.61
                                        from £32.61
                                        RH F/R COVER PLATE Genuine Aston Martin - New (to order)
                                        # 18
                                        MPN: CD33-12021-CA
                                        COVER PLATE, FOOT REST, RH
                                        Black Pedals
                                        from £83.50
                                        from £83.50
                                        RH F/R COVER BLACK Genuine Aston Martin - New (to order)
                                        # 19
                                        MPN: 697564
                                        RETAINER, PUSH ON
                                        from £0.47
                                        from £0.47
                                        PUSH ON FIXER Genuine Aston Martin - New (to order)
                                        # 20
                                        MPN: 4G43-MXC1800-AA
                                        FASTENER, FIR TREE
                                        from £0.53
                                        from £0.53
                                        This part replaces part number 4G43-MXC1800-AA-PK
                                        FASTENER, FIRTREE Genuine Aston Martin - New In stock
                                        # 21
                                        MPN: 6G33-68D11-BA
                                        CAP SCREW, M5 X 20
                                        from £0.79
                                        from £0.79
                                        CAP SCREW - M5X20 Genuine Aston Martin - New (to order)
                                        # 22
                                        MPN: 6G33-68D11-AA
                                        CAP SCREW, M5 X 12
                                        from £0.47
                                        from £0.47
                                        CAP SCREW - M5X12 Genuine Aston Martin - New (to order)
                                        # 23
                                        MPN: 6G33-E801202-AA
                                        SCREW, M5 X 45, CSK
                                        from £0.47
                                        from £0.47
                                        M5X45 COUNTERSUNK ST SCREW Genuine Aston Martin - New (to order)
                                        # 24
                                        MPN: 703151
                                        SCREW AND WASHER, M6 X 16, HEX HD
                                        from £0.47
                                        from £0.47
                                        SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                                        LOWER MESH BOLTS Genuine Ferrari Part - New (to order)
                                        # 25
                                        MPN: 703026
                                        SCREW, M5 X 16, HEX FLG HD
                                        from £0.47
                                        from £0.47
                                        SCREW M5X16 HEX FLANGE Genuine Aston Martin - New (to order)
                                        # 26
                                        MPN: 4G43-STC3710-AA-PK
                                        FASTENER, FIR TREE, 8MM
                                        Pack of 20
                                        Supersession
                                        Supersession
                                        Genuine Aston Martin (no longer available to order)
                                        # 27
                                        MPN: DD33-130B14-AB
                                        BRACKET, CARPET SUPPORT
                                        from £4.34
                                        from £4.34
                                        BRACKET, CARPET SUPPORT Genuine Aston Martin - New (to order)
                                        # -
                                        -
