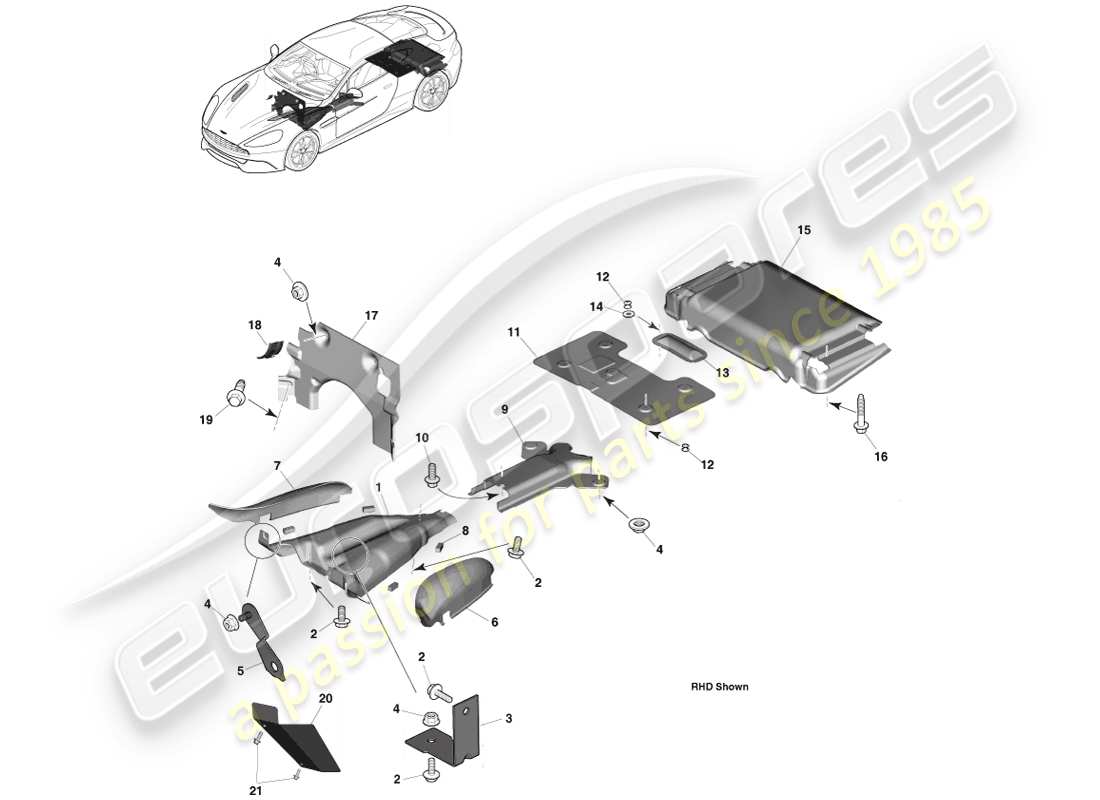

01-0601-01 - Heat Insulation, Vehicle Fit

Aston Martin Vanquish (2014) Heat Insulation, Vehicle Fit Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Key
                                      Price
                                      # 1
                                      MPN: DG43-11398-AB
                                      HEAT SHIELD-DEFLECTOR, FRONT FLOOR
                                      from £241.33
                                      from £241.33
                                      HEAT SHIELD-DEFLECTOR, FRONT FLOOR Genuine Aston Martin - New (to order)
                                      # 2
                                      MPN: 703752
                                      BOLT AND WASHER, M6X14
                                      from £0.82
                                      from £0.82
                                      BOLT & WASHER-M6X14 Genuine Aston Martin - New (to order)
                                      # 3
                                      MPN: 4G43-3962-CD
                                      BRACKET, HEAT SHIELD DEFLECTOR, FRONT FLOOR
                                      from £3.82
                                      from £3.82
                                      DEFL FRONT FLR HT BRACKET Genuine Aston Martin - New (to order)
                                      DEFL FRONT FLR HT BRACKET Genuine Aston Martin - Used In stock
                                      # 4
                                      MPN: 703612
                                      NUT & WASHER, M6, HEX HD
                                      from £0.47
                                      from £0.47
                                      NUT & WASHER-M6 HEX Genuine Aston Martin - New (to order)
                                      # 5
                                      MPN: 4G43-3962-GA
                                      BRACKET, TUNNEL SHIELD SUPPORT
                                      from £2.73
                                      from £2.73
                                      BRACKET-SUPPORT Genuine Aston Martin - New (to order)
                                      # 6
                                      MPN: CD33-11398-BB
                                      HEAT SHIELD, CAT BLISTER, LH
                                      from £50.85
                                      from £50.85
                                      HEAT SHIELD, CAT BLISTER, LH Genuine Aston Martin - New (to order)
                                      # 7
                                      MPN: CD33-11398-AB
                                      HEAT SHIELD, CAT BLISTER RH
                                      from £50.85
                                      from £50.85
                                      HEAT SHIELD, CAT BLISTER RH Genuine Aston Martin - New (to order)
                                      # 8
                                      MPN: 4G43-46660-AA
                                      FOAM BLOCK
                                      from £12.82
                                      from £12.82
                                      FOAM BLOCK, PARCEL SHELF Genuine Aston Martin - New (to order)
                                      # 9
                                      MPN: 4G43-4A380-AE
                                      HEAT SHIELD, TUNNEL
                                      from £32.70
                                      from £32.70
                                      HEAT SHIELD, TUNNEL Genuine Aston Martin - New (to order)
                                      HEAT SHIELD, TUNNEL Genuine Aston Martin - Used In stock
                                      HEAT SHIELD, TUNNEL Genuine Aston Martin - Damaged In stock
                                      Split at front one side
                                      # 10
                                      MPN: 703265
                                      SCREW, M6X16, HEX HD
                                      from £0.47
                                      from £0.47
                                      SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                                      # 11
                                      MPN: 4G43-9A032-AG
                                      HEAT SHIELD, FUEL TANK
                                      HEAT SHIELD, FUEL TANK Genuine Aston Martin - New (to order)
                                      # 12
                                      -
                                      RIVET
                                      # 13
                                      MPN: 4G43-9B184-AB
                                      HEAT SHIELD, AUXILIARY FUEL TANK
                                      from £8.87
                                      from £8.87
                                      SHLD-AUX FUL TNK Genuine Aston Martin - New (to order)
                                      # 14
                                      -
                                      WASHER, PLAIN, M6
                                      # 15
                                      MPN: CD33-5290-AC
                                      HEAT SHIELD, REAR SILENCER
                                      from £371.43
                                      from £371.43
                                      HEAT SHIELD, REAR SILENCER Genuine Aston Martin - New (to order)
                                      # 15
                                      MPN: HD33-5290-AA
                                      HEAT SHIELD, REAR SILENCER
                                      S' models
                                      from £449.96
                                      from £449.96
                                      HEAT SHIELD, REAR SILENCER Genuine Aston Martin - New (to order)
                                      # 16
                                      MPN: 703145
                                      BOLT, M6X30
                                      from £0.47
                                      from £0.47
                                      M6 X 30 BOLT Genuine Aston Martin - New (to order)
                                      # 17
                                      MPN: 4G43-017A16-BG
                                      HEAT SHIELD, FRONT BULKHEAD, RHD
                                      from £44.75
                                      from £44.75
                                      SHLD ASSEMBLY D/PNL HT Genuine Aston Martin - New (to order)
                                      SHLD ASSEMBLY D/PNL HT Genuine Aston Martin - Used In stock
                                      # 17
                                      MPN: 4G43-017A16-AG
                                      HEAT SHIELD, FRONT BULKHEAD, LHD
                                      from £81.85
                                      from £81.85
                                      SHLD ASSEMBLY D/PNL HT Genuine Aston Martin - New (to order)
                                      # 18
                                      MPN: 4G43-2B485-AC
                                      HEAT SHIELD, BRAKE BOOSTER
                                      from £17.12
                                      from £17.12
                                      HEATSHEILD, BRAKE BOOSTER Genuine Aston Martin - New (to order)
                                      # 19
                                      MPN: 703155
                                      SCREW / WASHER M8X25
                                      from £1.56
                                      from £1.56
                                      SCREW/WASHER M8X25 Genuine Aston Martin - New (to order)
                                      # 20
                                      MPN: ED33-11399-AA
                                      DEFLECTOR, FRONT FLOOR HEAT
                                      15MY
                                      from £30.45
                                      from £30.45
                                      DEFLECTOR, FRONT FLOOR HEAT Genuine Aston Martin - New (to order)
                                      # 21
                                      MPN: 703265
                                      M6X16 SCREW HEX HD
                                      15MY
                                      from £0.47
                                      from £0.47
                                      SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                                      # 22
                                      MPN: HD33-3962-AA
                                      BRACKET, HEATSHEILD MUFFLER
                                      S' models
                                      BRACKET, HEATSHEILD MUFFLER Genuine Aston Martin - New (to order)
                                      # 23
                                      MPN: 703612
                                      NUT AND WASHER, M6 HEX
                                      S' models
                                      from £0.47
                                      from £0.47
                                      NUT & WASHER-M6 HEX Genuine Aston Martin - New (to order)
