01-1001-B3 - Front Lightweight Seats

Aston Martin Vanquish (2014) Front Lightweight Seats Parts Diagram

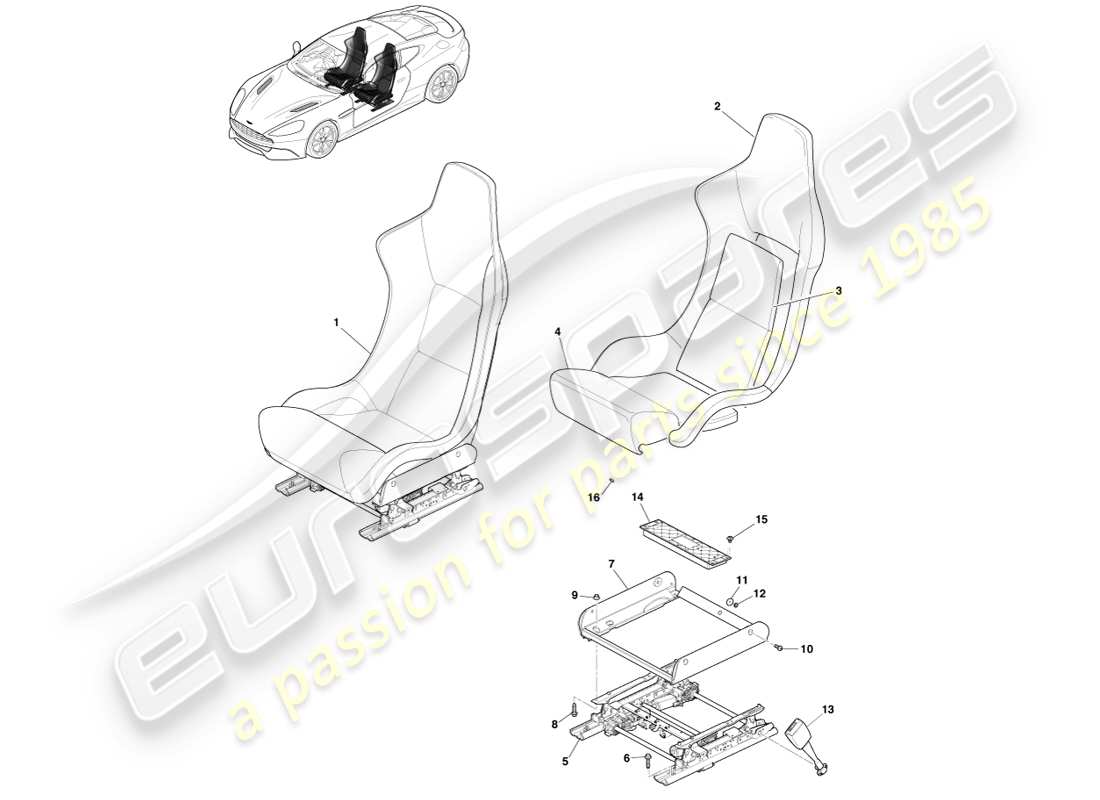

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # 1
                          MPN: ED33-60008-AAW
                          FRONT SEAT ASSEMBLY COMPLETE, TRIMMED, RH
                          from £6,397.08
                          from £6,397.08
                          FRONT SEAT ASSEMBLY COMPLETE, TRIMMED, RH Genuine Aston Martin - New (to order)
                          # 1
                          MPN: ED33-60009-AAW
                          FRONT SEAT ASSEMBLY COMPLETE, TRIMMED, LH
                          from £6,397.08
                          from £6,397.08
                          FRONT SEAT ASSEMBLY COMPLETE, TRIMMED, LH Genuine Aston Martin - New (to order)
                          # 1
                          MPN: CG43-600C14-AA
                          FRONT SEAT AND TRACK ASSEMBLY, NOT TRIMMED
                          from £6,275.55
                          from £6,275.55
                          FRONT SEAT ASSEMBLY, COMPLETE, NOT TRIMMED Genuine Aston Martin - New (to order)
                          # 2
                          MPN: ED33-64572-AAW
                          COVER ASSEMBLY, SEAT OUTER
                          from £2,039.62
                          from £2,039.62
                          COVER ASSEMBLY, SEAT OUTER Genuine Aston Martin - New (to order)
                          # 3
                          MPN: ED33-60136-AAW
                          SQUAB ASSEMBLY, TRIMMED
                          Includes Foam
                          SQUAB ASSEMBLY, TRIMMED Genuine Aston Martin - New (to order)
                          # 4
                          MPN: ED33-60050-AAW
                          CUSHION ASSEMBLY, TRIMMED
                          Includes Foam
                          CUSHION ASSEMBLY, TRIMMED Genuine Aston Martin - New (to order)
                          # 5
                          MPN: 4G43-74-10116
                          TRACK ASSEMBLY, FRONT LIGHTWEIGHT SEAT
                          from £1,385.87
                          from £1,385.87
                          HEIGHT ADJUSTER-6WAY Genuine Aston Martin - New (to order)
                          HEIGHT ADJUSTER-6WAY Genuine Aston Martin - Used In stock
                          Driver side
                          # 6
                          MPN: W500224-S303
                          BOLT, M8 X 25, HEX FLANGE HEAD
                          SCREW M8 X 25 HF Genuine Aston Martin - New (to order)
                          # 7
                          MPN: 8D33-617B94-AD
                          BRACKET ASSEMBLY, FRONT SEAT ADAPTOR
                          from £331.66
                          from £331.66
                          BRACKET ASSEMBLY, FRONT SEAT ADAPTOR Genuine Aston Martin - New (to order)
                          # 8
                          MPN: W500624-S303
                          BOLT, M8 X 25, HEX FLANGE HEAD
                          BOLT, M8X25, HEX FLANGE HD Genuine Aston Martin - New (to order)
                          # 9
                          MPN: 701342-PK
                          NUT, M8, HEX HEAD
                          Pack of 5
                          from £7.67
                          from £7.67
                          NUT M8 HEX PT PLS8(5) Genuine Aston Martin - New (to order)
                          # 10
                          MPN: W505593-S307
                          SCREW, M8 X 20, PAN HEAD
                          SCREW, M8X20, PAN HEAD Genuine Aston Martin - New (to order)
                          # 11
                          -
                          WASHER, 25 X 6.5 X 1.5
                          # 12
                          MPN: 703266
                          SCREW, M6 X 10, PAN HEAD TORX TYPE
                          from £0.51
                          from £0.51
                          SCREWM6X10 PAN HEAD Genuine Aston Martin - New (to order)
                          # 13
                          MPN: 4G43-613K22-BD
                          BUCKLE ASSEMBLY, FRONT SEATBELT
                          Includes Fixings
                          from £166.87
                          from £166.87
                          BKLE ASSEMBLY FRONT BEL Genuine Aston Martin - New (to order)
                          # 14
                          MPN: CD33-14C249-AE
                          ECU, FRONT SEAT
                          Supersession
                          Supersession
                          Genuine Aston Martin (no longer available to order)
                          # 15
                          MPN: 701581
                          CLIP, FIR TREE, FLAT HEAD
                          FLAT HEAD FIR TREE Genuine Aston Martin - New (to order)
                          # 16
                          MPN: 8D33-60302-BB
                          CLIP, FIR TREE, FLAT HEAD
                          from £0.48
                          from £0.48
                          EDGE CLIP Genuine Aston Martin - New (to order)
                          # -
                          -
                          FOAM STRIP, ANTI RATTLE
                          Pack of 10
