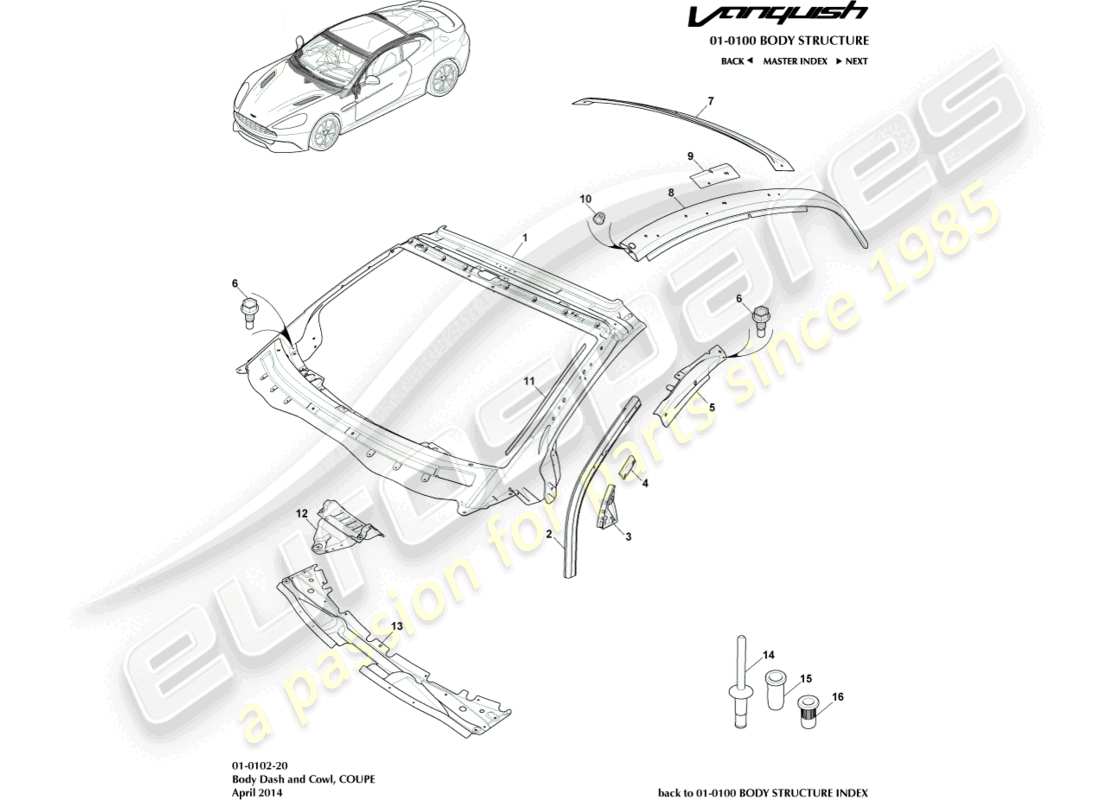

01-0102-20 - Body Dash & Cowl, Coupe

Aston Martin Vanquish (2015) Body Dash & Cowl, Coupe Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 1
MPN: DG43-C03014-AF
FRAME ASSEMBLY, WINDSHIELD
Up To 14MY, Structural. Cat A only
FRAME ASSEMBLY, WINDSHIELD Genuine Aston Martin - New (to order)
# 1
MPN: EG43-C03014-AC
FRAME ASSEMBLY, WINDSHIELD
From 14MY, Structural. Cat A only
FRAME ASSEMBLY, WINDSHIELD Genuine Aston Martin - New (to order)
# 2
MPN: GOCD33-F02527-AB
REINFORCEMENT, FRONT BODY PILLAR, LH
Up To 14.5MY, Structural. Cat A only
from £129.82
from £129.82
REINFORCEMENT, FRONT BODY PILLAR, LH Genuine Aston Martin - New (to order)
# 2
MPN: GOED33-F02527-AA
REINFORCEMENT, FRONT BODY PILLAR, LH
From 14.5MY, Structural. Cat A only
REINFORCEMENT, FRONT BODY PILLAR, LH Genuine Aston Martin - New (to order)
# 2
MPN: GOCD33-F02526-AB
REINFORCEMENT, FRONT BODY PILLAR, RH
Up To 14.5MY, Structural. Cat A only
from £129.82
from £129.82
REINFORCEMENT, FRONT BODY PILLAR, RH Genuine Aston Martin - New (to order)
# 2
MPN: GOED33-F02526-AA
REINFORCEMENT, FRONT BODY PILLAR, RH
From 14.5MY, Structural. Cat A only
REINFORCEMENT, FRONT BODY PILLAR, RH Genuine Aston Martin - New (to order)
# 3
MPN: GOFD33-025D07-AA
REINFORCEMENT, CAST, LH
Structural. Cat A Only
REINFORCEMENT, CAST, LH Genuine Aston Martin - New (to order)
# 3
MPN: GOFD33-025D06-AA
REINFORCEMENT, CAST, RH
Structural. Cat A Only
REINFORCEMENT, CAST, RH Genuine Aston Martin - New (to order)
# 4
MPN: GOFD33-02526-AA
REINFORCEMENT, A PILLAR
Structural. Cat A Only
from £57.51
from £57.51
REINFORCEMENT, A PILLAR Genuine Aston Martin - New (to order)
# 5
MPN: GOFD33-279E21-AA
REINFORCEMENT, A PILLAR UPPER, LH
From 15MY, Structural. Cat A only
REINFORCEMENT, A PILLAR UPPER, LH Genuine Aston Martin - New (to order)
# 5
MPN: GOFD33-279E20-AA
REINFORCEMENT, A PILLAR UPPER, RH
From 15MY, Structural. Cat A only
REINFORCEMENT, A PILLAR UPPER, RH Genuine Aston Martin - New (to order)
# 6
MPN: 6G33-375732-AB
SCREW, HEX FLANGED HEAD, 5.5X19, SELF DRILL
Structural. Cat A Only
from £0.47
from £0.47
SCREW SS HEX FLANGE HD Genuine Aston Martin - New (to order)
# 7
MPN: GODG43-C42220-BA
HEADER RAIL, REAR WINDOW
Structural. Cat A Only
HEADER RAIL, REAR WINDOW Genuine Aston Martin - New (to order)
# 8
MPN: DG43-C513A08-BA
CANTRAIL, LH
Structural. Cat A Only
REINFORCED ROOF SIDE RAIL, LH Genuine Aston Martin - New (to order)
# 8
MPN: DG43-C513A07-BA
CANTRAIL, RH
Structural. Cat A Only
REINFORCED ROOF SIDE RAIL, RH Genuine Aston Martin - New (to order)
# 9
MPN: GOCD33-C513A11-AB
REINFORCEMENT, CANTRAIL TO ROOF, LH
Structural. Cat A Only
from £18.56
from £18.56
REINFORCEMENT, CANTRAIL TO ROOF, LH Genuine Aston Martin - New (to order)
# 9
MPN: GOCD33-C513A10-AB
REINFORCEMENT, CANTRAIL TO ROOF, RH
Structural. Cat A Only
from £18.56
from £18.56
REINFORCEMENT, CANTRAIL TO ROOF, RH Genuine Aston Martin - New (to order)
# 10
MPN: 9G43-90907-AA
BARREL NUT, M6
Structural. Cat A Only
from £0.57
from £0.57
BARREL NUT, M6 Genuine Aston Martin - New (to order)
# 11
MPN: 7G43-C2437-AAW
TAPE, VELOUR ANTI-SQUEAK
Structural. Cat A Only
from £82.66
from £82.66
VELOUR ANTI-SQUK TPE Genuine Aston Martin - New (to order)
# 12
MPN: GODD43-71023-AE
REINFORCEMENT, COWL, CAST
Structural. Cat A Only
COWL REINFORCEMENT CASTING Genuine Aston Martin - New (to order)
# 13
MPN: GODG43-F292650-AC
PLENUM LOWER
Structural. Cat A Only
from £176.27
from £176.27
PLENUM LOWER Genuine Aston Martin - New (to order)
# 14
MPN: 6G33-68676-AC
RIVET, STRUCTURAL, 6.5X14 BLND
Structural. Cat A Only
from £0.70
from £0.70
STRUCT RIVET 6.5X14 Genuine Aston Martin - New (to order)
# 15
MPN: 6G33-51081-AA
RIVNUT, M6, 17.5MM LONG
Structural. Cat A Only
from £0.60
from £0.60
RIVNUT M6 Genuine Aston Martin - New (to order)
# 16
MPN: 6G33-54428-AA
RIVNUT, M6, 13.5MM LONG
Structural. Cat A Only
from £0.47
from £0.47
RIVNUT M6 Genuine Aston Martin - New (to order)
