aston martin vanquish (2015) body side, volante parts diagram

01-0105-02 - Body Side, Volante

Aston Martin Vanquish (2015) Body Side, Volante Parts Diagram

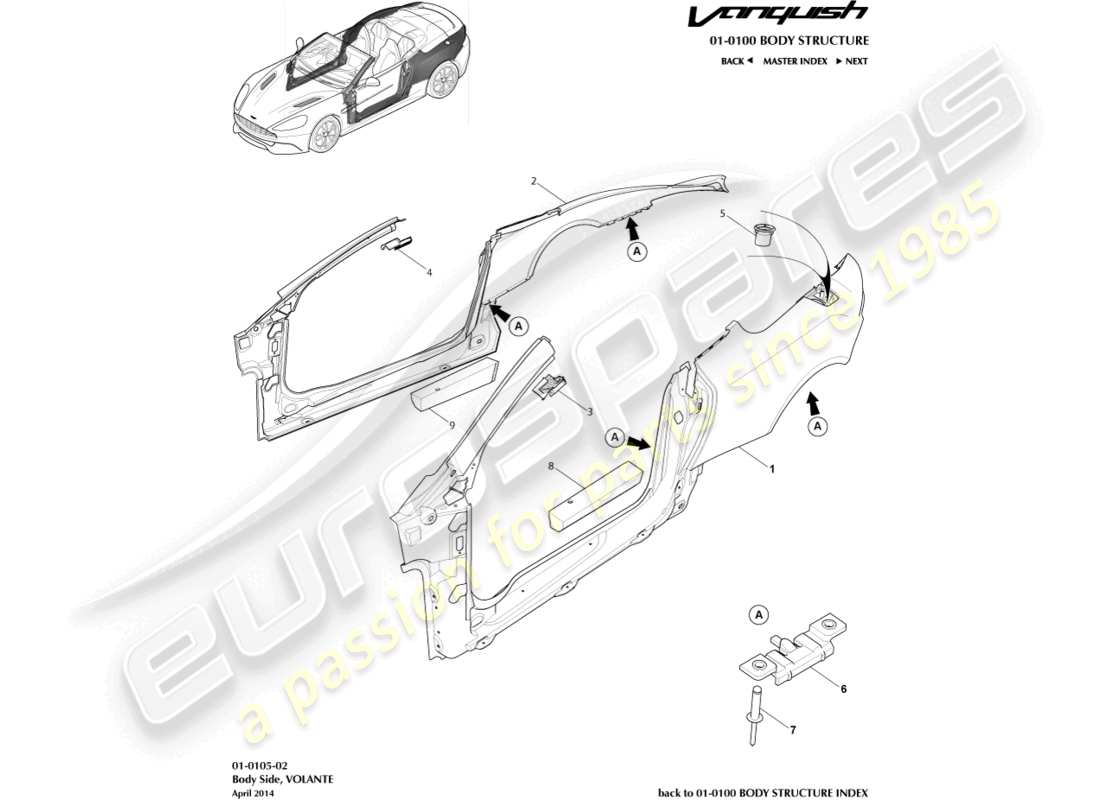

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 1
          MPN: ED33-L1876-AA
          PANEL ASSEMBLY, BODY SIDE, LH
          Up to 16MY, Structural Cat. A only
          PANEL ASSEMBLY, BODY SIDE, LH Genuine Aston Martin - New (to order)
          # 1
          MPN: GD33-L1876-AA
          PANEL ASSEMBLY, BODY SIDE, LH
          From 16MY, Structural Cat. A only
          PANEL ASSEMBLY, BODY SIDE, LH Genuine Aston Martin - New (to order)
          # 2
          MPN: ED33-L27846-AD
          PANEL, BODY SIDE, RH
          Up to 16MY, Structural Cat. A only
          PANEL, BODY SIDE, RH Genuine Aston Martin - New (to order)
          # 2
          MPN: GD33-L27846-AA
          PANEL, BODY SIDE, RH
          From 16MY, Structural Cat. A only
          from £6,539.04
          from £6,539.04
          PANEL, BODY SIDE, RH Genuine Aston Martin - New (to order)
          # 3
          MPN: ED33-54246A35-AB
          SEAL CARRIER, WINDSHIELD SURROUND UPPER, LH
          SEAL CARRIER, WINDSHIELD SURROUND UPPER, LH Genuine Aston Martin - New (to order)
          # 4
          MPN: ED33-54246A34-AB
          SEAL CARRIER, WINDSHIELD SURROUND UPPER, RH
          SEAL CARRIER, WINDSHIELD SURROUND UPPER, RH Genuine Aston Martin - New (to order)
          # 5
          MPN: 6G33-L205196-AB
          DRAIN PLUG, TLS
          from £5.01
          from £5.01
          TLS DRAIN PLUG Genuine Aston Martin - New (to order)
          # 6
          MPN: 4G43-023A50-BA
          FENDER CLIP, EXTERIOR
          FENDER CLIP, EXTERIOR Genuine Aston Martin - New (to order)
          # 7
          MPN: 701580-PK
          RIVET, DOME HEAD
          Pack of 20
          from £6.28
          from £6.28
          RIVET DOME HEAD (20) Genuine Aston Martin - New (to order)
          # 8
          MPN: FD33-278A51-AB
          REINFORCEMENT, SILL, LH
          FROM 15MY
          from £462.05
          from £462.05
          REINFORCEMENT, SILL, LH Genuine Aston Martin - New (to order)
          # 9
          MPN: FD33-278A50-AB
          REINFORCEMENT, SILL, RH
          FROM 15MY
          from £462.05
          from £462.05
          REINFORCEMENT, SILL, RH Genuine Aston Martin - New (to order)
