aston martin vanquish (2015) body rear end, coupe parts diagram

01-0108-01 - Body Rear End, Coupe

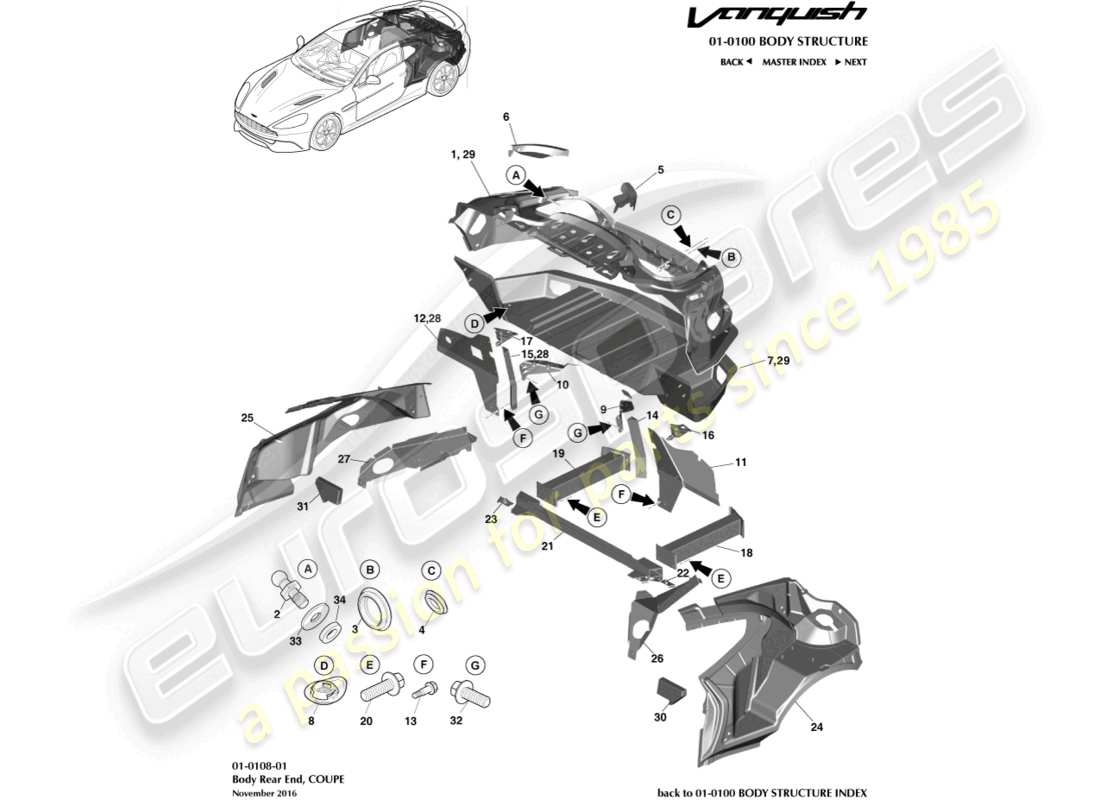

Aston Martin Vanquish (2015) Body Rear End, Coupe Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 1
                        MPN: CD33-C45108-AF
                        TROUGH, LUGGAGE COMPARTMENT
                        Structural. Cat A Only
                        from £1,787.43
                        from £1,787.43
                        TROUGH, LUGGAGE COMPARTMENT Genuine Aston Martin - New (to order)
                        # 2
                        MPN: 1R12-640101-AA
                        BALL STUD
                        from £3.28
                        from £3.28
                        BALL STUD Genuine Aston Martin - New (to order)
                        # 3
                        MPN: CD33-11027-AA
                        BLANKING PLUG
                        from £1.01
                        from £1.01
                        BLANKING PLUG Genuine Aston Martin - New (to order)
                        # 4
                        MPN: DD33-F37521-AA
                        BLANKING PLUG, 14MM ID
                        from £1.71
                        from £1.71
                        BLANKING PLUG, 14MM ID Genuine Aston Martin - New (to order)
                        # 5
                        MPN: CD33-24443-AB
                        PANEL, CLOSER, LH
                        Structural. Cat A Only
                        from £33.44
                        from £33.44
                        PANEL, CLOSER, LH Genuine Aston Martin - New (to order)
                        # 6
                        MPN: CD33-24442-AB
                        PANEL, CLOSER, RH
                        Structural. Cat A Only
                        from £33.44
                        from £33.44
                        PANEL, CLOSER, RH Genuine Aston Martin - New (to order)
                        # 7
                        MPN: CD33-47124-AE
                        FLOOR PANEL, TRUNK
                        Structural. Cat A Only. Non 'S' model
                        from £1,029.67
                        from £1,029.67
                        FLOOR PANEL, TRUNK Genuine Aston Martin - New (to order)
                        # 7
                        MPN: HD33-47124-AA
                        FLOOR PANEL, TRUNK
                        Structural. Cat A Only. 'S' model
                        from £908.14
                        from £908.14
                        FLOOR PANEL, TRUNK Genuine Aston Martin - New (to order)
                        # 8
                        MPN: 702804
                        DRAIN PLUG, RUBBER, 20MM X 0.6-2.2
                        from £1.55
                        from £1.55
                        DRAIN PLUG RUBR-20MM Genuine Aston Martin - New (to order)
                        # 9
                        MPN: CD33-C416W21-AA
                        REINFORCEMENT, TAIL GATE HINGE, LH
                        Structural. Cat A Only
                        from £50.09
                        from £50.09
                        REINFORCEMENT, TAIL GATE HINGE, LH Genuine Aston Martin - New (to order)
                        # 10
                        MPN: CD33-C416W20-AA
                        REINFORCEMENT, TAIL GATE HINGE, RH
                        Structural. Cat A Only
                        from £50.09
                        from £50.09
                        REINFORCEMENT, TAIL GATE HINGE, RH Genuine Aston Martin - New (to order)
                        # 11
                        MPN: CD33-C10515-AB
                        PANEL, REINFORCED REAR QUARTER, LH
                        Structural. Cat A Only
                        from £79.34
                        from £79.34
                        PANEL, REINFORCED REAR QUARTER, LH Genuine Aston Martin - New (to order)
                        # 12
                        MPN: CD33-C10514-AD
                        PANEL, REINFORCED REAR QUARTER, RH
                        Structural. Cat A Only
                        from £41.24
                        from £41.24
                        PANEL, REINFORCED REAR QUARTER, RH Genuine Aston Martin - New (to order)
                        # 13
                        MPN: 6G33-375732-AB
                        SCREW, 5.5X19, SELF DRILL, HEX FLANGE HEAD
                        from £0.47
                        from £0.47
                        SCREW SS HEX FLANGE HD Genuine Aston Martin - New (to order)
                        # 14
                        MPN: CD33-101C83-AA
                        EXTRUSION BRACKET, SIDE MEMBER REAR, LH
                        Structural. Cat A Only
                        from £63.05
                        from £63.05
                        EXTRUSION BRACKET, SIDE MEMBER REAR, LH Genuine Aston Martin - New (to order)
                        # 15
                        MPN: CD33-101C82-AA
                        EXTRUSION BRACKET, SIDE MEMBER REAR, RH
                        Structural. Cat A Only
                        from £63.05
                        from £63.05
                        EXTRUSION BRACKET, SIDE MEMBER REAR, RH Genuine Aston Martin - New (to order)
                        # 16
                        MPN: CD33-43025-AA
                        GAITER, DECKLID HINGE, LH
                        from £30.04
                        from £30.04
                        GAITER, DECKLID HINGE, LH Genuine Aston Martin - New (to order)
                        # 17
                        MPN: CD33-43024-AA
                        GAITER, DECKLID HINGE, RH
                        from £30.04
                        from £30.04
                        GAITER, DECKLID HINGE, RH Genuine Aston Martin - New (to order)
                        # 18
                        MPN: CD33-17F035-BA
                        ABSORBER ASSEMBLY, BUMPER REAR, LH
                        Structural. Cat A Only. Non 'S' model
                        from £157.61
                        from £157.61
                        ABSORBER ASSEMBLY, BUMPER REAR, LH Genuine Aston Martin - New (to order)
                        # 18
                        MPN: HD33-17F035-AA
                        ABSORBER ASSEMBLY, BUMPER REAR, LH
                        Structural. Cat A Only. 'S' model
                        from £179.44
                        from £179.44
                        ABSORBER ASSEMBLY, BUMPER REAR, LH Genuine Aston Martin - New (to order)
                        # 19
                        MPN: CD33-17F034-BA
                        ABSORBER ASSEMBLY, BUMPER REAR, RH
                        Structural. Cat A Only. Non 'S' model
                        from £157.61
                        from £157.61
                        ABSORBER ASSEMBLY, BUMPER REAR, RH Genuine Aston Martin - New (to order)
                        # 19
                        MPN: HD33-17F034-AA
                        ABSORBER ASSEMBLY, BUMPER REAR, RH
                        Structural. Cat A Only. 'S' model
                        from £179.44
                        from £179.44
                        ABSORBER ASSEMBLY, BUMPER REAR, RH Genuine Aston Martin - New (to order)
                        # 20
                        MPN: 703120
                        SCREW, M8X25, HEX FLANGE HEAD
                        from £3.37
                        from £3.37
                        SCREW M8X25 HEX FLNG Genuine Aston Martin - New (to order)
                        INTERMEDIATE HEAT SHIELD BOLTS Genuine Ferrari Part - New (to order)
                        # 21
                        MPN: CD33-40338-AD
                        REINFORCED LOWER BACK CENTRE PANEL
                        Structural. Cat A Only
                        from £316.04
                        from £316.04
                        REINFORCED LOWER BACK CENTRE PANEL Genuine Aston Martin - New (to order)
                        # 22
                        MPN: DG43-501B1-AA
                        NUT PLATE, REAR SUBFRAME, LH
                        Structural. Cat A Only
                        from £42.36
                        from £42.36
                        NUT PLATE, REAR SUBFRAME, LH Genuine Aston Martin - New (to order)
                        # 23
                        MPN: DG43-501B0-AA
                        NUT PLATE, REAR SUBFRAME, RH
                        Structural. Cat A Only
                        from £42.36
                        from £42.36
                        NUT PLATE, REAR SUBFRAME, RH Genuine Aston Martin - New (to order)
                        # 24
                        MPN: CD33-C41033-AC
                        REAR QUARTER INNER ASSEMBLY, LH
                        Structural. Cat A Only
                        from £946.20
                        from £946.20
                        REAR QUARTER INNER ASSEMBLY, LH Genuine Aston Martin - New (to order)
                        # 25
                        MPN: CD33-C41038-AB
                        REAR QUARTER INNER ASSEMBLY, RH
                        Structural. Cat A Only
                        from £800.20
                        from £800.20
                        REAR QUARTER INNER ASSEMBLY, RH Genuine Aston Martin - New (to order)
                        # 26
                        MPN: CD33-C279A55-AB
                        PANEL, QUARTER WHEELHOUSE INNER REAR, LH
                        Structural. Cat A Only
                        from £330.12
                        from £330.12
                        PANEL, QUARTER WHEELHOUSE INNER REAR, LH Genuine Aston Martin - New (to order)
                        # 27
                        MPN: CD33-C279A54-AC
                        PANEL, QUARTER WHEELHOUSE INNER REAR RH
                        Structural. Cat A Only
                        from £330.12
                        from £330.12
                        PANEL, QUARTER WHEELHOUSE INNER REAR RH Genuine Aston Martin - New (to order)
                        # 28
                        MPN: 6G33-68676-AA
                        RIVET, 6.5X14, BLIND
                        RIVET, STRUCTURAL 6.5X14 BLND Genuine Aston Martin - New (to order)
                        # 29
                        MPN: 6G33-37949-AA
                        RIVET, 4.8X13.9, BLIND
                        from £0.47
                        from £0.47
                        RIV 4.8 X 13.9 BLND Genuine Aston Martin - New (to order)
                        # 30
                        MPN: CD33-41037-AA
                        INFILL, REAR QUARTER PANEL, LH
                        Structural. Cat A Only
                        from £14.88
                        from £14.88
                        INFILL, REAR QUARTER PANEL, LH Genuine Aston Martin - New (to order)
                        # 31
                        MPN: CD33-41036-AA
                        INFILL, REAR QUARTER PANEL, RH
                        Structural. Cat A Only
                        from £14.88
                        from £14.88
                        INFILL, REAR QUARTER PANEL, RH Genuine Aston Martin - New (to order)
                        # 32
                        MPN: 703121
                        SCREW, M8X20, HEX FLANGE HEAD
                        from £0.47
                        from £0.47
                        SCREW M8X20 HEX FLANGE Genuine Aston Martin - New (to order)
                        # 33
                        MPN: CD33-43422-AA
                        81DX21ODX1.6 WASHER
                        Up to 17.5MY
                        from £1.77
                        from £1.77
                        81DX21ODX1.6 WASHER Genuine Aston Martin - New (to order)
                        # 34
                        MPN: GD33-28614-AA
                        FOAM SEALING WASHER
                        17.5MY on
                        from £0.47
                        from £0.47
                        FOAM SEALING WASHER Genuine Aston Martin - New (to order)
