01-0110-04 - Ancillary Parts, Coupe, page 1

Aston Martin Vanquish (2015) Ancillary Parts, Coupe, page 1 Parts Diagram

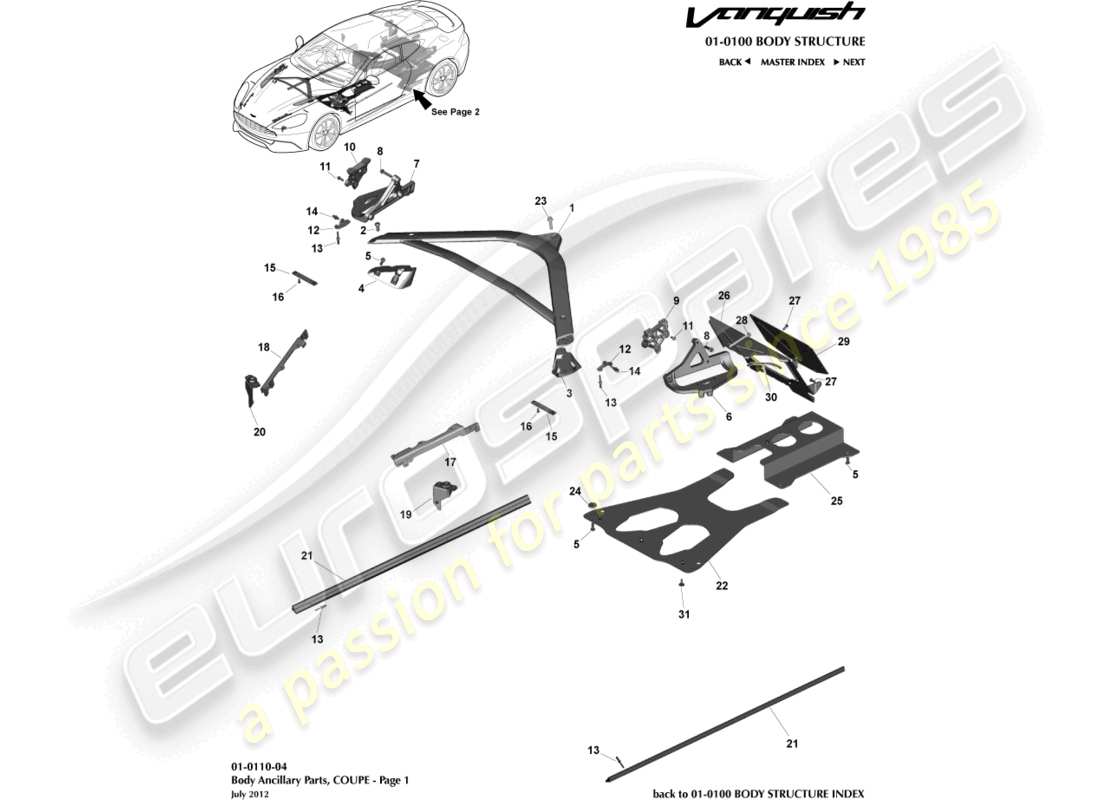

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Key
                                                        Price
                                                        # 1
                                                        MPN: DD43-108A75-DA
                                                        BRACE ASSEMBLY, FRONT CROSS
                                                        from £426.73
                                                        from £426.73
                                                        BRACE ASSEMBLY, FRONT CROSS Genuine Aston Martin - New (to order)
                                                        # 2
                                                        MPN: 702209
                                                        BOLT, M10 X 25, TORQUE DRIVE
                                                        from £0.79
                                                        from £0.79
                                                        BOLT-M10X25 T/DRIVE Genuine Aston Martin - New (to order)
                                                        # 3
                                                        MPN: GODG43-108A87-AD
                                                        BRACKET, FRONT CROSS BRACE, LH
                                                        from £58.91
                                                        from £58.91
                                                        BRACKET, FRONT CROSS BRACE, LH Genuine Aston Martin - New (to order)
                                                        # 4
                                                        MPN: GODG43-108A86-AD
                                                        BRACKET, FRONT CROSS BRACE, RH
                                                        from £58.91
                                                        from £58.91
                                                        BRACKET, FRONT CROSS BRACE, RH Genuine Aston Martin - New (to order)
                                                        # 5
                                                        MPN: 703120
                                                        SCREW, M8 X 25, HEX FLANGE HD
                                                        from £3.37
                                                        from £3.37
                                                        SCREW M8X25 HEX FLNG Genuine Aston Martin - New (to order)
                                                        INTERMEDIATE HEAT SHIELD BOLTS Genuine Ferrari Part - New (to order)
                                                        # 6
                                                        MPN: DG43-5341-AA
                                                        BRACKET, ECU MOUNTING, LH
                                                        from £127.92
                                                        from £127.92
                                                        BRACKET, ECU MOUNTING, LH Genuine Aston Martin - New (to order)
                                                        # 6
                                                        MPN: FD33-5341-AA
                                                        BRACKET, ECU MOUNTING, LH
                                                        FROM 15MY
                                                        from £252.33
                                                        from £252.33
                                                        BRACKET, ECU MOUNTING, LH Genuine Aston Martin - New (to order)
                                                        # 7
                                                        MPN: DG43-5340-AA
                                                        BRACKET, ECU MOUNTING, RH
                                                        from £217.20
                                                        from £217.20
                                                        BRACKET, ECU MOUNTING, RH Genuine Aston Martin - New (to order)
                                                        # 7
                                                        MPN: FD33-5340-AA
                                                        BRACKET, ECU MOUNTING, RH
                                                        FROM 15MY
                                                        from £244.98
                                                        from £244.98
                                                        BRACKET, ECU MOUNTING, RH Genuine Aston Martin - New (to order)
                                                        # 8
                                                        MPN: 703108
                                                        BOLT, M8 X 45, HEX FLANGE HD
                                                        from £0.47
                                                        from £0.47
                                                        BOLT M8X45 HEX FLANGE 8 Genuine Aston Martin - New (to order)
                                                        # 9
                                                        MPN: DG43-16A682-AA
                                                        REINFORCEMENT, HOOD HINGE ON BODY, LH
                                                        from £37.09
                                                        from £37.09
                                                        REINFORCEMENT, HOOD HINGE ON BODY, LH Genuine Aston Martin - New (to order)
                                                        # 10
                                                        MPN: DG43-16A681-AA
                                                        REINFORCEMENT, HOOD HINGE ON BODY, RH
                                                        from £37.09
                                                        from £37.09
                                                        REINFORCEMENT, HOOD HINGE ON BODY, RH Genuine Aston Martin - New (to order)
                                                        # 11
                                                        MPN: 703203
                                                        SCREW, M6 X 20, HEX FLANGE HEAD
                                                        from £0.47
                                                        from £0.47
                                                        SCREW M6X20 HEX FLNG Genuine Aston Martin - New (to order)
                                                        LOWER RADIATOR SUPPORT BOLT Genuine Ferrari Part - New (to order)
                                                        # 12
                                                        MPN: DD33-18178-AA
                                                        BRACKET, GAS DAMPER MOUNTING
                                                        from £34.57
                                                        from £34.57
                                                        BRACKET, GAS DAMPER MOUNTING Genuine Aston Martin - New (to order)
                                                        # 13
                                                        MPN: 6G33-68676-AC
                                                        RIVET, 6.5 X 14, BLIND
                                                        from £0.70
                                                        from £0.70
                                                        STRUCT RIVET 6.5X14 Genuine Aston Martin - New (to order)
                                                        # 14
                                                        MPN: 1R12-640101-AA
                                                        BALL STUD
                                                        from £3.28
                                                        from £3.28
                                                        BALL STUD Genuine Aston Martin - New (to order)
                                                        # 15
                                                        MPN: 8G43-199901-AA
                                                        NUTPLATE, HEADLAMP BRACKET
                                                        from £3.39
                                                        from £3.39
                                                        NUTPLATE HD LMP BRACKET Genuine Aston Martin - New (to order)
                                                        # 16
                                                        MPN: 703074
                                                        RIVET, 4.65 X 13.8, BLIND
                                                        RIVET, 4.65X13.8 Genuine Aston Martin - New (to order)
                                                        # 17
                                                        MPN: DG43-043B20-AA
                                                        TUBE, PASSENGER AIR BAG INITIATOR, LH
                                                        from £26.00
                                                        from £26.00
                                                        TUB PASS AIR BAG INT Genuine Aston Martin - New (to order)
                                                        # 18
                                                        MPN: DG43-043B19-AA
                                                        TUBE, PASSENGER AIR BAG INITIATOR, RH
                                                        from £26.00
                                                        from £26.00
                                                        TUB PASS AIR BAG INT Genuine Aston Martin - New (to order)
                                                        # 19
                                                        MPN: DG43-13069-AB
                                                        PANEL, HEADLAMP MOUNTING, LH
                                                        PANEL, HEADLAMP MOUNTING LH Genuine Aston Martin - New (to order)
                                                        # 20
                                                        MPN: DG43-13068-AB
                                                        PANEL, HEADLAMP MOUNTING, RH
                                                        PANEL, HEADLAMP MOUNTING RH Genuine Aston Martin - New (to order)
                                                        # 21
                                                        MPN: GOCD33-20416-AA
                                                        REINFORCEMENT, DOOR TO SILL
                                                        from £71.25
                                                        from £71.25
                                                        REINFORCEMENT, DOOR TO SILL Genuine Aston Martin - New (to order)
                                                        # 22
                                                        MPN: GODG43-111K36-AC
                                                        TUNNEL REINFORCEMENT, FRONT
                                                        from £92.77
                                                        from £92.77
                                                        TUNNEL REINFORCEMENT, FRONT Genuine Aston Martin - New (to order)
                                                        # 23
                                                        MPN: DG43-00512-AA
                                                        SCREW, M10 X 40, HEX FLANGE HD
                                                        from £2.93
                                                        from £2.93
                                                        SCREW TAPTITE M10X40 Genuine Aston Martin - New (to order)
                                                        # 24
                                                        MPN: GODG43-1660-AA
                                                        SPACER, TUNNEL REINFORCEMENT, FRONT
                                                        from £16.62
                                                        from £16.62
                                                        TNL REINFORCEMENT FRONT SPACER Genuine Aston Martin - New (to order)
                                                        # 25
                                                        MPN: 4G43-111K37-AE
                                                        TUNNEL REINFORCEMENT, CENTRE
                                                        from £26.90
                                                        from £26.90
                                                        TUNNEL, REINFORCEMENT, CENTRE Genuine Aston Martin - New (to order)
                                                        TUNNEL, REINFORCEMENT, CENTRE Genuine Aston Martin - Used In stock
                                                        # 26
                                                        MPN: 4G43-111C61-AD
                                                        PANEL, DUMMY FLOOR FRONT, LH
                                                        RHD
                                                        from £114.66
                                                        from £114.66
                                                        PANEL DUMMY FLR FRONT Genuine Aston Martin - New (to order)
                                                        PANEL DUMMY FLR FRONT Genuine Aston Martin - Used In stock
                                                        # 26
                                                        MPN: 9G43-111C60-GF
                                                        PANEL, DUMMY FLOOR FRONT, RH
                                                        LHD
                                                        from £249.49
                                                        from £249.49
                                                        PANEL DUMMY FLR FRONT Genuine Aston Martin - New (to order)
                                                        # 27
                                                        MPN: 701553
                                                        SCREW, M6 X 16, PAN HEAD
                                                        from £0.47
                                                        from £0.47
                                                        SCREW M6X16 PAN HD Genuine Aston Martin - New (to order)
                                                        # 28
                                                        MPN: 703169
                                                        NUT, M6, HEX FLANGE HD
                                                        from £0.71
                                                        from £0.71
                                                        This part replaces part number 703168
                                                        NUT M6 HEX FLANGE Genuine Aston Martin - New (to order)
                                                        # 29
                                                        MPN: 4G43-111B48-AB
                                                        PANEL, DUMMY FLOOR COVER, FRONT
                                                        from £14.91
                                                        from £14.91
                                                        PANEL DUMMY FLR COVER FT Genuine Aston Martin - New (to order)
                                                        PANEL DUMMY FLR COVER FT Genuine Aston Martin - Used In stock
                                                        # 30
                                                        MPN: 37-86250
                                                        EDGE PROTECTION STRIP
                                                        170mm Top, 180mm Bottom
                                                        EDGE PROTECTION STRIP Genuine Aston Martin - New (to order)
                                                        # 31
                                                        MPN: ED33-FA0115-AA
                                                        SCREW & WASHER, M6 X 20, TORX HD
                                                        from £4.68
                                                        from £4.68
                                                        SCREW M6X20 TORX HD Genuine Aston Martin - New (to order)
