aston martin vanquish (2015) decklid assembly, volante parts diagram

01-0303-B2 - Decklid Assembly, Volante

Aston Martin Vanquish (2015) Decklid Assembly, Volante Parts Diagram

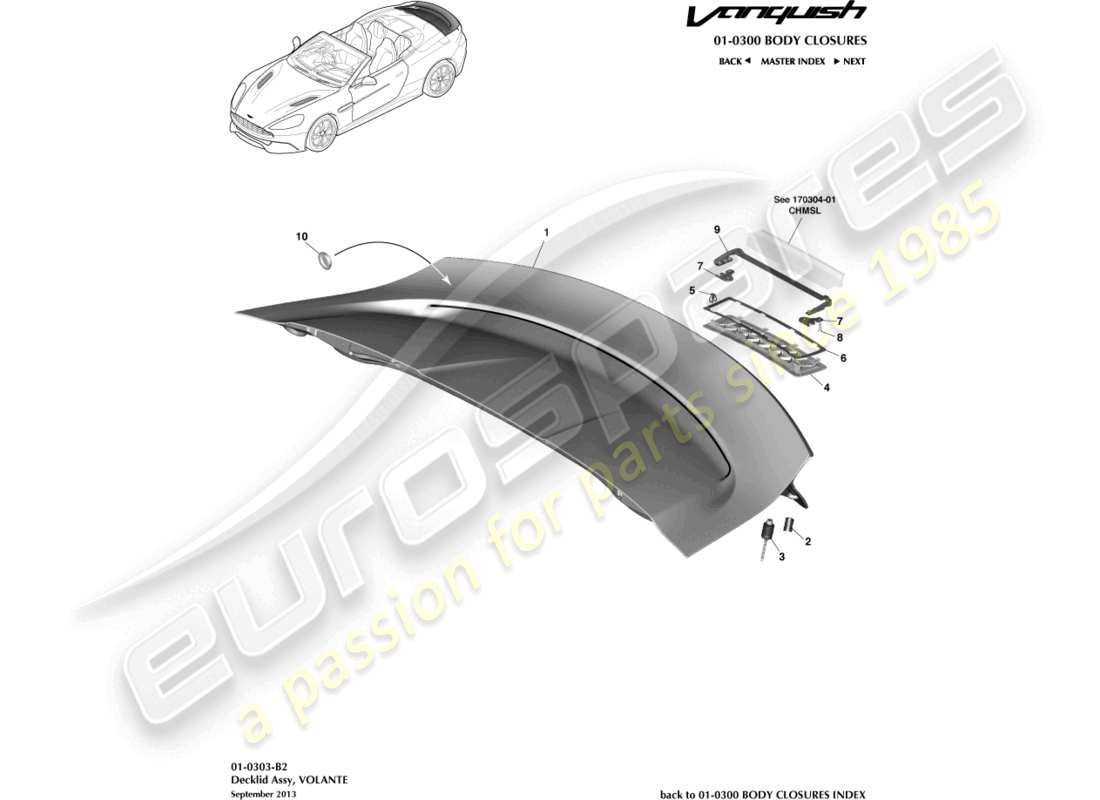

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 1
                MPN: ED33-L40110-AF
                DECKLID ASSEMBLY
                DECKLID ASSEMBLY Genuine Aston Martin - New (to order)
                # 2
                MPN: AD43-F5467906-AA
                BUMP STOP, ADJUSTABLE
                from £2.05
                from £2.05
                BUMPSTOP, ADJUSTABLE Genuine Aston Martin - New (to order)
                # 3
                MPN: 6G33-N40452-AB
                BUMP STOP ASSEMBLY, DECKLID
                17mm
                from £10.26
                from £10.26
                BUMPSTOP ASSEMBLY LFT GTE Genuine Aston Martin - New (to order)
                # 4
                MPN: ED33-310A55-AC
                ACCESS PANEL, CHMSL
                Includes Items 5 and 6
                ACCESS PANEL, CENTRAL HIGH MOUNTED STOP LIGHT Genuine Aston Martin - New (to order)
                # 5
                MPN: W700790-S429
                CLIP, 8.5 X 16 X 1.7
                CLIP, 8.5 X 16 X 1.7 Genuine Aston Martin - New (to order)
                # 7
                MPN: ED33-13N561-AB
                SPACER, CHMSL MOUNTING BRACKET
                from £12.88
                from £12.88
                SPACER, CENTRAL HIGH MOUNTED STOP LIGHT MOUNTING BRACKET Genuine Aston Martin - New (to order)
                # 8
                MPN: 702217
                SCREW, M5 X 16, BUTTON HD. SS
                from £0.47
                from £0.47
                SCREW M5X16 BTTN HD Genuine Aston Martin - New (to order)
                # 9
                MPN: ED33-519D78-AB
                MOUNTING BRACKET, CHMSL
                from £38.92
                from £38.92
                MOUNTING BRACKET, CENTRAL HIGH MOUNTED STOP LIGHT Genuine Aston Martin - New (to order)
                # 10
                MPN: CD33-11027-AA
                BLANKING PLUG
                from £1.01
                from £1.01
                BLANKING PLUG Genuine Aston Martin - New (to order)
