aston martin vanquish (2015) rear quarter trim panel, volante parts diagram

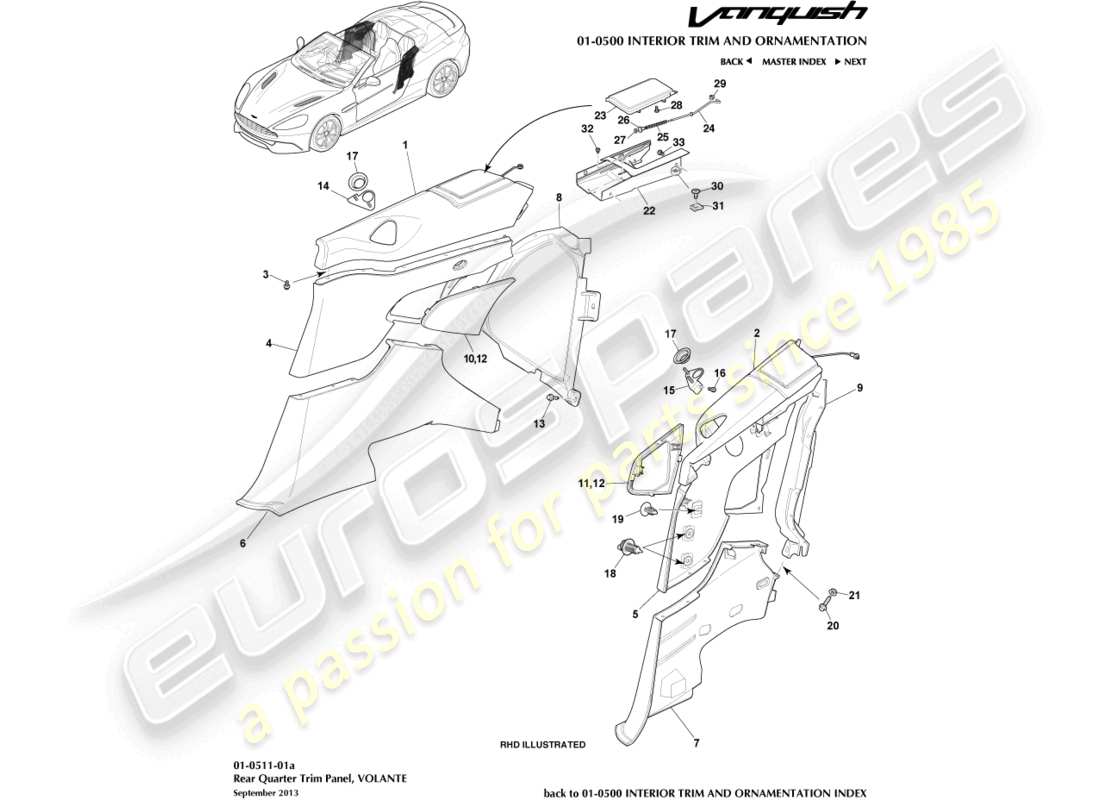

01-0511-01A - Rear Quarter Trim Panel, Volante

Aston Martin Vanquish (2015) Rear Quarter Trim Panel, Volante Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Key
                                                      Price
                                                      # -
                                                      MPN: ED33-L31012-AEW
                                                      TRIM PANEL, REAR QUARTER COMPLETE, RH
                                                      TRIM PANEL, REAR QUARTER COMPLETE, RH Genuine Aston Martin - New (to order)
                                                      # -
                                                      MPN: ED33-L31013-AEW
                                                      TRIM PANEL, REAR QUARTER COMPLETE, LH
                                                      TRIM PANEL, REAR QUARTER COMPLETE, LH Genuine Aston Martin - New (to order)
                                                      # 1
                                                      MPN: ED33-L31112-ACW
                                                      TRIM PANEL, REAR QUARTER UPPER, RH
                                                      from £797.76
                                                      from £797.76
                                                      TRIM PANEL, REAR QUARTER UPPER, RH Genuine Aston Martin - New (to order)
                                                      # 2
                                                      MPN: ED33-L31113-ACW
                                                      TRIM PANEL, REAR QUARTER UPPER, LH
                                                      from £797.76
                                                      from £797.76
                                                      TRIM PANEL, REAR QUARTER UPPER, LH Genuine Aston Martin - New (to order)
                                                      # 3
                                                      MPN: W500002-S440
                                                      SCREW, M5 X 12, HEX FLANGE HEAD
                                                      SCREW, M5X12 Genuine Aston Martin - New (to order)
                                                      # 4
                                                      MPN: ED33-L31486-ABW
                                                      PANEL ASSEMBLY, REAR QUARTER MIDDLE, RH
                                                      Includes Items 10 and 12
                                                      PANEL ASSEMBLY, REAR QUARTER MIDDLE, RH Genuine Aston Martin - New (to order)
                                                      # 5
                                                      MPN: ED33-L31487-ABW
                                                      PANEL ASSEMBLY, REAR QUARTER MIDDLE, LH
                                                      Includes Items 11 and 12
                                                      PANEL ASSEMBLY, REAR QUARTER MIDDLE, LH Genuine Aston Martin - New (to order)
                                                      # 6
                                                      MPN: ED33-L312A06-AAW
                                                      TRIM PANEL, REAR QUARTER LOWER, RH
                                                      from £721.04
                                                      from £721.04
                                                      TRIM PANEL, REAR QUARTER LOWER, RH Genuine Aston Martin - New (to order)
                                                      # 7
                                                      MPN: ED33-L312A07-AAW
                                                      TRIM PANEL, REAR QUARTER LOWER, LH
                                                      from £721.04
                                                      from £721.04
                                                      TRIM PANEL, REAR QUARTER LOWER, LH Genuine Aston Martin - New (to order)
                                                      # 8
                                                      MPN: ED33-L60594-ABW
                                                      PANEL ASSEMBLY, REAR SEAT BACK, RH
                                                      PANEL ASSEMBLY, REAR SEAT BACK, RH Genuine Aston Martin - New (to order)
                                                      # 9
                                                      MPN: ED33-L60595-ABW
                                                      PANEL ASSEMBLY, REAR SEAT BACK, LH
                                                      PANEL ASSEMBLY, REAR SEAT BACK, LH Genuine Aston Martin - New (to order)
                                                      # 10
                                                      MPN: 9G43-L312A94-BD
                                                      GRILLE, REAR QUARTER, RH
                                                      Silver Up to VIN K01280
                                                      from £426.73
                                                      from £426.73
                                                      REAR QUARTER SPEAKER GRL ASSEMBLY Genuine Aston Martin - New (to order)
                                                      # 10
                                                      MPN: ED33-L312A94-FA
                                                      GRILLE, REAR QUARTER, RH
                                                      Iridium From VIN K01281
                                                      from £454.58
                                                      from £454.58
                                                      GRILLE, REAR QUARTER, RH Genuine Aston Martin - New (to order)
                                                      # 10
                                                      MPN: 9D33-L312A94-BA
                                                      GRILLE, REAR QUARTER, RH
                                                      Black
                                                      from £445.29
                                                      from £445.29
                                                      GRILLE, REAR QUARTER, RH Genuine Aston Martin - New (to order)
                                                      # 11
                                                      MPN: 9G43-L312A95-BD
                                                      GRILLE, REAR QUARTER, LH
                                                      Silver Up to VIN K01280
                                                      from £426.73
                                                      from £426.73
                                                      REAR QUARTER SPEAKER GRL ASSEMBLY Genuine Aston Martin - New (to order)
                                                      # 11
                                                      MPN: ED33-L312A95-BD
                                                      GRILLE, REAR QUARTER, LH
                                                      Iridium From VIN K01281
                                                      GRILLE, REAR QUARTER, LH Genuine Aston Martin - New (to order)
                                                      # 11
                                                      MPN: 9D33-L312A95-BA
                                                      GRILLE, REAR QUARTER, LH
                                                      Black
                                                      from £445.29
                                                      from £445.29
                                                      GRILLE, REAR QUARTER, LH Genuine Aston Martin - New (to order)
                                                      # 12
                                                      MPN: 700986-PK
                                                      NUT, M4, HEX FLANGE HEAD
                                                      Pack of 20
                                                      Supersession
                                                      Supersession
                                                      Genuine Aston Martin (no longer available to order)
                                                      # 13
                                                      MPN: 703026
                                                      SCREW, M5 X 16, HEX FLANGE HEAD
                                                      from £0.47
                                                      from £0.47
                                                      SCREW M5X16 HEX FLANGE Genuine Aston Martin - New (to order)
                                                      # 14
                                                      MPN: ED33-L24858-AB
                                                      BEZEL ASSEMBLY, FRONT SEAT BELT, RH
                                                      BEZEL ASSEMBLY, FRONT SEAT BELT, RH Genuine Aston Martin - New (to order)
                                                      # 15
                                                      MPN: ED33-L24859-AB
                                                      BEZEL ASSEMBLY, FRONT SEAT BELT, LH
                                                      BEZEL ASSEMBLY, FRONT SEAT BELT, LH Genuine Aston Martin - New (to order)
                                                      # 16
                                                      MPN: 4G43-V850063-AA
                                                      CAP SCREW
                                                      from £0.47
                                                      from £0.47
                                                      CAP SCREW Genuine Aston Martin - New (to order)
                                                      # 17
                                                      MPN: DD33-61236-AA
                                                      BEZEL, SEAT BELT GAP HIDER MOULDING
                                                      GAP HIDER MOULDING, BEZEL Genuine Aston Martin - New (to order)
                                                      # 18
                                                      MPN: 4G43-STC3710-BA
                                                      FIR TREE, KEY HOLE
                                                      from £0.79
                                                      from £0.79
                                                      FIR TREE KEY HOLE Genuine Aston Martin - New (to order)
                                                      # 19
                                                      MPN: 701581-PK
                                                      FIR TREE, FLAT HEAD
                                                      Pack of 20
                                                      from £6.66
                                                      from £6.66
                                                      FIRTREE-FLAT HD (20) Genuine Aston Martin - New (to order)
                                                      # 20
                                                      MPN: 703732
                                                      SCREW, M5 X 20, HEX FLANGE HEAD
                                                      from £0.47
                                                      from £0.47
                                                      SCREW, M5 X 20, HEX FLANGE HEAD Genuine Aston Martin - New (to order)
                                                      # 21
                                                      MPN: 702295
                                                      NUT, M5, HEX FLANGE HEAD
                                                      from £0.47
                                                      from £0.47
                                                      NUT M5 HEX FLANGE Genuine Aston Martin - New (to order)
                                                      # 22
                                                      MPN: ED33-LB605H20-AA
                                                      FRAME AND FINISHER ASSEMBLY, C-FLAP, RH
                                                      Shadow Bronze
                                                      from £203.95
                                                      from £203.95
                                                      FRAME AND FINISHER ASSEMBLY, C-FLAP, RH Genuine Aston Martin - New (to order)
                                                      # 22
                                                      MPN: 4G43-LB605H20-ADW
                                                      FRAME AND FINISHER ASSEMBLY, C-FLAP, RH
                                                      Satin Chrome
                                                      from £203.95
                                                      from £203.95
                                                      FRAME ASSEMBLY REAR RH Genuine Aston Martin - New (to order)
                                                      # 22
                                                      MPN: ED33-LB605H21-AA
                                                      FRAME AND FINISHER ASSEMBLY, C-FLAP, LH
                                                      Shadow Bronze
                                                      from £203.95
                                                      from £203.95
                                                      FRAME AND FINISHER ASSEMBLY, C-FLAP, LH Genuine Aston Martin - New (to order)
                                                      # 22
                                                      MPN: 4G43-LB605H21-ADW
                                                      FRAME AND FINISHER ASSEMBLY, C-FLAP, LH
                                                      Satin Chrome
                                                      from £203.95
                                                      from £203.95
                                                      FRAME ASSEMBLY REAR LH Genuine Aston Martin - New (to order)
                                                      # 23
                                                      MPN: ED33-539A36-ABW
                                                      FLAP ASSEMBLY, FLIP TOP, RH
                                                      Shadow Bronze (Includes 24-28)
                                                      from £690.65
                                                      from £690.65
                                                      FLAP ASSEMBLY, FLIP TOP, RH Genuine Aston Martin - New (to order)
                                                      # 23
                                                      MPN: 4G43-539A36-AEW
                                                      FLAP ASSEMBLY, FLIP TOP, RH
                                                      Satin Chrome (Includes 24-28)
                                                      from £317.27
                                                      from £317.27
                                                      FLAP ASSEMBLY, FLIP TOP, RH Genuine Aston Martin - New (to order)
                                                      # 23
                                                      MPN: ED33-539A37-ABW
                                                      FLAP ASSEMBLY, FLIP TOP, LH
                                                      Shadow Bronze (Includes 24-28)
                                                      from £248.99
                                                      from £248.99
                                                      FLAP ASSEMBLY, FLIP TOP, LH Genuine Aston Martin - New (to order)
                                                      # 23
                                                      MPN: 4G43-539A37-AEW
                                                      FLAP ASSEMBLY, FLIP TOP, LH
                                                      Satin Chrome (Includes 24-28)
                                                      from £317.27
                                                      from £317.27
                                                      FLAP ASSEMBLY, FLIP TOP, LH Genuine Aston Martin - New (to order)
                                                      # 24
                                                      MPN: 4G43-L53296-AA
                                                      LINK ROD, RH
                                                      from £24.47
                                                      from £24.47
                                                      LINK F/TOP LAT ROD Genuine Aston Martin - New (to order)
                                                      # 24
                                                      MPN: 4G43-L53297-AA
                                                      LINK ROD, LH
                                                      from £13.86
                                                      from £13.86
                                                      LINK F/TOP LAT ROD Genuine Aston Martin - New (to order)
                                                      # 25
                                                      MPN: 4G43-17431-AA
                                                      SPRING
                                                      from £0.96
                                                      from £0.96
                                                      SPRING Genuine Aston Martin - New (to order)
                                                      # 26
                                                      MPN: 4G43-338013-AA
                                                      PLUG, BLANKING
                                                      from £0.47
                                                      from £0.47
                                                      PLUG BLANKING Genuine Aston Martin - New (to order)
                                                      # 27
                                                      MPN: 4G43-103021-AB
                                                      FIX, PUSH ON
                                                      from £0.60
                                                      from £0.60
                                                      FIX PUSH ON Genuine Aston Martin - New (to order)
                                                      # 28
                                                      MPN: 703027
                                                      SCREW, M4, TORX PAN HEAD
                                                      from £0.47
                                                      from £0.47
                                                      SCREW M4X10 PAN HD Genuine Aston Martin - New (to order)
                                                      # 29
                                                      MPN: 4G43-1861-AA
                                                      CLIP
                                                      from £0.47
                                                      from £0.47
                                                      CLIP Genuine Aston Martin - New (to order)
                                                      # 30
                                                      MPN: 701440
                                                      SCREW, 4.2 X 9.5, SMALL WASHER HEAD
                                                      from £0.47
                                                      from £0.47
                                                      SCREW S/TAP 4.2X9.5 Genuine Aston Martin - New (to order)
                                                      # 31
                                                      MPN: 701653
                                                      NUT, SPRING, U TYPE
                                                      from £0.47
                                                      from £0.47
                                                      SPRING NUT 4.2X0.7-2 Genuine Aston Martin - New (to order)
                                                      # 32
                                                      MPN: 702211
                                                      SCREW, M5 X 8, PAN HEAD
                                                      from £0.47
                                                      from £0.47
                                                      SCREW M5X8.0X0.80 PN Genuine Aston Martin - New (to order)
