01-0803-01 - Upper Exterior Finishers, Coupe

Aston Martin Vanquish (2015) Upper Exterior Finishers, Coupe Parts Diagram

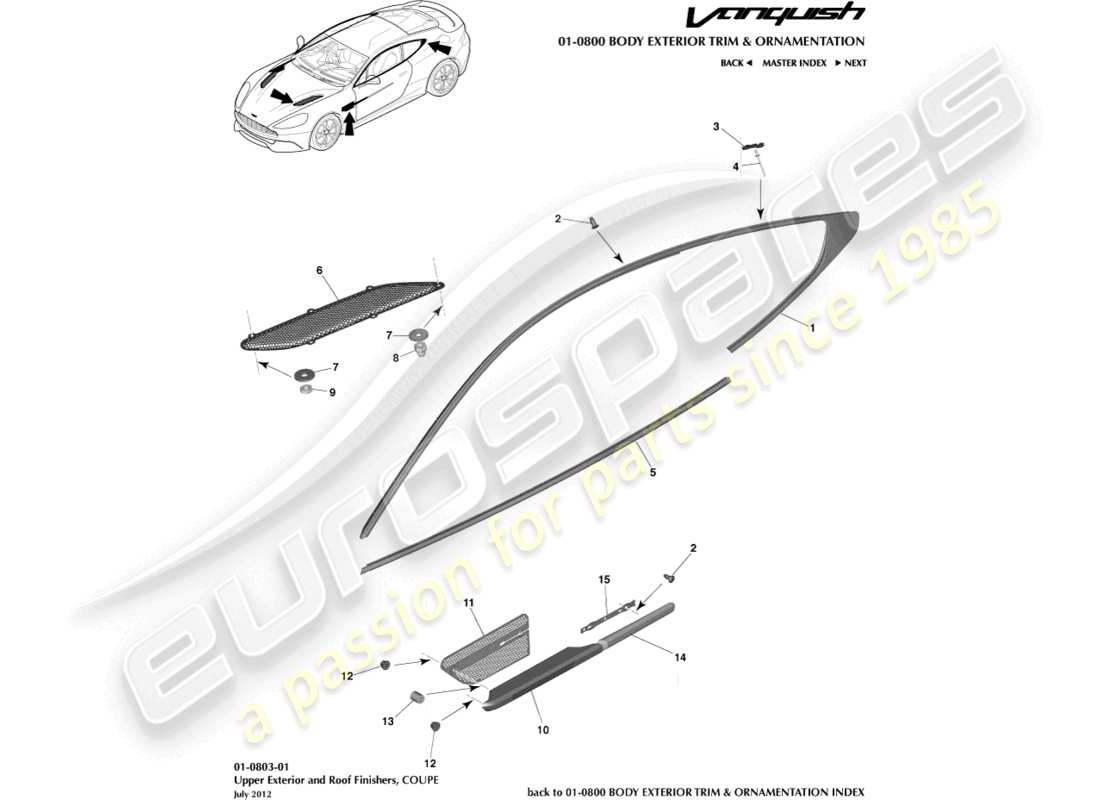

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Key
              Price
              # 1
              MPN: CD33-519A36-AE
              ROOF FINISHER, SIDE GLASS, LH
              Up To 14.5MY, Bright, One Piece
              ROOF FINISHER, SIDE GLASS , LH Genuine Aston Martin - New (to order)
              # 1
              MPN: ED33-C519A36-AD
              ROOF FINISHER, SIDE GLASS, LH
              From 14.5MY, Bright, Two Piece
              from £520.79
              from £520.79
              ROOF FINISHER, SIDE GLASS , LH Genuine Aston Martin - New (to order)
              # 1
              MPN: FD33-C519A36-BB
              ROOF FINISHER, SIDE GLASS, LH
              From 15MY, Black
              ROOF FINISHER, SIDE GLASS , LH Genuine Aston Martin - New (to order)
              # 1
              MPN: CD33-519A37-AE
              ROOF FINISHER, SIDE GLASS, RH
              Up To 14.5MY, Bright, One Piece
              ROOF FINISHER, SIDE GLASS , RH Genuine Aston Martin - New (to order)
              # 1
              MPN: ED33-C519A37-AD
              ROOF FINISHER, SIDE GLASS, RH
              From 14.5MY, Bright, Two Piece
              from £536.42
              from £536.42
              ROOF FINISHER, SIDE GLASS , RH Genuine Aston Martin - New (to order)
              # 1
              MPN: FD33-C519A37-BB
              ROOF FINISHER, SIDE GLASS, RH
              15MY, black
              ROOF FINISHER, SIDE GLASS , RH Genuine Aston Martin - New (to order)
              # 2
              MPN: 6G33-51756-AA-PK
              SCREW, M5X13, PAN HEAD
              Pack of 10
              from £2.62
              from £2.62
              SCREW-M5X13 PN HD(10 Genuine Aston Martin - New In stock
              # 3
              MPN: 6G33-C699761-AA
              CLIP, DRIP RAIL
              from £3.22
              from £3.22
              CLIP, DRIP RAIL Genuine Aston Martin - New (to order)
              # 4
              MPN: 66G33-78788-AC
              RIVET, BLIND, 3MM
              RIVET, BLIND, 3MM Genuine Aston Martin - New (to order)
              # 5
              MPN: CD33-F20563-AC
              WAIST SEAL, DOOR OUTER, LH
              bright
              from £148.35
              from £148.35
              WAIST SEAL, DOOR OUTER, LH Genuine Aston Martin - New (to order)
              # 5
              MPN: FD33-F20563-BA
              WAIST SEAL, DOOR OUTER, LH
              Black
              from £287.42
              from £287.42
              WAIST SEAL, DOOR OUTER, LH Genuine Aston Martin - New (to order)
              # 5
              MPN: CD33-F20562-AC
              WAIST SEAL, DOOR OUTER, RH
              bright
              from £148.35
              from £148.35
              WAIST SEAL, DOOR OUTER, RH Genuine Aston Martin - New (to order)
              # 5
              MPN: FD33-F20562-BA
              WAIST SEAL, DOOR OUTER, RH
              Black
              from £287.42
              from £287.42
              WAIST SEAL, DOOR OUTER, RH Genuine Aston Martin - New (to order)
              # 6
              MPN: CD33-16C693-AB
              MESH, HOOD, LH, BLACK
              from £76.98
              from £76.98
              MESH, HOOD, LH, BLACK Genuine Aston Martin - New (to order)
              # 6
              MPN: ED33-16C693-AA
              MESH, HOOD, LH, BLACK
              14.5MY
              from £107.62
              from £107.62
              MESH, HOOD, LH, BLACK Genuine Aston Martin - New (to order)
              # 6
              MPN: CD33-16C693-BB
              MESH, HOOD, LH, MAGNUM SILVER
              MESH, HOOD, LH, MAGNUM SILVER Genuine Aston Martin - New (to order)
              # 6
              MPN: CD33-16C693-BC
              MESH, HOOD, LH, MAGNUM SILVER
              14.5MY
              from £270.72
              from £270.72
              MESH, HOOD, LH, MAGNUM SILVER Genuine Aston Martin - New (to order)
              # 6
              MPN: CD33-16C693-CA
              MESH, HOOD, LH, TITANIUM
              from £315.43
              from £315.43
              MESH, HOOD, LH, TITANIUM Genuine Aston Martin - New (to order)
              # 6
              MPN: ED33-16C693-CA
              MESH, HOOD, LH, TITANIUM
              14.5MY
              MESH, HOOD, LH, TITANIUM Genuine Aston Martin - New (to order)
              # 6
              MPN: CD33-16C692-AB
              MESH, HOOD, RH, BLACK
              from £76.98
              from £76.98
              MESH, HOOD, RH, BLACK Genuine Aston Martin - New (to order)
              # 6
              MPN: ED33-16C692-AA
              MESH, HOOD, RH, BLACK
              14.5MY
              from £107.62
              from £107.62
              MESH, HOOD, RH, BLACK Genuine Aston Martin - New (to order)
              # 6
              MPN: CD33-16C692-BB
              MESH, HOOD, RH, MAGNUM SILVER
              MESH, HOOD, RH, MAGNUM SILVER Genuine Aston Martin - New (to order)
              # 6
              MPN: CD33-16C692-BC
              MESH, HOOD, RH, MAGNUM SILVER
              14.5MY
              from £270.72
              from £270.72
              MESH, HOOD, RH, MAGNUM SILVER Genuine Aston Martin - New (to order)
              # 6
              MPN: CD33-16C692-CA
              MESH, HOOD, RH, TITANIUM
              from £315.43
              from £315.43
              MESH, HOOD, RH, TITANIUM Genuine Aston Martin - New (to order)
              # 6
              MPN: ED33-16C692-CA
              MESH, HOOD, RH, TITANIUM
              14.5MY
              MESH, HOOD, RH, TITANIUM Genuine Aston Martin - New (to order)
              # 6
              MPN: HD33-16C693-AA
              MESH, HOOD, LH, BLACK CARBON
              S & Ultimate'
              from £2,751.71
              from £2,751.71
              MESH, HOOD, LH, BLACK CARBON Genuine Aston Martin - New (to order)
              # 6
              MPN: HD33-16C692-AA
              MESH, HOOD, RH, BLACK CARBON
              S & Ultimate'
              from £2,751.71
              from £2,751.71
              MESH, HOOD, RH, BLACK CARBON Genuine Aston Martin - New (to order)
              # 7
              MPN: 4G43-16C694-AB-PK
              WASHER, NYLON
              Pack of 10
              from £6.17
              from £6.17
              WASHER-NYLON(PACK 10 Genuine Aston Martin - New (to order)
              # 8
              MPN: 4G43-16C695-AB-PK
              NUT, M6, DOMED BLACK NYLON
              Pack of 10
              from £13.96
              from £13.96
              NUT-M6 DOMED NYLN(10 Genuine Aston Martin - New (to order)
              # 9
              MPN: 702994
              NUT, M6, HEX THIN
              from £0.47
              from £0.47
              NUT M6 HEX THIN Genuine Aston Martin - New In stock
              # 10
              MPN: CD33-280B63-AD
              SIDE STRAKE, FENDER, LH
              bright
              from £262.71
              from £262.71
              SIDE STRAKE, FENDER, LH Genuine Aston Martin - New (to order)
              # 10
              MPN: CD33-280B62-AD
              SIDE STRAKE, FENDER, RH
              bright
              from £228.18
              from £228.18
              SIDE STRAKE, FENDER, RH Genuine Aston Martin - New (to order)
              # 10
              MPN: CD33-280B63-DA
              SIDE STRAKE, FENDER, LH
              CARBON
              from £1,248.40
              from £1,248.40
              SIDE STRAKE, FENDER, LH Genuine Aston Martin - New (to order)
              # 10
              MPN: CD33-280B62-DA
              SIDE STRAKE, FENDER, RH
              CARBON
              from £1,248.40
              from £1,248.40
              SIDE STRAKE, FENDER, RH Genuine Aston Martin - New (to order)
              # 10
              MPN: JD33-280B63-DA
              SIDE STRAKE, FENDER, LH (WITH DECAL)
              Ultimate' Carbon, 18.5MY on
              from £3,041.56
              from £3,041.56
              SIDE STRAKE, FENDER, LH (WITH DECAL) Genuine Aston Martin - New (to order)
              # 10
              MPN: JD33-280B62-DA
              SIDE STRAKE, FENDER, RH (WITH DECAL)
              Ultimate' Carbon, 18.5MY on
              from £3,041.56
              from £3,041.56
              SIDE STRAKE, FENDER, RH (WITH DECAL) Genuine Aston Martin - New (to order)
              # 11
              MPN: CD33-280B84-AB
              MESH, SIDE STRAKE, LH, BLACK
              from £92.76
              from £92.76
              MESH, SIDE STRAKE, LH, BLACK Genuine Aston Martin - New (to order)
              # 11
              MPN: ED33-280B84-AA
              MESH, SIDE STRAKE, LH, BLACK
              14.5MY
              from £111.29
              from £111.29
              MESH, SIDE STRAKE, LH, BLACK Genuine Aston Martin - New (to order)
              # 11
              MPN: CD33-280B84-BB
              MESH, SIDE STRAKE, LH, MAGNUM SILVER
              from £111.29
              from £111.29
              MESH, SIDE STRAKE, LH, MAGNUM SILVER Genuine Aston Martin - New (to order)
              # 11
              MPN: CD33-280B84-CA
              MESH, SIDE STRAKE, LH, TITANIUM
              from £92.76
              from £92.76
              MESH, SIDE STRAKE, LH, TITANIUM Genuine Aston Martin - New (to order)
              # 11
              MPN: ED33-280B84-CA
              MESH, SIDE STRAKE, LH, TITANIUM
              14.5MY
              from £111.29
              from £111.29
              MESH, SIDE STRAKE, LH, TITANIUM Genuine Aston Martin - New (to order)
              # 11
              MPN: CD33-280B83-AB
              MESH, SIDE STRAKE, RH, BLACK
              from £137.63
              from £137.63
              MESH, SIDE STRAKE, RH, BLACK Genuine Aston Martin - New (to order)
              # 11
              MPN: ED33-280B83-AA
              MESH, SIDE STRAKE, RH, BLACK
              14.5MY
              from £111.29
              from £111.29
              MESH, SIDE STRAKE, RH, BLACK Genuine Aston Martin - New (to order)
              # 11
              MPN: CD33-280B83-BB
              MESH, SIDE STRAKE, RH, MAGNUM SILVER
              from £111.29
              from £111.29
              MESH, SIDE STRAKE, RH, MAGNUM SILVER Genuine Aston Martin - New (to order)
              # 11
              MPN: CD33-280B83-CA
              MESH, SIDE STRAKE, RH, TITANIUM
              MESH, SIDE STRAKE, RH, TITANIUM Genuine Aston Martin - New (to order)
              # 11
              MPN: ED33-280B83-CA
              MESH, SIDE STRAKE, RH, TITANIUM
              14.5MY
              from £111.29
              from £111.29
              MESH, SIDE STRAKE, RH, TITANIUM Genuine Aston Martin - New (to order)
              # 12
              MPN: 703165
              NUT, M5, HEX FLANGE HD
              from £0.47
              from £0.47
              NUT M5 HEX FLANGE PLAS Genuine Aston Martin - New (to order)
              # 13
              MPN: CD33-280B85-AA
              SPACER, FENDER STRAKE
              from £0.47
              from £0.47
              SPACER, FENDER STRAKE Genuine Aston Martin - New (to order)
              # 14
              MPN: CD33-018K29-AC
              SIDE STRAKE, DOOR, LH
              bright
              from £139.09
              from £139.09
              SIDE STRAKE, DOOR, LH Genuine Aston Martin - New (to order)
              # 14
              MPN: CD33-018K29-DA
              SIDE STRAKE, DOOR, LH
              CARBON
              from £1,022.62
              from £1,022.62
              SIDE STRAKE, DOOR, LH Genuine Aston Martin - New (to order)
              # 14
              MPN: CD33-018K28-AC
              SIDE STRAKE, DOOR, RH
              bright
              from £191.55
              from £191.55
              SIDE STRAKE, DOOR, RH Genuine Aston Martin - New (to order)
              # 14
              MPN: CD33-018K28-DA
              SIDE STRAKE, DOOR, RH
              CARBON
              from £1,022.62
              from £1,022.62
              SIDE STRAKE, DOOR, RH Genuine Aston Martin - New (to order)
              # 15
              MPN: CD33-0937-AB
              RETAINER, DOOR STRAKE
              from £1.72
              from £1.72
              RETAINER, DOOR STRAKE Genuine Aston Martin - New (to order)
