aston martin vanquish (2015) fuel filler mechanism, volante parts diagram

01-1410-B2 - Fuel Filler Mechanism, Volante

Aston Martin Vanquish (2015) Fuel Filler Mechanism, Volante Parts Diagram

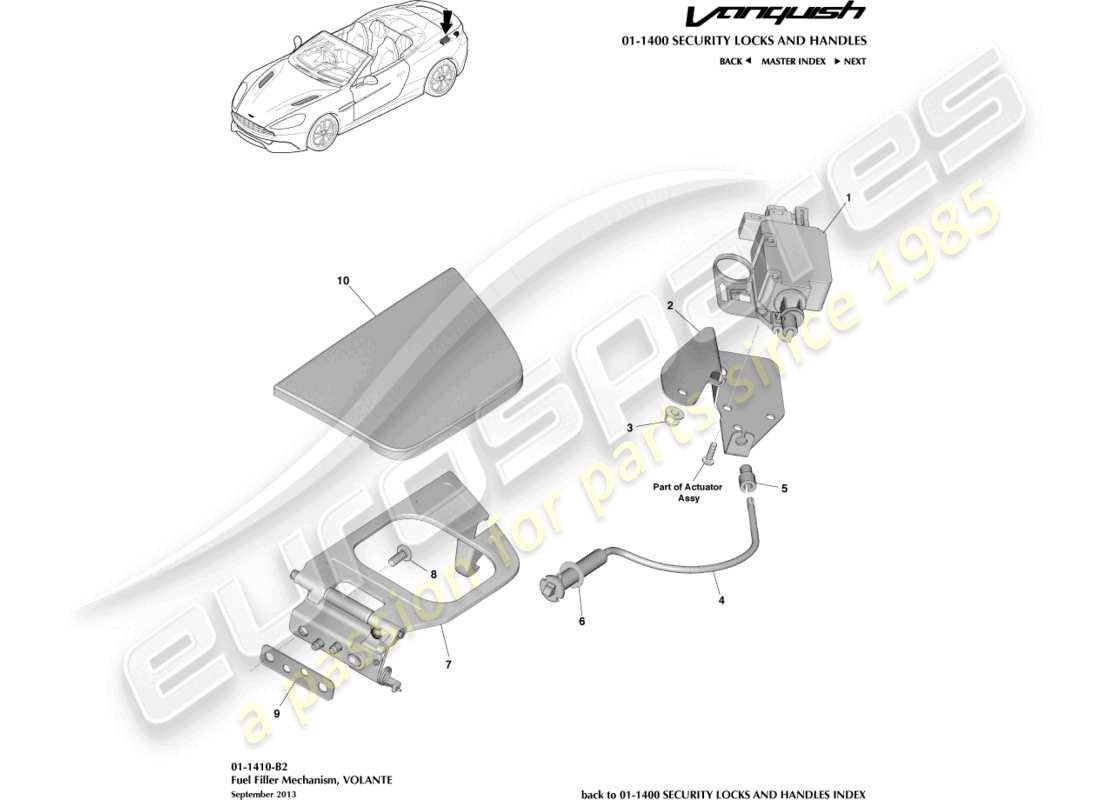

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Key
                      Price
                      # 1
                      MPN: 4G43-37-10067
                      Actuator Assy, Fuel Filler
                      from £111.34
                      from £111.34
                      ACTUATOR-FUEL FILLER Genuine Aston Martin - New (to order)
                      ACTUATOR-FUEL FILLER Genuine Aston Martin - Used In stock
                      # 2
                      MPN: CD33-9N447-AA
                      BRACKET, FUEL LOCK MOUNTING
                      from £40.81
                      from £40.81
                      BRACKET, FUEL LOCK MOUNTING Genuine Aston Martin - New (to order)
                      # 3
                      MPN: 703163
                      NUT, M6, HEX FLANGE HEAD
                      from £0.47
                      from £0.47
                      NUT M6 FLANGE LOCKING Genuine Aston Martin - New (to order)
                      # 4
                      MPN: AG43-40180-BA
                      CABLE, FUEL FILLER FLAP RELEASE
                      from £32.67
                      from £32.67
                      CABLE- FU/FILL FLAP Genuine Aston Martin - New (to order)
                      # 5
                      MPN: 4G43-2K625-AA
                      ABUTMENT, FUEL FILLER CABLE
                      from £11.13
                      from £11.13
                      ABUTMENT CABLE G/C Genuine Aston Martin - New (to order)
                      ABUTMENT CABLE G/C Genuine Aston Martin - Used In stock
                      # 6
                      MPN: 6G33-28614-AA
                      SEAL, FUEL FLAP RELEASE CABLE
                      from £0.73
                      from £0.73
                      SE CABLE FU/FILL FLP Genuine Aston Martin - New (to order)
                      # 7
                      MPN: ED33-L405B96-AC
                      LATCH ASSY, FUEL FILLER DOOR
                      from £216.15
                      from £216.15
                      LATCH ASSEMBLY, FUEL FILLER DOOR Genuine Aston Martin - New (to order)
                      # 8
                      MPN: 703149
                      SCREW, M6 X 16, PAN TORX HD
                      from £0.47
                      from £0.47
                      SCREW M6X16 PAN Genuine Aston Martin - New (to order)
                      # 9
                      MPN: 4G43-28630-AA
                      GASKET, FUEL FILLER MOUNTING
                      from £39.52
                      from £39.52
                      FUEL FILL MOUNT GSKT Genuine Aston Martin - New (to order)
                      # 10
                      MPN: ED33-L405A02-AB
                      DOOR, FUEL FILLER OPENING
                      from £320.76
                      from £320.76
                      DOOR, FUEL FILLER OPENING Genuine Aston Martin - New (to order)
