aston martin vanquish (2015) roof opening panel parts diagram

01-1703-B1 - Roof Opening Panel

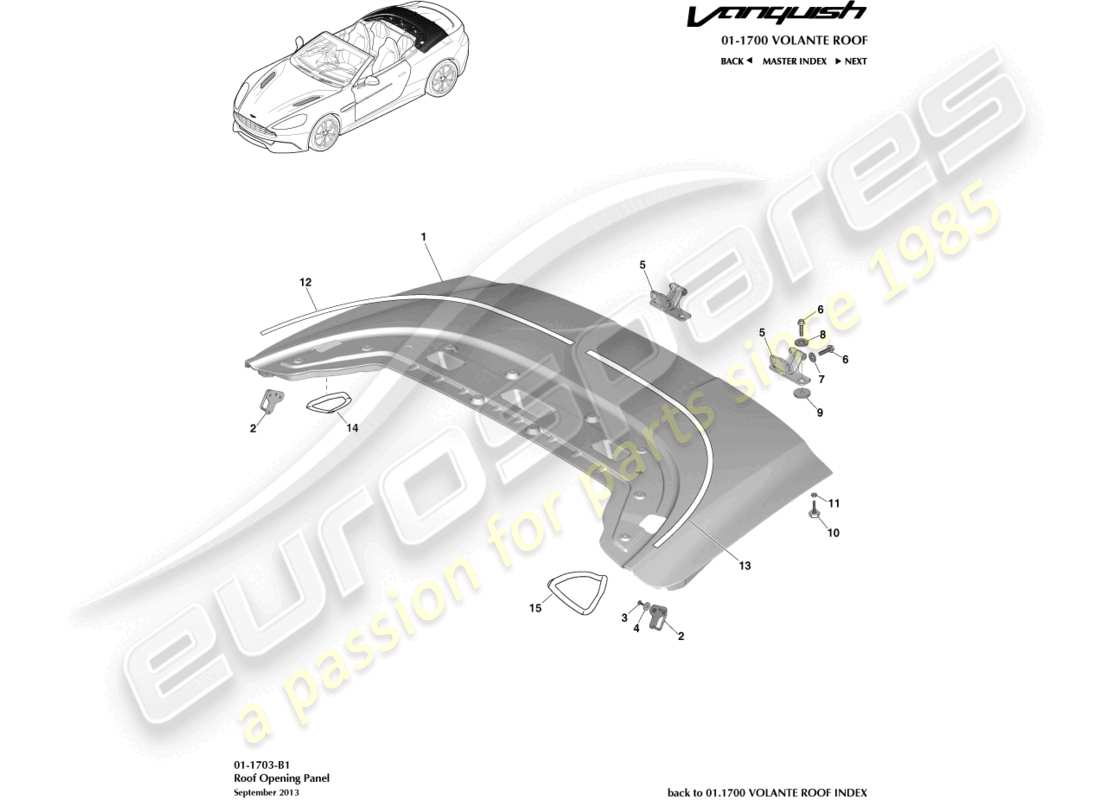

Aston Martin Vanquish (2015) Roof Opening Panel Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Key
                              Price
                              # 1
                              MPN: ED33-L501A00-AE
                              TONNEAU COVER ASSEMBLY
                              Includes Items 2 to 4
                              from £6,304.33
                              from £6,304.33
                              TONNEAU COVER ASSEMBLY Genuine Aston Martin - New (to order)
                              # 2
                              MPN: ED33-404A42-AA
                              STRIKER, TONNEAU
                              STRIKER, TONNEAU Genuine Aston Martin - New (to order)
                              # 3
                              MPN: 703746
                              SCREW, M6 X 16, TORX PAN HEAD
                              from £0.47
                              from £0.47
                              SCREW-M6X16 PAN TORX Genuine Aston Martin - New (to order)
                              # 4
                              MPN: CG43-106258-AA
                              WASHER, LARGE OD, M6
                              from £3.04
                              from £3.04
                              WASHER SS 6.0MM Genuine Aston Martin - New (to order)
                              # 5
                              MPN: ED33-R42900-BB
                              HINGE, TONNEAU
                              from £185.44
                              from £185.44
                              HINGE, TONNEAU Genuine Aston Martin - New (to order)
                              # 6
                              MPN: W500025-S443
                              SCREW, M8 X 30, HEX FLANGE HEAD
                              SCREW, M8 X 30, HEX FLANGE HEAD Genuine Aston Martin - New (to order)
                              # 7
                              MPN: CD33-43422-AA
                              WASHER, 81 X 21 X 1.6
                              from £1.77
                              from £1.77
                              81DX21ODX1.6 WASHER Genuine Aston Martin - New (to order)
                              # 8
                              MPN: 6G33-43422-AA
                              WASHER
                              from £0.92
                              from £0.92
                              WASHER DECKLID STRIK Genuine Aston Martin - New (to order)
                              # 9
                              MPN: ED33-42853-AB
                              SPACER, HINGE
                              from £9.26
                              from £9.26
                              SPACER, HINGE Genuine Aston Martin - New (to order)
                              # 10
                              MPN: 4G43-16K808-AB
                              BUFFER ASSEMBLY, HOOD
                              from £2.38
                              from £2.38
                              SUPPORT HOOD BUMPER TO CO Genuine Aston Martin - New (to order)
                              # 11
                              MPN: 702944
                              NUT, M6, HEX FLANGED HEAD
                              from £0.58
                              from £0.58
                              NUT M6 HEX FLNG MTL8 Genuine Aston Martin - New (to order)
                              LOWER MESH NUTS Genuine Ferrari Part - New (to order)
                              # 12
                              MPN: ED33-L10630-AA
                              PROTECTION FILM RH
                              from £27.82
                              from £27.82
                              PROTECTION FILM RH Genuine Aston Martin - New (to order)
                              # 13
                              MPN: ED33-L10631-AA
                              PROTECTION FILM LH
                              from £27.82
                              from £27.82
                              PROTECTION FILM LH Genuine Aston Martin - New (to order)
                              # 14
                              MPN: ED33-502G22-AA
                              DECAL PROTECTION RH
                              from £9.82
                              from £9.82
                              DECAL PROTECTION RH Genuine Aston Martin - New (to order)
                              # 15
                              MPN: ED33-502G23-AA
                              DECAL PROTECTION LH
                              from £9.82
                              from £9.82
                              DECAL PROTECTION LH Genuine Aston Martin - New (to order)
