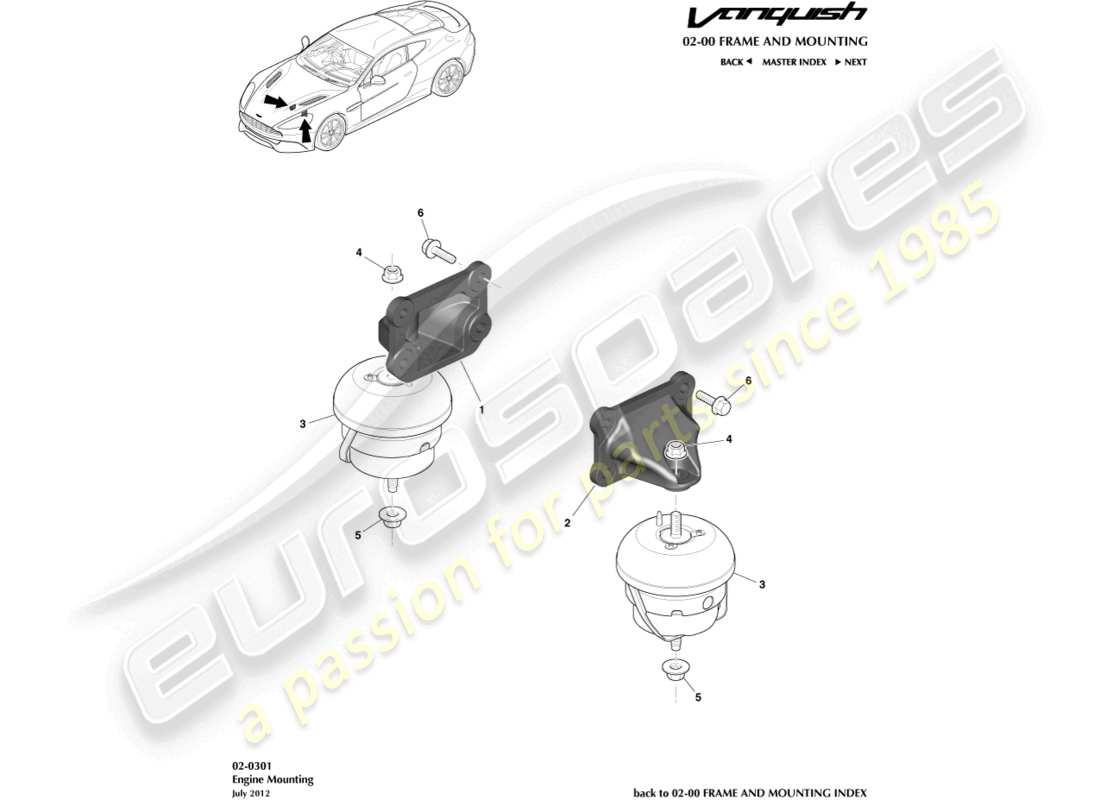

02-0301 - Engine Mountings

Aston Martin Vanquish (2015) Engine Mountings Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Key
            Price
            # 1
            MPN: DG43-6030-AA
            MOUNT, ENGINE BRACKET, RH
            from £61.26
            from £61.26
            MOUNT, ENGINE BRACKET, RH Genuine Aston Martin - New (to order)
            # 2
            MPN: DG43-6031-AA
            MOUNT, ENGINE BRACKET, LH
            from £51.19
            from £51.19
            MOUNT, ENGINE BRACKET, LH Genuine Aston Martin - New (to order)
            # 3
            MPN: CD33-6A003-AA
            HYDRAMOUNT, ENGINE
            from £354.28
            from £354.28
            HYDRAMOUNT, ENGINE Genuine Aston Martin - New (to order)
            # 4
            MPN: 703167
            NUT, M10, HEX FLANGE HD
            from £0.99
            from £0.99
            NUT M10 HEX FLNG Genuine Aston Martin - New (to order)
            WASHER Genuine Ferrari Part - New (to order)
            # 5
            MPN: 703751
            NUT AND WASHER, M10
            from £1.50
            from £1.50
            NUT AND WASHER, M10 Genuine Aston Martin - New (to order)
            # 6
            MPN: 702210-PK
            BOLT, M10 X 30
            Pack of 10
            from £7.26
            from £7.26
            This part replaces part number 702210
            BOLT-M10X30 PACK 10 Genuine Aston Martin - New (to order)
            VENT PANEL BOLTS Genuine Ferrari Part - New (to order)
