aston martin vanquish (2015) acoustic control parts diagram

09-0101-01 - Acoustic Control

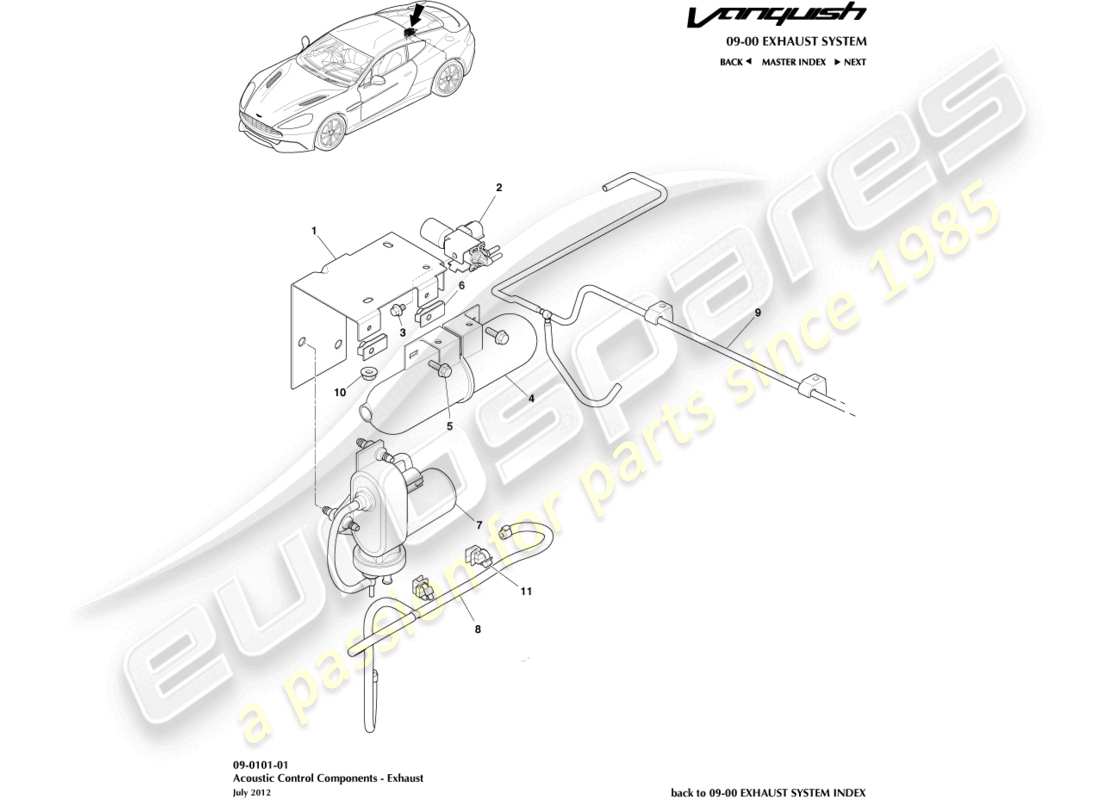

Aston Martin Vanquish (2015) Acoustic Control Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # -
                    MPN: 4G43-2C529-BC
                    BRACKET AND VACUUM PUMP ASSEMBLY
                    Up To 17.5MY, Includes Items 1 to 8
                    from £279.05
                    from £279.05
                    BRACKET ASSEMBLY VAC PMP Genuine Aston Martin - New (to order)
                    # -
                    MPN: HD33-2C529-BA
                    BRACKET AND VACUUM PUMP ASSEMBLY
                    From 17.5MY, 'S', Includes Items 1 to 8
                    from £328.11
                    from £328.11
                    BRACKET, VAC SYSTEM MOUNTING Genuine Aston Martin - New (to order)
                    # 1
                    MPN: 4G43-2C529-AJ
                    BRACKET, VAC SYSTEM MOUNTING
                    Up to 17.5MY
                    from £28.52
                    from £28.52
                    BRK VAC PMP MTNG Genuine Aston Martin - New (to order)
                    BRK VAC PMP MTNG Genuine Aston Martin - Used In stock
                    # 1
                    MPN: HD33-2C529-BA
                    BRACKET, VAC SYSTEM MOUNTING
                    From 17.5MY, 'S'
                    from £328.11
                    from £328.11
                    BRACKET, VAC SYSTEM MOUNTING Genuine Aston Martin - New (to order)
                    # 2
                    MPN: 6G43-16-10010
                    SHIFT TRANS RETRO CONTROL PDL ROD
                    from £48.72
                    from £48.72
                    SHIFT TRANS RETRO CONTROL PDL ROD Genuine Aston Martin - New (to order)
                    SHIFT TRANS RETRO CONTROL PDL ROD Genuine Aston Martin - Used In stock
                    # 3
                    MPN: 703206
                    SCREW, M5X8, HEX FLANGE HEAD
                    from £0.94
                    from £0.94
                    SCREW-M5 X 8 HEX FLANGE Genuine Aston Martin - New (to order)
                    # 4
                    MPN: 89-84150
                    TANK, VACUUM
                    from £52.65
                    from £52.65
                    VACUUM TANK Genuine Aston Martin - New (to order)
                    VACUUM TANK Genuine Aston Martin - Used In stock
                    # 5
                    MPN: 700265
                    SCREW, M6X16, HEX HD
                    from £54.07
                    from £54.07
                    BINDER-40ML VANQ BLK Genuine Aston Martin - New (to order)
                    # 6
                    MPN: 701245
                    NUT, M6, U TYPE
                    from £0.47
                    from £0.47
                    NUT M6 0.8-4.0 U TYP Genuine Aston Martin - New (to order)
                    # 7
                    MPN: 6G43-16-10034
                    PUMP ASSY, VACUUM
                    from £63.31
                    from £63.31
                    This part replaces part number 4C34-2A451-BA - and 2 more. Click to view details
                    PUMP ASSEMBLY, VACUUM Genuine Aston Martin - New (to order)
                    PUMP ASSEMBLY, VACUUM Genuine Aston Martin - Used In stock
                    # 8
                    MPN: 4G43-9E488-CA
                    TUBE ASSY, EXHAUST CONTROL
                    from £11.92
                    from £11.92
                    TUB ASSEMBLY EXH CONT Genuine Aston Martin - New (to order)
                    TUB ASSEMBLY EXH CONT Genuine Aston Martin - Used In stock
                    # 9
                    MPN: 4G43-9E488-AF
                    TUBE ASSY, EXHAUST BYPASS
                    Up to 17MY
                    from £20.99
                    from £20.99
                    VACUUM LINE, EXHAUST BYPASS Genuine Aston Martin - New (to order)
                    VACUUM LINE, EXHAUST BYPASS Genuine Aston Martin - Used In stock
                    # 9
                    MPN: HD33-9E488-AB
                    TUBE ASSY, EXHAUST BYPASS
                    FROM 17MY
                    TUBE ASSEMBLY, EXHAUST BYPASS Genuine Aston Martin - New (to order)
                    # 10
                    MPN: 703206
                    NUT AND WASHER, M6, HEX HEAD
                    from £0.94
                    from £0.94
                    SCREW-M5 X 8 HEX FLANGE Genuine Aston Martin - New (to order)
                    # 11
                    MPN: 2M5T-14197-MA
                    CLIP, TIE WRAP
                    TIE WRAP CLIP Genuine Aston Martin - New (to order)
