aston martin vanquish (2015) exhaust system, s parts diagram

09-0500-10 - Exhaust System, S

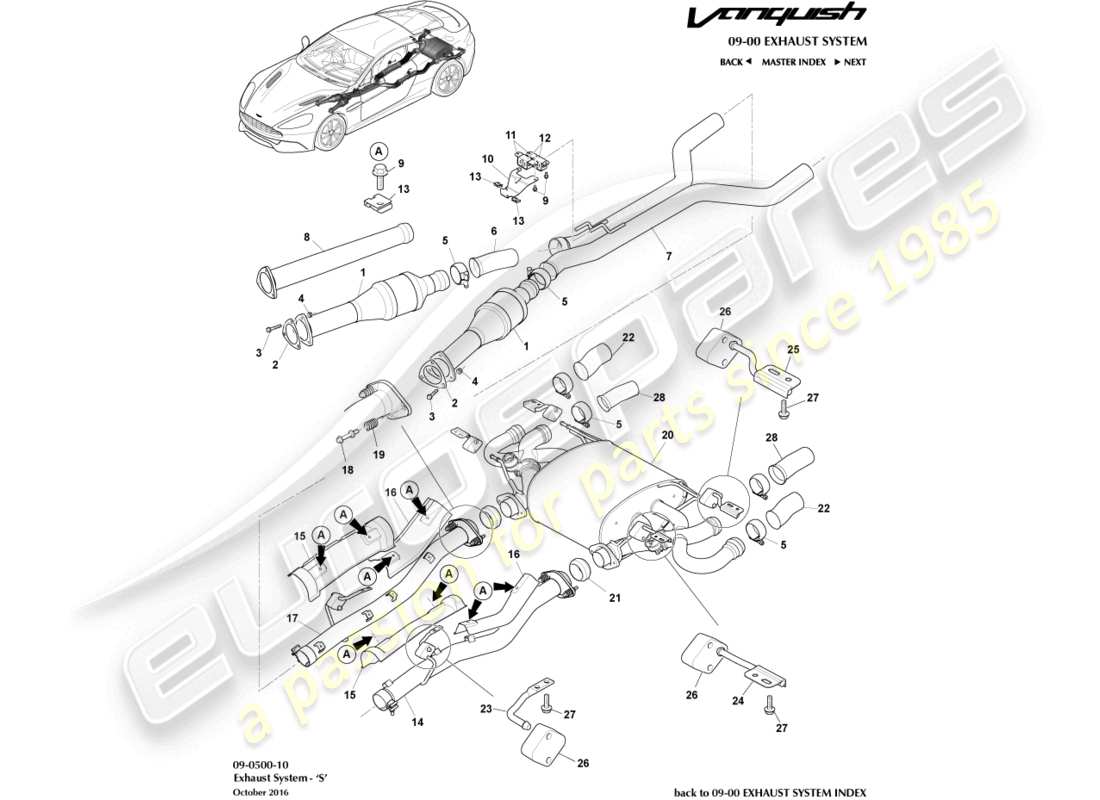

Aston Martin Vanquish (2015) Exhaust System, S Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Key
                                                  Price
                                                  # 1
                                                  MPN: 8G43-5E211-AD
                                                  CATALYST & PIPE ASSEMBLY
                                                  from £648.86
                                                  from £648.86
                                                  CAT & PIPE ASSEMBLY Genuine Aston Martin - New (to order)
                                                  # 2
                                                  MPN: 4G43-5E281-AA-PK
                                                  GASKET, EXHAUST
                                                  Pack of 2
                                                  Supersession
                                                  Supersession
                                                  Genuine Aston Martin (no longer available to order)
                                                  # 3
                                                  MPN: 702698
                                                  BOLT, M8X45, FLANGE HEAD
                                                  from £9.22
                                                  from £9.22
                                                  BOLT-M8X45 FLANGE HEAD Genuine Aston Martin - New (to order)
                                                  # 4
                                                  MPN: 4G43-02738-AA-PK
                                                  NUT, M8 HEX FLANGE HEAD, STAINLESS
                                                  Pack of 10
                                                  from £37.21
                                                  from £37.21
                                                  This part replaces part number 4G43-02738-AA
                                                  NUT-M8 FLANGE SS(PK 10) Genuine Aston Martin - New (to order)
                                                  # 5
                                                  MPN: 9G43-5221-AA
                                                  CLAMP, EXHAUST PIPE
                                                  from £25.41
                                                  from £25.41
                                                  PIPE ASSEMBLY, EXHAUST REAR LH Genuine Aston Martin - New (to order)
                                                  # 6
                                                  MPN: CG43-5220-FA
                                                  PIPE, INTERMEDIATE
                                                  from £24.51
                                                  from £24.51
                                                  PIPE, INTERMEDIATE Genuine Aston Martin - New (to order)
                                                  # 7
                                                  MPN: CD33-5220-DC
                                                  PIPE, EXHAUST CENTRE
                                                  from £506.14
                                                  from £506.14
                                                  PIPE, EXHAUST CENTRE Genuine Aston Martin - New (to order)
                                                  # 8
                                                  MPN: HD33-5E211-AA
                                                  PIPE ASSY, EXHAUST UNDERFLOOR
                                                  from £310.26
                                                  from £310.26
                                                  PIPE ASSEMBLY, EXHAUST UNDERFLOOR Genuine Aston Martin - New (to order)
                                                  # 9
                                                  MPN: 703264
                                                  SCREW, M6X14, HEX HEAD
                                                  SCREW, M6X12 HEX HD Genuine Aston Martin - New (to order)
                                                  # 10
                                                  MPN: 4G43-3962-ED
                                                  BRACKET, SUPPORT
                                                  from £7.93
                                                  from £7.93
                                                  BRACKET, SUPPORT EXHAUST PIPE Genuine Aston Martin - New (to order)
                                                  BRACKET, SUPPORT EXHAUST PIPE Genuine Aston Martin - Used In stock
                                                  # 11
                                                  MPN: 4G43-3962-FA
                                                  BRACKET, EXHAUST ISOLATOR
                                                  from £27.00
                                                  from £27.00
                                                  BRKT-EXH ISLTR Genuine Aston Martin - New (to order)
                                                  BRKT-EXH ISLTR Genuine Aston Martin - Used In stock
                                                  With Rubber
                                                  # 12
                                                  MPN: 4G43-35-10025
                                                  RUBBER, EXHAUST MOUNT
                                                  from £4.77
                                                  from £4.77
                                                  EXH RUBBER MOUNT Genuine Aston Martin - New (to order)
                                                  # 13
                                                  MPN: 699736
                                                  CLIP, PANEL EDGE
                                                  from £1.70
                                                  from £1.70
                                                  CLIP - PANEL EDGE Genuine Aston Martin - New (to order)
                                                  # 14
                                                  MPN: HD33-5220-BB
                                                  PIPE, EXHAUST INTERMEDIATE, LH
                                                  Includes Items 9, 13, 15 and 16
                                                  from £385.64
                                                  from £385.64
                                                  PIPE, EXHAUST INTERMEDIATE, LH Genuine Aston Martin - New (to order)
                                                  # 15
                                                  MPN: FD33-5G221-BA
                                                  HEATSHIELD ASSY, EXHAUST, INTERMEDIATE PIPE, FRONT
                                                  from £116.64
                                                  from £116.64
                                                  SHIELD ASSEMBLY, EXHAUST SYSTEM REAR Genuine Aston Martin - New (to order)
                                                  # 16
                                                  MPN: AD43-5G221-CA
                                                  HEATSHIELD ASSY, EXHAUST, INTERMEDIATE PIPE, REAR
                                                  from £119.23
                                                  from £119.23
                                                  SHL ASSY-EXH SYS REAR Genuine Aston Martin - New (to order)
                                                  # 17
                                                  MPN: HD33-5220-AB
                                                  PIPE, EXHAUST INTERMEDIATE, RH
                                                  Includes Items 9, 13, 15 and 16
                                                  from £385.64
                                                  from £385.64
                                                  PIPE, EXHAUST INTERMEDIATE, RH Genuine Aston Martin - New (to order)
                                                  # 18
                                                  MPN: 4G43-70816-AA
                                                  BOLT, M8, FLANGE HEAD
                                                  from £2.62
                                                  from £2.62
                                                  BOLT Genuine Aston Martin - New (to order)
                                                  # 19
                                                  MPN: 4G43-5F264-AA
                                                  SPRING, EXHAUST PIPE FLANGE
                                                  from £9.19
                                                  from £9.19
                                                  SPRING-EXH PIP FLANGE H Genuine Aston Martin - New (to order)
                                                  # 20
                                                  MPN: HD33-5230-EA
                                                  MUFFLER, EXHAUST
                                                  from £3,626.63
                                                  from £3,626.63
                                                  MUFFLER, EXHAUST Genuine Aston Martin - New (to order)
                                                  # 21
                                                  MPN: 4G43-17213-BA
                                                  SEALING RING, EXHAUST
                                                  from £33.11
                                                  from £33.11
                                                  SEALING RING, EXHAUST Genuine Aston Martin - New (to order)
                                                  # 22
                                                  MPN: AD43-5220-CA
                                                  PIPE, EXHAUST OUTLET STUB
                                                  from £25.02
                                                  from £25.02
                                                  PIPE, EXHAUST OUTLET STUB Genuine Aston Martin - New (to order)
                                                  # 23
                                                  MPN: FD33-5N201-DA
                                                  BRACKET, EXHAUST PIPE MOUNTING, INTERMEDIATE LH
                                                  from £16.70
                                                  from £16.70
                                                  BRACKET, EXHAUST PIPE MOUNTING, INTERMEDIATE LH Genuine Aston Martin - New (to order)
                                                  # 23
                                                  MPN: FD33-5N201-EA
                                                  BRACKET, EXHAUST PIPE MOUNTING, INTERMEDIATE RH
                                                  from £16.70
                                                  from £16.70
                                                  BRACKET, EXHAUST PIPE MOUNTING, INTERMEDIATE RH Genuine Aston Martin - New (to order)
                                                  # 24
                                                  MPN: CD33-5N201-CB
                                                  BRACKET, MUFFLER MOUNTING HANGER ASSY, REAR
                                                  from £13.74
                                                  from £13.74
                                                  BRACKET, MUFFLER MOUNTING HANGER ASSEMBLY, REAR, LH Genuine Aston Martin - New (to order)
                                                  # 25
                                                  MPN: CD33-5N201-DB
                                                  BRACKET, MUFFLER MOUNTING HANGER ASSY, REAR
                                                  from £13.74
                                                  from £13.74
                                                  BRACKET, MUFFLER MOUNTING HANGER ASSEMBLY, REAR, RH Genuine Aston Martin - New (to order)
                                                  # 26
                                                  MPN: 4G43-35-10026
                                                  RUBBER, EXHAUST MOUNT
                                                  from £21.44
                                                  from £21.44
                                                  EXH RUBBER MOUNT Genuine Aston Martin - New (to order)
                                                  EXH RUBBER MOUNT Genuine Aston Martin - Used In stock
                                                  # 27
                                                  MPN: 703121
                                                  SCREW, M8X20, HEX FLANGE HEAD
                                                  from £0.47
                                                  from £0.47
                                                  SCREW M8X20 HEX FLANGE Genuine Aston Martin - New (to order)
                                                  # 28
                                                  MPN: HD33-5220-CB
                                                  PIPE, EXHAUST OUTLET STUB, INNER
                                                  from £37.47
                                                  from £37.47
                                                  PIPE, EXHAUST OUTLET STUB, INNER Genuine Aston Martin - New (to order)
