aston martin vanquish (2015) parking aid parts diagram

13-1300-00 - PARKING AID

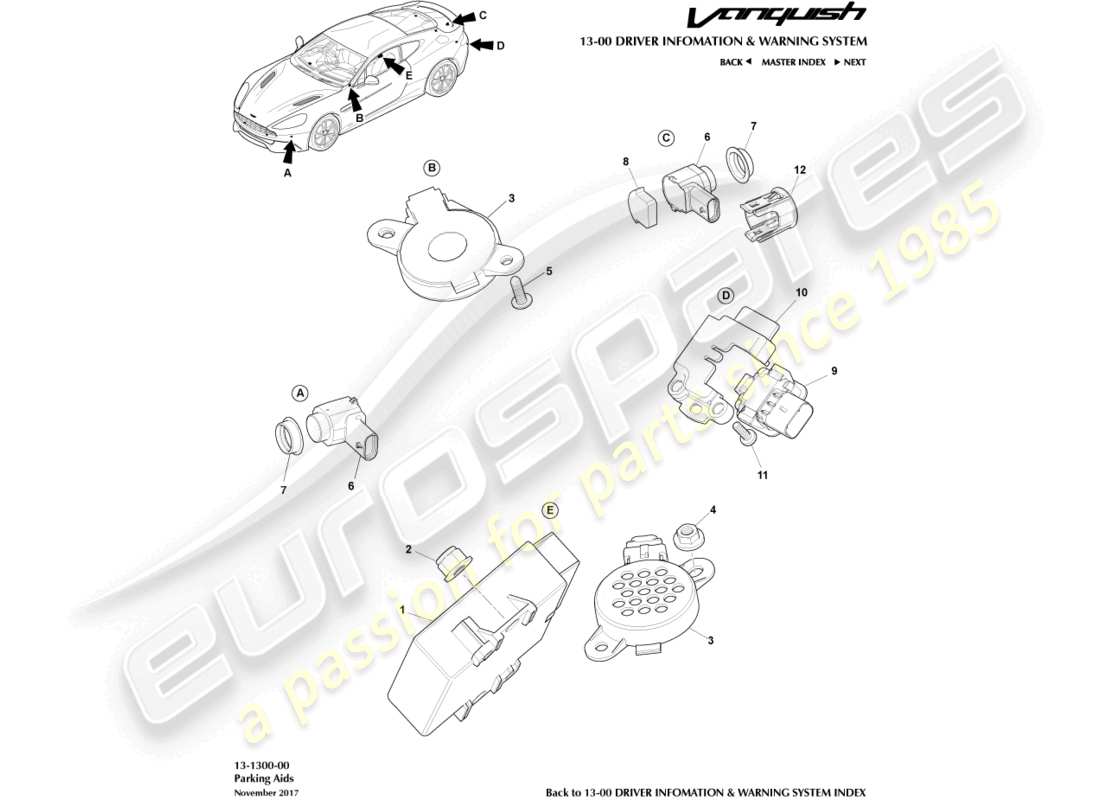

Aston Martin Vanquish (2015) Parking Aid Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # 1
                          MPN: 9G43-37-11061
                          MODULE, PARKING AID
                          from £149.01
                          from £149.01
                          This part replaces part number 6G43-37-10354 which we have in stock
                          MODULE, PARKING AID Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 703164
                          LOCKNUT, M6
                          from £0.47
                          from £0.47
                          M6 LOCKNUT FLANGE NYL Genuine Aston Martin - New (to order)
                          # 3
                          MPN: 1R12-37-10342
                          SPEAKER, REAR PARKING SENSOR
                          from £5.00
                          from £5.00
                          SPEAKER-RR PARK SNSR Genuine Aston Martin - New (to order)
                          SPEAKER-RR PARK SNSR Genuine Aston Martin - Used In stock
                          # 4
                          MPN: 702295
                          NUT, M5, HEX FLG
                          from £0.47
                          from £0.47
                          NUT M5 HEX FLANGE Genuine Aston Martin - New (to order)
                          # 5
                          MPN: 705464
                          SCREW, 4.2X16
                          from £0.47
                          from £0.47
                          SCREW 4.2 X 16 ST Genuine Aston Martin - New (to order)
                          # 6
                          MPN: 9G92-15K859-AA
                          SENSOR, PARKING AID, 90 DEGREE
                          SENSOR, PARKING AID, 90 DEGREE Genuine Aston Martin - New (to order)
                          # 7
                          MPN: 9G92-15B864-AA
                          DECOUPLING RING, PARKING SENSOR
                          from £9.27
                          from £9.27
                          DECOUPLING RING Genuine Aston Martin - New (to order)
                          # 8
                          MPN: 8D33-090400-AA
                          HEATSHIELD, PDC SENSOR
                          from £2.73
                          from £2.73
                          HEATSHIELD, PDC SENSOR, INBOARD REAR SENSORS Genuine Aston Martin - New (to order)
                          # 9
                          MPN: CD33-19G490-AC
                          CAMERA , REAR FACING 90 DEGREE
                          from £578.41
                          from £578.41
                          CAMERA , REAR FACING 90 DEGREE Genuine Aston Martin - New (to order)
                          # 10
                          MPN: CD33-19H421-AA
                          BRACKET, CAMERA
                          from £1.93
                          from £1.93
                          BRACKET, CAMERA Genuine Aston Martin - New (to order)
                          # 11
                          MPN: CD33-W505513-AA
                          SCREW, M4X12, PAN HD
                          from £0.47
                          from £0.47
                          SCREW, M4X12, PAN HD Genuine Aston Martin - New (to order)
                          # 12
                          MPN: 8D33-37-10004
                          BRACKET, PARK AID SENSOR, INNER
                          from £2.22
                          from £2.22
                          This part replaces part number 6M2T-15K872-AA
                          BRKT-PRK AID SNS INNER Genuine Aston Martin - New (to order)
