18-0101-02 - Front & Engine Bay Harness

Aston Martin Vanquish (2015) Front & Engine Bay Harness Parts Diagram

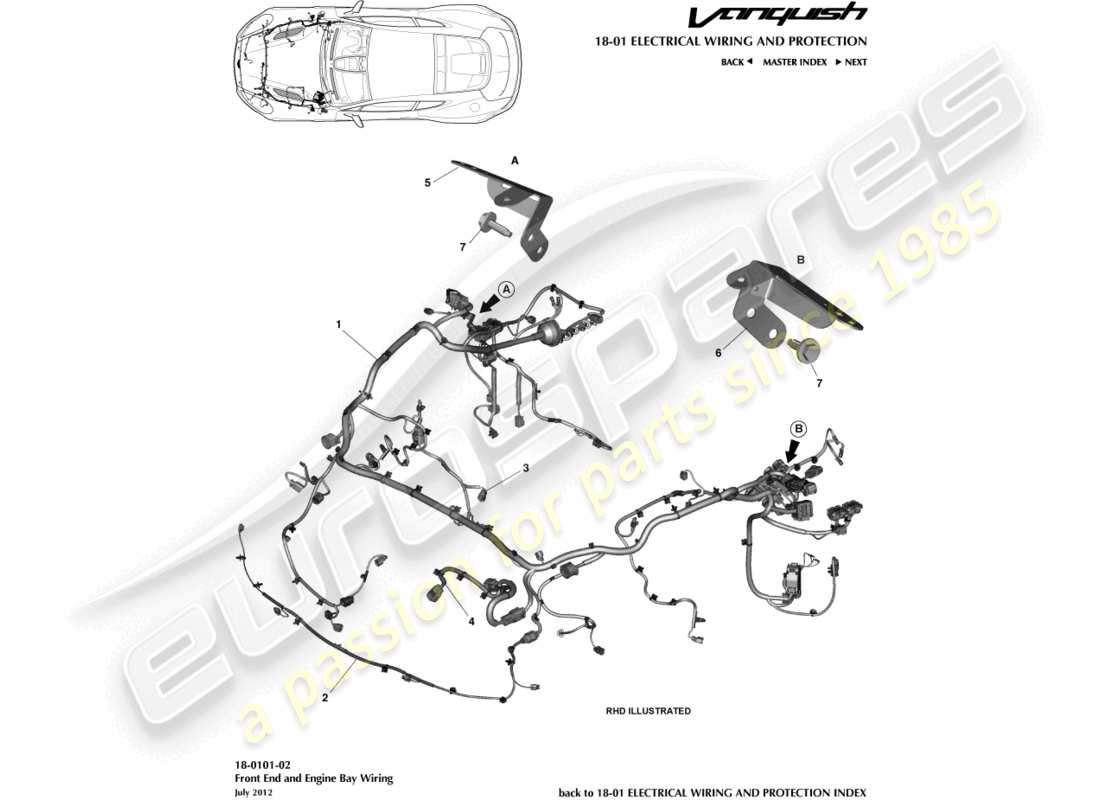

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 1
        MPN: CD33-14290-BD
        HARNESS ASSEMBLY, ENGINE BAY, RHD
        Up to 15MY
        from £3,615.75
        from £3,615.75
        HARNESS ASSEMBLY, ENGINE BAY, RHD Genuine Aston Martin - New (to order)
        # 1
        MPN: FD33-14290-BC
        HARNESS ASSEMBLY, ENGINE BAY, RHD
        FROM 15MY
        from £3,949.62
        from £3,949.62
        HARNESS ASSEMBLY, ENGINE BAY, RHD Genuine Aston Martin - New (to order)
        # 1
        MPN: CD33-14290-AD
        HARNESS ASSEMBLY, ENGINE BAY, LHD
        Up to 15MY
        from £3,615.75
        from £3,615.75
        HARNESS ASSEMBLY, ENGINE BAY, LHD Genuine Aston Martin - New (to order)
        # 1
        MPN: FD33-14290-AC
        HARNESS ASSEMBLY, ENGINE BAY, LHD
        FROM 15MY
        HARNESS ASSEMBLY, ENGINE BAY, LHD Genuine Aston Martin - New (to order)
        # 2
        MPN: CD33-15K877-AC
        HARNESS, FRONT BUMPER
        from £183.60
        from £183.60
        HARNESS, FRONT BUMPER Genuine Aston Martin - New (to order)
        # 3
        MPN: 4G43-14290-CA
        HARNESS, PAS TO FORWARD LINK, RHD
        Up to 15MY
        from £9.20
        from £9.20
        Genuine Aston Martin (no longer available to order)
        HARNESS ASSEMBLY PAS LINK, RHD Genuine Aston Martin - Used In stock
        # 3
        MPN: FD33-14290-CA
        HARNESS, PAS TO FORWARD LINK, RHD
        FROM 15MY
        from £61.61
        from £61.61
        This part replaces part number 4G43-14290-CA which we have in stock
        HARNESS, PAS TO FORWARD LINK, RHD Genuine Aston Martin - New (to order)
        # 3
        MPN: 4G43-14290-DA
        HARNESS, PAS TO FORWARD LINK, LHD
        Up to 15MY
        from £74.21
        from £74.21
        PAS LINK HARNESS Genuine Aston Martin - New (to order)
        # 3
        MPN: FD33-14290-DA
        HARNESS, PAS TO FORWARD LINK, LHD
        FROM 15MY
        from £16.07
        from £16.07
        HARNESS, PAS TO FORWARD LINK, LHD Genuine Aston Martin - New (to order)
        # 4
        MPN: 8G43-9137-AC
        HARNESS, FAN PACK LINK
        Up to 15MY
        from £124.33
        from £124.33
        FAN PACK LINK HARN Genuine Aston Martin - New (to order)
        # 4
        MPN: FD33-9137-AB
        HARNESS, FAN PACK LINK
        FROM 15MY
        from £61.26
        from £61.26
        HARNESS, FAN PACK LINK Genuine Aston Martin - New (to order)
        # 5
        MPN: CD33-14N003-AA
        BRACKET, INLINE CONNECTION, RH
        from £67.67
        from £67.67
        BRACKET, INLINE CONNECTOR, RH Genuine Aston Martin - New (to order)
        # 6
        MPN: CD33-14N003-BA
        BRACKET, INLINE CONNECTION, LH
        from £67.67
        from £67.67
        BRACKET, INLINE CONNECTOR, LH Genuine Aston Martin - New (to order)
        # 7
        MPN: 702839-PK
        SCREW & WASHER, M6 X 20, HEX HD
        Pack of 10
        from £3.14
        from £3.14
        SCREW&WSHR M6X20(10) Genuine Aston Martin - New (to order)
