aston martin vanquish (2015) body harness, volante parts diagram

18-0103-02A - Body Harness, Volante

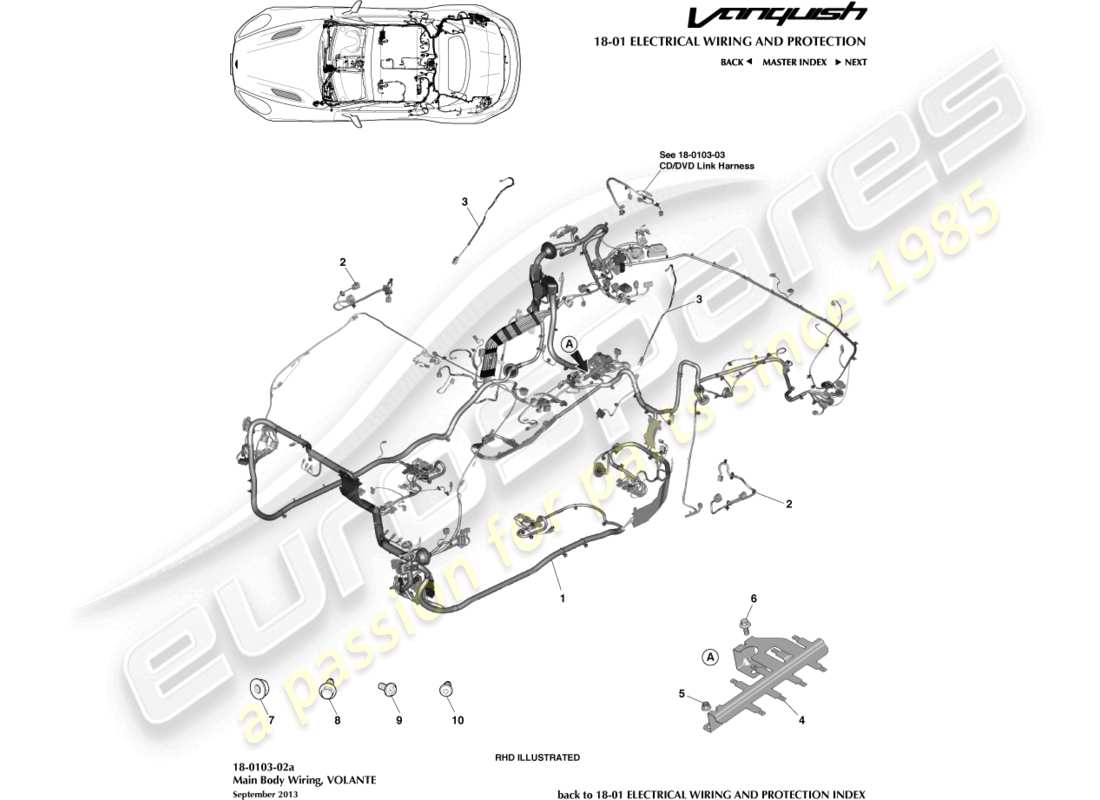

Aston Martin Vanquish (2015) Body Harness, Volante Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Key
              Price
              # 1
              MPN: ED33-14A005-BD
              HARNESS, CABIN, VOLANTE, RHD
              Up to 15MY
              from £8,901.39
              from £8,901.39
              HARNESS, CABIN, VOLANTE, RHD Genuine Aston Martin - New (to order)
              # 1
              MPN: FD33-14A005-BD
              HARNESS, CABIN, VOLANTE, RHD
              15MY to 16MY
              from £2,829.35
              from £2,829.35
              HARNESS, CABIN, VOLANTE, RHD Genuine Aston Martin - New (to order)
              # 1
              MPN: HD33-14A005-BA
              HARNESS, CABIN, VOLANTE, RHD
              FROM 17MY
              from £4,852.15
              from £4,852.15
              HARNESS, CABIN, VOLANTE, RHD Genuine Aston Martin - New (to order)
              # 1
              MPN: ED33-14A005-AD
              HARNESS, CABIN, VOLANTE, LHD
              Up to 15MY
              from £8,901.39
              from £8,901.39
              HARNESS, CABIN, VOLANTE, LHD Genuine Aston Martin - New (to order)
              # 1
              MPN: FD33-14A005-AD
              HARNESS, CABIN, VOLANTE, LHD
              15MY to 16MY
              from £2,829.35
              from £2,829.35
              HARNESS, CABIN, VOLANTE, LHD Genuine Aston Martin - New (to order)
              # 1
              MPN: HD33-14A005-AA
              HARNESS, CABIN, VOLANTE, LHD
              FROM 17MY
              from £3,272.10
              from £3,272.10
              HARNESS, CABIN, VOLANTE, LHD Genuine Aston Martin - New (to order)
              # 2
              MPN: ED33-14284-AA
              LINK HARNESS, REAR QUARTER LIGHT
              from £92.76
              from £92.76
              LINK HARNESS, REAR QUARTER LIGHT Genuine Aston Martin - New (to order)
              # 3
              MPN: BD43-9137-DA
              Link Assy, Cantrail, Rear Lighting
              from £16.84
              from £16.84
              LINK HARNESS, CANT RAIL, REAR LIGHTING Genuine Aston Martin - New (to order)
              # 4
              MPN: ED33-14N003-AA
              BRACKET, INLINE CABIN HARNESS
              BRACKET, INLINE CABIN HARNESS Genuine Aston Martin - New (to order)
              # 5
              MPN: 703165
              NUT, M5, HEX FLANGE HEAD
              from £0.47
              from £0.47
              NUT M5 HEX FLANGE PLAS Genuine Aston Martin - New (to order)
              # 6
              MPN: 703264
              SCREW, M6 X 14, HEX FLANGE HEAD
              SCREW, M6X12 HEX HD Genuine Aston Martin - New (to order)
              # 8
              MPN: 703026
              SCREW, M5 X 16, HEX FLANGE HEAD
              from £0.47
              from £0.47
              SCREW M5X16 HEX FLANGE Genuine Aston Martin - New (to order)
              # 9
              MPN: 701441-PK
              SCREW, 4.2 X 13
              Pack of 10
              from £1.31
              from £1.31
              SCREW-M4.2X13 BLK(10 Genuine Aston Martin - New (to order)
              # 10
              MPN: 6G33-51756-AA-PK
              SCREW, M5 X 13, PAN HEAD
              Pack of 10
              from £2.62
              from £2.62
              SCREW-M5X13 PN HD(10 Genuine Aston Martin - New In stock
