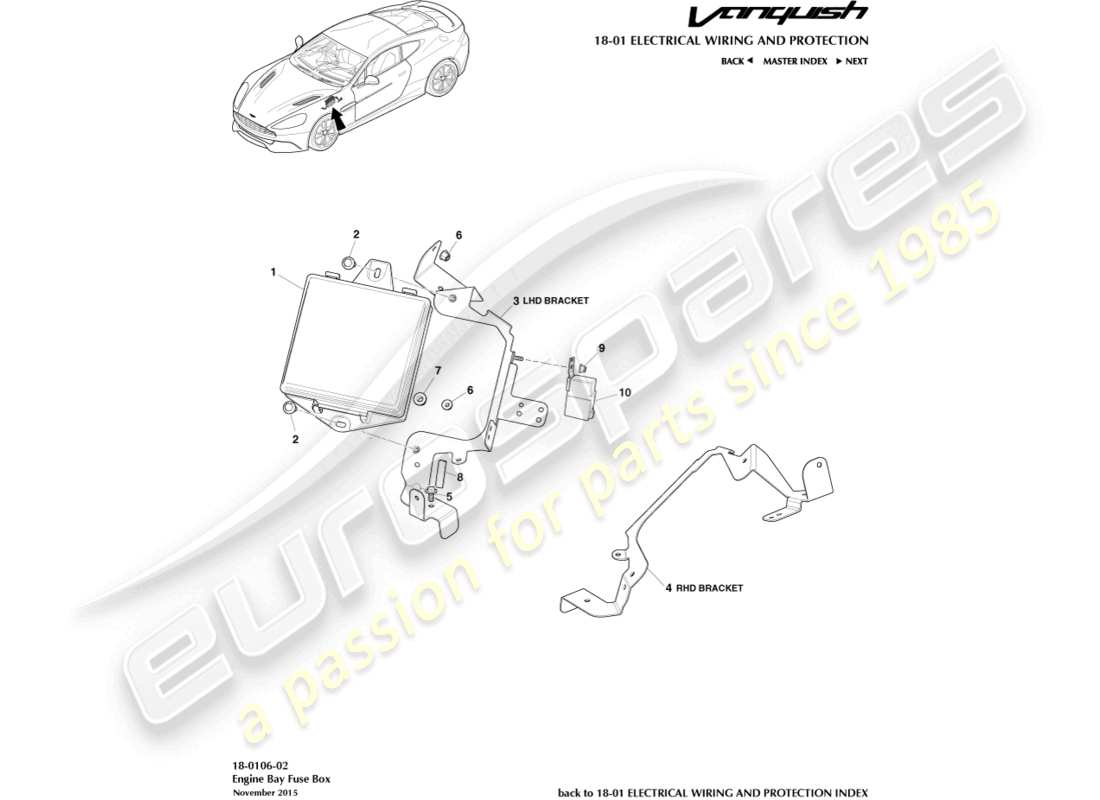

18-0106-02 - Engine Bay Fusebox

Aston Martin Vanquish (2015) Engine Bay Fusebox Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 1
                  MPN: BG33-14A173-AB
                  FUSE BOX, ENGINE BAY
                  from £287.42
                  from £287.42
                  ENGINE BAY FUSE BOX Genuine Aston Martin - New (to order)
                  # 2
                  MPN: 702839-PK
                  SCREW & WASHER, M6X20, HEX HD
                  from £3.14
                  from £3.14
                  SCREW&WSHR M6X20(10) Genuine Aston Martin - New (to order)
                  # 3
                  MPN: 4G43-14A173-CH
                  BRACKET, ENGINE BAY FUSE BOX, LHD
                  from £99.60
                  from £99.60
                  BRACKET, ENGINE BAY FUSEBOX, LHD Genuine Aston Martin - New (to order)
                  # 3
                  MPN: FD43-14A173-CA
                  BRACKET, ENGINE BAY FUSE BOX, LHD
                  From VIN: J01746. For vehicles with A/C Gas R134a only
                  from £105.49
                  from £105.49
                  BRACKET, ENGINE BAY FUSEBOX, LHD Genuine Aston Martin - New (to order)
                  # 3
                  MPN: FD43-14A173-CB
                  BRACKET, ENGINE BAY FUSE BOX, LHD
                  For vehicles with A/C Gas HFO1234a only
                  from £105.60
                  from £105.60
                  BRACKET, ENGINE BAY FUSE BOX, LHD Genuine Aston Martin - New (to order)
                  # 4
                  MPN: DG43-14A173-BA
                  BRACKET, ENGINE BAY FUSE BOX, RHD
                  from £37.09
                  from £37.09
                  BRACKET, ENGINE BAY FUSEBOX, RHD Genuine Aston Martin - New (to order)
                  # 4
                  MPN: FD43-14A173-BA
                  BRACKET, ENGINE BAY FUSE BOX, RHD
                  From VIN: J01770. For vehicles with A/C Gas R134a only
                  BRACKET, ENGINE BAY FUSEBOX, RHD Genuine Aston Martin - New (to order)
                  # 4
                  MPN: FD43-14A173-BB
                  BRACKET, ENGINE BAY FUSE BOX, RHD
                  For vehicles with A/C Gas HFO1234a only
                  from £105.60
                  from £105.60
                  BRACKET, ENGINE BAY FUSEBOX, RHD Genuine Aston Martin - New (to order)
                  # 5
                  MPN: 703151
                  SCREW & WASHER, M6X16, HEX HD
                  from £0.47
                  from £0.47
                  SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                  LOWER MESH BOLTS Genuine Ferrari Part - New (to order)
                  # 6
                  MPN: 703164
                  LOCK NUT, M6
                  from £0.47
                  from £0.47
                  M6 LOCKNUT FLANGE NYL Genuine Aston Martin - New (to order)
                  # 7
                  MPN: 701342-PK
                  NUT, M8, HEX FLANGE HEAD
                  Pack of 5
                  from £7.67
                  from £7.67
                  NUT M8 HEX PT PLS8(5) Genuine Aston Martin - New (to order)
                  # 8
                  MPN: 4G43-L41041-AA
                  EDGING STRIP, BLACK
                  from £6.27
                  from £6.27
                  EDGE STRIP Genuine Aston Martin - New (to order)
                  # 9
                  MPN: 703165
                  M5 NUT, HEX FLG
                  from £0.47
                  from £0.47
                  NUT M5 HEX FLANGE PLAS Genuine Aston Martin - New (to order)
                  # 10
                  MPN: 6G33-14N089-BA
                  RELAY 70 AMP
                  from £16.57
                  from £16.57
                  SNDARY AIR RLAY Genuine Aston Martin - New (to order)
                  # -
                  -
                  FUSE, 80A, FAN PACK
                  # -
                  -
                  FUSE, MIDI 5A
                  # -
                  -
                  FUSE, MIDI 10A
                  # -
                  -
                  FUSE, MIDI 15A
                  # -
                  -
                  FUSE, MIDI 20A
                  # -
                  -
                  FUSE, MIDI 25A
                  # -
                  -
                  FUSE, MIDI 30A
