aston martin vanquish (2016) roof, coupe parts diagram

01-0104-01 - Roof, Coupe

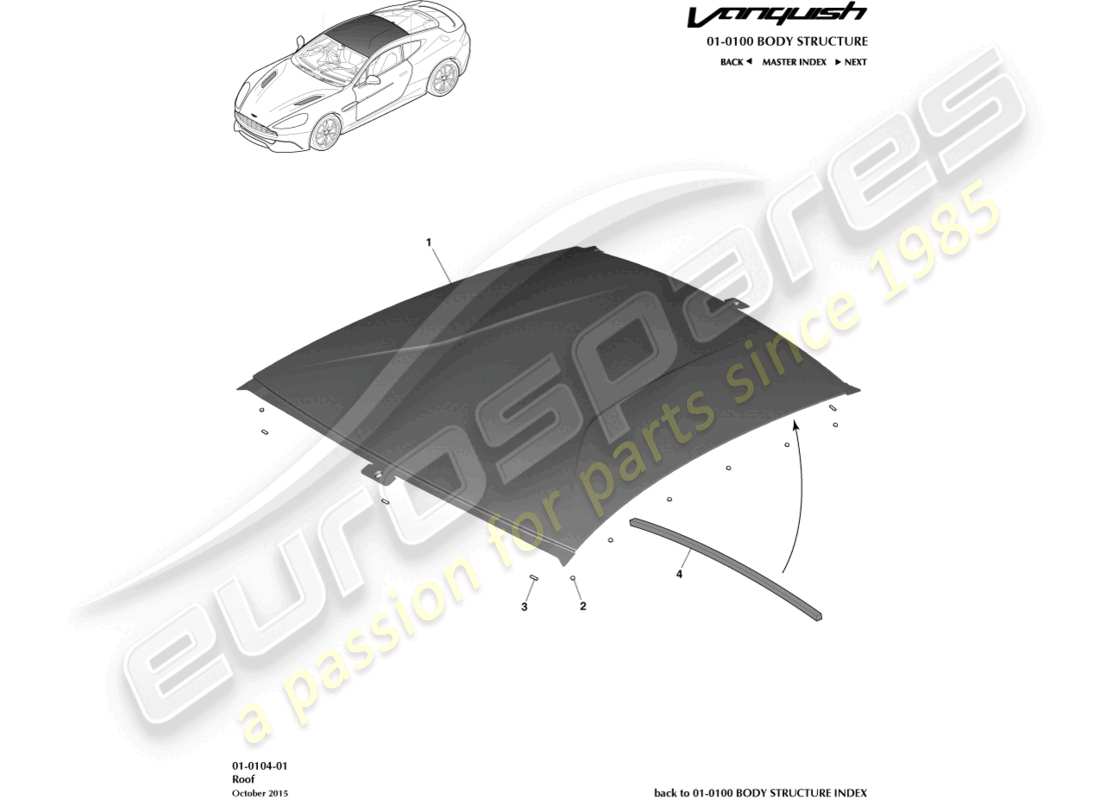

Aston Martin Vanquish (2016) Roof, Coupe Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 1
      MPN: CD33-C50202-AC
      PANEL, FRONT ROOF OUTER
      Carbon, exposed weave; high gloss finish, Structural Cat. A Only
      from £4,217.17
      from £4,217.17
      PANEL, FRONT ROOF OUTER Genuine Aston Martin - New (to order)
      # 1
      MPN: CD33-C50202-BA
      PANEL, FRONT ROOF OUTER
      Primed, Carbon roof; ready for painting, Structural Cat. A Only
      from £4,217.17
      from £4,217.17
      PANEL, FRONT ROOF OUTER Genuine Aston Martin - New (to order)
      # 2
      MPN: XR8T-F03836-AA
      BUMPON, 11.1 X 5 MM
      from £1.01
      from £1.01
      BUMPON Genuine Aston Martin - New (to order)
      # 3
      MPN: CD33-03836-AA-PK
      BUMPON, 3MM HIGH
      Pack of 10, Carbon Roof Only
      from £2.18
      from £2.18
      BUMPON, 3MM HIGH Genuine Aston Martin - New (to order)
      # 4
      MPN: 32-85306
      FOAM SEAL, REAR HEADER
      from £9.99
      from £9.99
      SEAL-RADIATOR UPPER Genuine Aston Martin - New (to order)
