aston martin vanquish (2016) front bumper structure, row parts diagram

01-0111-01 - Front Bumper Structure, RoW

Aston Martin Vanquish (2016) Front Bumper Structure, RoW Parts Diagram

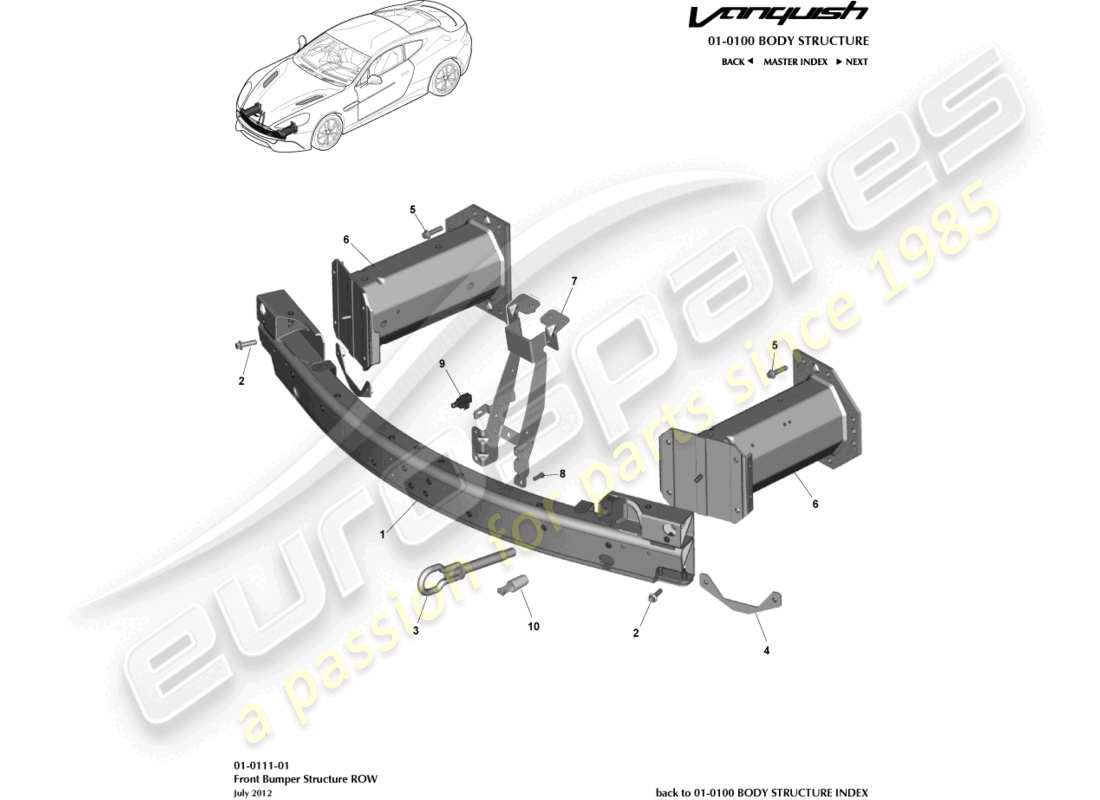

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 1
                MPN: DG43-17757-CA
                BUMPER BEAM ASSEMBLY, FRONT
                SEE SA-01-0247V2
                from £2,363.43
                from £2,363.43
                BUMPER BEAM ASSEMBLY, FRONT Genuine Aston Martin - New (to order)
                # 2
                MPN: 703155
                SCREW / WASHER, M8 X 25
                from £1.56
                from £1.56
                SCREW/WASHER M8X25 Genuine Aston Martin - New (to order)
                # 3
                MPN: CD33-17B804-AC
                TOWING EYE
                See SA-01-0247V2, LH Thread
                from £57.51
                from £57.51
                TOWING EYE Genuine Aston Martin - New (to order)
                # 3
                MPN: CD33-17B804-BA
                TOWING EYE
                See SA-01-0247V2, RH Thread
                from £57.51
                from £57.51
                TOWING EYE Genuine Aston Martin - New (to order)
                # 4
                MPN: 4G43-6367912-AC
                NUT PLATE ASSEMBLY, CRASH CAN LOWER
                from £4.20
                from £4.20
                Genuine Aston Martin (no longer available to order)
                NUT PLATE, FRONT CRASH CAN Genuine Aston Martin - Used In stock
                # 5
                MPN: 704495
                SCREW, M8 X 35, HEX FLANGE HEAD
                from £6.99
                from £6.99
                SCREW-M8X35 HEX FLANGE Genuine Aston Martin - New (to order)
                # 6
                MPN: DD43-V17N800-BA
                CRASH CAN, BUMPER FRONT
                Structural. Cat A Only
                from £1,237.85
                from £1,237.85
                CRASH CAN, FRONT BUMPER Genuine Aston Martin - New (to order)
                # 7
                MPN: CD33-3804-AC
                BRACKET, BONNET LATCH MOUNTING
                from £184.53
                from £184.53
                BRACKET, BONNET LATCH MOUNTING Genuine Aston Martin - New (to order)
                # 8
                MPN: 703265
                SCREW, M6 X 16, HEX FLANGE HEAD
                from £0.47
                from £0.47
                SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                # 9
                MPN: 7G33-19E642-AA
                SENSOR, AMBIENT AIR
                Supersession
                Supersession
                Genuine Aston Martin (no longer available to order)
                # 10
                MPN: DG43-17K906-AA
                PLUG & GRIP, 15MM
                from £4.84
                from £4.84
                PLUG AND GRIP, 15MM Genuine Aston Martin - New (to order)
