aston martin vanquish (2016) pillar trim, upper, coupe parts diagram

01-0513-04 - Pillar Trim, Upper, Coupe

Aston Martin Vanquish (2016) Pillar Trim, Upper, Coupe Parts Diagram

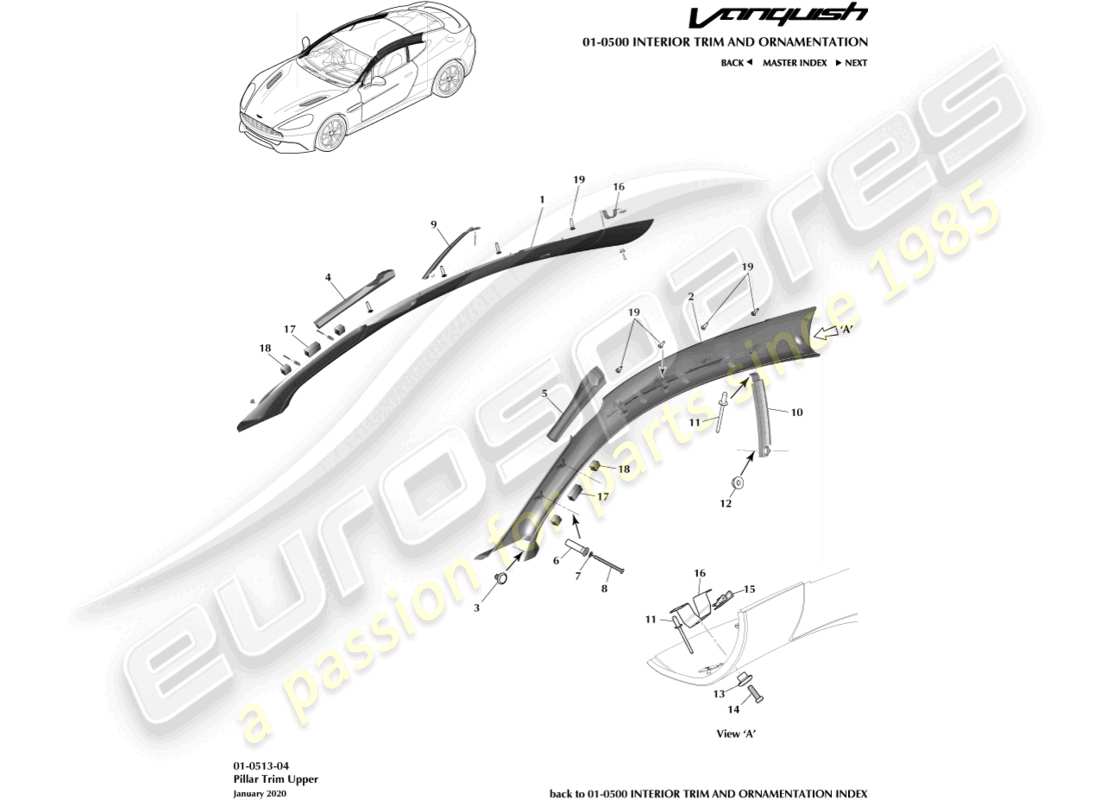

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # 1
                          MPN: CD33-025B38-AEW
                          TRIM, A-PILLAR, RH
                          FROM VIN J00656
                          from £716.03
                          from £716.03
                          TRIM, A-PILLAR, RH Genuine Aston Martin - New (to order)
                          # 1
                          MPN: ED33-025B38-ABW
                          TRIM, A-PILLAR, RH
                          14.5MY
                          from £1,220.20
                          from £1,220.20
                          TRIM, A-PILLAR, RH Genuine Aston Martin - New (to order)
                          # 2
                          MPN: CD33-025B39-AEW
                          TRIM, A-PILLAR, LH
                          FROM VIN J00656
                          from £716.03
                          from £716.03
                          TRIM, A-PILLAR, LH Genuine Aston Martin - New (to order)
                          # 2
                          MPN: ED33-025B39-ABW
                          TRIM, A-PILLAR, LH
                          14.5MY
                          from £1,220.27
                          from £1,220.27
                          TRIM, A-PILLAR, LH Genuine Aston Martin - New (to order)
                          # 3
                          MPN: 6G33-29012-AA
                          FIR TREE, OBSIDIAN BLACK
                          from £2.57
                          from £2.57
                          FIR TREE ASSEMBLY Genuine Aston Martin - New (to order)
                          # 3
                          MPN: 6G33-29012-BA
                          FIR TREE, IVORY
                          from £11.03
                          from £11.03
                          FIR TREE ASSY-IVORY Genuine Aston Martin - New (to order)
                          # 3
                          MPN: 6G33-29012-CA
                          FIR TREE, TAILORS GREY
                          from £2.57
                          from £2.57
                          FIR TREE ASSEMBLY Genuine Aston Martin - New (to order)
                          # 3
                          MPN: 6G33-29012-FA
                          FIR TREE, ARCTIC BLUE
                          from £2.54
                          from £2.54
                          FIR TREE ASSEMBLY Genuine Aston Martin - New (to order)
                          # 3
                          MPN: 6G33-29012-GA
                          FIR TREE, CHANCELLOR RED
                          from £2.54
                          from £2.54
                          FIR TREE ASSEMBLY Genuine Aston Martin - New (to order)
                          # 3
                          MPN: 6G33-29012-HA
                          FIR TREE, BLUE HAZE
                          from £2.54
                          from £2.54
                          FIR TREE ASSEMBLY Genuine Aston Martin - New (to order)
                          # 3
                          MPN: 6G33-29012-JA
                          FIR TREE, MOON SHADOW
                          from £2.54
                          from £2.54
                          FIR TREE ASSEMBLY Genuine Aston Martin - New (to order)
                          # 3
                          MPN: 6G33-29012-KA
                          FIR TREE, MID TAN
                          from £2.67
                          from £2.67
                          FIR TREE ASSEMBLY Genuine Aston Martin - New (to order)
                          # 3
                          MPN: 6G33-29012-LA
                          FIR TREE, BITTER CHOCOLATE
                          from £11.03
                          from £11.03
                          FIR TREE ASSY-B/CHCK Genuine Aston Martin - New (to order)
                          # 3
                          MPN: 6G33-29012-MA
                          FIR TREE, PURE BLACK
                          from £2.79
                          from £2.79
                          FIR TREE, PURE BLACK Genuine Aston Martin - New (to order)
                          # 3
                          MPN: 6G33-29012-NA
                          FIR TREE, ICE MOCHA
                          from £5.31
                          from £5.31
                          FIR TREE, ICE MOCHA Genuine Aston Martin - New (to order)
                          # 3
                          MPN: 6G33-29012-PA
                          FIR TREE, GREY BLEND
                          from £5.29
                          from £5.29
                          FIR TREE, GREY BLEND Genuine Aston Martin - New (to order)
                          # 3
                          MPN: 6G33-29012-QA
                          FIR TREE, TAN BLEND
                          FIR TREE, TAN BLEND Genuine Aston Martin - New (to order)
                          # 3
                          MPN: 6G33-29012-RA
                          FIR TREE, CIRRUS GREY
                          from £2.43
                          from £2.43
                          FIR TREE, CIRRUS GREY Genuine Aston Martin - New (to order)
                          # 4
                          MPN: CD33-40380-AD
                          ENERGY ABSORBER, PILLAR TRIM UPPER, RH
                          from £33.40
                          from £33.40
                          ENERGY ABSORBER, PILLAR TRIM UPPER, RH Genuine Aston Martin - New (to order)
                          # 4
                          MPN: ED33-40380-AB
                          ENERGY ABSORBER, PILLAR TRIM UPPER, RH
                          14.5MY
                          from £28.19
                          from £28.19
                          ENERGY ABSORBER, PILLAR TRIM UPPER, RH Genuine Aston Martin - New (to order)
                          # 5
                          MPN: CD33-40381-AD
                          ENERGY ABSORBER, PILLAR TRIM UPPER, LH
                          from £55.61
                          from £55.61
                          ENERGY ABSORBER, PILLAR TRIM UPPER, LH Genuine Aston Martin - New (to order)
                          # 5
                          MPN: ED33-40381-AB
                          ENERGY ABSORBER, PILLAR TRIM UPPER, LH
                          14.5MY
                          from £28.19
                          from £28.19
                          ENERGY ABSORBER, PILLAR TRIM UPPER, LH Genuine Aston Martin - New (to order)
                          # 6
                          MPN: GOAD43-F025B06-AB
                          SLEEVE, FRONT BODY PILLAR TUB UPPER
                          from £5.76
                          from £5.76
                          SLEEVE, FRONT BODY PILLAR TUBE, UPPER Genuine Aston Martin - New (to order)
                          # 7
                          MPN: 692054
                          WASHER, M4, PLAIN
                          from £0.47
                          from £0.47
                          WASHER, PLAIN, M4 Genuine Aston Martin - New (to order)
                          # 8
                          MPN: AD43-78782-BB
                          SCREW, 4.2X57, CSK SELF TAPPING
                          SCREW, 4.2X57, COUNTERSUNK SELF TAPPING Genuine Aston Martin - New (to order)
                          # 9
                          MPN: CD33-24570-AD
                          PANEL ASSEMBLY, CENTRE BODY PILLAR TRIM, RH
                          from £40.80
                          from £40.80
                          PANEL ASSEMBLY, CENTRE BODY PILLAR TRIM, RH Genuine Aston Martin - New (to order)
                          # 10
                          MPN: CD33-24571-AD
                          PANEL ASSEMBLY, CENTRE BODY PILLAR TRIM, LH
                          from £39.78
                          from £39.78
                          PANEL ASSEMBLY, CENTRE BODY PILLAR TRIM, LH Genuine Aston Martin - New (to order)
                          # 11
                          MPN: 6G33-37949-AA
                          RIVET, BLIND, 4.8 X 13.9
                          from £0.47
                          from £0.47
                          RIV 4.8 X 13.9 BLND Genuine Aston Martin - New (to order)
                          # 12
                          MPN: 702944
                          NUT, M6, HEX FLANGE HEAD
                          from £0.58
                          from £0.58
                          NUT M6 HEX FLNG MTL8 Genuine Aston Martin - New (to order)
                          LOWER MESH NUTS Genuine Ferrari Part - New (to order)
                          # 13
                          MPN: DD33-18564-BA
                          BUTTON, COAT HOOK
                          Satin Chrome
                          from £28.90
                          from £28.90
                          BUTTON, COAT HOOK Genuine Aston Martin - New (to order)
                          # 13
                          MPN: DD33-18564-AA
                          BUTTON, COAT HOOK
                          Shadow Bronze
                          from £30.32
                          from £30.32
                          BUTTON, COAT HOOK Genuine Aston Martin - New (to order)
                          # 14
                          MPN: 6G33-SS106209-AB
                          BOLT, M6X20, SKT HD
                          Satin Chrome Hook
                          from £0.47
                          from £0.47
                          BOLT, M6X20, SOCKET HD Genuine Aston Martin - New (to order)
                          # 14
                          MPN: 8D33-68D11-AA
                          BOLT, M6X20, SKT HD
                          Shadow Bronze Hook
                          from £0.47
                          from £0.47
                          M6X20 SOCKET LW HD BOLT Genuine Aston Martin - New (to order)
                          # 15
                          MPN: 7G43-10609E-AA-PK
                          CLIP, SPRING U TYPE, 1.5-4.0
                          Pack of 10
                          from £5.08
                          from £5.08
                          CLIP SPG M6 PK OF 10 Genuine Aston Martin - New In stock
                          FRONT UNDERTRAY CLIP Genuine Ferrari Part - New (to order)
                          # 16
                          MPN: CD33-03526-AA
                          BRACKET, COAT HOOK
                          BRACKET, COAT HOOK Genuine Aston Martin - New (to order)
                          # 17
                          MPN: 4G43-46660-AA
                          FOAM BLOCK
                          from £12.82
                          from £12.82
                          FOAM BLOCK, PARCEL SHELF Genuine Aston Martin - New (to order)
                          # 18
                          MPN: AG43-46660-BA
                          FOAM BLOCK
                          from £0.47
                          from £0.47
                          FOAM BLOCK Genuine Aston Martin - New (to order)
                          # 19
                          MPN: 702629
                          SCREW, M6X19, PAN HEAD
                          from £0.71
                          from £0.71
                          SCREW, M6X19, PAN HEAD Genuine Aston Martin - New (to order)
                          # -
                          -
                          ADHESIVE 1358, 1 LTR
                          Not illustrated
                          # -
                          -
                          TAPE, ADHESIVE
                          Not illustrated
