aston martin vanquish (2016) deployable rollbar, volante parts diagram

01-2010-05 - Deployable Rollbar, Volante

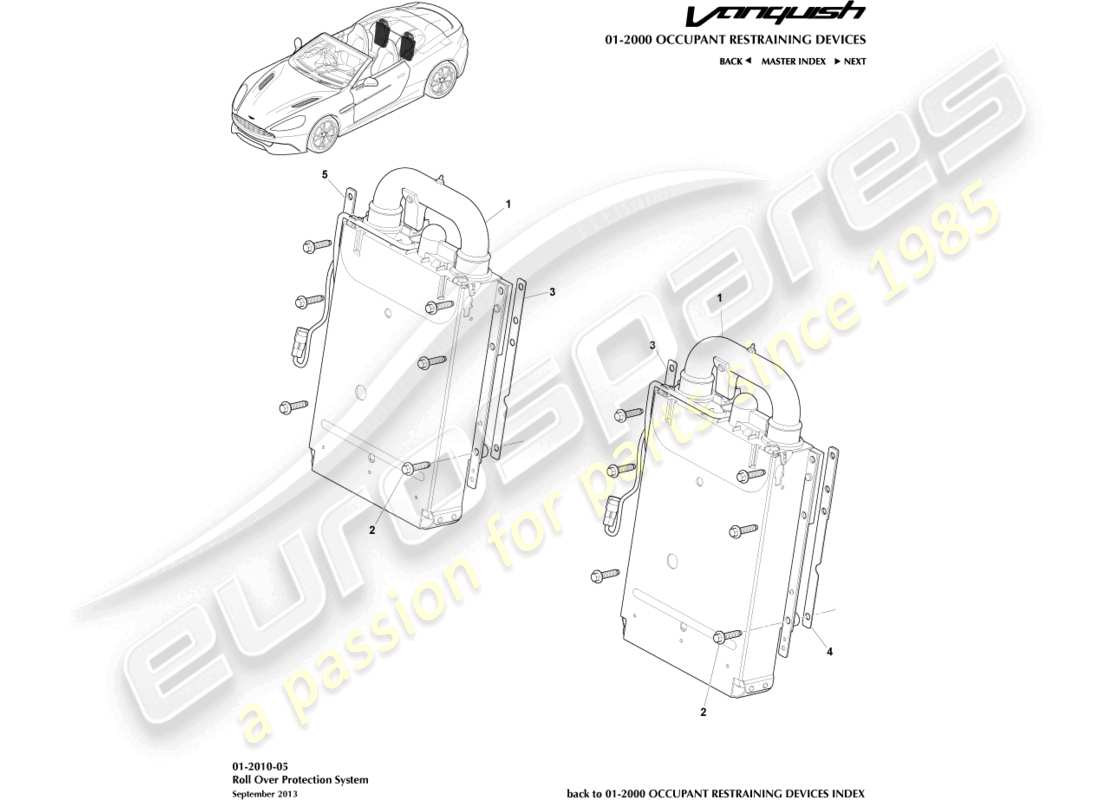

Aston Martin Vanquish (2016) Deployable Rollbar, Volante Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Key
            Price
            # 1
            MPN: 6W83-518C42-AC
            ROLLOVER PROTECTION SYSTEM
            from £556.26
            from £556.26
            ROLLOVER PROTECTION SYSTEM Genuine Aston Martin - New (to order)
            # 2
            MPN: 703153
            BOLT, M8 X 33, HEX FLANGE HEAD
            from £1.37
            from £1.37
            BOLT M8X33 HEX FLNG Genuine Aston Martin - New (to order)
            # 3
            MPN: 7G43-L3981X-AA
            SPACER PLATE, CENTRE
            from £9.50
            from £9.50
            SPACER PLATE, CENTRE Genuine Aston Martin - New (to order)
            # 4
            MPN: 7G43-L3981X-BA
            SPACER PLATE, OUTER LEFT
            from £15.38
            from £15.38
            SPACER PLATE, OUTER LEFT Genuine Aston Martin - New (to order)
            # 5
            MPN: 7G43-L3981X-CA
            SPACER PLATE, OUTER RIGHT
            from £15.27
            from £15.27
            SPACER PLATE Genuine Aston Martin - New (to order)
