03-0200-E1 - Engine Lubrication

Aston Martin Vanquish (2016) Engine Lubrication Parts Diagram

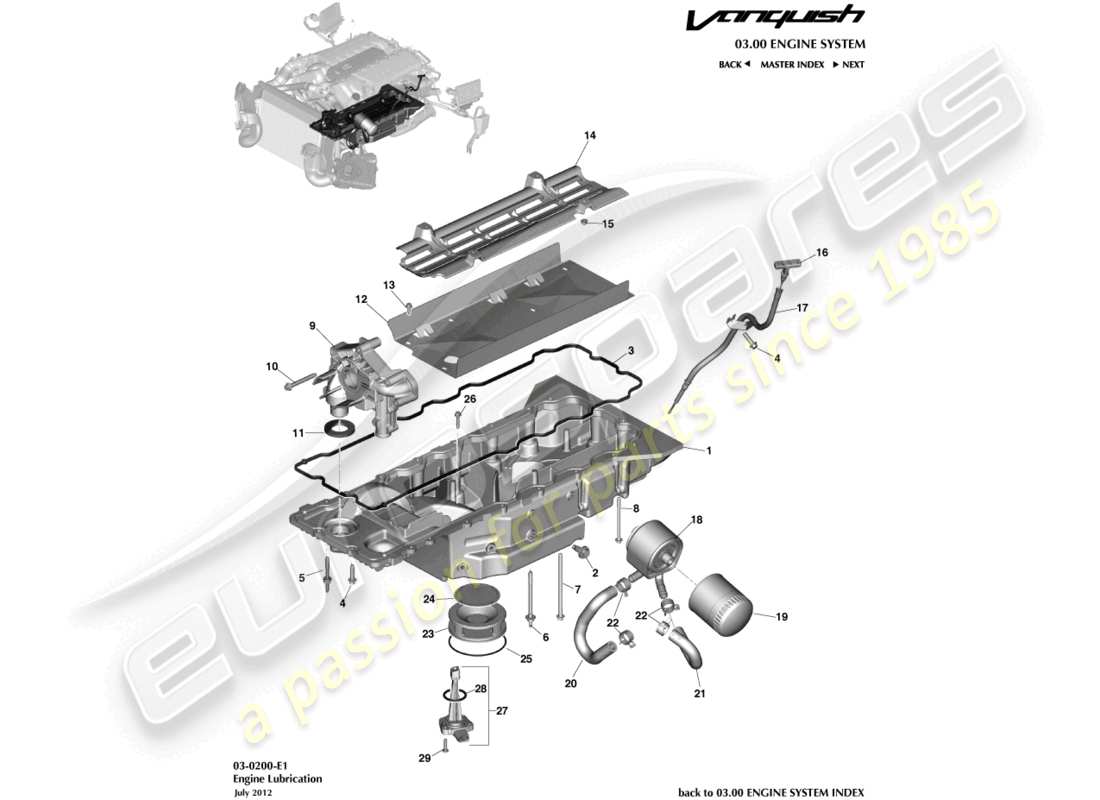

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Key
                                          Price
                                          # 1
                                          MPN: CD33-6675-CC
                                          OIL PAN ASSEMBLY
                                          Includes items 2, and 23-29. See Service Bulletin SB-03-0371.
                                          OIL PAN ASSEMBLY Genuine Aston Martin - New (to order)
                                          # 2
                                          MPN: 4G43-04-10205
                                          DRAIN PLUG, M12
                                          Minimum order quantity of8
                                          from £13.32
                                          from £13.32
                                          DRAIN PLUG, OIL PAN Genuine Aston Martin - New In stock
                                          # 3
                                          MPN: 04-85092
                                          GASKET, OIL PAN
                                          from £64.31
                                          from £64.31
                                          GASKET, OIL PAN Genuine Aston Martin - New In stock
                                          # 4
                                          MPN: 702526
                                          SCREW, M8X30
                                          from £0.47
                                          from £0.47
                                          SCREW, M8X30 Genuine Aston Martin - New (to order)
                                          # 5
                                          MPN: 702604
                                          STUD AND WASHER, M6X20
                                          from £18.04
                                          from £18.04
                                          STUD&WSHR M6X20+M8X4 Genuine Aston Martin - New (to order)
                                          # 6
                                          MPN: W714403-S437
                                          STUD, M8X103+6X13
                                          STUD, M8X103+6X13 Genuine Aston Martin - New (to order)
                                          # 7
                                          MPN: W711831-S442
                                          BOLT, M8X140
                                          BOLT, M8X140 Genuine Aston Martin - New (to order)
                                          # 8
                                          MPN: W704087-S437
                                          BOLT, M8X105
                                          BOLT, M8X105 Genuine Aston Martin - New (to order)
                                          # 9
                                          MPN: 8G43-04-11112
                                          PUMP ASSY, OIL
                                          from £1,484.68
                                          from £1,484.68
                                          SERVICE ASSY-OIL PMP Genuine Aston Martin - New (to order)
                                          # 10
                                          MPN: 702552
                                          BOLT, M8X70
                                          from £0.68
                                          from £0.68
                                          BOLT M8 X 70 Genuine Aston Martin - New (to order)
                                          # 11
                                          MPN: 4G43-04-10196
                                          SEAL, OIL PUMP PICKUP TUBE TO PAN
                                          from £61.29
                                          from £61.29
                                          SEAL, OIL PUMP PICKUP TUBE TO PAN Genuine Aston Martin - New (to order)
                                          # 12
                                          MPN: 8D33-6686-AD
                                          BAFFLE PLATE, OIL PAN
                                          from £126.15
                                          from £126.15
                                          BAFFLE, OIL PAN Genuine Aston Martin - New (to order)
                                          # 13
                                          MPN: 705052
                                          SCREW, M6X14
                                          from £8.26
                                          from £8.26
                                          SCREW, M6X14 Genuine Aston Martin - New (to order)
                                          # 14
                                          MPN: AD23-6B660-AC
                                          TRAY, WINDAGE
                                          from £186.83
                                          from £186.83
                                          TRAY, WINDAGE Genuine Aston Martin - New (to order)
                                          # 15
                                          MPN: 703169
                                          NUT, M6, HEX FLANGE
                                          from £0.71
                                          from £0.71
                                          This part replaces part number 703168
                                          NUT M6 HEX FLANGE Genuine Aston Martin - New (to order)
                                          # 16
                                          MPN: 8D33-6750-CA
                                          OIL LEVEL INDICATOR ASSY
                                          from £29.67
                                          from £29.67
                                          OIL LEVEL INDICATOR ASSEMBLY Genuine Aston Martin - New (to order)
                                          # 16
                                          MPN: 4G43-6K804-AA
                                          LABEL, ENGINE OIL DIPSTICK
                                          Not illustrated
                                          from £4.71
                                          from £4.71
                                          LABEL, ENGINE OIL DIPSTICK Genuine Aston Martin - New (to order)
                                          # 17
                                          MPN: CD33-6754-AB
                                          TUBE ASSY, OIL LEVEL INDICATOR
                                          from £41.10
                                          from £41.10
                                          TUBE ASSEMBLY, OIL LEVEL INDICATOR Genuine Aston Martin - New (to order)
                                          # 18
                                          MPN: CD33-6A642-AA
                                          OIL COOLER, ENGINE
                                          from £611.93
                                          from £611.93
                                          OIL COOLER, ENGINE Genuine Aston Martin - New (to order)
                                          # 19
                                          MPN: AG43-6714-AA-PK
                                          OIL FILTER
                                          Pack of 12
                                          from £25.18
                                          from £25.18
                                          OIL FILTER (PK of 10) Genuine Aston Martin - New (to order)
                                          Alternative (#AG43-6714-AA) OIL FILTER (single) Genuine Aston Martin - New In stock
                                          # 20
                                          MPN: CD33-8B451-AC
                                          HOSE ASSY, OIL COOLER OUTLET
                                          Includes Item 22
                                          from £108.32
                                          from £108.32
                                          HOSE ASSEMBLY, OIL COOLER OUTLET Genuine Aston Martin - New (to order)
                                          # 21
                                          MPN: CD33-6N867-AA
                                          HOSE ASSY, OIL COOLER INLET
                                          Includes Item 22
                                          from £18.47
                                          from £18.47
                                          HOSE ASSEMBLY, OIL COOLER INLET Genuine Aston Martin - New (to order)
                                          # 22
                                          MPN: 32-85381
                                          CLAMP
                                          from £3.99
                                          from £3.99
                                          CLAMP Genuine Aston Martin - New (to order)
                                          # 25
                                          MPN: CD33-6625-BA
                                          O RING
                                          from £32.46
                                          from £32.46
                                          O RING Genuine Aston Martin - New (to order)
                                          # 26
                                          MPN: CD33-10630C-AA
                                          BOLT, M6X30
                                          BOLT, M6X30 Genuine Aston Martin - New (to order)
                                          # 27
                                          MPN: 4G43-04-10972
                                          SENSOR ASSY, ENGINE LOW OIL LEVEL
                                          from £59.17
                                          from £59.17
                                          SNSR ASSY-ENG LOWOIL Genuine Aston Martin - New (to order)
                                          # 28
                                          MPN: 8W93-87030-BA
                                          O RING, ENGINE LOW OIL LEVEL SENSOR
                                          ALWAYS REPLACE. DO NOT RE-USE
                                          from £22.68
                                          from £22.68
                                          O RING, ENGINE LOW OIL LEVEL SENSOR Genuine Aston Martin - New (to order)
                                          # 29
                                          MPN: 699842
                                          SCREW, M6X25, PAN HEAD
                                          SCREW, M6 Genuine Aston Martin - New (to order)
